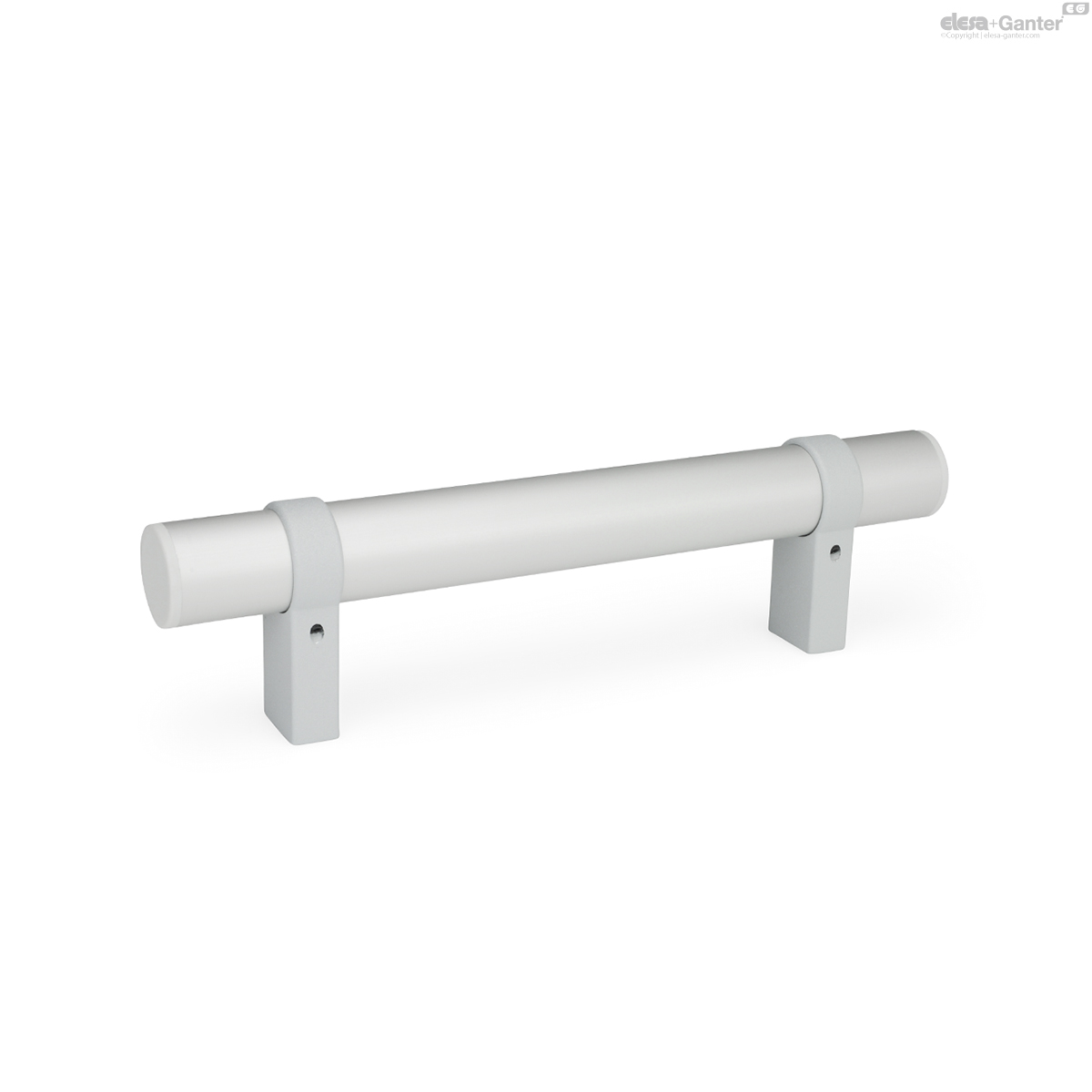

GN 333.3

Tubular Handles

Tube Aluminum, Legs Zinc Die Casting, with Movable Handle Legs

Enquire Now

Description

Specification

Type

Type A: Mounting from the back (threaded blind bore)

Handle tube

Aluminum, wall thickness 1,5 mm

Powder coated

Black, RAL 9005, textured finish SW

Handle legs black

Anodized, natural color ELS

Handle legs black

Anodized, natural color ELG

Handle legs silver

Handle legs

Zinc die casting

Powder coated, textured finish

Black, RAL 9005 for SW / ELS

Silver, RAL 9006 for ELG

Cover

Plastic

Black, matte finish for SW / ELS

Light gray, matte finish for ELG

Information

The spacing of the attachment holes of the tubular handles GN 333.3 is adjustable.

Further handle legs can be added for very long tubular handles. Individual handle legs for tubular handles Ø 28 (type A) are available under GN 333.9.

Tubular handles GN 333.3 are supplied unassembled.

Accessory

GN 333.9 Handle Legs

On request

Special lengths

Technical information

Load Rating Information

GN 333.3

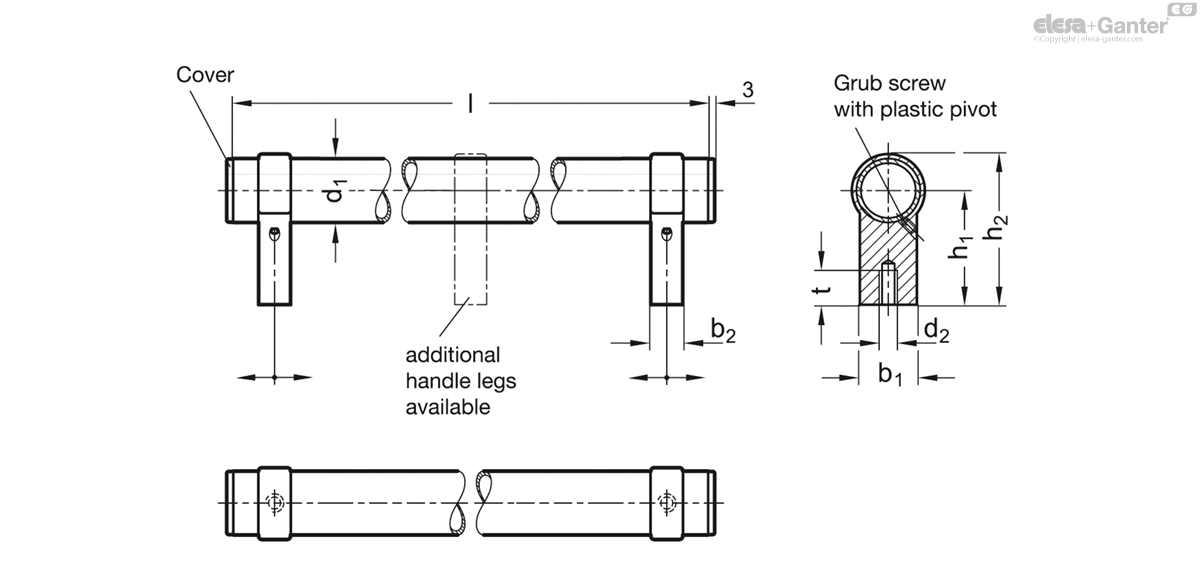

	Color	d₁	Length l	d₂	b₁	b₂	h₁	h₂	t min.
Code											Actions
GN 333.3-28-242-A-ELG	ELG - Anodized, natural color	28	242	M 8	25	14	50	66	15	300
GN 333.3-28-242-A-ELS	ELS - Anodized	28	242	M 8	25	14	50	66	15	300
GN 333.3-28-242-A-SW	SW - RAL 9005	28	242	M 8	25	14	50	66	15	300
GN 333.3-28-292-A-ELG	ELG - Anodized, natural color	28	292	M 8	25	14	50	66	15	320
GN 333.3-28-292-A-ELS	ELS - Anodized	28	292	M 8	25	14	50	66	15	320
GN 333.3-28-292-A-SW	SW - RAL 9005	28	292	M 8	25	14	50	66	15	320
GN 333.3-28-392-A-ELG	ELG - Anodized, natural color	28	392	M 8	25	14	50	66	15	375
GN 333.3-28-392-A-ELS	ELS - Anodized	28	392	M 8	25	14	50	66	15	375
GN 333.3-28-392-A-SW	SW - RAL 9005	28	392	M 8	25	14	50	66	15	375
GN 333.3-28-492-A-ELG	ELG - Anodized, natural color	28	492	M 8	25	14	50	66	15	420
GN 333.3-28-492-A-ELS	ELS - Anodized	28	492	M 8	25	14	50	66	15	420
GN 333.3-28-492-A-SW	SW - RAL 9005	28	492	M 8	25	14	50	66	15	420
GN 333.3-28-592-A-ELG	ELG - Anodized, natural color	28	592	M 8	25	14	50	66	15	480
GN 333.3-28-592-A-ELS	ELS - Anodized	28	592	M 8	25	14	50	66	15	480
GN 333.3-28-592-A-SW	SW - RAL 9005	28	592	M 8	25	14	50	66	15	480
