GN 328.5
Cabinet U-Handles
Stainless steel precision casting

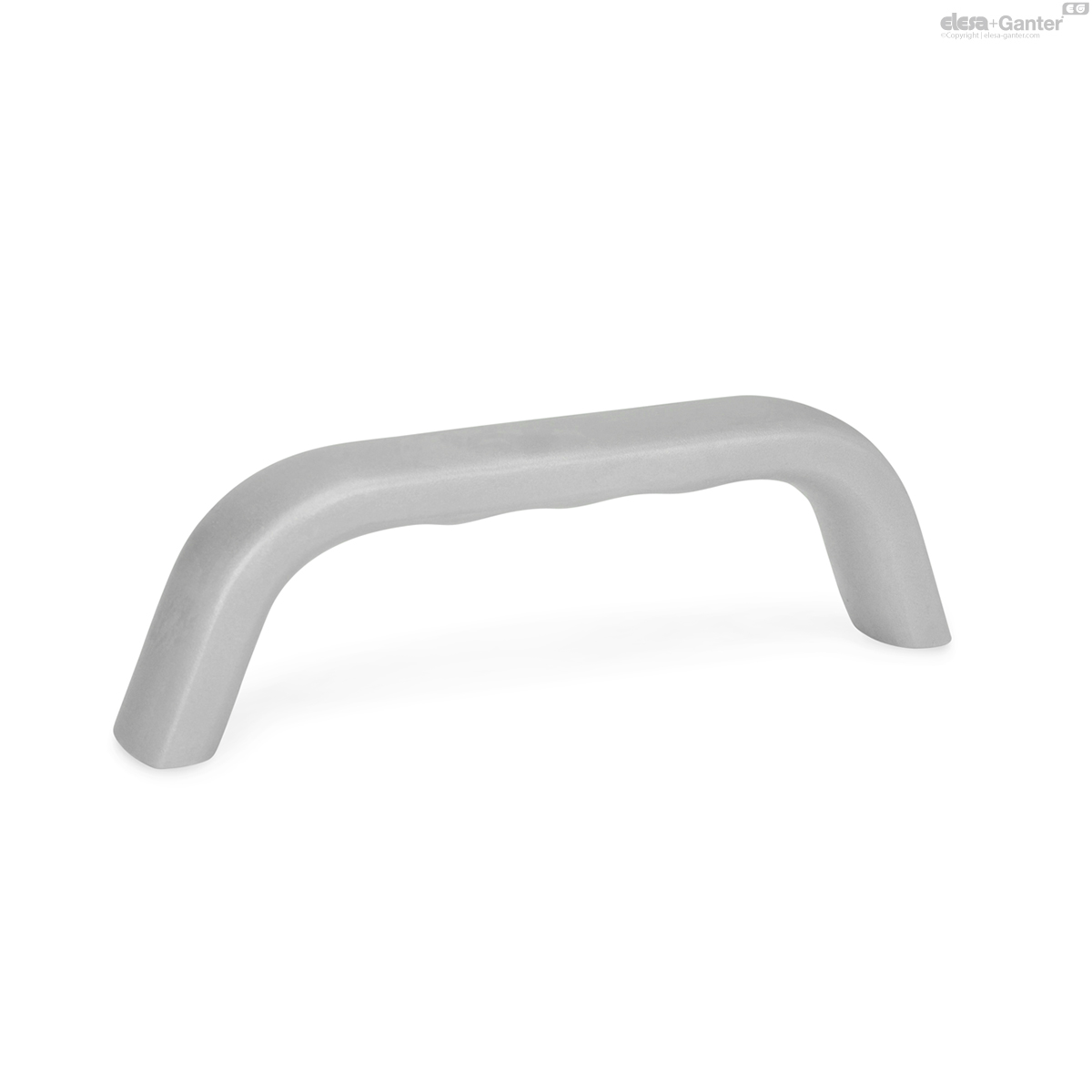

GN 328.5-A
Cabinet U-Handles
Mounting from the back (threaded blind bore)

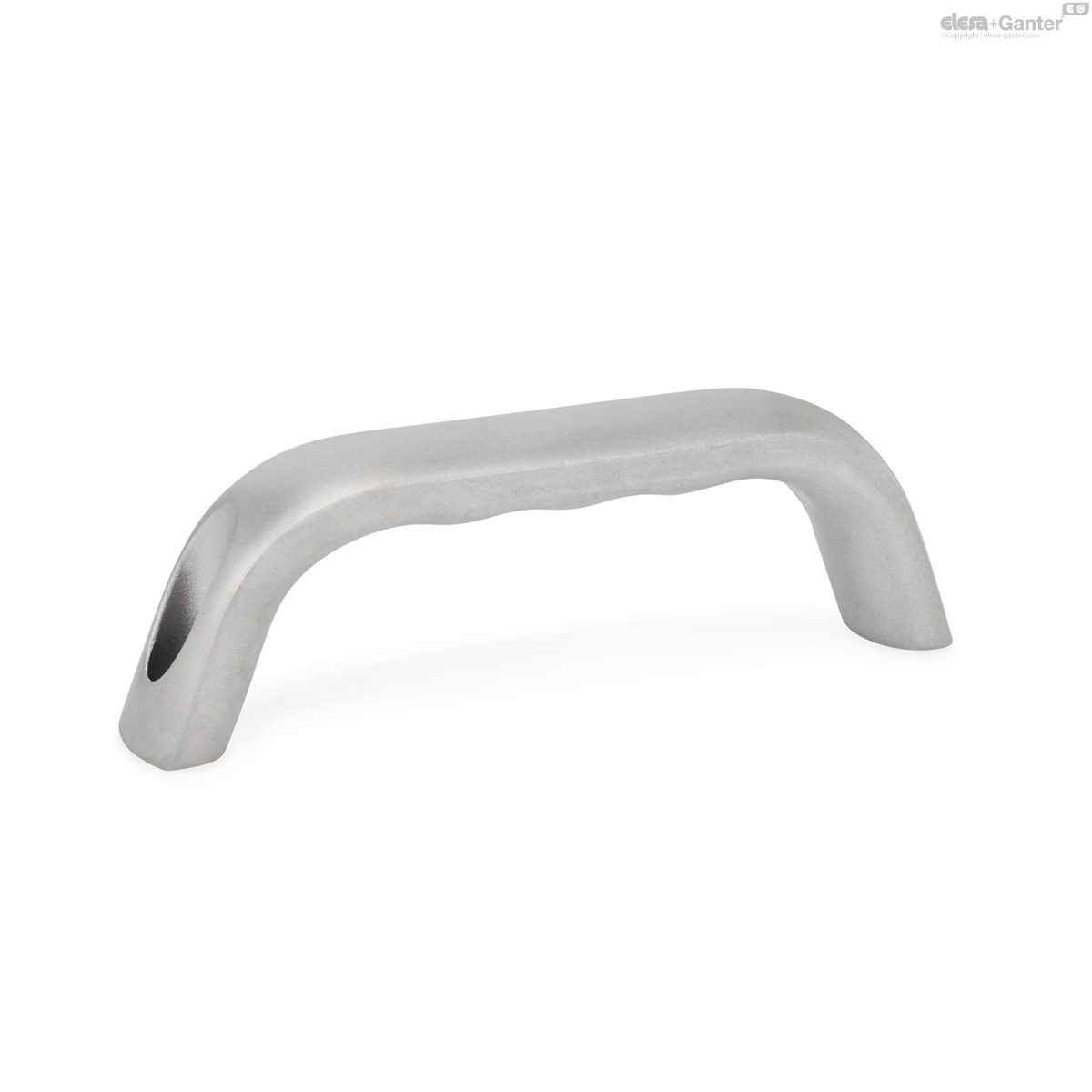

GN 328.5-B
Cabinet U-Handles
Mounting from the operator‘s side
Description
Specification
Types
- Type A: Mounting from the back (threaded blind bore)
- Type B: Mounting from the operator‘s side
Stainless steel precision casting AISI 316
Matte shot-blasted finish GS
Information
Cabinet U-handles GN 328.5 have excellent stability and ergonomic design. The finger recesses on the underside of the handle provide a specially comfortable grip.
On request
- Other finishes
Technical information
- Load Rating InformationÂ
- Stainless Steel CharacteristicsÂ

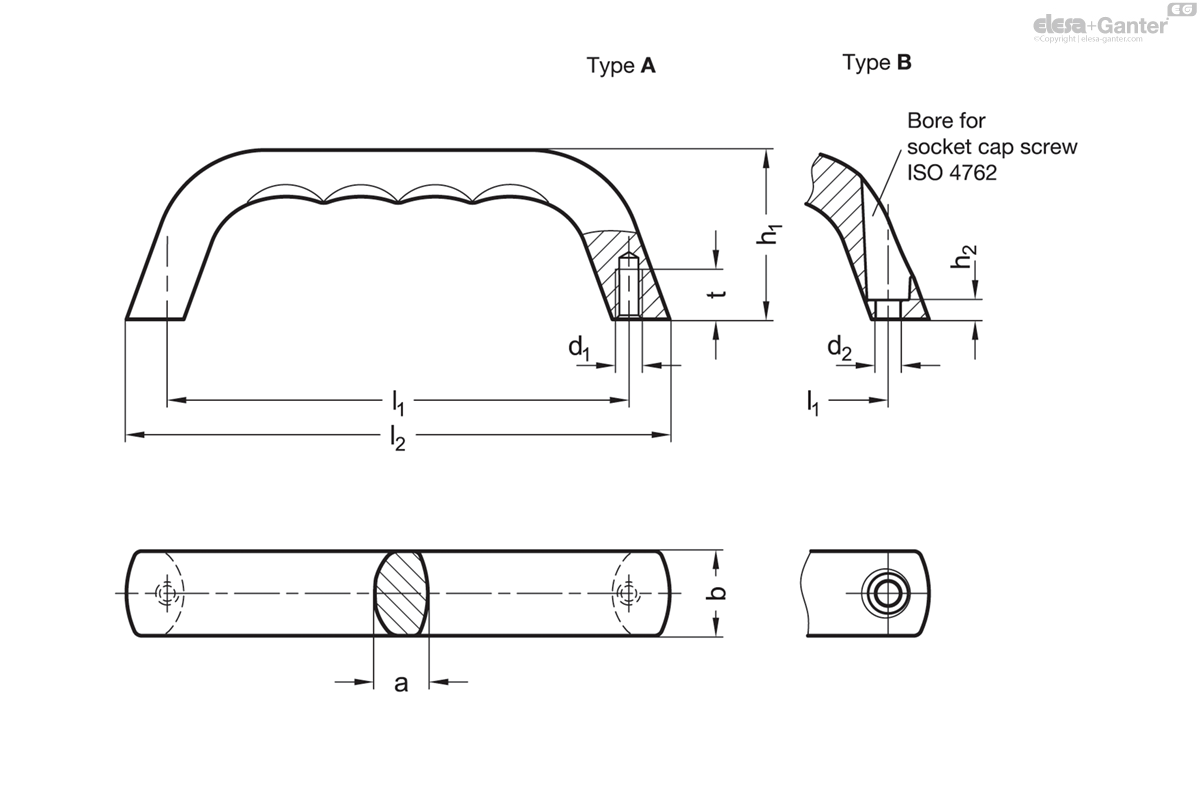

GN 328.5-A
| l1 | a | b | d1 | h1 | l2 | t |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 328.5-120-A-GS | 120 | 14 | 22 | M 6 | 44 | 141.2 | 13 | 318 |
|
| GN 328.5-140-A-GS | 140 | 18 | 28 | M 8 | 55 | 166.5 | 17 | 601 |
|
