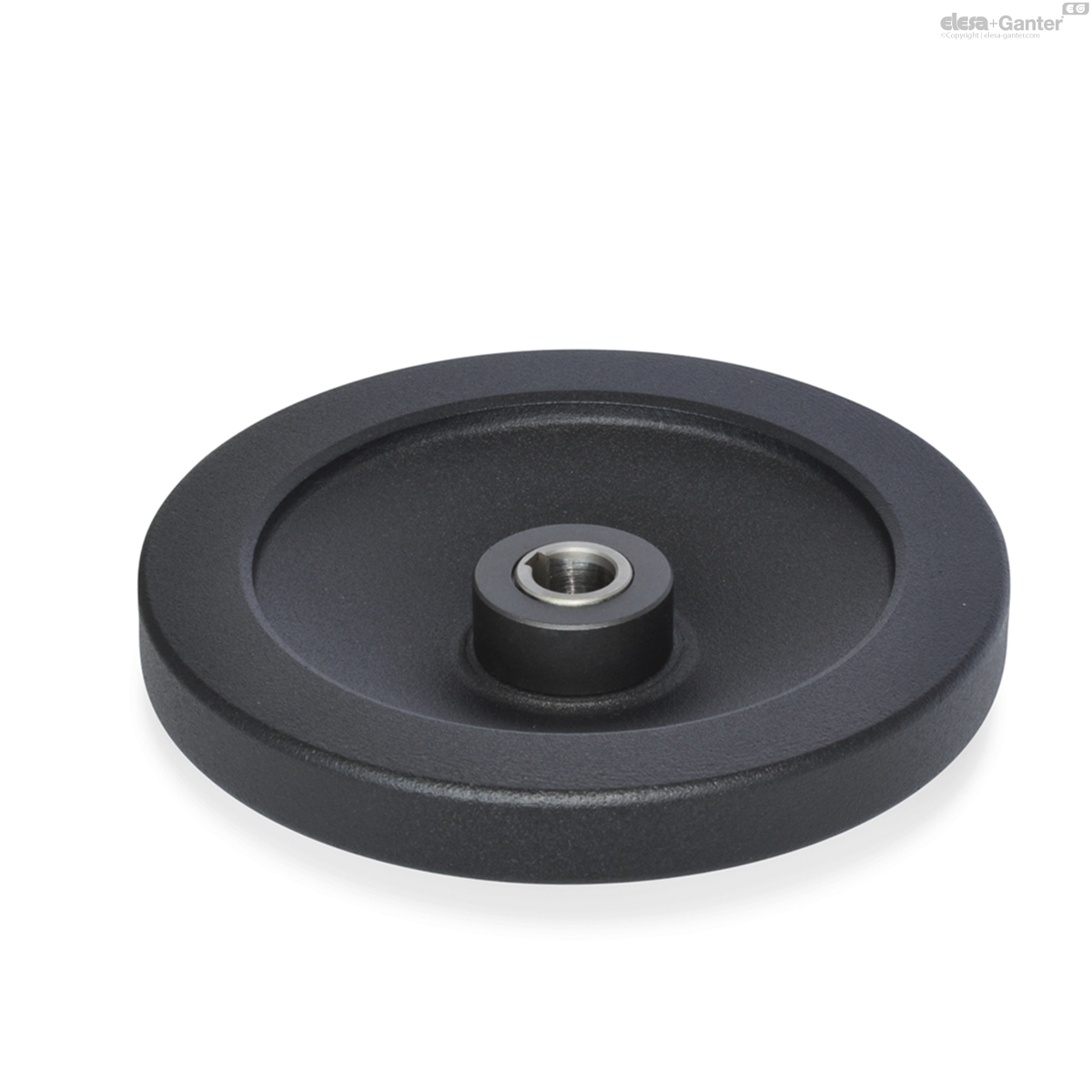

GN 323.5

Safety handwheels

needle bearing

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Wheel body

plastic coated

black, textured finish

Cylindrical Revolving handles GN 598

Steel, plastic coated

black, matt

Information

The use of coupling attachments in handwheels other than specified is also possible.

Technical information

	d₁	d₂ H7	d₃	d₄ max.	l₁ max.	l₂	l₃	w min.	Coupling
Code											Actions
GN 323.5-125-K12-A-DR	125	K 12	29	17	42	18	12	4	GN 000.5-1	423
GN 323.5-125-K12-A-ZI	125	K 12	29	17	42	18	12	-	GN 000.5-1	423
GN 323.5-140-K12-A-DR	140	K 12	29	17	42	19	12	4	GN 000.5-1	512
GN 323.5-140-K12-A-ZI	140	K 12	29	17	42	19	12	-	GN 000.5-1	512
GN 323.5-140-K14-A-DR	140	K 14	33	21	48	19	14	4	GN 000.5-2	594
GN 323.5-140-K14-A-ZI	140	K 14	33	21	48	19	14	-	GN 000.5-2	594
GN 323.5-160-K14-A-DR	160	K 14	33	21	48	20	14	4	GN 000.5-2	600
GN 323.5-160-K14-A-ZI	160	K 14	33	21	48	20	14	-	GN 000.5-2	600
GN 323.5-200-K18-A-DR	200	K 18	39	26	50	24	13	4	GN 000.5-3	1127
GN 323.5-200-K18-A-ZI	200	K 18	39	26	50	24	13	-	GN 000.5-3	1127
GN 323.5-250-K22-A-DR	250	K 22	46	30	54	28	13	4	GN 000.5-4	1837
GN 323.5-250-K22-A-ZI	250	K 22	46	30	54	28	13	-	GN 000.5-4	1837
