GN 322.5

Safety handwheels

with needle bearing

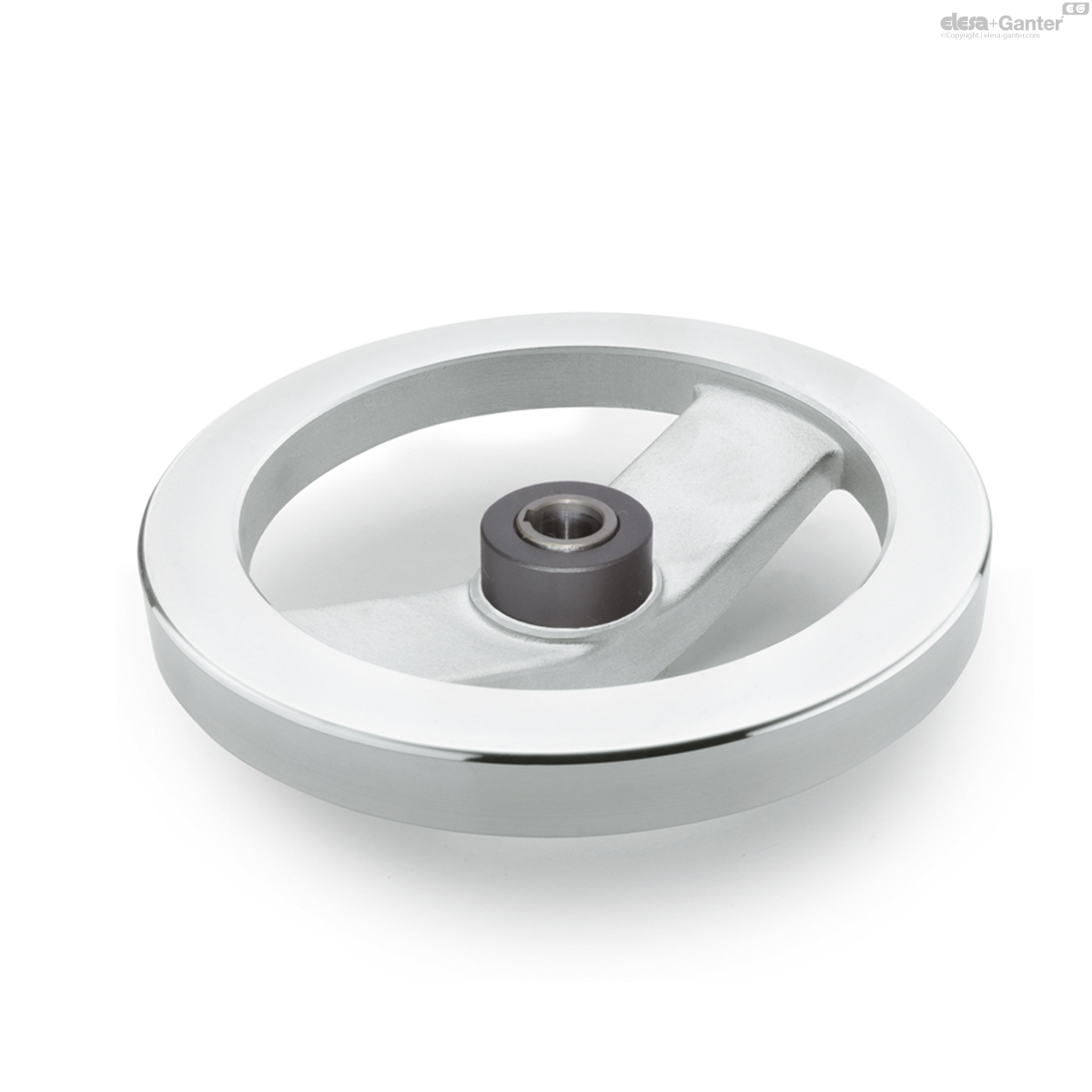

GN 322.5-A

Safety handwheels

without handle

GN 322.5-D

Safety handwheels

with revolving handle

GN 322.5-A

	d1	d2 H7	d3	d4 max.	l1 max.	l2	l3	w min.	Coupling
Code	All 125 140 160 200 250	All K 12 K 14 K 18 K 22	All 29 33 39 46	All 17 21 26 30	All 42 48 50 54	All 18 19 20 24 28	All 12 13 14	All - 4	All GN 000.5-1 GN 000.5-2 GN 000.5-3 GN 000.5-4	All 414 522 570 686 1117 1781	Actions
GN 322.5-125-K12-A-DR	125	K 12	29	17	42	18	12	4	GN 000.5-1	414
GN 322.5-125-K12-A-ZI	125	K 12	29	17	42	18	12	-	GN 000.5-1	414
GN 322.5-140-K12-A-DR	140	K 12	29	17	42	19	12	4	GN 000.5-1	522
GN 322.5-140-K12-A-ZI	140	K 12	29	17	42	19	12	-	GN 000.5-1	522
GN 322.5-140-K14-A-DR	140	K 14	33	21	48	19	14	4	GN 000.5-2	570
GN 322.5-140-K14-A-ZI	140	K 14	33	21	48	19	14	-	GN 000.5-2	570
GN 322.5-160-K14-A-DR	160	K 14	33	21	48	20	14	4	GN 000.5-2	686
GN 322.5-160-K14-A-ZI	160	K 14	33	21	48	20	14	-	GN 000.5-2	686
GN 322.5-200-K18-A-DR	200	K 18	39	26	50	24	13	4	GN 000.5-3	1117
GN 322.5-200-K18-A-ZI	200	K 18	39	26	50	24	13	-	GN 000.5-3	1117
GN 322.5-250-K22-A-DR	250	K 22	46	30	54	28	13	4	GN 000.5-4	1781
GN 322.5-250-K22-A-ZI	250	K 22	46	30	54	28	13	-	GN 000.5-4	1781

•
