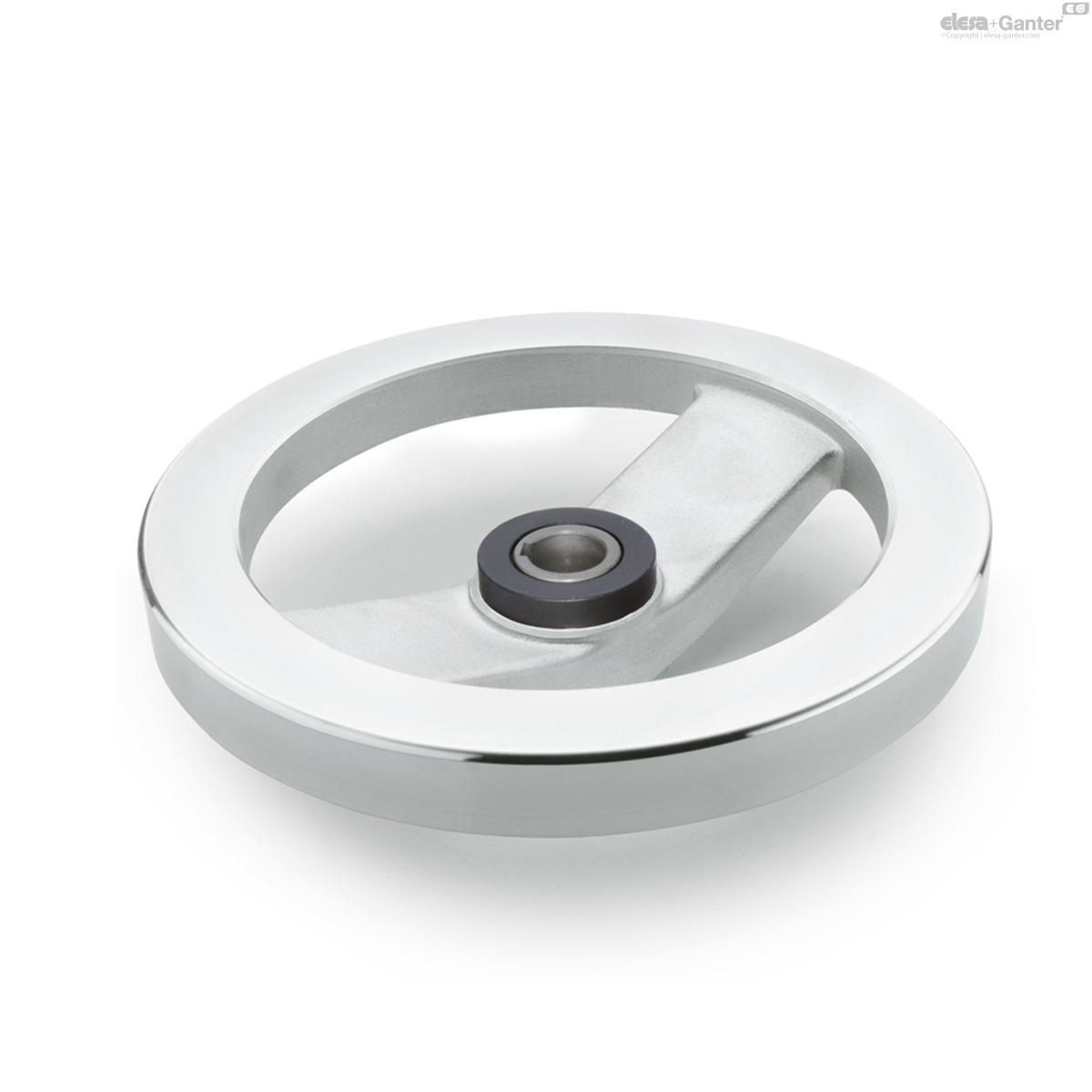

GN 322.4

Safety handwheels

with friction bearing

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Wheel body

Cylindrical Revolving handles GN 598 -

Steel, plastic coated, black, matt

Information

The use of coupling attachments in handwheels other than specified is also possible.

Technical information

	d₁	d₂ H7	d₃	d₄ max.	l₁ max.	l₂	l₃	w min.	Coupling
Code											Actions
GN 322.4-125-K12-A-DR	125	K 12	28	17	28.5	18	5	4	GN 000.4-1	368
GN 322.4-125-K12-A-ZI	125	K 12	28	17	28.5	18	5	-	GN 000.4-1	368
GN 322.4-140-K12-A-DR	140	K 12	28	17	28.5	19	5	4	GN 000.4-1	476
GN 322.4-140-K12-A-ZI	140	K 12	28	17	28.5	19	5	-	GN 000.4-1	476
GN 322.4-140-K14-A-DR	140	K 14	32	21	32.5	19	6	4	GN 000.4-2	499
GN 322.4-140-K14-A-ZI	140	K 14	32	21	32.5	19	6	-	GN 000.4-2	499
GN 322.4-140-K16-A-DR	140	K 16	32	21	32.5	19	6	4	GN 000.4-2	486
GN 322.4-140-K16-A-ZI	140	K 16	32	21	32.5	19	6	-	GN 000.4-2	486
GN 322.4-160-K14-A-DR	160	K 14	32	21	32.5	20	6	4	GN 000.4-2	615
GN 322.4-160-K14-A-ZI	160	K 14	32	21	32.5	20	6	-	GN 000.4-2	615
GN 322.4-160-K16-A-DR	160	K 16	32	21	32.5	20	6	4	GN 000.4-2	602
GN 322.4-160-K16-A-ZI	160	K 16	32	21	32.5	20	6	-	GN 000.4-2	602
GN 322.4-200-K18-A-DR	200	K 18	38	26	36.5	24	6	4	GN 000.4-3	1032
GN 322.4-200-K18-A-ZI	200	K 18	38	26	36.5	24	6	-	GN 000.4-3	1032
GN 322.4-200-K20-A-DR	200	K 20	38	26	36.5	24	6	4	GN 000.4-3	1015
GN 322.4-200-K20-A-ZI	200	K 20	38	26	36.5	24	6	-	GN 000.4-3	1015
GN 322.4-250-K22-A-DR	250	K 22	45	30	47.5	28	12	4	GN 000.4-4	1740
GN 322.4-250-K22-A-ZI	250	K 22	45	30	47.5	28	12	-	GN 000.4-4	1740
