GN 322.3

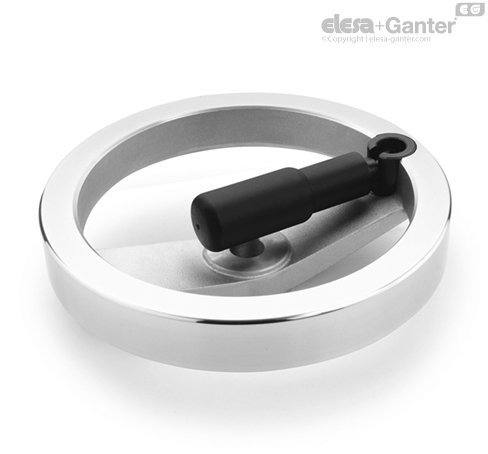

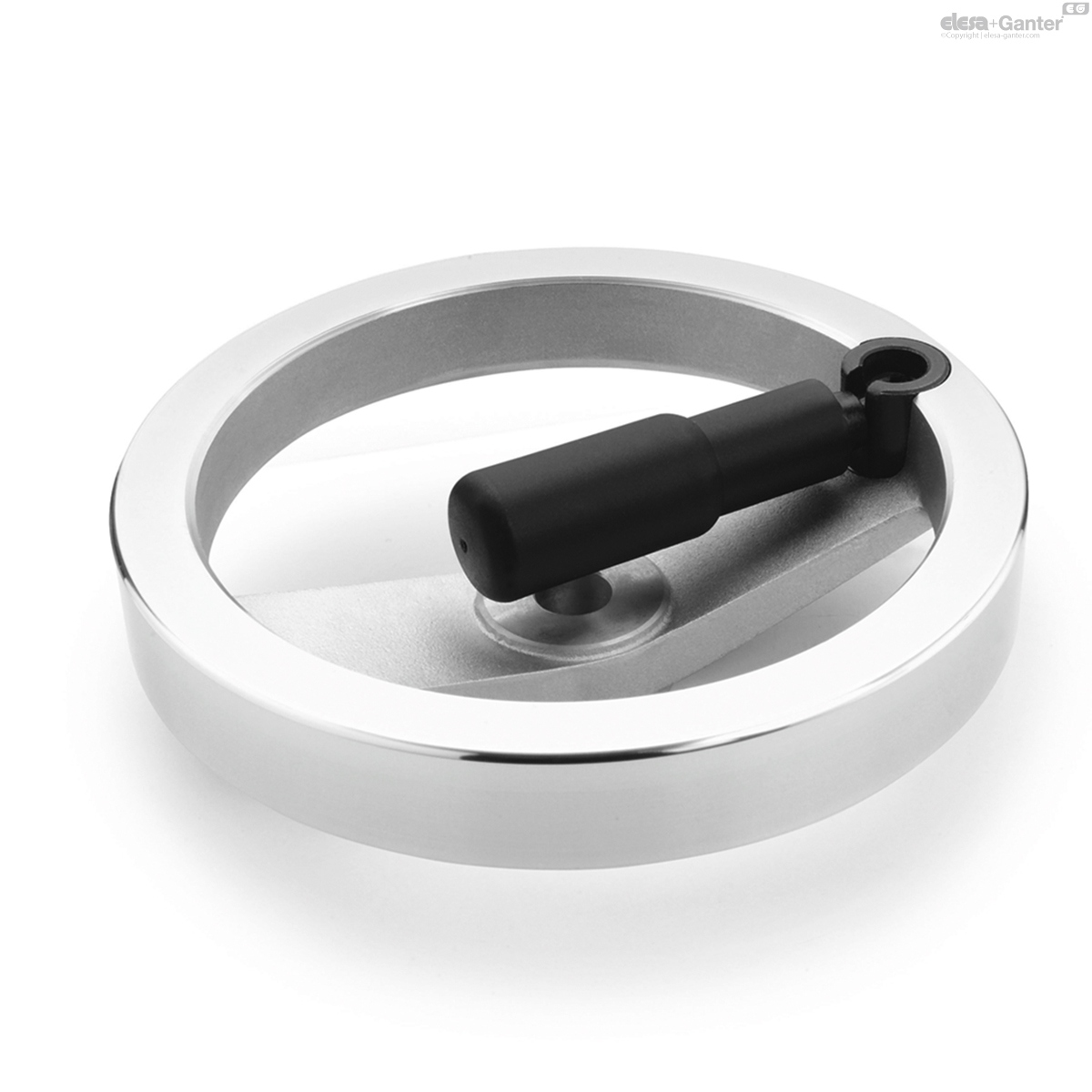

Handwheels with rectractable handle

Aluminium, Handle locked

Enquire Now

Description

Specification

Type

Type R: with retractable handle

Bore codes

Version B: without keyway

Version K: with keyway

Aluminium

Hub machined

Rim turned and polished

Unmachined body matt shot-blasted

Rim concentric and square to bore < 0.4

Retractable handles GN 798.3 -

Plastic, Technopolymer

black, matt

Retracting mechanism

Steel, blackened

Information

The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.

For reversal, it must first be pulled from the cone in axial direction. A pressure spring holds the handle in both positions. When swung out, it automatically engages again.

Technical information

Keyway P9 DIN 6885
Cross holes GN 110
ISO-Fundamental Tolerances

GN 322.3

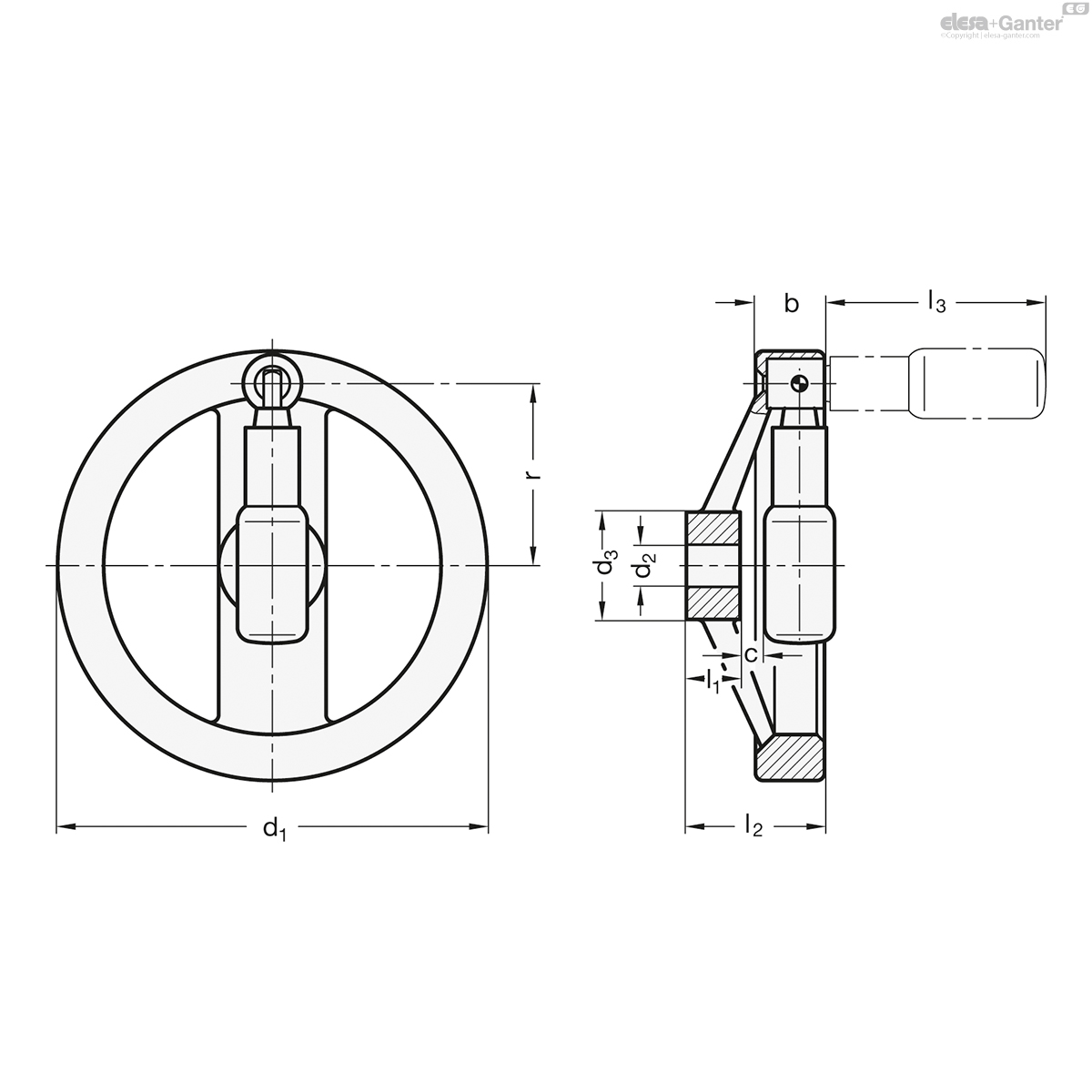

	d₁	d₂ H7	d₃	b	c	l₁	l₂	l₃	r	Ø Handle
Code												Actions
GN 322.3-125-B12-R	125	12	31	24.5	6.5	18	44	60	50	22	440
GN 322.3-125-K12-R	125	12	31	24.5	6.5	18	44	60	50	22	450
GN 322.3-140-B14-R	140	14	36	24.5	6	19	45.5	75	57.5	24	550
GN 322.3-140-K14-R	140	14	36	24.5	6	19	45.5	75	57.5	24	541
GN 322.3-160-B14-R	160	14	36	25	6.5	20	47	75	67.5	24	700
GN 322.3-160-B16-R	160	16	36	25	6.5	20	47	75	67.5	24	649
GN 322.3-160-K14-R	160	14	36	25	6.5	20	47	75	67.5	24	653
GN 322.3-160-K16-R	160	16	36	25	6.5	20	47	75	67.5	24	650
GN 322.3-200-B18-R	200	18	42	25	7.5	24	52.5	85	84	25	1000
GN 322.3-200-B20-R	200	20	42	25	7.5	24	52.5	85	84	25	949
GN 322.3-200-K18-R	200	18	42	25	7.5	24	52.5	85	84	25	954
GN 322.3-200-K20-R	200	20	42	25	7.5	24	52.5	85	84	25	949
GN 322.3-250-B22-R	250	22	48	26.5	12	28	61	85	111	25	1364
GN 322.3-250-K22-R	250	22	48	26.5	12	28	61	85	111	25	1400
