GN 321

Disc handwheels

Aluminium, blank, rim polished

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Wheel body

Cylindrical Revolving handles GN 798

Information

Disc handwheels GN 321 have recessed grips at their back.

Technical information

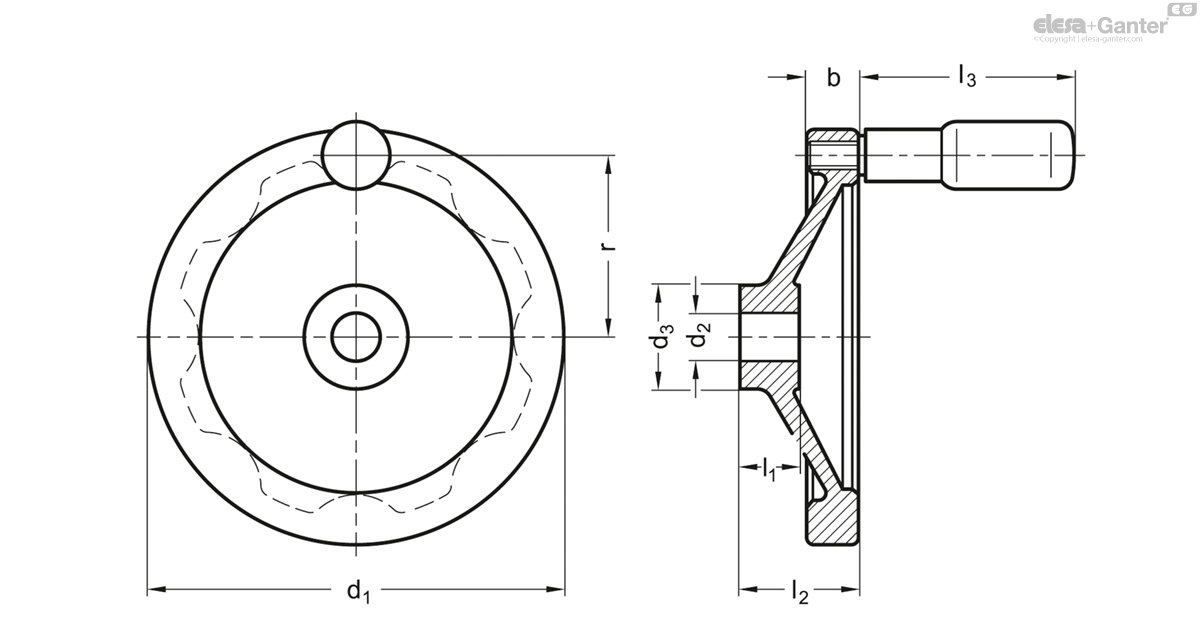

	d₁	d₂ H7	d₃	b	l₁	l₂ ≈	l₃ ≈	r	Ø Handle
Code											Actions
GN 321-80-B10-R	80	10	28	13	16	26	44	33.5	16	153
GN 321-80-B12-R	80	12	28	13	16	26	44	33.5	16	157
GN 321-80-K10-R	80	10	28	13	16	26	44	33.5	16	160
GN 321-80-K12-R	80	12	28	13	16	26	44	33.5	16	150
GN 321-100-B10-R	100	10	28	14	17	30	58.5	42.5	18	200
GN 321-100-B12-R	100	12	28	14	17	30	58.5	42.5	18	220
GN 321-100-K10-R	100	10	28	14	17	30	58.5	42.5	18	215
GN 321-100-K12-R	100	12	28	14	17	30	58.5	42.5	18	220
GN 321-125-B12-R	125	12	31	15	18	33	61.5	54	22	380
GN 321-125-B14-R	125	14	31	15	18	33	61.5	54	22	383
GN 321-125-K12-R	125	12	31	15	18	33	61.5	54	22	380
GN 321-125-K14-R	125	14	31	15	18	33	61.5	54	22	380
GN 321-140-B14-R	140	14	36	16.5	19	36	76.5	61	24	431
GN 321-140-B16-R	140	16	36	16.5	19	36	76.5	61	24	450
GN 321-140-K14-R	140	14	36	16.5	19	36	76.5	61	24	431
GN 321-140-K16-R	140	16	36	16.5	19	36	76.5	61	24	500
GN 321-160-B14-R	160	14	36	18	20	39	76.5	71	24	500
GN 321-160-B16-R	160	16	36	18	20	39	76.5	71	24	545
GN 321-160-K14-R	160	14	36	18	20	39	76.5	71	24	550
GN 321-160-K16-R	160	16	36	18	20	39	76.5	71	24	570
GN 321-200-B18-R	200	18	45	20.5	24	45	86.5	89	25	940
GN 321-200-B20-R	200	20	45	20.5	24	45	86.5	89	25	1009
GN 321-200-K18-R	200	18	45	20.5	24	45	86.5	89	25	970
GN 321-200-K20-R	200	20	45	20.5	24	45	86.5	89	25	950
GN 321-250-B22-R	250	22	48	23	28	51	86.5	113	25	1647
GN 321-250-B26-R	250	26	48	23	28	51	86.5	113	25	1604
GN 321-250-K22-R	250	22	48	23	28	51	86.5	113	25	1647
GN 321-250-K26-R	250	26	48	23	28	51	86.5	113	25	1604
