GN 321

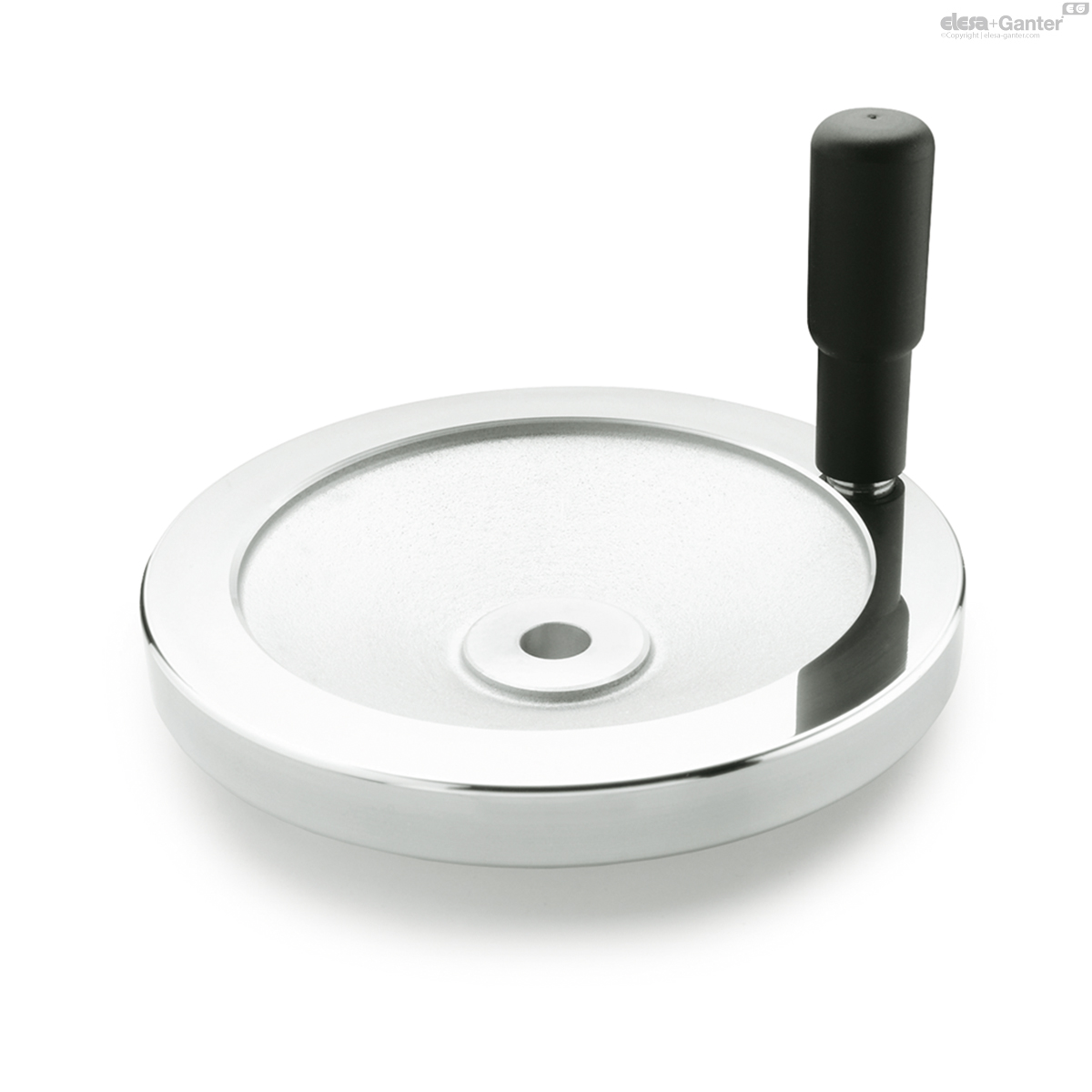

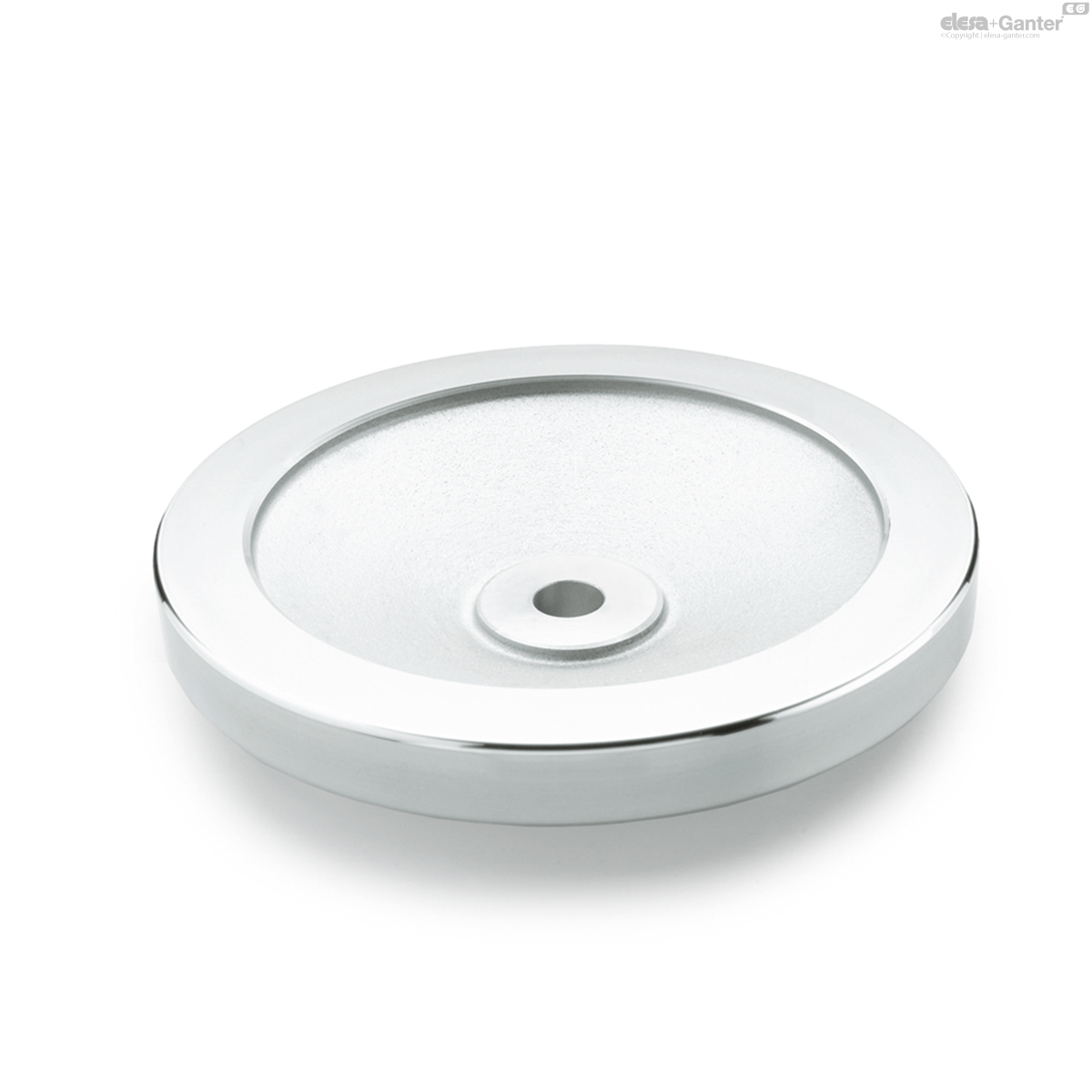

Disc handwheels

Aluminium, blank, rim polished

Enquire Now

Description

Specification

Aluminium

Rim concentric and square to bore < 0.4

Wheel body

Cylindrical Revolving handles GN 798

Information

Disc handwheels GN 321 have recessed grips at their back.

Technical information

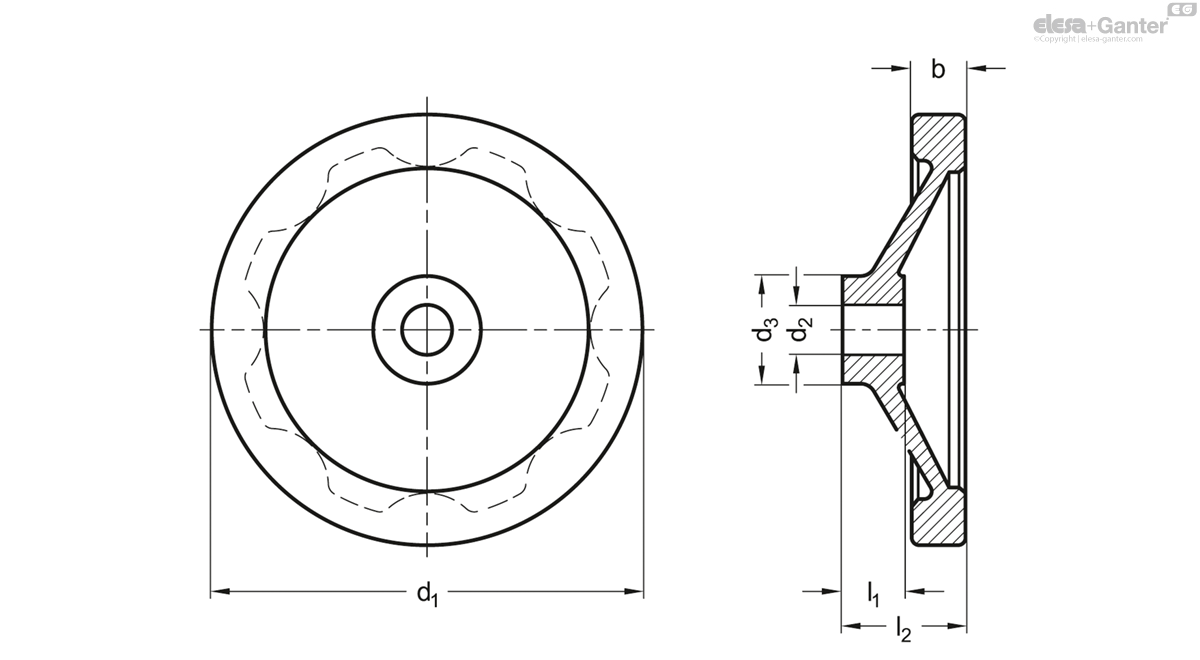

	d₁	d₂ H7	d₃	b	l₁	l₂ ≈
Code								Actions
GN 321-80-B10-A	80	10	28	13	16	26	133
GN 321-80-B12-A	80	12	28	13	16	26	131
GN 321-80-K10-A	80	10	28	13	16	26	132
GN 321-80-K12-A	80	12	28	13	16	26	125
GN 321-100-B10-A	100	10	28	14	17	30	217
GN 321-100-B12-A	100	12	28	14	17	30	214
GN 321-100-K10-A	100	10	28	14	17	30	190
GN 321-100-K12-A	100	12	28	14	17	30	190
GN 321-125-B12-A	125	12	31	15	18	33	316
GN 321-125-B14-A	125	14	31	15	18	33	300
GN 321-125-K12-A	125	12	31	15	18	33	316
GN 321-125-K14-A	125	14	31	15	18	33	290
GN 321-140-B14-A	140	14	36	16.5	19	36	431
GN 321-140-B16-A	140	16	36	16.5	19	36	427
GN 321-140-K14-A	140	14	36	16.5	19	36	400
GN 321-140-K16-A	140	16	36	16.5	19	36	429
GN 321-160-B14-A	160	14	36	18	20	39	570
GN 321-160-B16-A	160	16	36	18	20	39	560
GN 321-160-K14-A	160	14	36	18	20	39	450
GN 321-160-K16-A	160	16	36	18	20	39	456
GN 321-200-B18-A	200	18	45	20.5	24	45	885
GN 321-200-B20-A	200	20	45	20.5	24	45	875
GN 321-200-K18-A	200	18	45	20.5	24	45	800
GN 321-200-K20-A	200	20	45	20.5	24	45	860
GN 321-250-B22-A	250	22	48	23	28	51	1500
GN 321-250-B26-A	250	26	48	23	28	51	1480
GN 321-250-K22-A	250	22	48	23	28	51	1490
GN 321-250-K26-A	250	26	48	23	28	51	1474
