GN 321.6

Safety Handwheels

Aluminum, with Needle Bearings

Enquire Now

Description

Specification

Handwheel body

Coupling elements

Cover cap

Plastic, light grey

Cylindrical Revolving handles GN 598

Information

The hub cap protects the bearing from the ingress of dust and at the same time acts as a shroud for the mounting components.

The wheel hub is fitted with an inside groove to retain the hub cap on its segmented edge.

The hub cap is pushed into position by hand and it can be removed by levering it away at the relieved point with a screw driver.

The needle bearings are greased on assembly which should be ample for permanent lubrication.

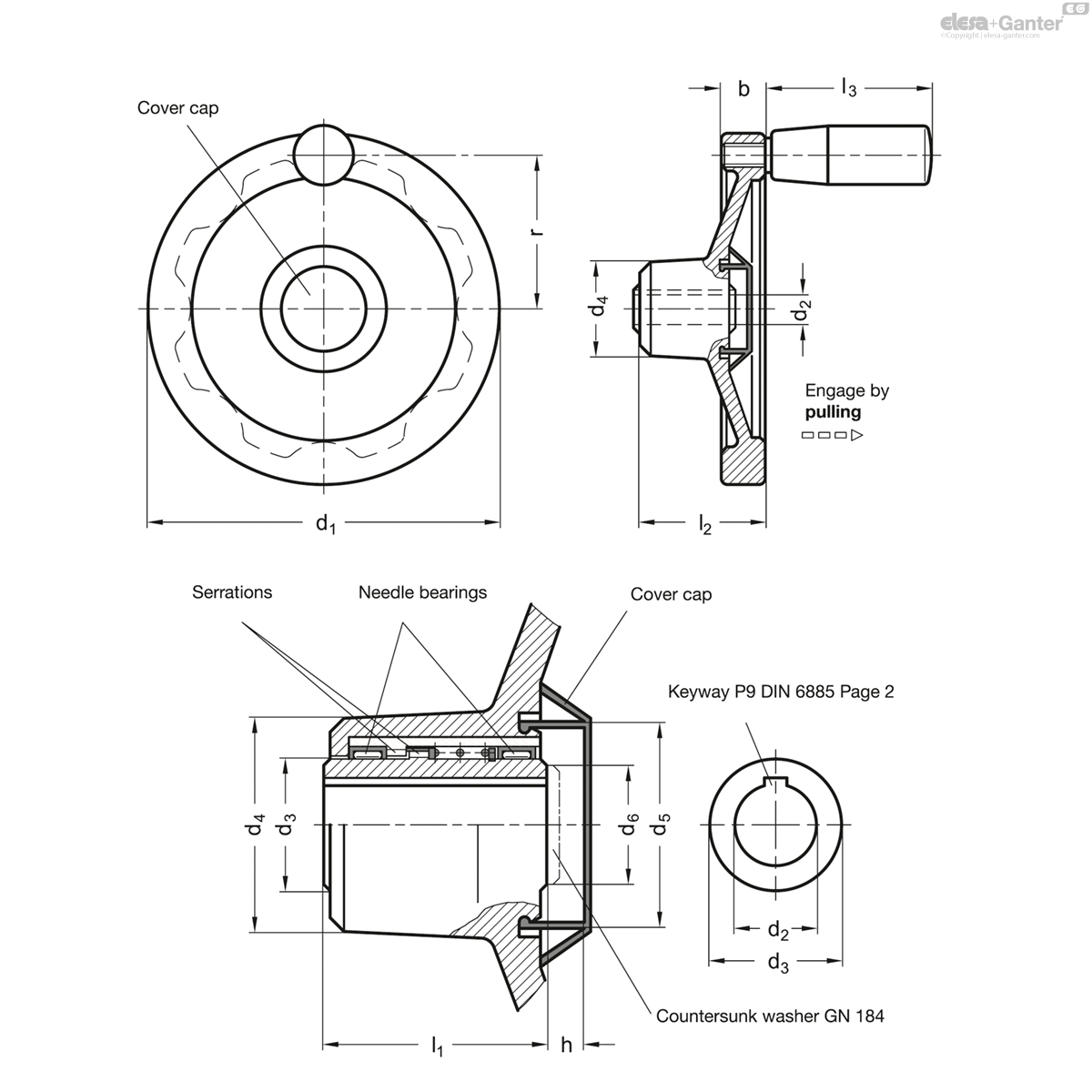

Technical information

	d₁	d₂ H7	d₃	d₄	d₅	d₆ max.	b	h	l₁	l₂	l₃	r	Ø Handle
Code															Actions
GN 321.6-140-K12-D	140	K 12	24	42	40	23	16.5	7	45	58	67.5	61	23	720
GN 321.6-140-K14-D	140	K 14	24	42	40	23	16.5	7	45	58	67.5	61	23	705
GN 321.6-140-K16-D	140	K 16	24	42	40	23	16.5	7	45	58	67.5	61	23	860
GN 321.6-160-K12-D	160	K 12	24	42	40	23	18	7	45	58	82.5	71	26	952
GN 321.6-160-K14-D	160	K 14	24	42	40	23	18	7	45	58	82.5	71	26	937
GN 321.6-160-K16-D	160	K 16	24	42	40	23	18	7	45	58	82.5	71	26	981
