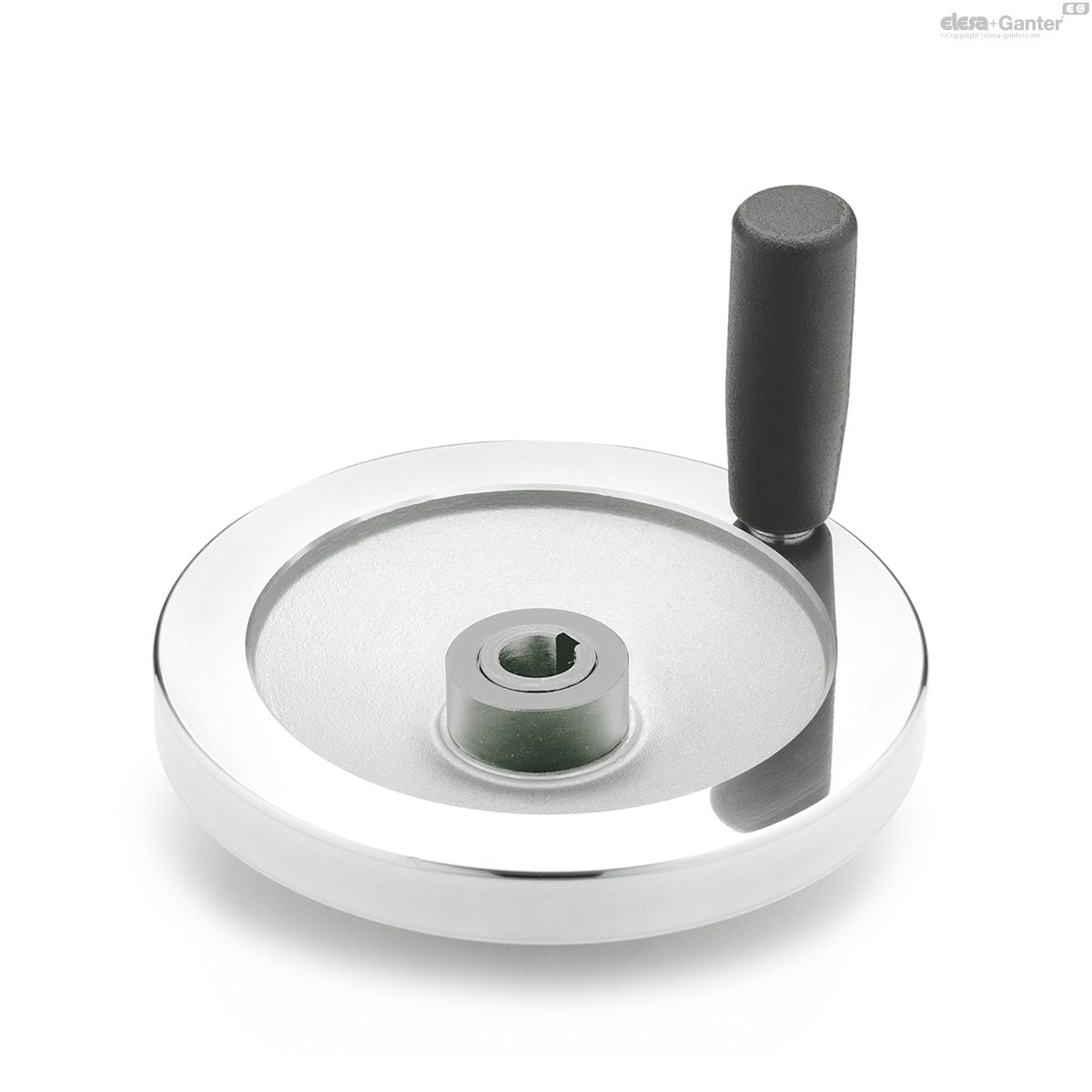

GN 321.5

Safety Handwheels

Aluminum, with Needle Bearing

Enquire Now

Description

Specification

Aluminum

Radial and axial runout of the rim < 0.4

Wheel body

Revolving handles GN 598

Steel, Powder coated

Black, textured finish

Information

The use of coupling attachments in handwheels other than specified is also possible.

Technical information

	Color	d₁	d₂ H7 Bore with keyway	d₃	d₄ max.	l₁	l₂	l₃	l₄	r	w min.	Ø Handle GN 598	Coupling GN 000.5 Size
Code															Actions
GN 321.5-125-K12-D-DR	DR	125	K 12	29	17	42	18	12	67.5	54	4	23	1	608
GN 321.5-125-K12-D-ZI	ZI	125	K 12	29	17	42	18	12	67.5	54	4	23	1	700
GN 321.5-140-K12-D-DR	DR	140	K 12	29	17	42	19	12	67.5	61	4	23	1	697
GN 321.5-140-K12-D-ZI	ZI	140	K 12	29	17	42	19	12	67.5	61	4	23	1	697
GN 321.5-140-K14-D-DR	DR	140	K 14	33	21	48	19	14	67.5	61	4	23	2	777
GN 321.5-140-K14-D-ZI	ZI	140	K 14	33	21	48	19	14	67.5	61	4	23	2	777
GN 321.5-160-K14-D-DR	DR	160	K 14	33	21	48	20	14	82.5	71	4	26	2	1008
GN 321.5-160-K14-D-ZI	ZI	160	K 14	33	21	48	20	14	82.5	71	4	26	2	1008
GN 321.5-200-K18-D-DR	DR	200	K 18	39	26	50	24	13	82.5	89	4	26	3	1200
GN 321.5-200-K18-D-ZI	ZI	200	K 18	39	26	50	24	13	82.5	89	4	26	3	1420
GN 321.5-250-K22-D-DR	DR	250	K 22	46	30	54	28	13	92.5	113	4	28	4	2200
GN 321.5-250-K22-D-ZI	ZI	250	K 22	46	30	54	28	13	92.5	113	4	28	4	2133
