GN 321.5

Safety Handwheels

Aluminum, with Needle Bearing

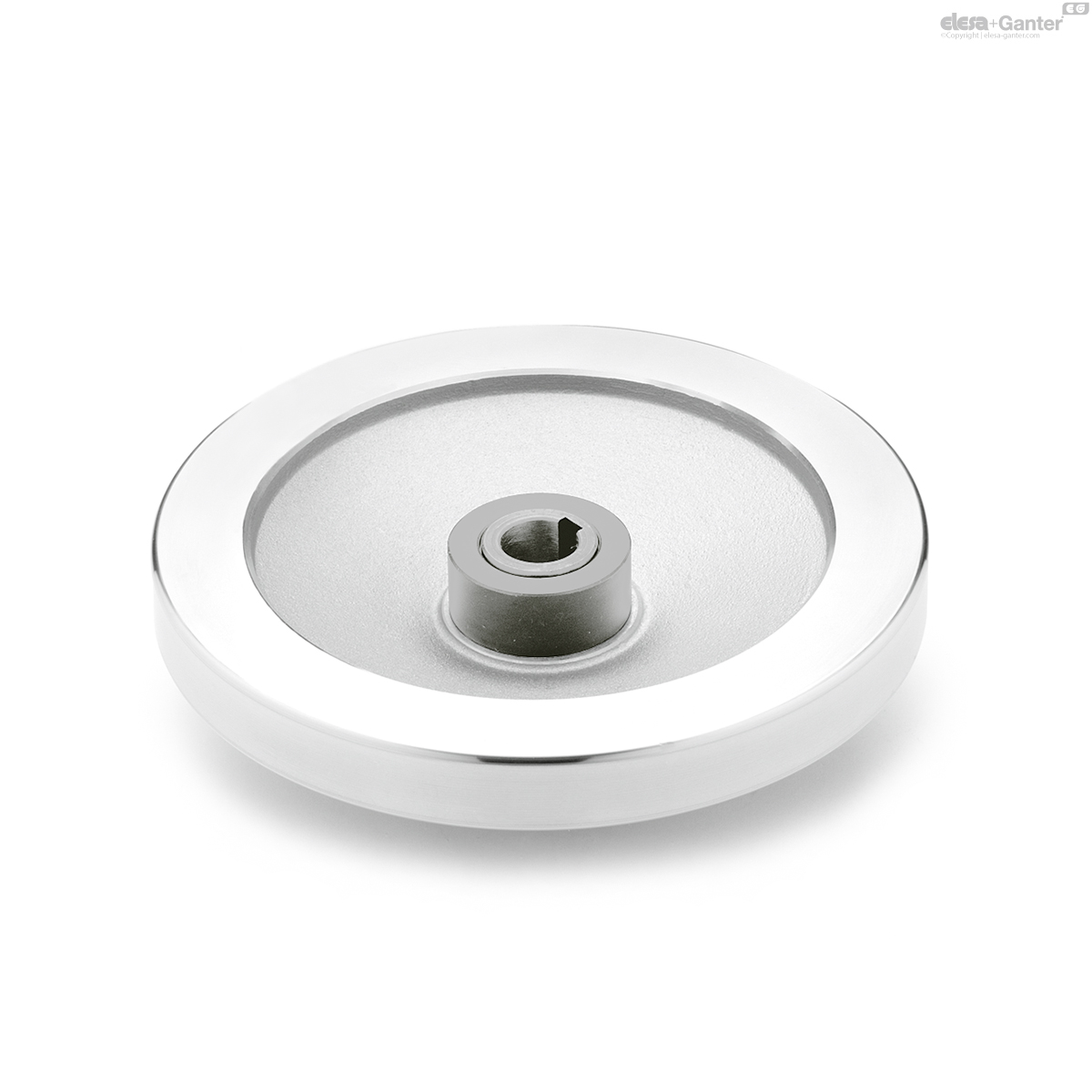

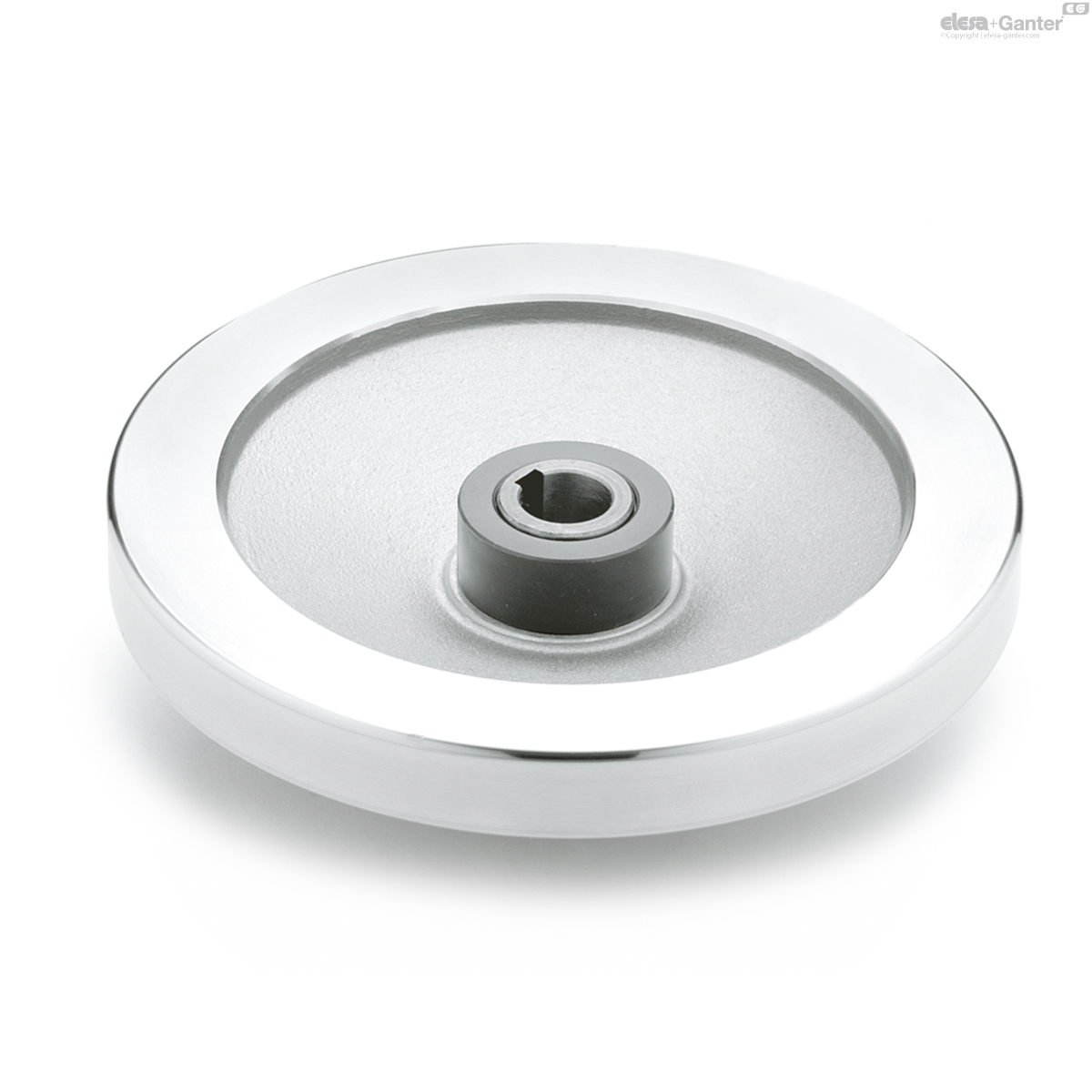

GN 321.5-A

Safety Handwheels

Without handle

GN 321.5-D

Safety Handwheels

With revolving steel handle

GN 321.5-A

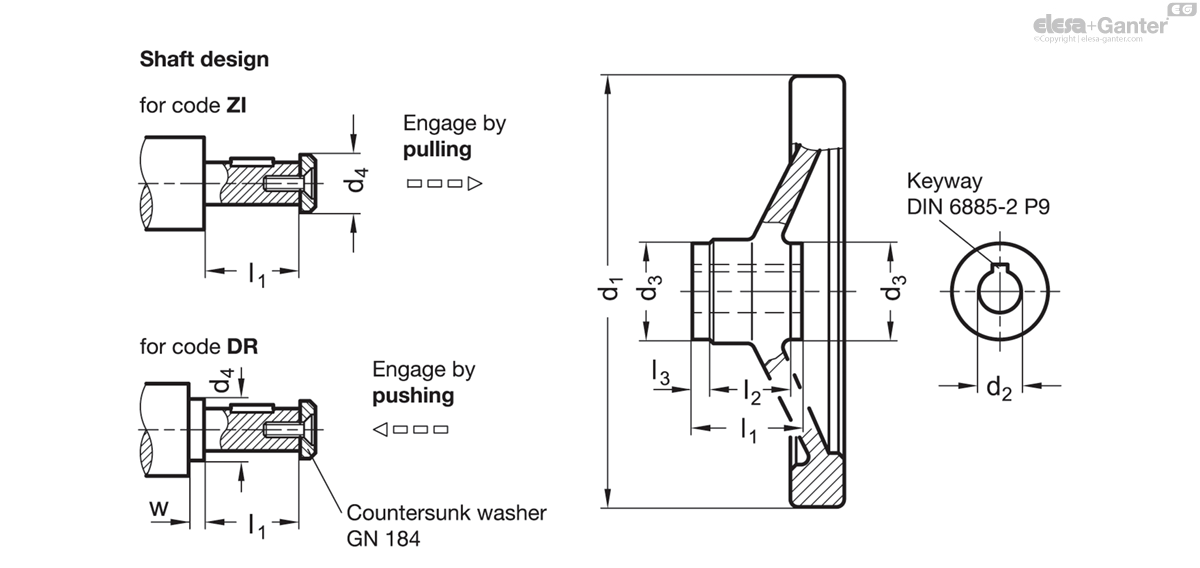

	Color	d1	d2 H7 Bore with keyway	d3	d4 max.	l1	l2	l3	l4	r	w min.	Ø Handle GN 598	Coupling GN 000.5 Size
Code	All DR ZI	All 125 140 160 200 250	All K 12 K 14 K 18 K 22	All 29 33 39 46	All 17 21 26 30	All 42 48 50 54	All 18 19 20 24 28	All 12 13 14	All 67.5 82.5 92.5	All 54 61 71 89 113	All 4	All 23 26 28	All 1 2 3 4	All 423 512 592 600 800 1060 1840 1900	Actions
GN 321.5-125-K12-A-DR	DR	125	K 12	29	17	42	18	12	67.5	54	4	23	1	423
GN 321.5-125-K12-A-ZI	ZI	125	K 12	29	17	42	18	12	67.5	54	4	23	1	423
GN 321.5-140-K12-A-DR	DR	140	K 12	29	17	42	19	12	67.5	61	4	23	1	512
GN 321.5-140-K12-A-ZI	ZI	140	K 12	29	17	42	19	12	67.5	61	4	23	1	512
GN 321.5-140-K14-A-DR	DR	140	K 14	33	21	48	19	14	67.5	61	4	23	2	592
GN 321.5-140-K14-A-ZI	ZI	140	K 14	33	21	48	19	14	67.5	61	4	23	2	592
GN 321.5-160-K14-A-DR	DR	160	K 14	33	21	48	20	14	82.5	71	4	26	2	600
GN 321.5-160-K14-A-ZI	ZI	160	K 14	33	21	48	20	14	82.5	71	4	26	2	600
GN 321.5-200-K18-A-DR	DR	200	K 18	39	26	50	24	13	82.5	89	4	26	3	1060
GN 321.5-200-K18-A-ZI	ZI	200	K 18	39	26	50	24	13	82.5	89	4	26	3	800
GN 321.5-250-K22-A-DR	DR	250	K 22	46	30	54	28	13	92.5	113	4	28	4	1840
GN 321.5-250-K22-A-ZI	ZI	250	K 22	46	30	54	28	13	92.5	113	4	28	4	1900

•
