GN 319.5
Revolving Ball Knobs
Plastic, Spindle Stainless Steel

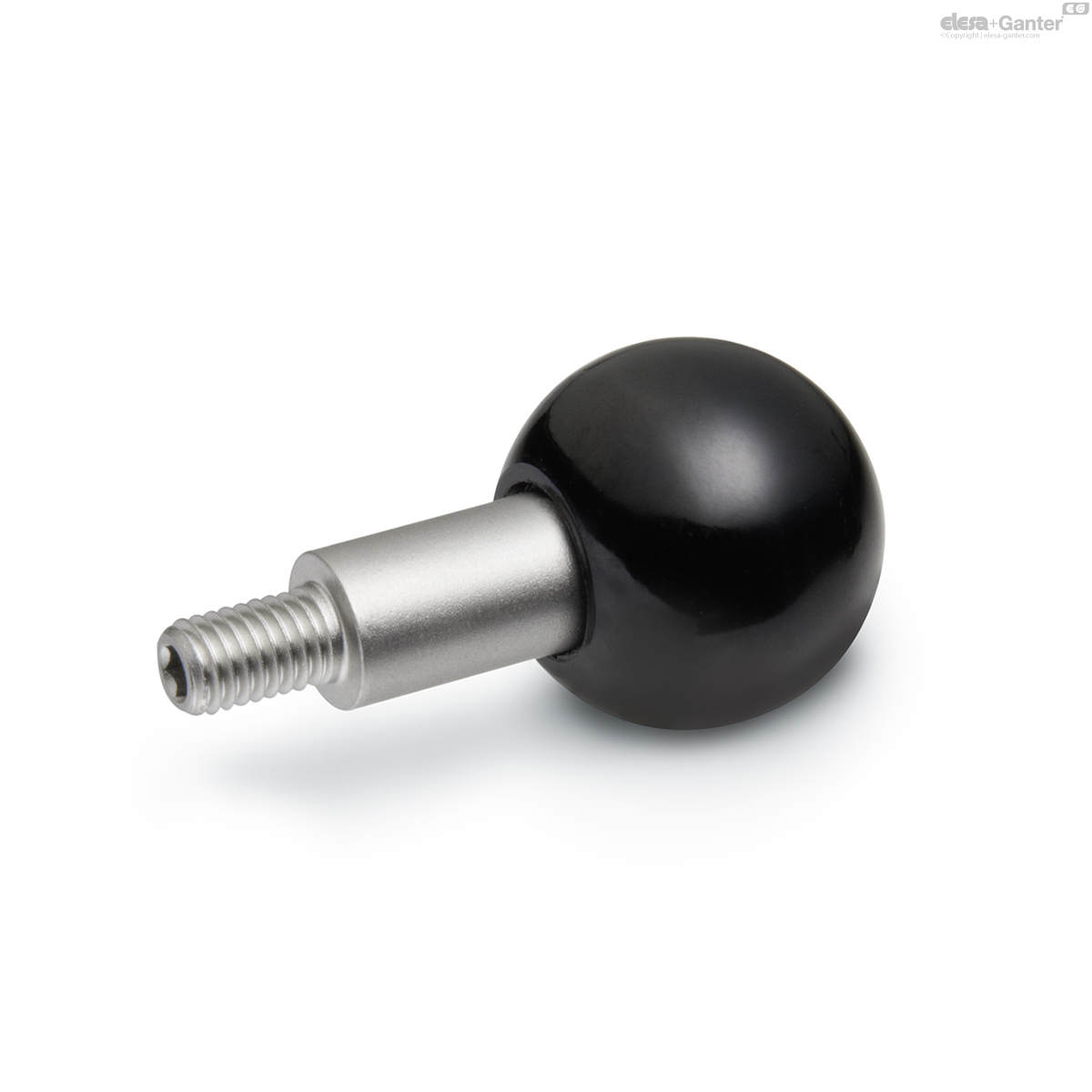

GN 319.5-A
Revolving Ball Knobs
With threaded stud

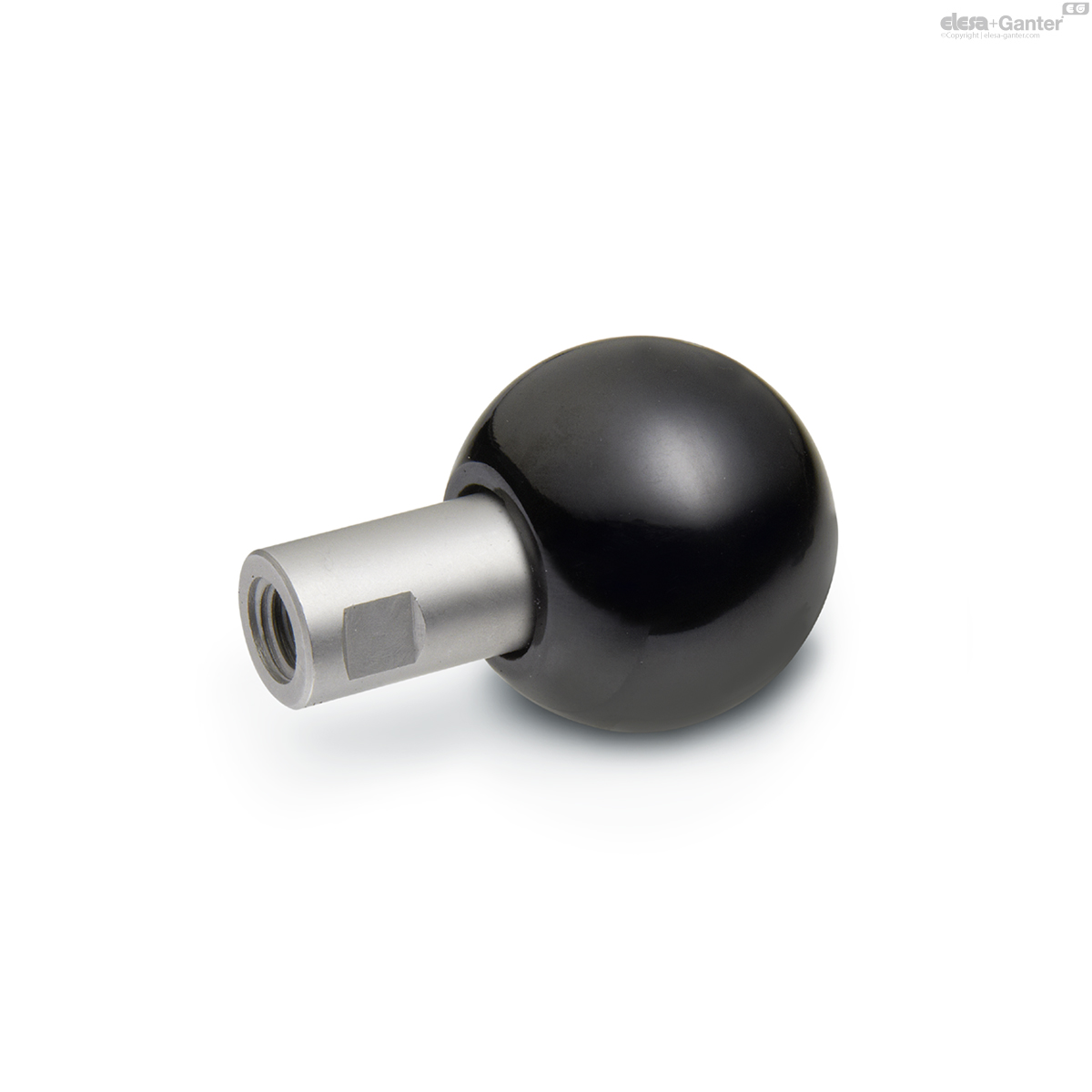

GN 319.5-B
Revolving Ball Knobs
With internal thread
Description
Specification

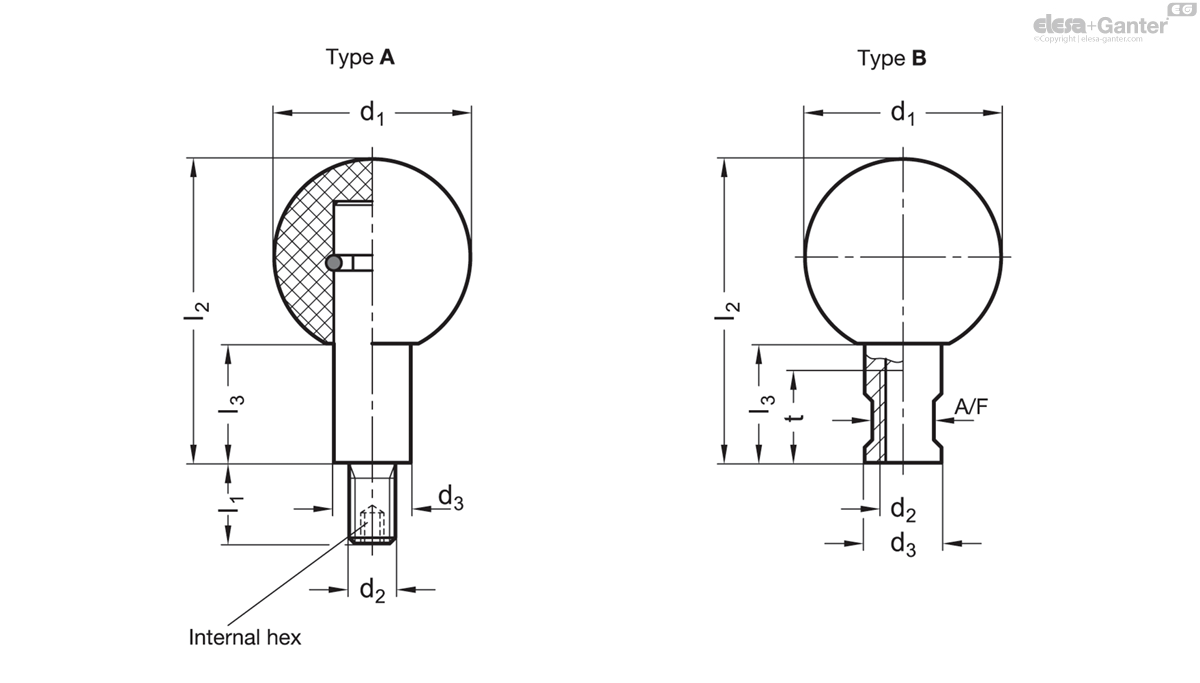

Types
- Type A: With threaded stud
- Type B: With internal thread
Knob
Plastic, phenolic resin (PF)
- Operating temperature up to 110 °C
- Black, shiny finish
Spindle
Stainless steel AISI 303
Matte shot-blasted
Information
Revolving ball knobs GN 319.5 are in general used where a pulling action is involved such as on vertically positioned handwheels.
Technical information
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 319.5-A
| d1 | d2 | d3 | l1 | l2 ±1 | l3 ±1 | A/F | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 319.5-25-M6-A | 25 | M 6 | 10 | 11 | 37.5 | 15 | 8 | 10 | 30 |
|
| GN 319.5-32-M8-A | 32 | M 8 | 13 | 13 | 48 | 19 | 10 | 12 | 65 |
|
| GN 319.5-40-M10-A | 40 | M 10 | 16 | 14 | 61 | 24 | 14 | 16 | 123 |
|
| GN 319.5-50-M12-A | 50 | M 12 | 20 | 21 | 78 | 31 | 17 | 16 | 237 |
|
