GN 318
Stainless Steel-Ratchet spanners
GN 318
Stainless Steel-Ratchet spanners
with hole
GN-318
Stainless Steel-Ratchet spanners
with threaded stud
Description
Specification
Types

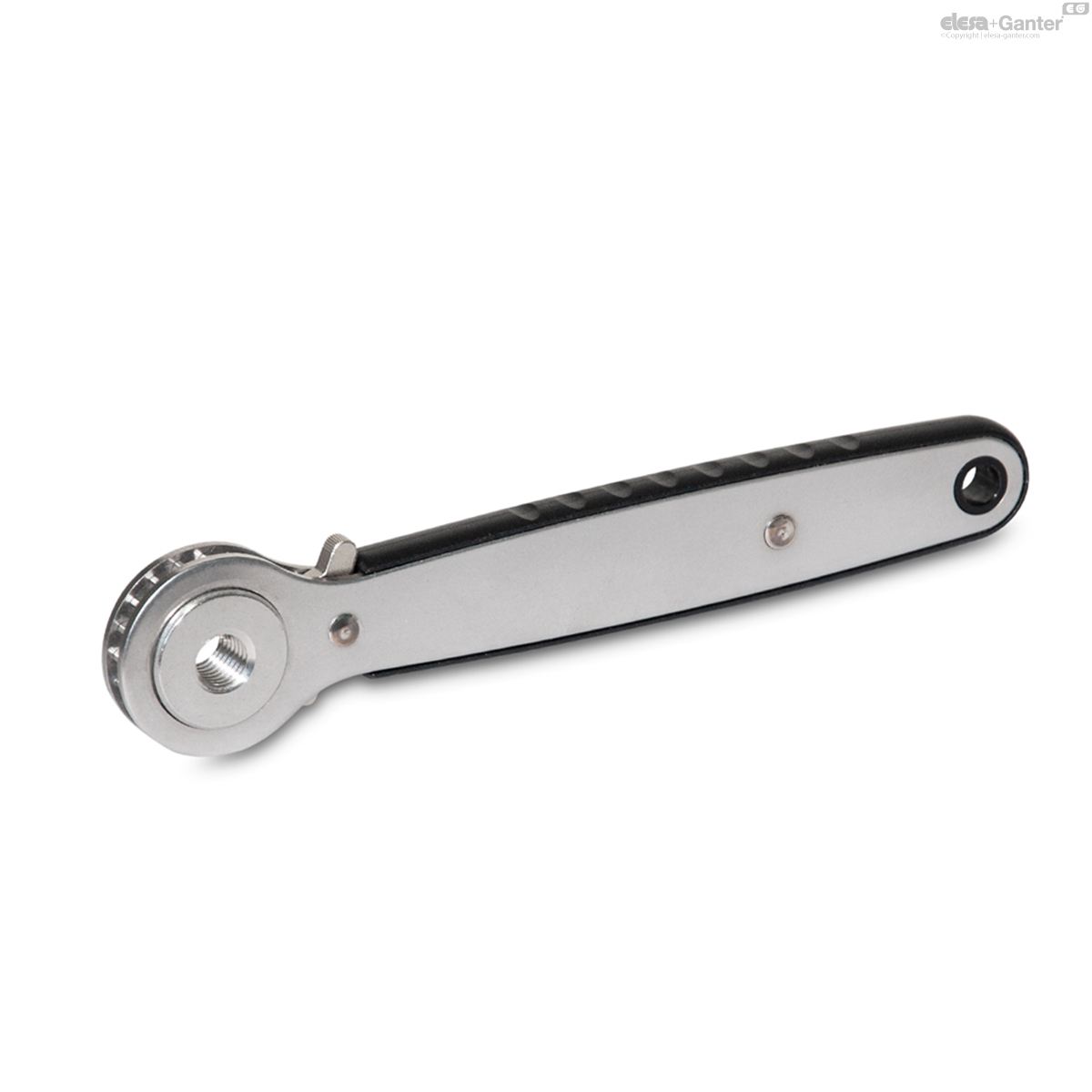

- Type A: Ratchet insert with through hole
- Type B: Ratchet insert with blind hole

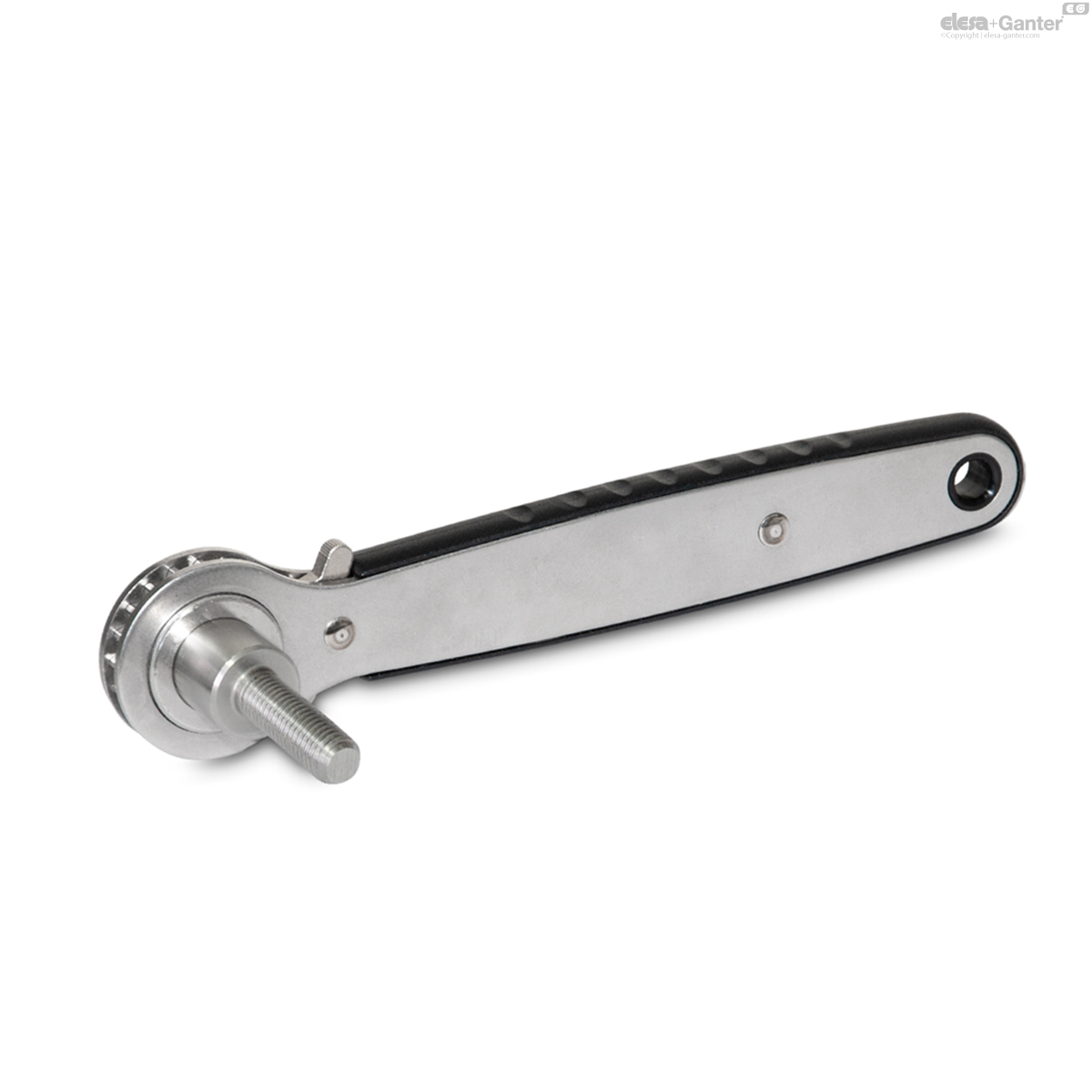

- Type C: Ratchet insert with threaded stud
Housing
Stainless Steel-Sheet AISI 304
Ratchet inserts
- Type A: Stainless Steel AISI 316 LHC sintered
- Type B and Type C: Stainless Steel AISI 303 turned
Locking pawl
Stainless Steel AISI 316 LHC sintered
Grip element
Plastic, Technopolymer (Polyamide)
Other components
Stainless Steel
Information
GN 318 Stainless Steel-Ratchet spanners are robust, easy to handle and ergonomically shaped to sit easily in the hand.
Stainless Steel-Ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a „stationary“ tool. The ratchet inserts are available in different versions depending on their type and are permanently fixed in the housing. Due to the high-quality materials, the ratchet spanner is suitable for use in aggressive environments.
Technical information
- Square DIN 79Â
- Keyway P9 DIN 6885Â
- ISO-Fundamental TolerancesÂ
- Plastic characteristicsÂ
- Stainless Steel characteristicsÂ
On request
- Other inserts (Type A / B)
- Other inserts (Type C) analog GN 300.1-92 (code no. see table)
GN 318

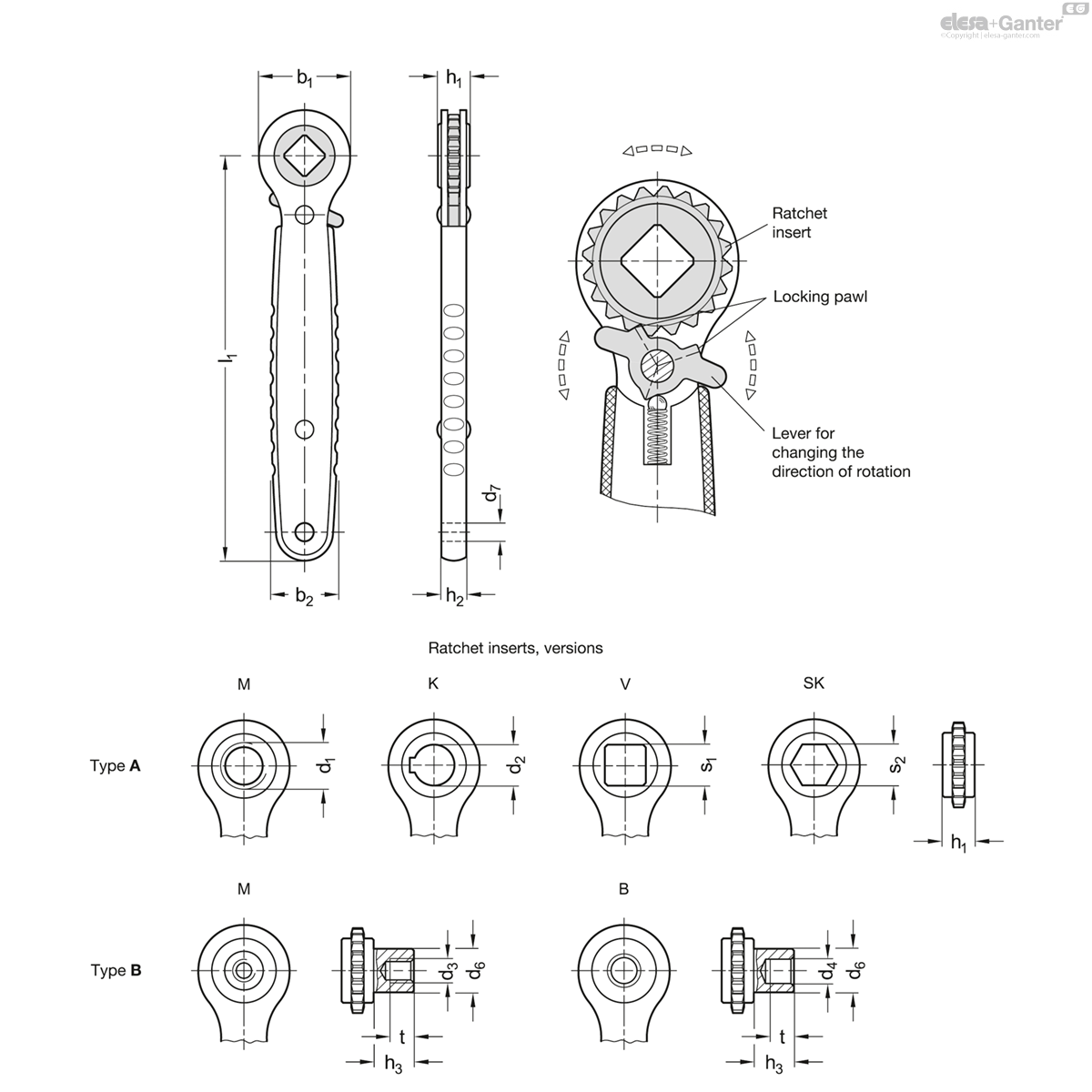

| l1 | d1 | d2 H7 | d3 | d4 | s1 | s2 | b1 | b2 | d6 | d7 | h1 | h2 | h3 | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||
| GN 318-178-B8-B | 178 | - | - | - | B 8 | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 293 |
|
| GN 318-178-B10-B | 178 | - | - | - | B 10 | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 289 |
|
| GN 318-178-B12-B | 178 | - | - | - | B 12 | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 278 |
|
| GN 318-178-K10-A | 178 | - | K 10 | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 254 |
|
| GN 318-178-K12-A | 178 | - | K 12 | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 250 |
|
| GN 318-178-K16-A | 178 | - | K 16 | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 241 |
|
| GN 318-178-M8-B | 178 | - | - | M 8 | - | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 296 |
|
| GN 318-178-M10-A | 178 | M 10 | - | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 257 |
|
| GN 318-178-M10-B | 178 | - | - | M 10 | - | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 292 |
|
| GN 318-178-M12-A | 178 | M 12 | - | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 254 |
|
| GN 318-178-M12-B | 178 | - | - | M 12 | - | - | - | 40 | 29.6 | 19 | 8 | 14 | 10.9 | 17.5 | 17 | 288 |
|
| GN 318-178-M16-A | 178 | M 16 | - | - | - | - | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 247 |
|
| GN 318-178-SK10-A | 178 | - | - | - | - | - | SK 10 | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 254 |
|
| GN 318-178-SK14-A | 178 | - | - | - | - | - | SK 14 | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 245 |
|
| GN 318-178-SK17-A | 178 | - | - | - | - | - | SK 17 | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 237 |
|
| GN 318-178-V10-A | 178 | - | - | - | - | V 10 | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 252 |
|
| GN 318-178-V14-A | 178 | - | - | - | - | V 14 | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 243 |
|
| GN 318-178-V17-A | 178 | - | - | - | - | V 17 | - | 40 | 29.6 | - | 8 | 14 | 10.9 | - | - | 233 |
|
