GN 316
Ratchet spanner
Description
Specification
Housing
Steel
plastic coated
black matt, textured finish
Shaft
Stainless Steel AISI 303
matt shot-blasted
Wearing parts
Steel, hardened
Domes gear knobs I.222-N
Plastic, Duroplast
black, shiny finish
Information
Ratchet spanners GN 316 are robust, easy to handle and have an appropriate and attractive design.
Ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a 'stationary' tool.Various different versions of ratchet insert are available and these can be exchanged as required by loosening the retaining screw and removing the cover plate.
The ratchet action is deactivated when the reversing lever is in the locked position (central position), allowing torque to be applied in both directions.
On request
- other inserts
Technical information
- Square DIN 79
- Keyway P9 Â DIN 6885Â
- ISO-Fundamental TolerancesÂ

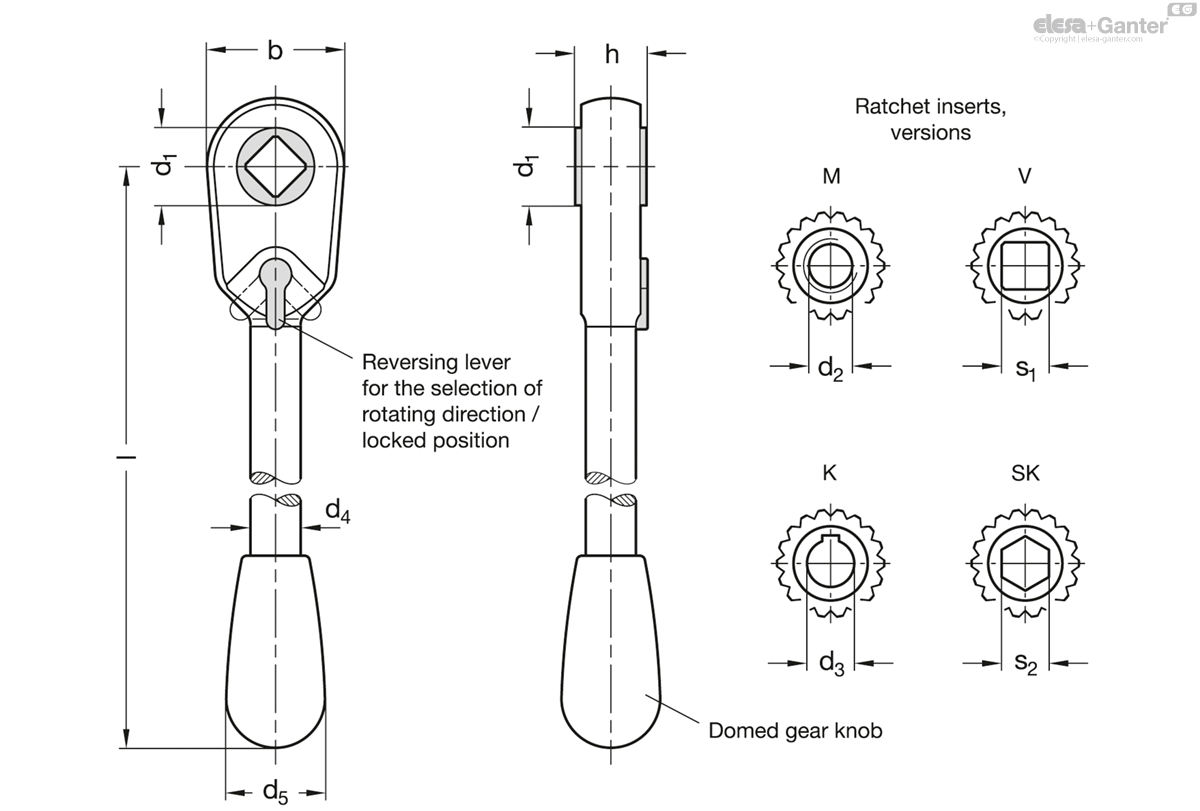

GN 316
| d1 | d2 | d3 H7 | s1 | s2 | b | d4 | d5 | h | l | Max. torque in Nm |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 316-12-M8 | 12 | M 8 | - | - | - | 22 | 9 | 20 | 11 | 118 | 40 | 89 |
|
| GN 316-12-V8 | 12 | - | - | V 8 | - | 22 | 9 | 20 | 11 | 118 | 40 | 87 |
|
| GN 316-17-K10 | 17 | - | K 10 | - | - | 30 | 11 | 26 | 14 | 156 | 70 | 194 |
|
| GN 316-17-K12 | 17 | - | K 12 | - | - | 30 | 11 | 26 | 14 | 156 | 70 | 187 |
|
| GN 316-17-M10 | 17 | M 10 | - | - | - | 30 | 11 | 26 | 14 | 156 | 70 | 190 |
|
| GN 316-17-M12 | 17 | M 12 | - | - | - | 30 | 11 | 26 | 14 | 156 | 70 | 180 |
|
| GN 316-17-SK12 | 17 | - | - | - | SK 12 | 30 | 11 | 26 | 14 | 156 | 70 | 189 |
|
| GN 316-17-V10 | 17 | - | - | V 10 | - | 30 | 11 | 26 | 14 | 156 | 70 | 193 |
|
| GN 316-22-K14 | 22 | - | K 14 | - | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 420 |
|
| GN 316-22-K16 | 22 | - | K 16 | - | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 375 |
|
| GN 316-22-M14 | 22 | M 14 | - | - | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 97 |
|
| GN 316-22-M16 | 22 | M 16 | - | - | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 380 |
|
| GN 316-22-SK14 | 22 | - | - | - | SK 14 | 39.5 | 14 | 33 | 17 | 187 | 130 | 380 |
|
| GN 316-22-V12 | 22 | - | - | V 12 | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 380 |
|
| GN 316-22-V14 | 22 | - | - | V 14 | - | 39.5 | 14 | 33 | 17 | 187 | 130 | 360 |
|
| GN 316-26-K18 | 26 | - | K 18 | - | - | 46 | 17 | 33 | 22 | 219 | 180 | 610 |
|
| GN 316-26-M20 | 26 | M 20 | - | - | - | 46 | 17 | 33 | 22 | 219 | 180 | 602 |
|
| GN 316-26-SK17 | 26 | - | - | - | SK 17 | 46 | 17 | 33 | 22 | 219 | 180 | 600 |
|
| GN 316-26-V17 | 26 | - | - | V 17 | - | 46 | 17 | 33 | 22 | 219 | 180 | 605 |
|
