GN 3136
Folding Handles
Steel / Stainless Steel
Description
Specification
Type
- Type A: With countersunk holes
Steel ST
Zinc plated, blue passivated
Stainless steel AISI 304 NI
Plain finish
Information

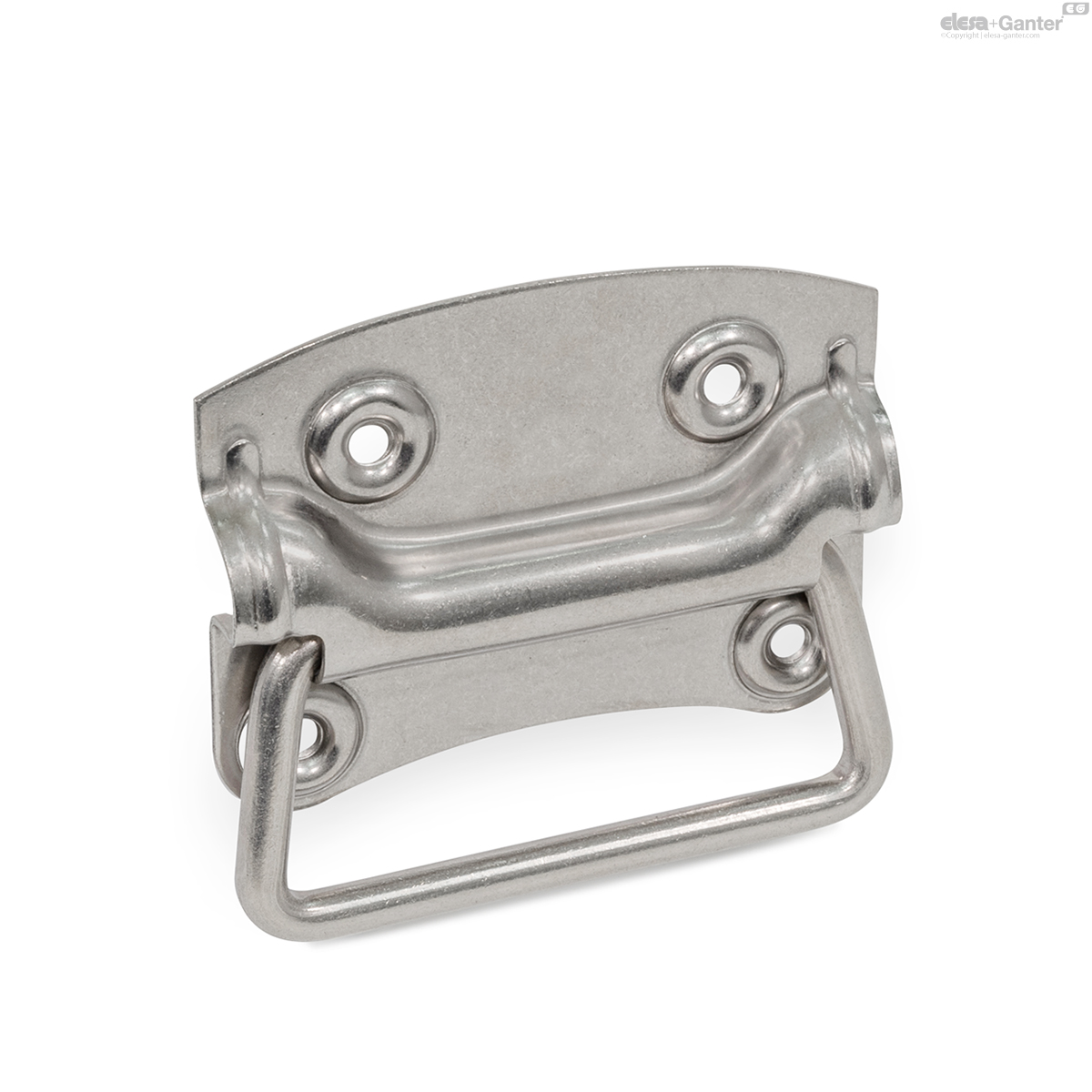

Folding handles GN 3136 are used for pulling out drawers or lifting boxes and containers. When in use, the swivel handle strikes the sheet metal housing at around 90° and then returns to its rest position by gravity.
Due to the simple design, the stamped and bent parts can have larger tolerances. Appropriate compensation measures should therefore be considered in the design.
Technical information
- Stainless Steel CharacteristicsÂ
GN 3136-ST

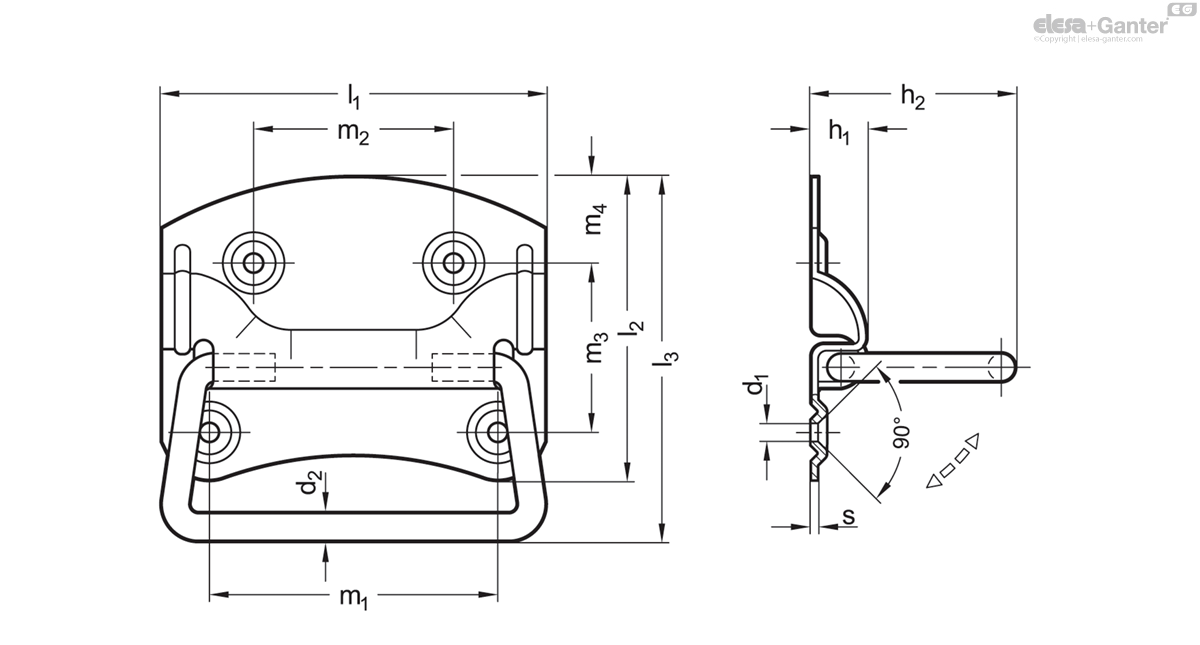

| l1 | l2 | d1 | d1 For countersunk screws DIN 7991 DIN ISO 2009 |
d2 | h1 | h2 ≈ | l3 | m1 | m2 | m3 | m4 | s |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 3136-85-70-A-ST | 85 | 70 | 5.5 | M 4 | 6.5 | 12 | 44 | 75 | 65 | 45 | 45 | 10 | 1.25 | 101 |
|
| GN 3136-100-80-A-ST | 100 | 80 | 5.5 | M 4 / M 5 | 7.5 | 14 | 52 | 95 | 75 | 52 | 44 | 22.5 | 1.5 | 161 |
|
| GN 3136-120-95-A-ST | 120 | 95 | 5.5 | M 5 | 7.5 | 15 | 54 | 103.5 | 96 | 70 | 55 | 20 | 1.5 | 200 |
|
| GN 3136-135-110-A-ST | 135 | 110 | 6.4 | M 6 | 10 | 15 | 65 | 123 | 105 | 75 | 73 | 22 | 1.75 | 371 |
|
