GN 313

Spring bolts

Steel / Stainless Steel, Pin retracted in normal position

Enquire Now

Spring bolts, Stainless Steel

Description

Specification

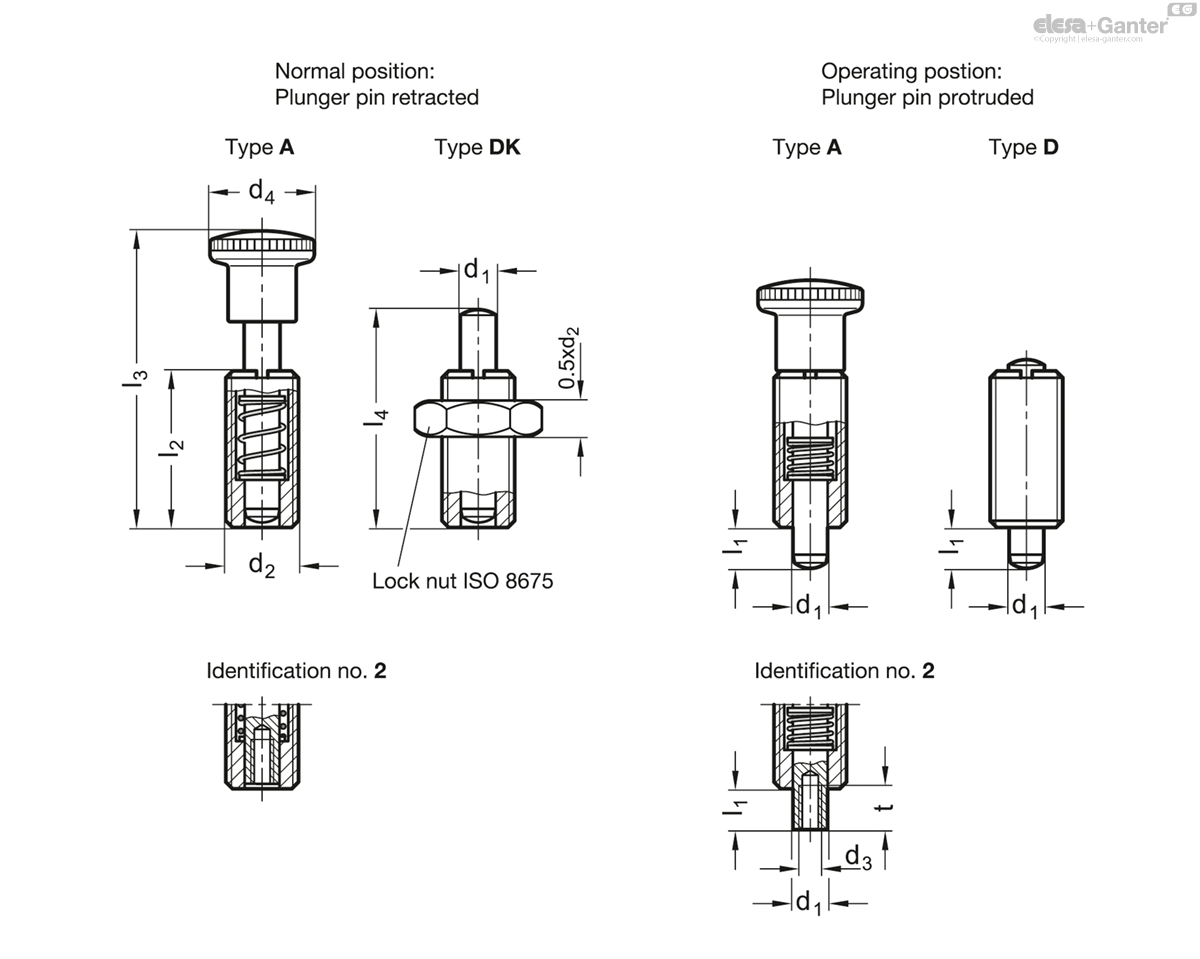

Types

Type A: with knob, without lock nut

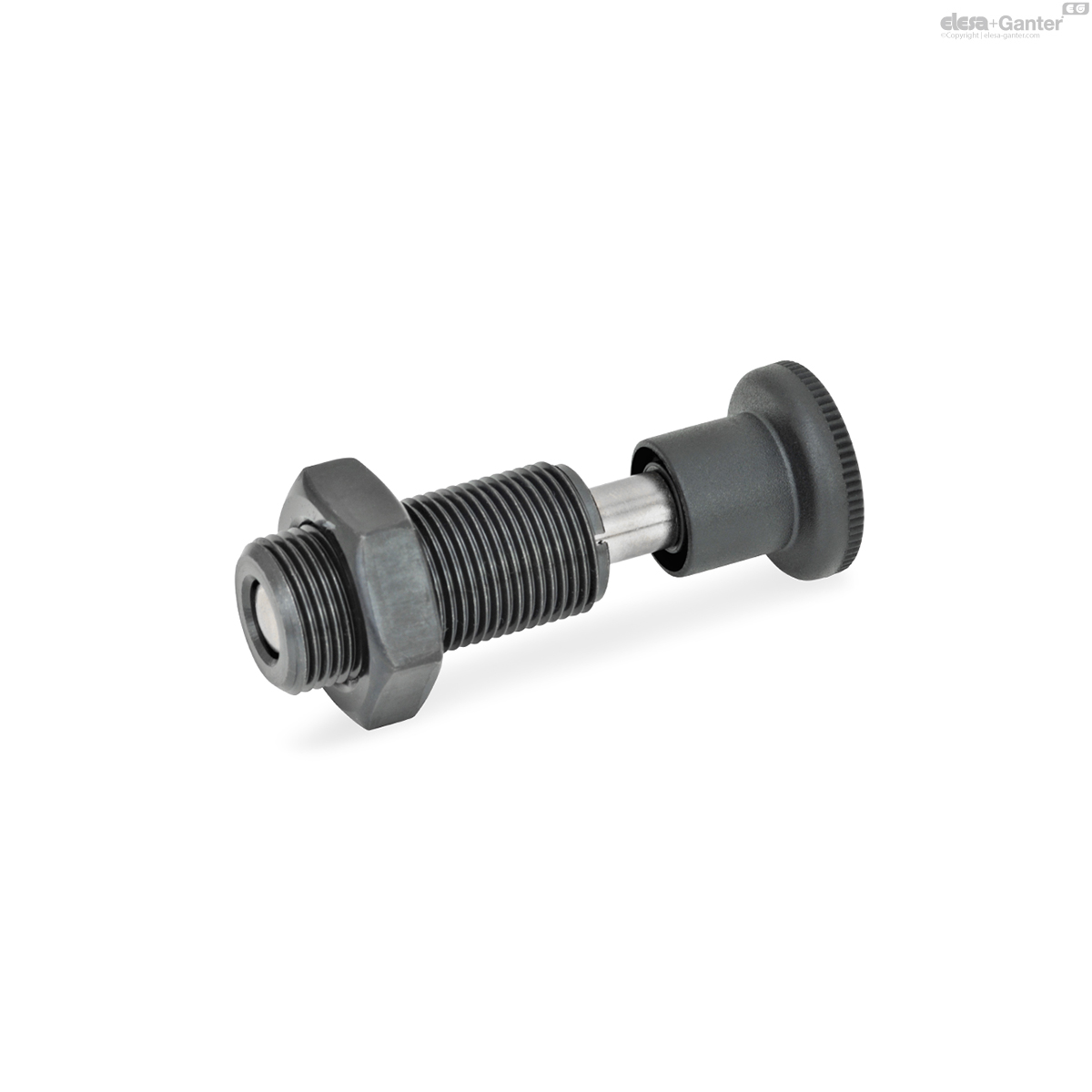

Type AK: with knob, with lock nut

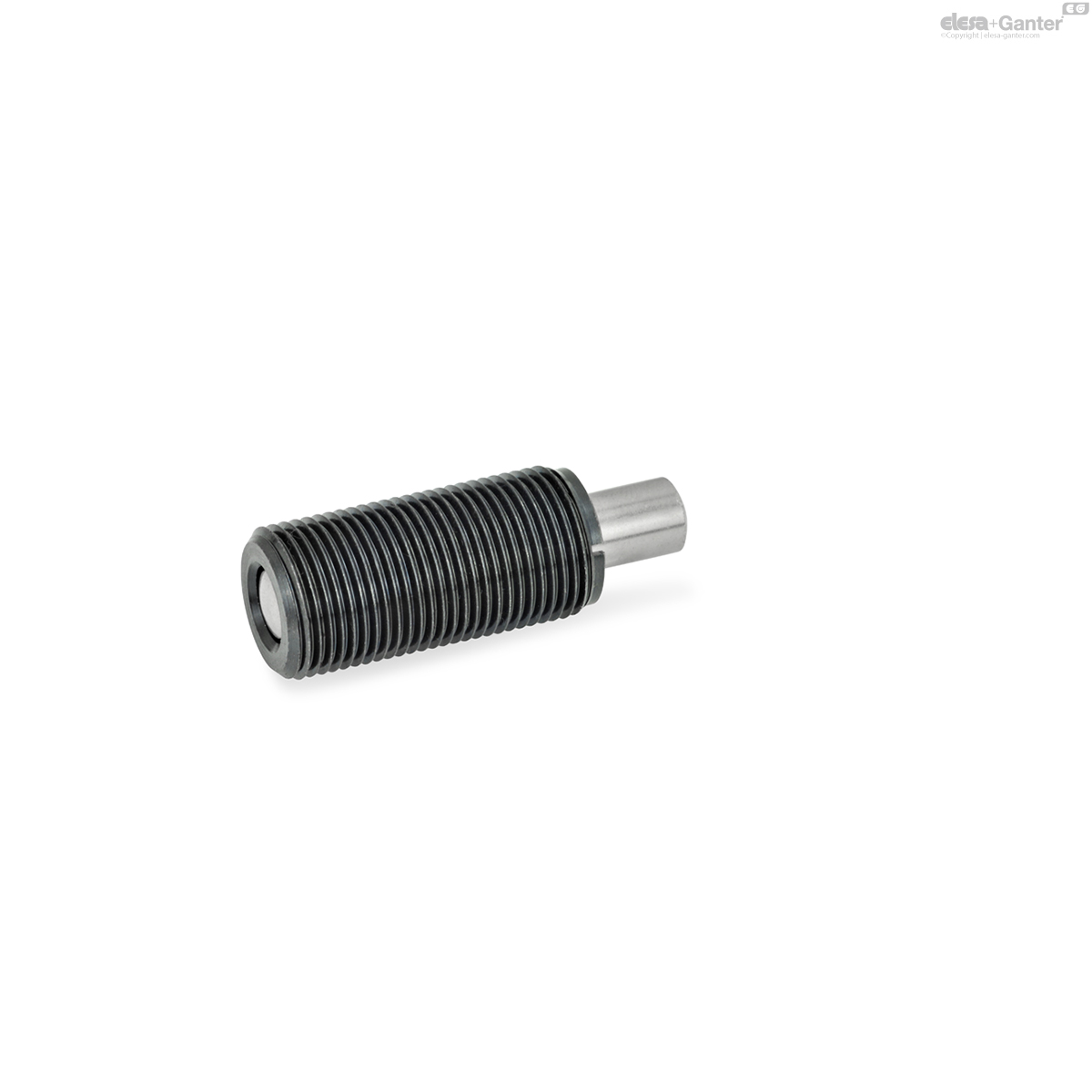

Type D: without knob, without lock nut

Type DK: without knob, with lock nut

Identification no.

Version 1: Plunger without internal thread

Version 2: Plunger with internal thread

Guide (Threaded socket)

Steel ST

blackened

Guide (Threaded socket)

Stainless Steel AISI 303 NI

Stainless Steel

AISI 303

chemically nickel plated

Knob

Plastic (Polyamide PA)

black, matt

not removable

Information

The pin of the spring bolts GN 313 does not protrude in the inoperative position.

It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.

Technical information

ISO-Fundamental Tolerances -

Stainless Steel characteristics

Plastic characteristics

Load rating information

GN 313

	Color	d₁ Pin -0.02/-0.05 Bore H7	d₂	d₃	d₄	l₁	l₂	l₃ ≈	l₄ ≈	t min.	Spring load in N ≈ initial	Spring load in N ≈ end	Code no. Screw driver
Code															Actions
GN 313-5-A-1-ST	A	5	M 10 x 1	-	16	6	22	42	29	-	8	20	GN 613.1-5	13
GN 313-5-A-2-ST	A	5	M 10 x 1	M 3	16	6	22	42	29	7	8	20	GN 613.1-5	13
GN 313-5-AK-1-ST	AK	5	M 10 x 1	-	16	6	22	42	29	-	8	20	GN 613.1-5	13
GN 313-5-AK-2-ST	AK	5	M 10 x 1	M 3	16	6	22	42	29	7	8	20	GN 613.1-5	13
GN 313-5-D-1-ST	D	5	M 10 x 1	-	16	6	22	42	29	-	8	20	GN 613.1-5	13
GN 313-5-D-2-ST	D	5	M 10 x 1	M 3	16	6	22	42	29	7	8	20	GN 613.1-5	13
GN 313-5-DK-1-ST	DK	5	M 10 x 1	-	16	6	22	42	29	-	8	20	GN 613.1-5	13
GN 313-5-DK-2-ST	DK	5	M 10 x 1	M 3	16	6	22	42	29	7	8	20	GN 613.1-5	13
GN 313-6-A-1-ST	A	6	M12 x 1.5	-	19	7	26	49	35	-	9	28	GN 613.1-6	21
GN 313-6-A-2-ST	A	6	M12 x 1.5	M 4	19	7	26	49	35	7	9	28	GN 613.1-6	20
GN 313-6-AK-1-ST	AK	6	M12 x 1.5	-	19	7	26	49	35	-	9	28	GN 613.1-6	21
GN 313-6-AK-2-ST	AK	6	M12 x 1.5	M 4	19	7	26	49	35	7	9	28	GN 613.1-6	20
GN 313-6-D-1-ST	D	6	M12 x 1.5	-	19	7	26	49	35	-	9	28	GN 613.1-6	21
GN 313-6-D-2-ST	D	6	M12 x 1.5	M 4	19	7	26	49	35	7	9	28	GN 613.1-6	20
GN 313-6-DK-1-ST	DK	6	M12 x 1.5	-	19	7	26	49	35	-	9	28	GN 613.1-6	21
GN 313-6-DK-2-ST	DK	6	M12 x 1.5	M 4	19	7	26	49	35	7	9	28	GN 613.1-6	20
GN 313-8-A-1-ST	A	8	M 16 x 1.5	-	23	9	34	65	48	-	12	40	GN 613.1-8	48
GN 313-8-A-2-ST	A	8	M 16 x 1.5	M 5	23	9	34	65	48	9	12	40	GN 613.1-8	47
GN 313-8-AK-1-ST	AK	8	M 16 x 1.5	-	23	9	34	65	48	-	12	40	GN 613.1-8	48
GN 313-8-AK-2-ST	AK	8	M 16 x 1.5	M 5	23	9	34	65	48	9	12	40	GN 613.1-8	47
GN 313-8-D-1-ST	D	8	M 16 x 1.5	-	23	9	34	65	48	-	12	40	GN 613.1-8	48
GN 313-8-D-2-ST	D	8	M 16 x 1.5	M 5	23	9	34	65	48	9	12	40	GN 613.1-8	47
GN 313-8-DK-1-ST	DK	8	M 16 x 1.5	-	23	9	34	65	48	-	12	40	GN 613.1-8	48
GN 313-8-DK-2-ST	DK	8	M 16 x 1.5	M 5	23	9	34	65	48	9	12	40	GN 613.1-8	47
GN 313-10-A-1-ST	A	10	M 20 x 1.5	-	28	11	43	78	57	-	22	50	GN 613.1-10	95
GN 313-10-A-2-ST	A	10	M 20 x 1.5	M 6	28	11	43	78	57	12	22	50	GN 613.1-10	92
GN 313-10-AK-1-ST	AK	10	M 20 x 1.5	-	28	11	43	78	57	-	22	50	GN 613.1-10	95
GN 313-10-AK-2-ST	AK	10	M 20 x 1.5	M 6	28	11	43	78	57	12	22	50	GN 613.1-10	92
GN 313-10-D-1-ST	D	10	M 20 x 1.5	-	28	11	43	78	57	-	22	50	GN 613.1-10	95
GN 313-10-D-2-ST	D	10	M 20 x 1.5	M 6	28	11	43	78	57	12	22	50	GN 613.1-10	92
GN 313-10-DK-1-ST	DK	10	M 20 x 1.5	-	28	11	43	78	57	-	22	50	GN 613.1-10	95
GN 313-10-DK-2-ST	DK	10	M 20 x 1.5	M 6	28	11	43	78	57	12	22	50	GN 613.1-10	92
