Home Fixed and Revolving Handles Fixed handles GN 310

GN 310

Gear Lever Handles

Steel / Stainless Steel, Knob Plastic

Enquire Now

GN 310-ZB

Gear Lever Handles

Steel, zinc plated, blue passivated

GN 310-NI

Gear Lever Handles

Stainless Steel AISI 303

Description

Specification

Types

Type A: Ball knob DIN 319

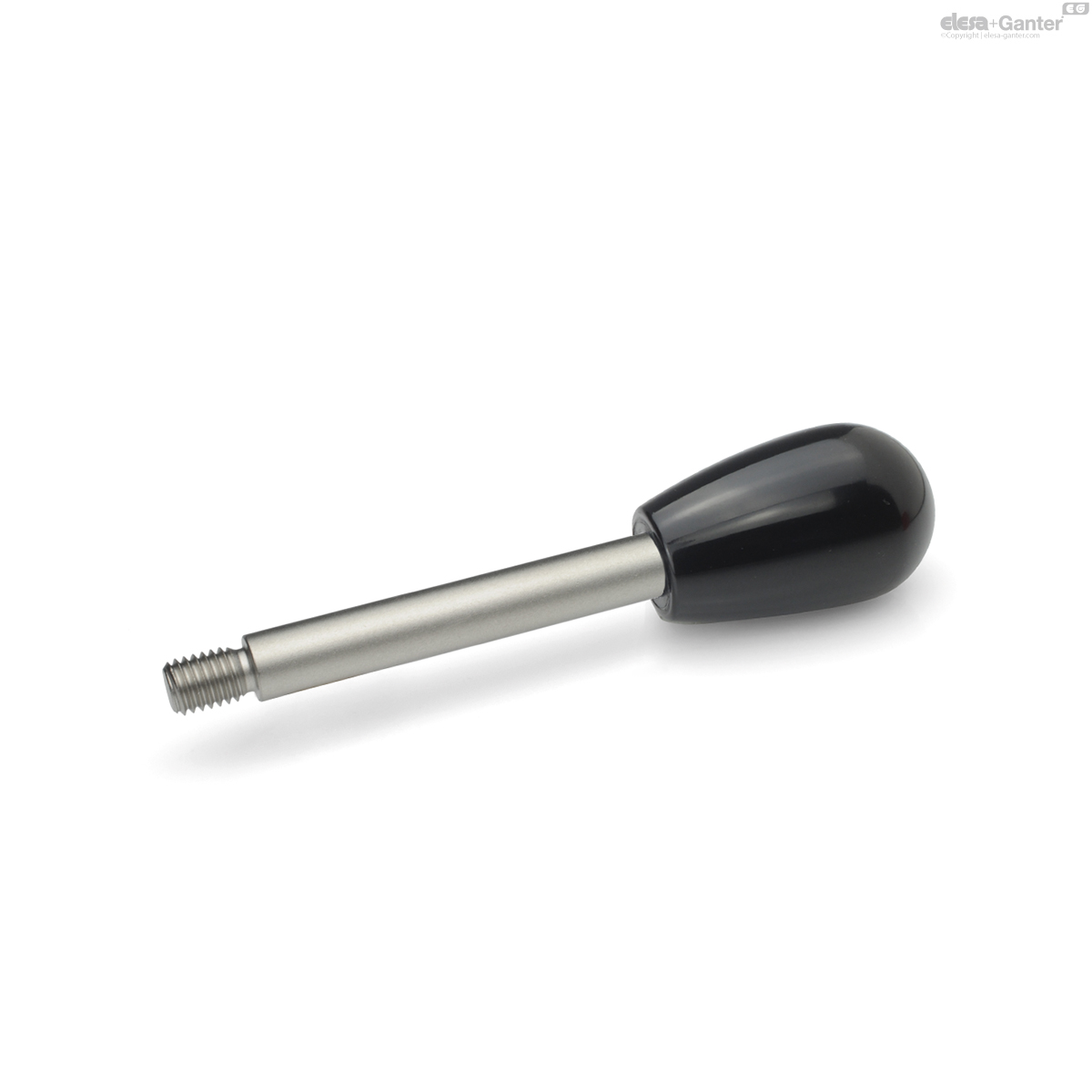

Type D: Domed gear knobs I.222

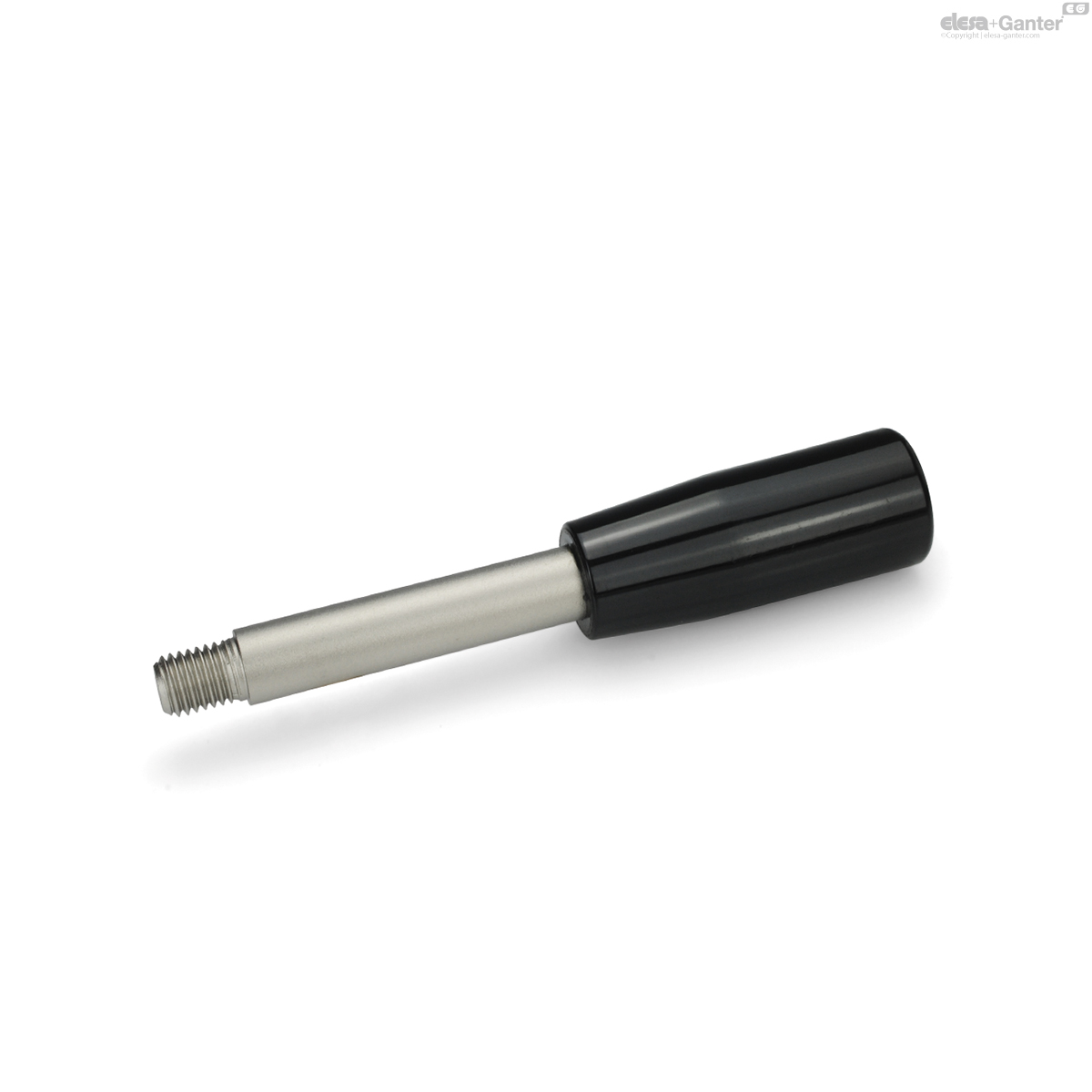

Type E: Cylindrical knob I.280

Shaft

Steel

Zinc plated, blue passivated ZB

Stainless Steel AISI 303 NI

Matte shot-blasted

Knob

Plastic, phenolic resin (PF)

Black, shiny finish

Screwed-on

Information

Gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.

Accessory

GN 150 Split Hubs (Steel)
GN 150.5 Split Hubs (Stainless Steel)
GN 919 Hubs with Eccentrical Cam (Sintered Steel)

Technical information

Plastic Characteristics
Stainless Steel Characteristics

GN 310-NI

	Color	d₁	l₁	d₂	d₃	d₄	d₅	l₂	l₃	l₄	l₅
Code													Actions
GN 310-8-63-A-NI	A	8	63	M 6	20	-	-	9	18	-	-	26
GN 310-8-63-D-NI	D	8	63	M 6	-	20	-	9	-	31	-	30
GN 310-8-63-E-NI	E	8	63	M 6	-	-	18	9	-	-	40	25
GN 310-8-80-A-NI	A	8	80	M 6	20	-	-	9	18	-	-	34
GN 310-8-80-D-NI	D	8	80	M 6	-	20	-	9	-	31	-	36
GN 310-8-80-E-NI	E	8	80	M 6	-	-	18	9	-	-	40	33
GN 310-8-100-A-NI	A	8	100	M 6	20	-	-	9	18	-	-	44
GN 310-8-100-D-NI	D	8	100	M 6	-	20	-	9	-	31	-	45
GN 310-8-100-E-NI	E	8	100	M 6	-	-	18	9	-	-	40	43
GN 310-10-80-A-NI	A	10	80	M 8	25	-	-	11	22.5	-	-	50
GN 310-10-80-D-NI	D	10	80	M 8	-	26	-	11	-	42	-	54
GN 310-10-80-E-NI	E	10	80	M 8	-	-	21	11	-	-	50	49
GN 310-10-100-A-NI	A	10	100	M 8	25	-	-	11	22.5	-	-	63
GN 310-10-100-D-NI	D	10	100	M 8	-	26	-	11	-	42	-	66
GN 310-10-100-E-NI	E	10	100	M 8	-	-	21	11	-	-	50	61
GN 310-10-125-A-NI	A	10	125	M 8	25	-	-	11	22.5	-	-	78
GN 310-10-125-D-NI	D	10	125	M 8	-	26	-	11	-	42	-	81
GN 310-10-125-E-NI	E	10	125	M 8	-	-	21	11	-	-	50	76
GN 310-12-100-A-NI	A	12	100	M 10	32	-	-	14	29	-	-	96
GN 310-12-100-D-NI	D	12	100	M 10	-	33	-	14	-	55	-	102
GN 310-12-100-E-NI	E	12	100	M 10	-	-	23	14	-	-	65	82
GN 310-12-125-A-NI	A	12	125	M 10	32	-	-	14	29	-	-	118
GN 310-12-125-D-NI	D	12	125	M 10	-	33	-	14	-	55	-	125
GN 310-12-125-E-NI	E	12	125	M 10	-	-	23	14	-	-	65	103
GN 310-12-160-A-NI	A	12	160	M 10	32	-	-	14	29	-	-	154
GN 310-12-160-D-NI	D	12	160	M 10	-	33	-	14	-	55	-	156
GN 310-12-160-E-NI	E	12	160	M 10	-	-	23	14	-	-	65	134
GN 310-14-125-A-NI	A	14	125	M 12	35	-	-	16	32.5	-	-	161
GN 310-14-125-D-NI	D	14	125	M 12	-	33	-	16	-	55	-	150
GN 310-14-125-E-NI	E	14	125	M 12	-	-	26	16	-	-	80	125
GN 310-14-160-A-NI	A	14	160	M 12	35	-	-	16	32.5	-	-	193
GN 310-14-160-D-NI	D	14	160	M 12	-	33	-	16	-	55	-	204
GN 310-14-160-E-NI	E	14	160	M 12	-	-	26	16	-	-	80	175
GN 310-14-200-A-NI	A	14	200	M 12	35	-	-	16	32.5	-	-	240
GN 310-14-200-D-NI	D	14	200	M 12	-	33	-	16	-	55	-	252
GN 310-14-200-E-NI	E	14	200	M 12	-	-	26	16	-	-	80	223
GN 310-16-160-A-NI	A	16	160	M 14	40	-	-	18	37	-	-	254
GN 310-16-160-D-NI	D	16	160	M 14	-	38	-	18	-	68	-	270
GN 310-16-160-E-NI	E	16	160	M 14	-	-	28	18	-	-	90	214
GN 310-16-200-A-NI	A	16	200	M 14	40	-	-	18	37	-	-	319
GN 310-16-200-D-NI	D	16	200	M 14	-	38	-	18	-	68	-	331
GN 310-16-200-E-NI	E	16	200	M 14	-	-	28	18	-	-	90	273
GN 310-16-250-A-NI	A	16	250	M 14	40	-	-	18	37	-	-	395
GN 310-16-250-D-NI	D	16	250	M 14	-	38	-	18	-	68	-	406
GN 310-16-250-E-NI	E	16	250	M 14	-	-	28	18	-	-	90	354
