GN 30i
Angle Brackets
Zinc Die Casting, for Aluminum Profiles (i-Modular System), with or without Accessory
GN 30i-A-ZW
Angle Brackets
Type A, painted, white aluminum
GN 30i-C-ZWSZS
Angle Brackets
Type C, painted, white aluminum, steel, zinc plated, black
Description
Specification
Types
- Type A: Without accessory
- Type C: With fastening set and cover cap
Angle bracket
Zinc die casting
Painted, white aluminum ZW
Screws and T-Nuts (only for Type C)
Steel, zinc plated, blue passivated SZ
Cover cap (only for Type C)
Plastic (Polyamide PA)
Black S
Information
Angle brackets GN 30i fasten aluminum profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.
The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminum profile, the guide steps must be broken off.
The cover caps ensure a visually appealing appearance and simplify cleaning (type C).
Accessory
- Only for Type A:
- T-Nuts GN 50i
Technical information
- Plastic CharacteristicsÂ
Assembly Options / Application Examples
 GN 30i-C-ZWSZS

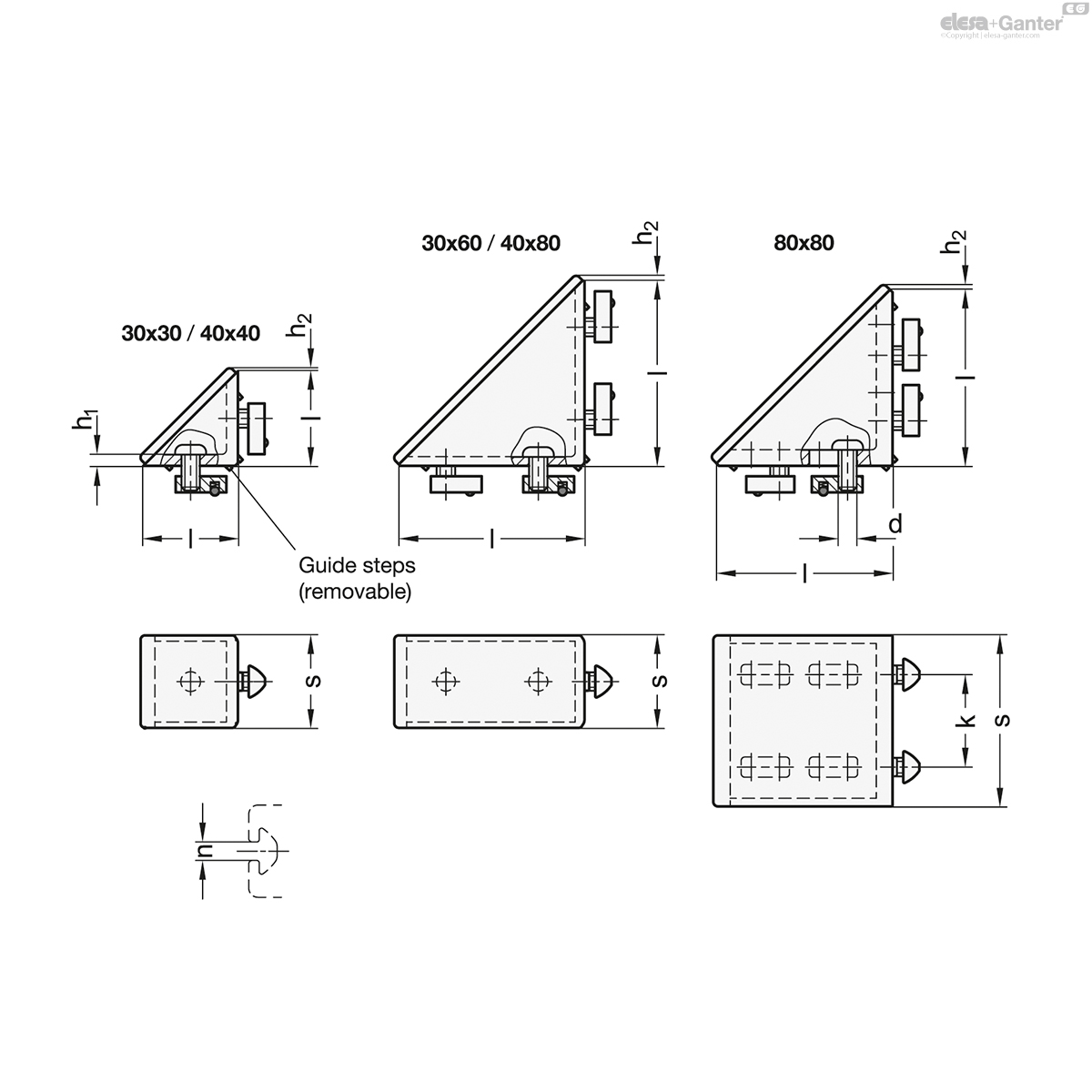

| Color | s Nominal dimension | s Actual dimension |
Length l Nominal dimension | Length l Actual dimension |
n | d | h1 | h2 ≈ | k |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 30i-30306-C-ZWSZS | 30x30/40x40 | 30 | 30 | 30 | 30 | 6 | M 6 | 2.5 | 2 | - | 52 |
|

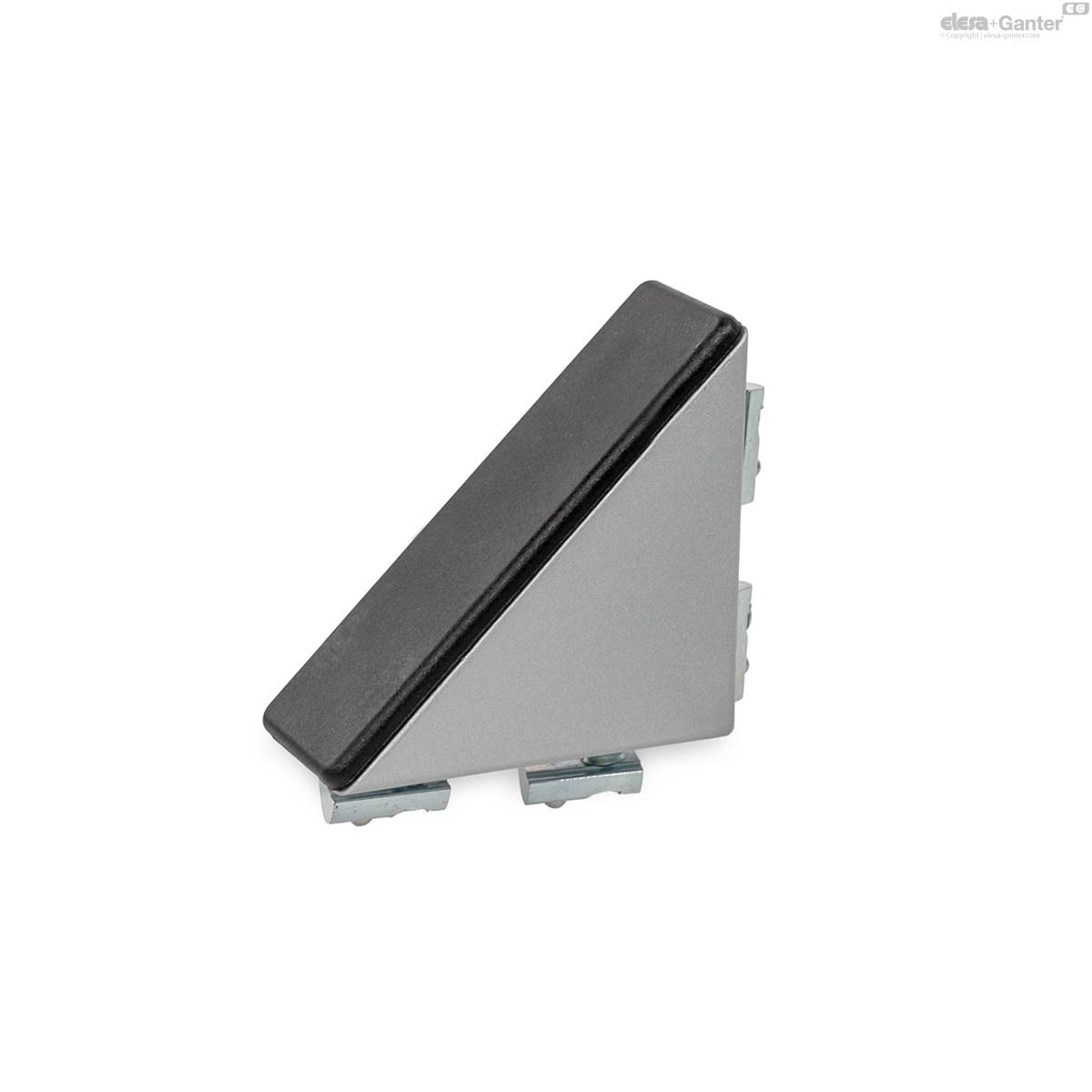

| GN 30i-30606-C-ZWSZS | 30x60/40x80 | 30 | 30 | 60 | 60 | 6 | M 6 | 3.5 | 2 | - | 166 |
|
| GN 30i-40408-C-ZWSZS | 30x30/40x40 | 40 | 40 | 40 | 40 | 8 | M 8 | 5 | 2 | - | 163 |
|
| GN 30i-40808-C-ZWSZS | 30x60/40x80 | 40 | 40 | 80 | 80 | 8 | M 8 | 5 | 2 | - | 355 |
|

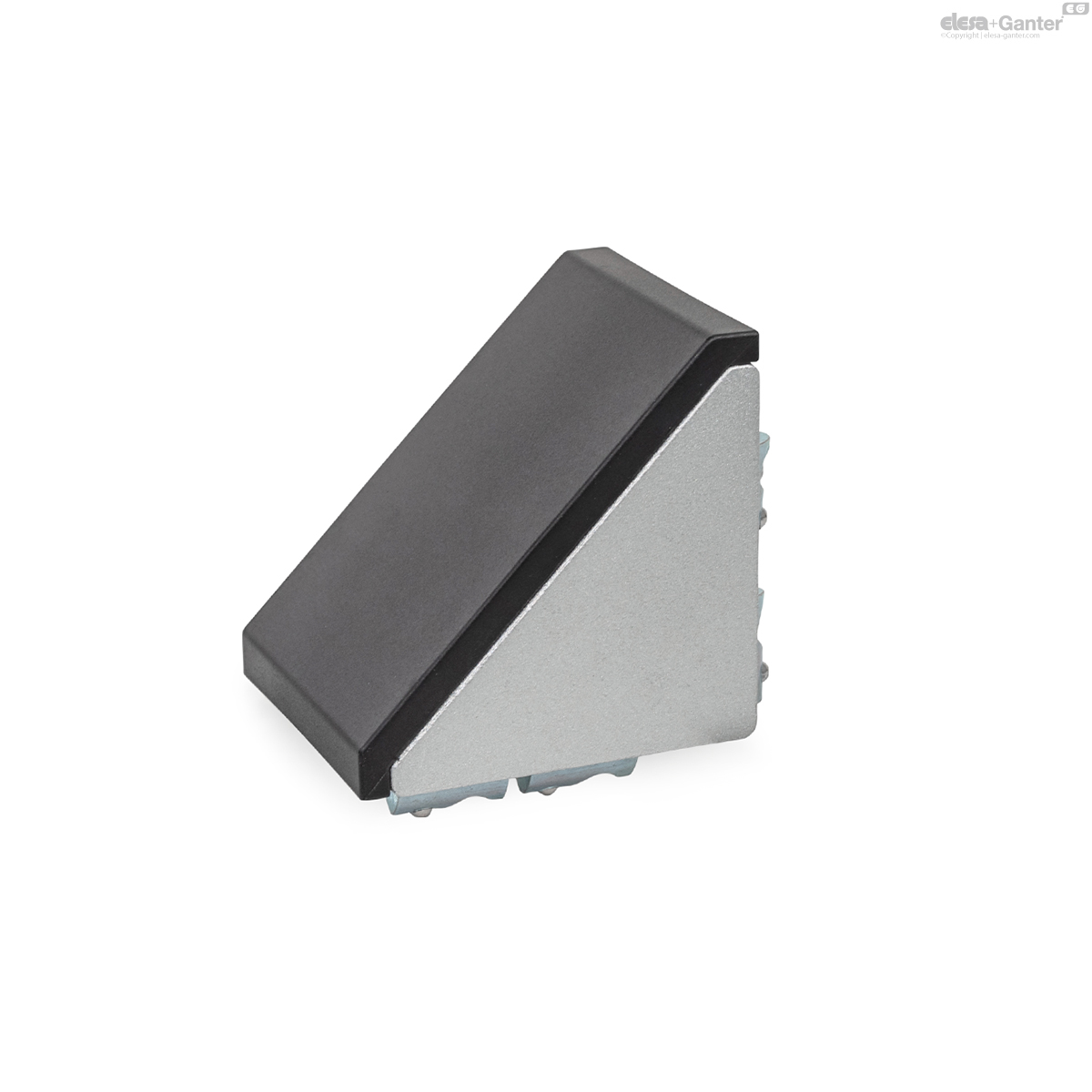

| GN 30i-80808-C-ZWSZS | 80x80 | 80 | 74 | 80 | 76 | 8 | M 8 | 8 | 7 | 40 | 575 |
|
