GN 30b
Angle Brackets
Aluminum, for Aluminum Profiles (b-Modular System), with or without Accessory
GN 30b-A-AW
Angle Brackets
Type A, painted, white aluminum
GN 30b-A-AB
Angle Brackets
Type A, plain finish

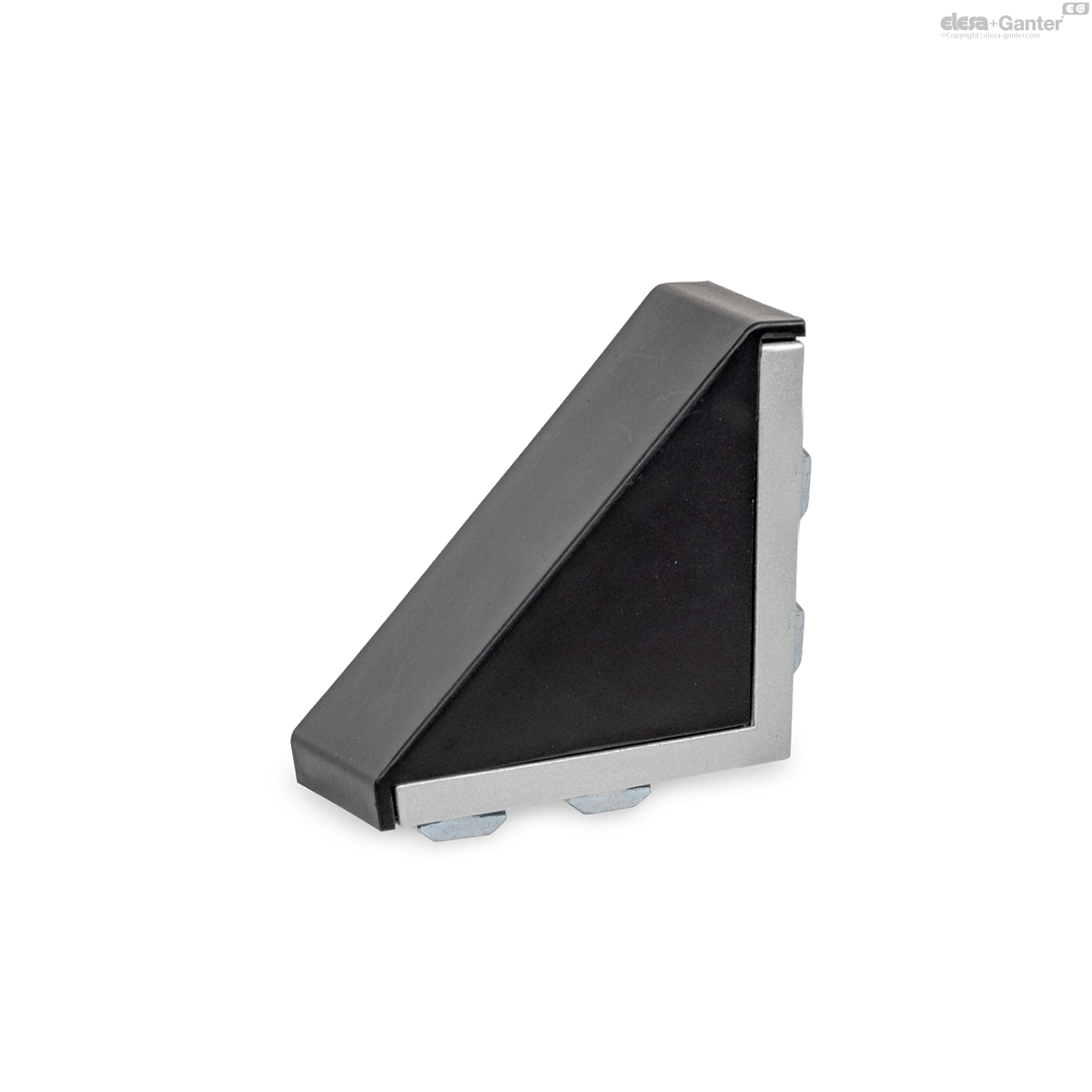

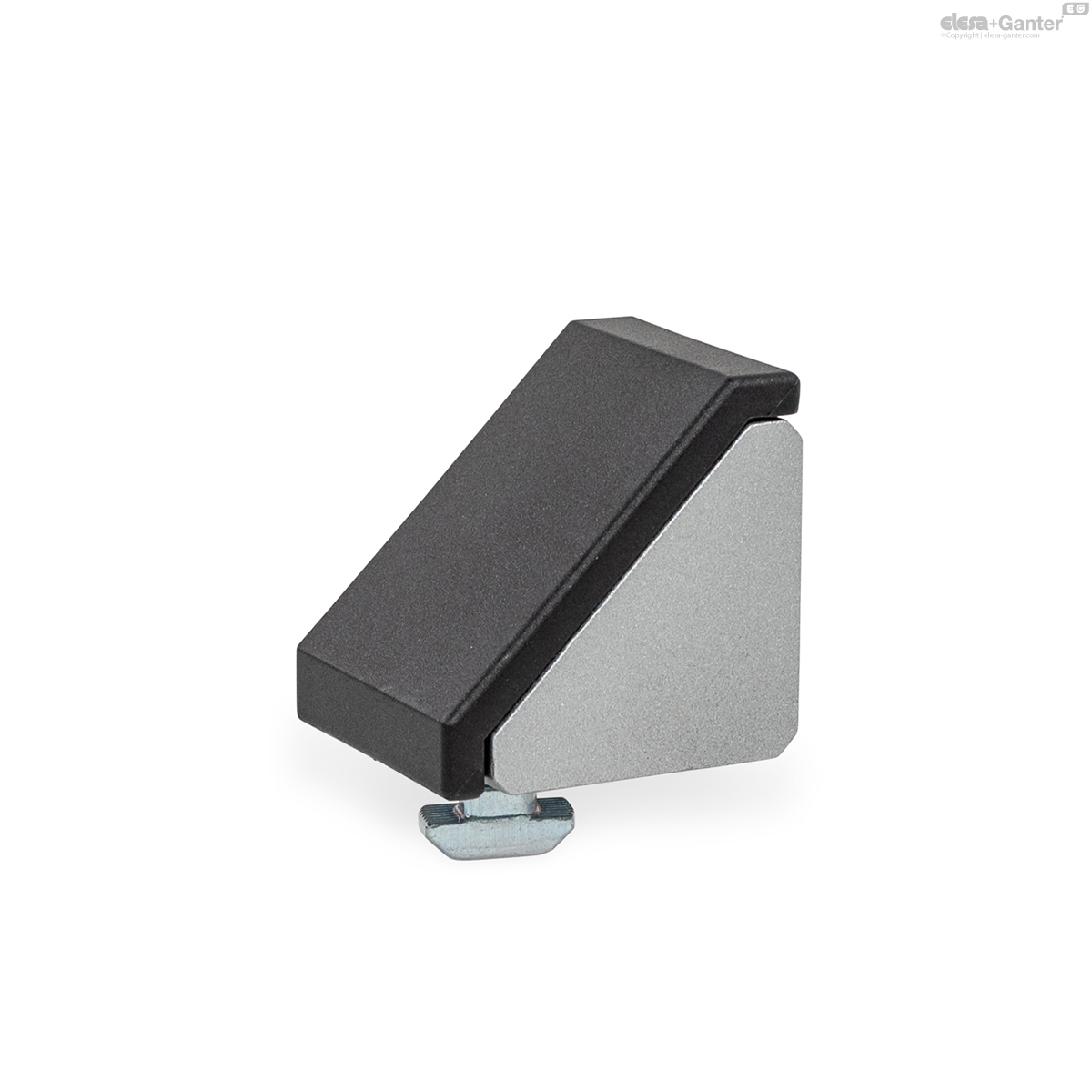

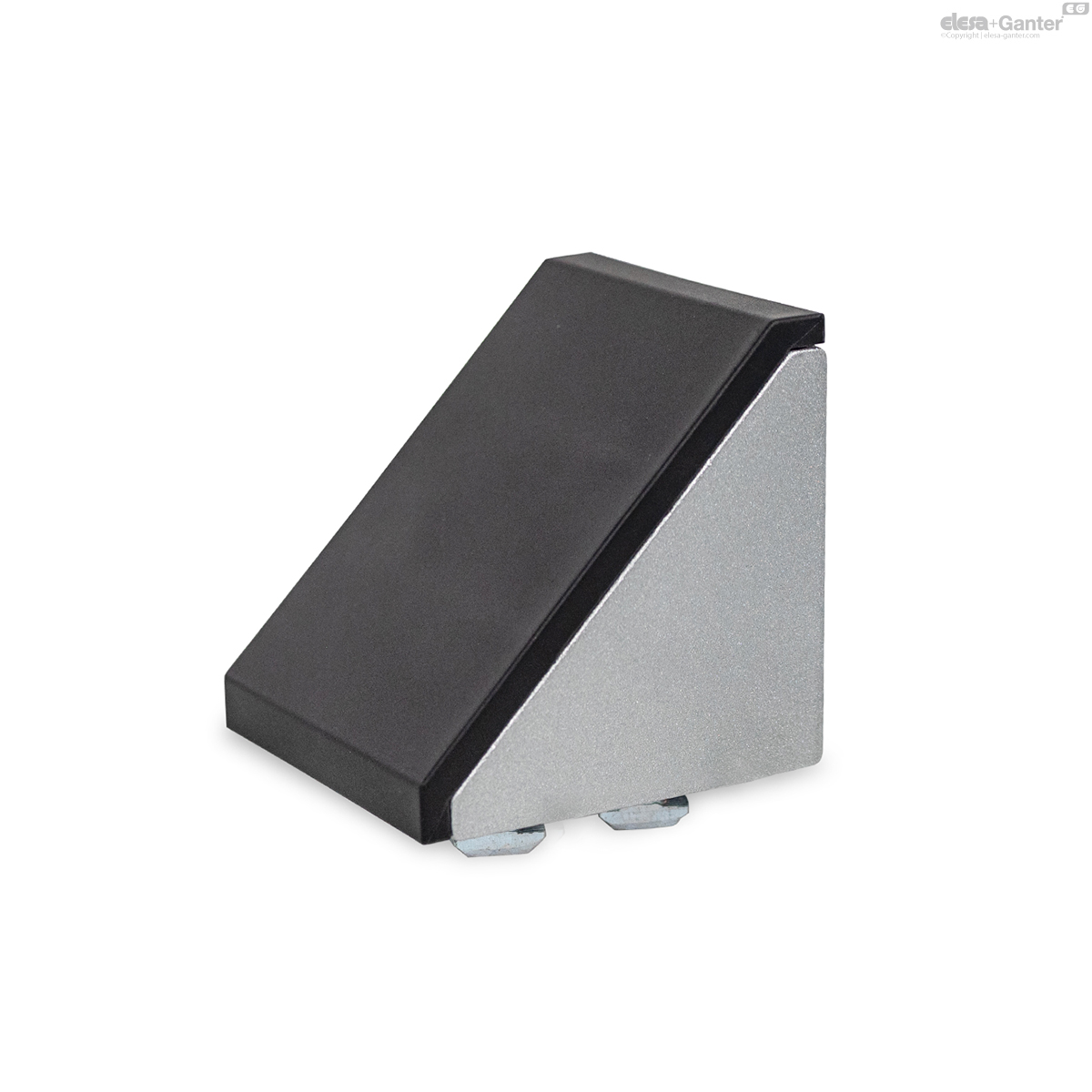

GN 30b-C-AWSZS
Angle Brackets
Type C, painted, white aluminum, steel, zinc plated, black
GN 30b-C-ABSZS
Angle Brackets
Type C, plain finish, steel, zinc plated, black
Description
Specification
Types
- Type A: Without accessory
- Type C: With fastening set and cover cap
Angle bracket
Aluminum
- Painted, white aluminum AW
- Plain finish AB
Fastening set (only for Type C)
- T-slot nut and socket cap screw (for n = 8)
- T-slot bolt and collar nut (for n = 10)
Steel, zinc plated SZ (only for Type C)
Blue / yellow passivated
Cover cap (only for Type C)
Plastic (Polyamide PA)
Black S
Information
Angle brackets GN 30b fasten aluminum profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.
The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminum profile, the guide steps must be broken off.
The cover caps ensure a visually appealing appearance and simplify cleaning (type C).
Accessory
- Only for Type A:
- T-Nuts GN 50b
- T-Slot Nuts GN 51b
- T-Slot Bolts GN 52b
- Collar Nuts GN 53b
Technical information
- Plastic CharacteristicsÂ
Assembly Options / Application Examples
 GN 30b-C-AWSZS

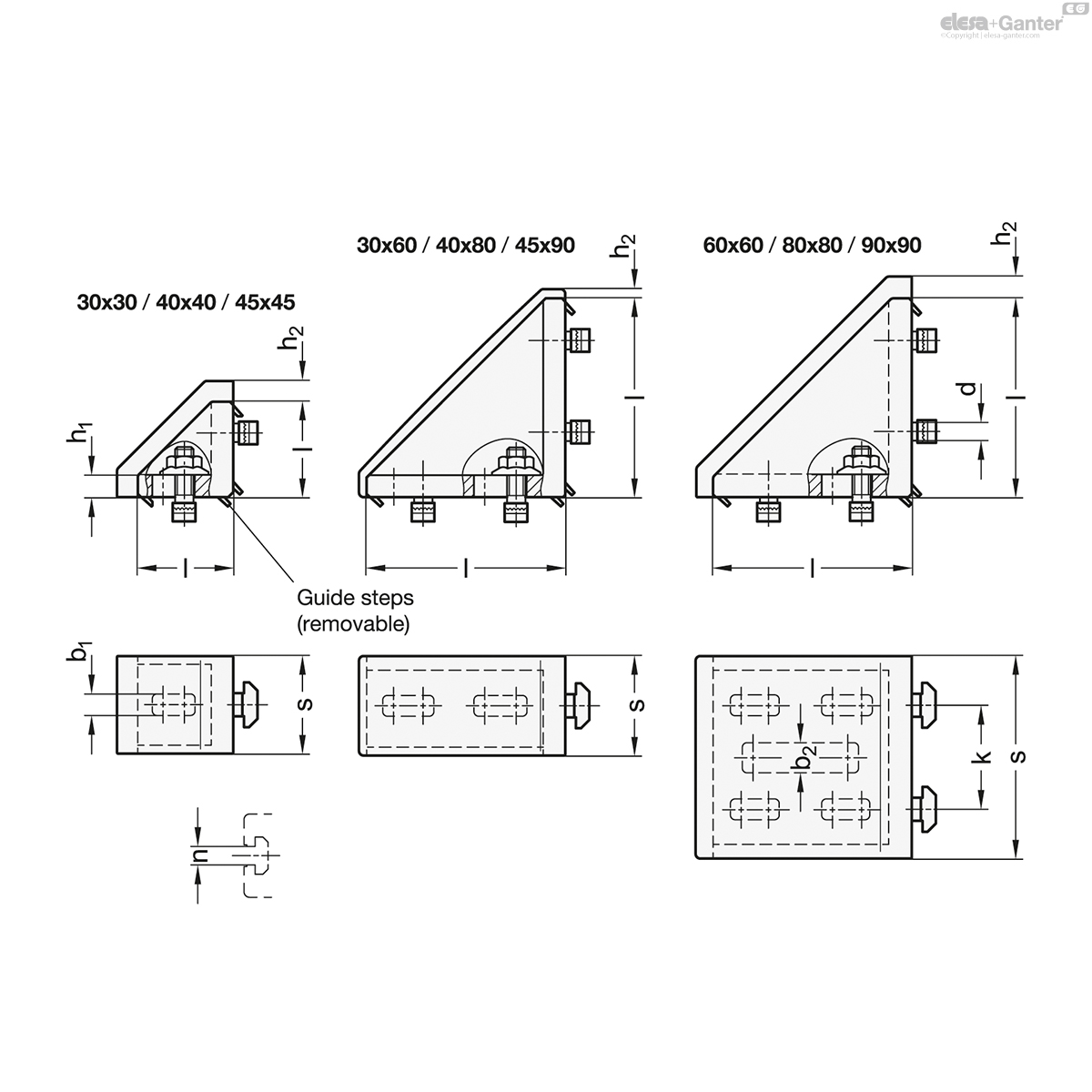

| Color | s Nominal dimension | s Actual dimension |
Length l Nominal dimension | Length l Actual dimension |
n | b1 For screw | b2* For screw | d | h1 | h2 ≈ | k |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 30b-30308-C-AWSZS | 30x30/40x40/45x45 | 30 | 28 | 30 | 27 | 8 | M 6 | - | M 6 | 5.5 | 6 | - | 41 |
|
| GN 30b-30608-C-AWSZS | 30x60/40x80/45x90 | 30 | 28 | 60 | 57 | 8** | M 6 | - | M 6 | 6 | 3.5 | - | 96 |
|
| GN 30b-60608-C-AWSZS | 60x60/80x80/90x90 | 60 | 56 | 60 | 57 | 8** | M 6 | M 8 | M 6 | 6 | 6.5 | 30 | 181 |
|
| GN 30b-404010-C-AWSZS | 30x30/40x40/45x45 | 40 | 38 | 40 | 36 | 10 | M 8 | - | M 8 | 5.5 | 6 | - | 87 |
|
| GN 30b-408010-C-AWSZS | 30x60/40x80/45x90 | 40 | 36 | 80 | 80 | 10** | M 8 | - | M 8 | 9 | 3.5 | - | 207 |
|
| GN 30b-454510-C-AWSZS | 30x30/40x40/45x45 | 45 | 42 | 45 | 41 | 10 | M 8 | - | M 8 | 9 | 6 | - | 112 |
|
| GN 30b-459010-C-AWSZS | 30x60/40x80/45x90 | 45 | 42 | 90 | 87 | 10** | M 8 | - | M 8 | 9.5 | 3.5 | - | 299 |
|
| GN 30b-808010-C-AWSZS | 60x60/80x80/90x90 | 80 | 74 | 80 | 76 | 10** | M 8 | - | M 8 | 8 | 6.5 | 40 | 454 |
|
| GN 30b-909010-C-AWSZS | 60x60/80x80/90x90 | 90 | 88 | 90 | 86 | 10** | M 8 | - | M 8 | 9.5 | 6.5 | 45 | 588 |
|
