GN 303.1

Adjustable hand levers

with push button/ Zinc die casting, Bushing / Threaded bolt Stainless Steel

Enquire Now

GN 303.1

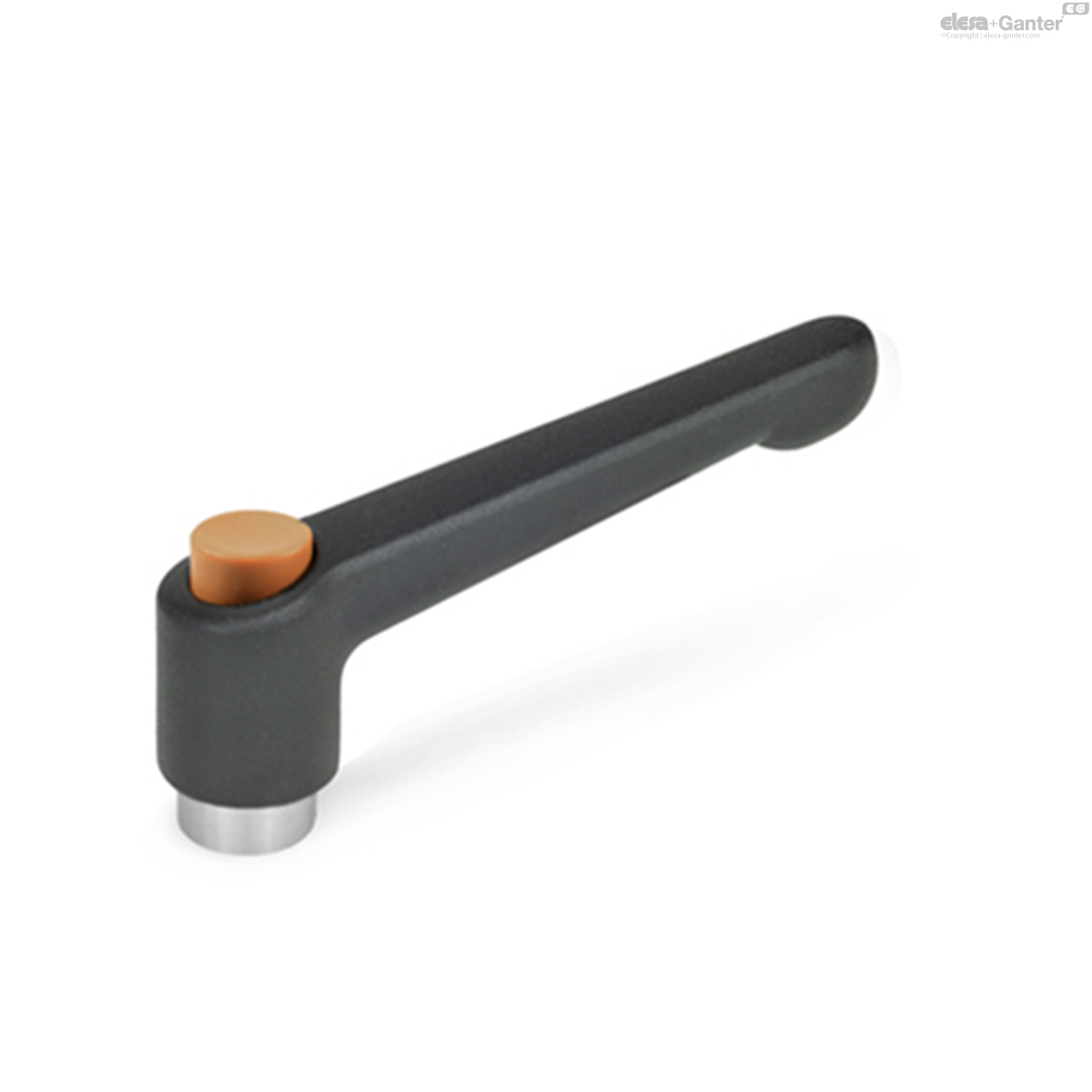

Adjustable hand levers

with bushing

GN-303.1

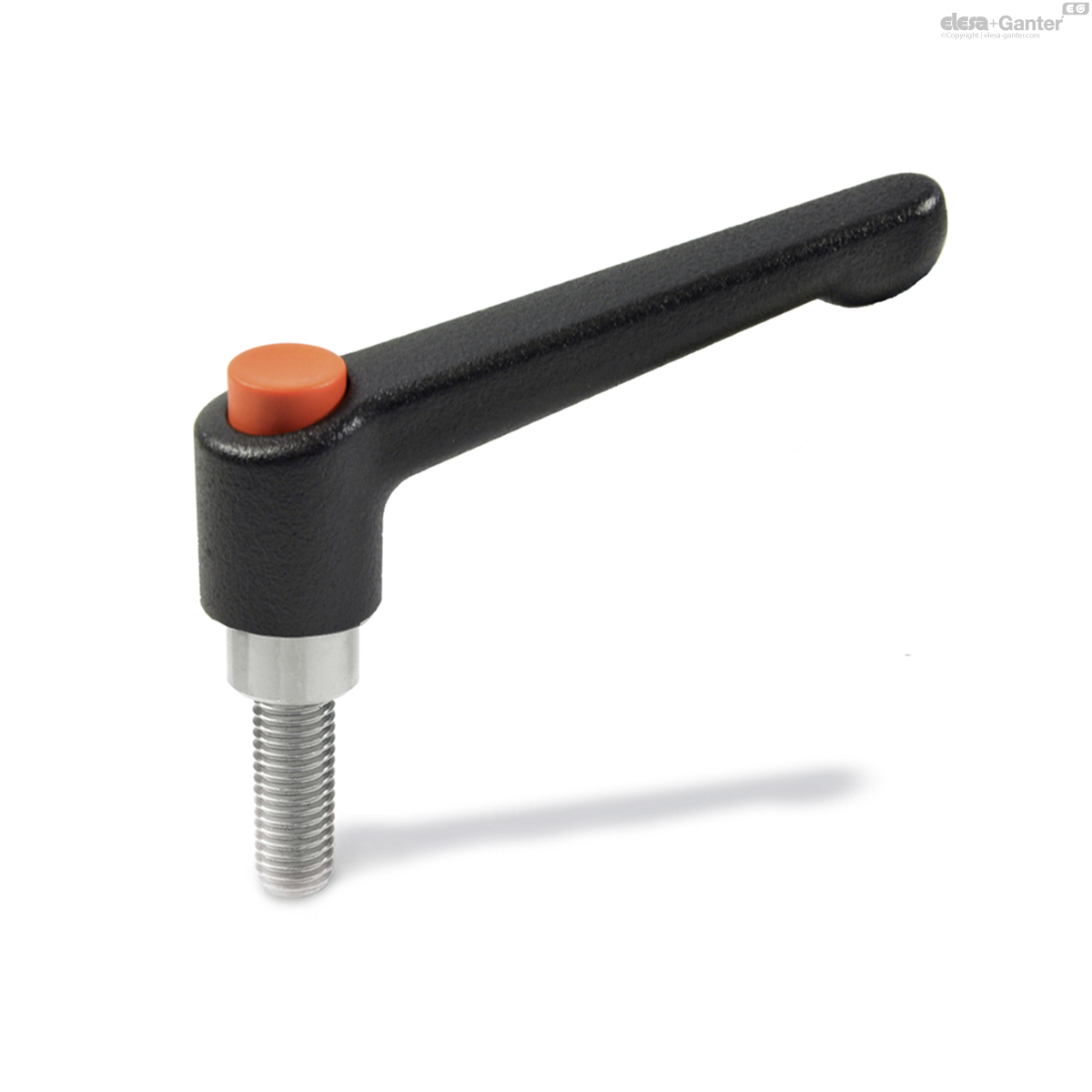

Adjustable hand levers

with threaded stud

Description

Specification

Handle

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

Push button

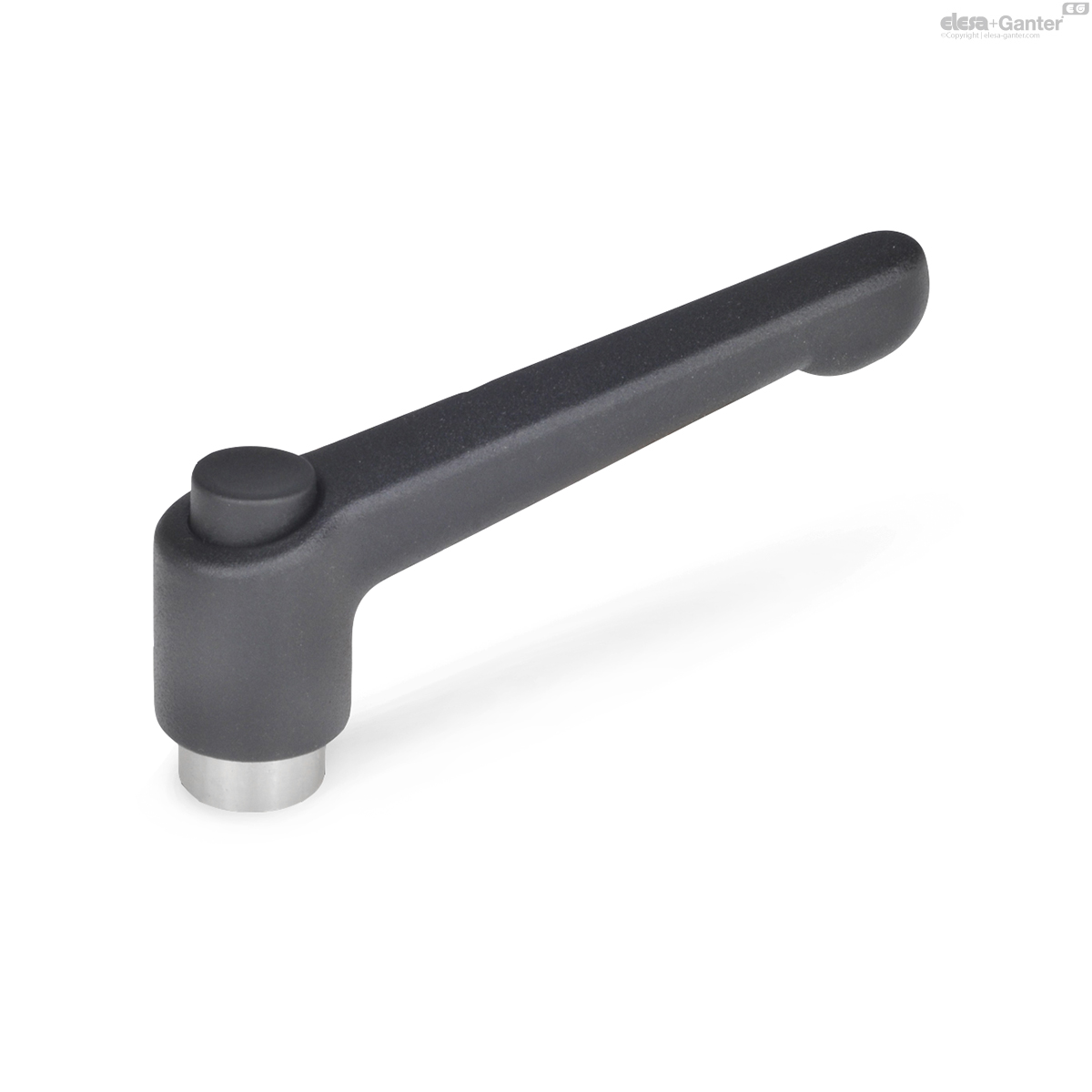

Plastic

black, RAL 9005 S

orange, RAL 2004 O

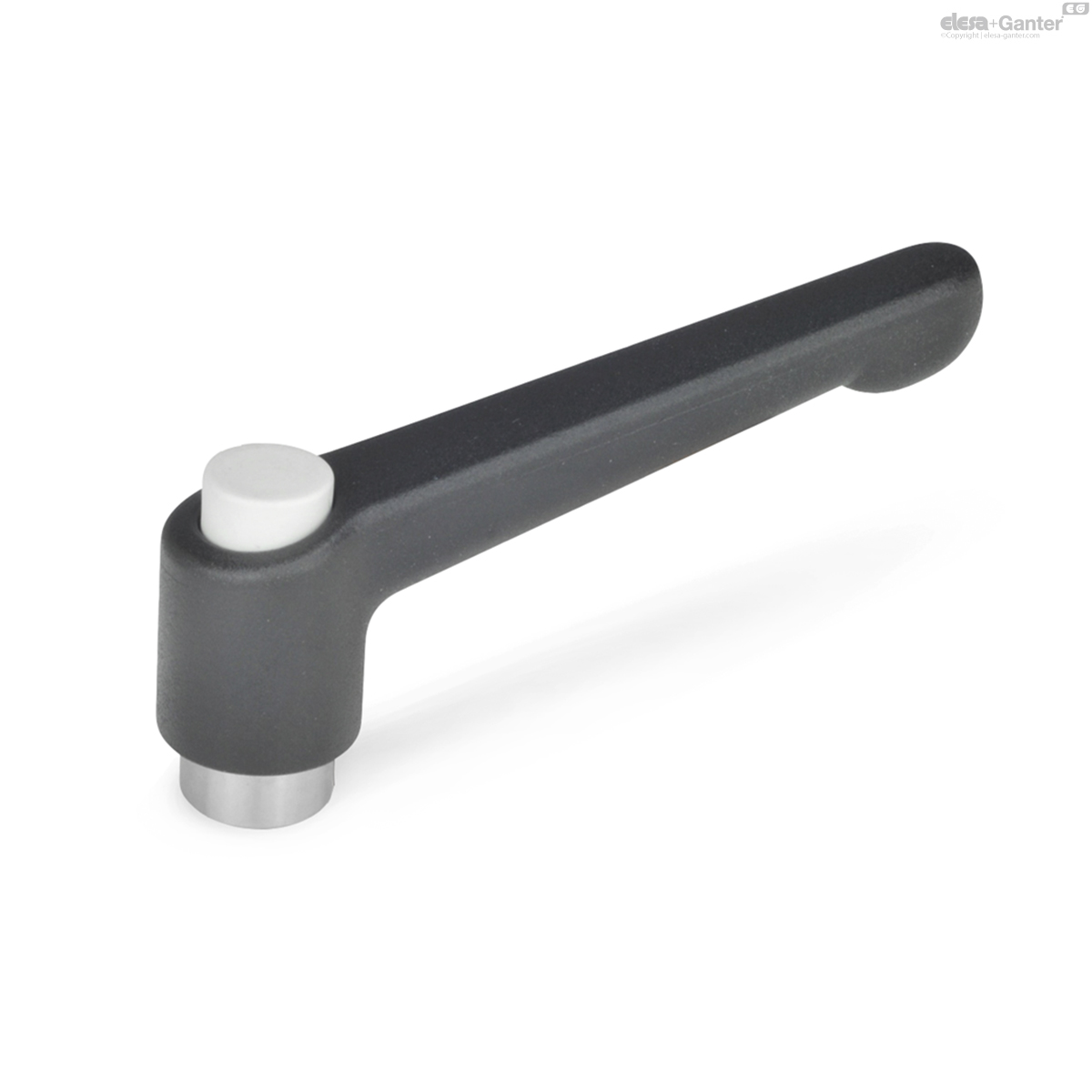

grey, RAL 7035 G

Version with bushing

Stainless Steel AISI 303

Version with threaded stud

Stainless Steel AISI 303

Information

Adjustable hand levers GN 303.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be dis-engaged.

The push button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.

Information

Handle in colours of GN 300

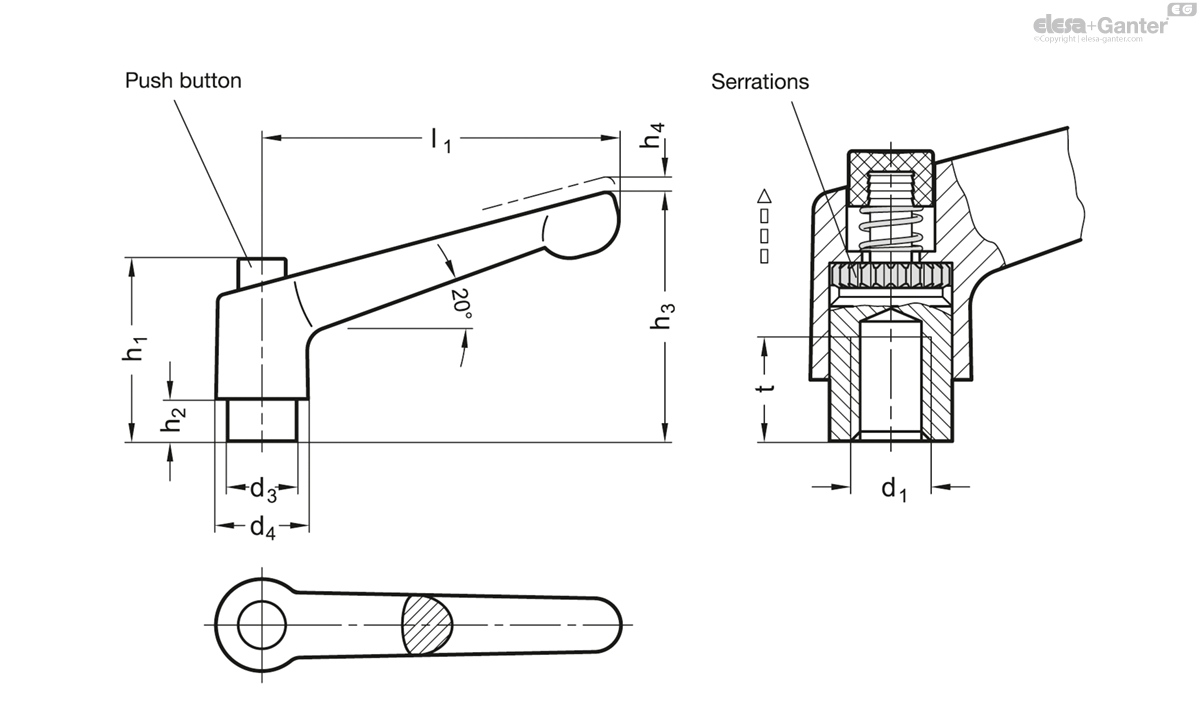

Technical information

ISO-Fundamental Tolerances

GN 303.1

	Color	l₁	d₁	d₃	d₄	h₁	h₂	h₃	h₄	t min.
Code												Actions
GN 303.1-30-M3-SW-G	G - RAL 7035	30	M 3	10	13	26.5	4	31	3.5	7	18
GN 303.1-30-M3-SW-O	O - RAL 2004	30	M 3	10	13	26.5	4	31	3.5	7	18
GN 303.1-30-M3-SW-S	S - RAL 9005	30	M 3	10	13	26.5	4	31	3.5	7	21
GN 303.1-30-M4-SW-G	G - RAL 7035	30	M 4	10	13	26.5	4	31	3.5	8	24
GN 303.1-30-M4-SW-O	O - RAL 2004	30	M 4	10	13	26.5	4	31	3.5	8	24
GN 303.1-30-M4-SW-S	S - RAL 9005	30	M 4	10	13	26.5	4	31	3.5	8	27
GN 303.1-30-M5-SW-G	G - RAL 7035	30	M 5	10	13	26.5	4	31	3.5	8	22
GN 303.1-30-M5-SW-O	O - RAL 2004	30	M 5	10	13	26.5	4	31	3.5	8	22
GN 303.1-30-M5-SW-S	S - RAL 9005	30	M 5	10	13	26.5	4	31	3.5	8	25
GN 303.1-30-M6-SW-G	G - RAL 7035	30	M 6	10	13	26.5	4	31	3.5	8	23
GN 303.1-30-M6-SW-O	O - RAL 2004	30	M 6	10	13	26.5	4	31	3.5	8	23
GN 303.1-30-M6-SW-S	S - RAL 9005	30	M 6	10	13	26.5	4	31	3.5	8	26
GN 303.1-45-M4-SW-G	G - RAL 7035	45	M 4	10	13	26.5	4	35	3.5	8	36
GN 303.1-45-M4-SW-O	O - RAL 2004	45	M 4	10	13	26.5	4	35	3.5	8	36
GN 303.1-45-M4-SW-S	S - RAL 9005	45	M 4	10	13	26.5	4	35	3.5	8	39
GN 303.1-45-M5-SW-G	G - RAL 7035	45	M 5	10	13	26.5	4	35	3.5	8	34
GN 303.1-45-M5-SW-O	O - RAL 2004	45	M 5	10	13	26.5	4	35	3.5	8	34
GN 303.1-45-M5-SW-S	S - RAL 9005	45	M 5	10	13	26.5	4	35	3.5	8	37
GN 303.1-45-M6-SW-G	G - RAL 7035	45	M 6	10	13	26.5	4	35	3.5	8	35
GN 303.1-45-M6-SW-O	O - RAL 2004	45	M 6	10	13	26.5	4	35	3.5	8	35
GN 303.1-45-M6-SW-S	S - RAL 9005	45	M 6	10	13	26.5	4	35	3.5	8	38
GN 303.1-63-M6-SW-G	G - RAL 7035	63	M 6	13.5	17.5	32.5	6.5	45	4	11	32
GN 303.1-63-M6-SW-O	O - RAL 2004	63	M 6	13.5	17.5	32.5	6.5	45	4	11	32
GN 303.1-63-M6-SW-S	S - RAL 9005	63	M 6	13.5	17.5	32.5	6.5	45	4	11	27
GN 303.1-63-M8-SW-G	G - RAL 7035	63	M 8	13.5	17.5	32.5	6.5	45	4	11	69
GN 303.1-63-M8-SW-O	O - RAL 2004	63	M 8	13.5	17.5	32.5	6.5	45	4	11	69
GN 303.1-63-M8-SW-S	S - RAL 9005	63	M 8	13.5	17.5	32.5	6.5	45	4	11	64
GN 303.1-78-M8-SW-G	G - RAL 7035	78	M 8	16	21	37.5	8	55	4	14	108
GN 303.1-78-M8-SW-O	O - RAL 2004	78	M 8	16	21	37.5	8	55	4	14	108
GN 303.1-78-M8-SW-S	S - RAL 9005	78	M 8	16	21	37.5	8	55	4	14	109
GN 303.1-78-M10-SW-G	G - RAL 7035	78	M 10	16	21	37.5	8	55	4	14	104
GN 303.1-78-M10-SW-O	O - RAL 2004	78	M 10	16	21	37.5	8	55	4	14	104
GN 303.1-78-M10-SW-S	S - RAL 9005	78	M 10	16	21	37.5	8	55	4	14	105
