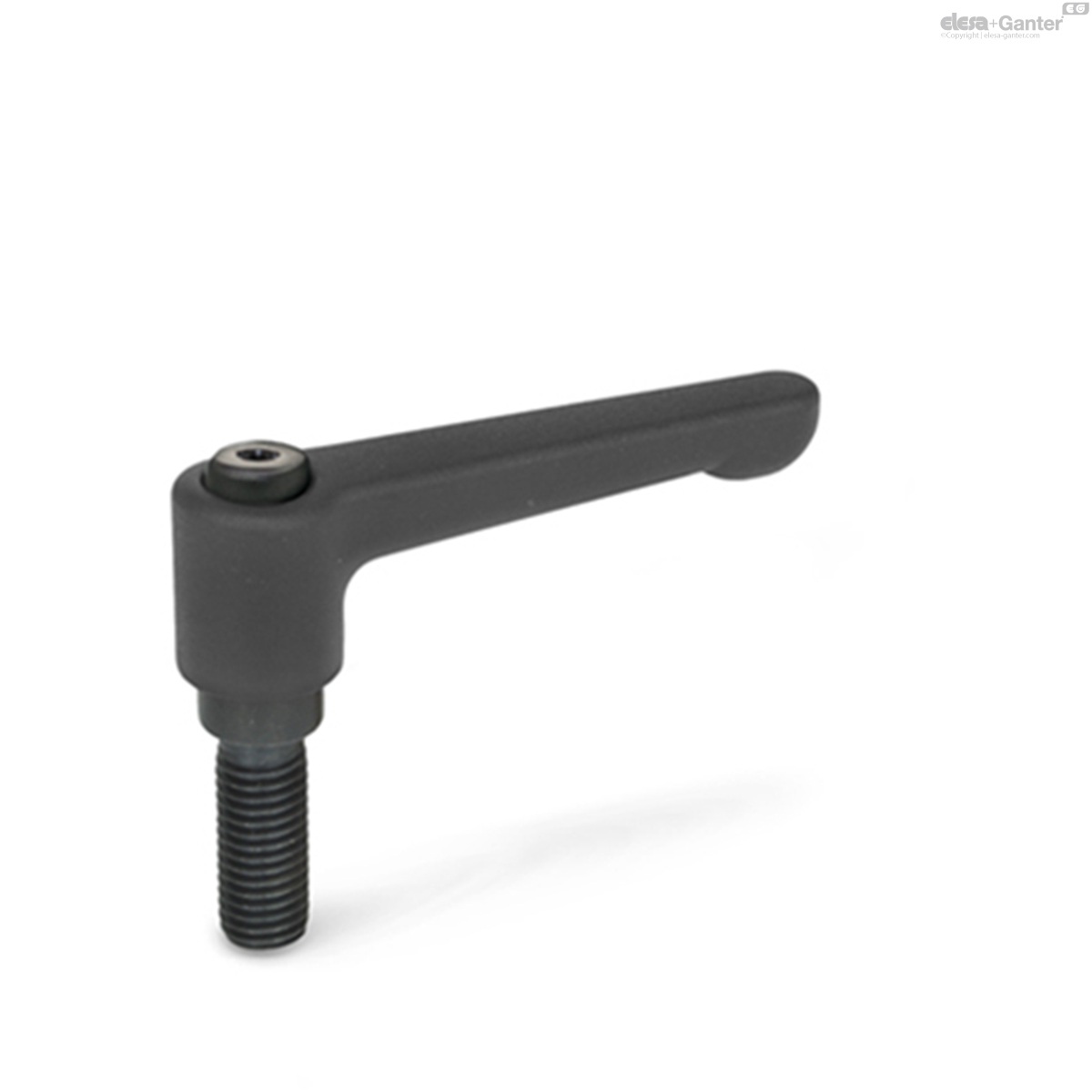

GN 302
Flat adjustable hand levers
Zinc die casting, Bushing / Threaded bolt Steel
GN 302
Flat adjustable hand levers
with bushing
GN-302
Flat adjustable hand levers
with threaded stud
Description
Specification
Handle
Zinc die casting
plastic coated
black, RAL 9005, textured finish SW

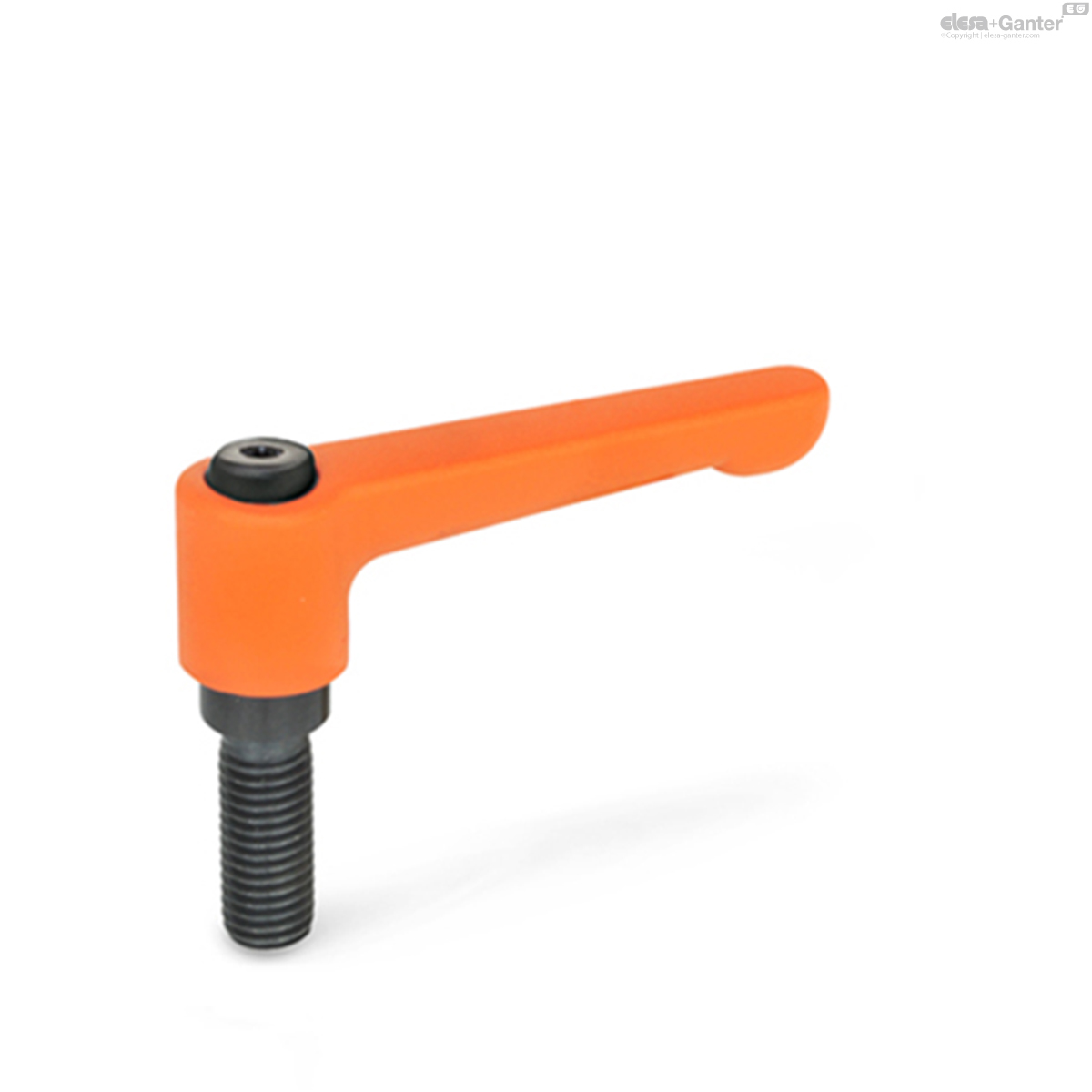

orange, RAL 2004, textured finish OS

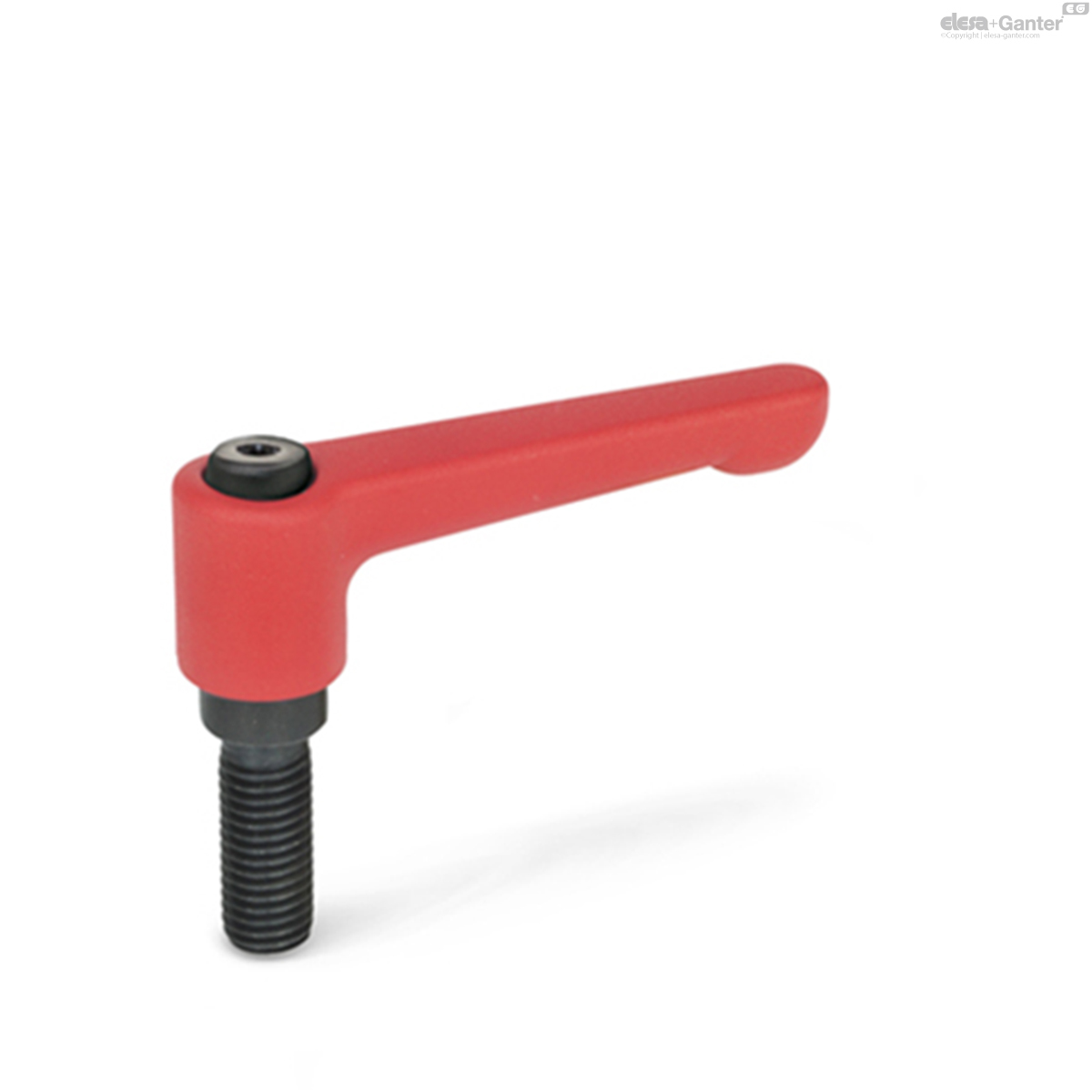

red, RAL 3000, textured finish RS
silver, RAL 9006, textured finish SR
Version with bushing
Threaded bush and retaining screw
Steel, blackened
Version with threaded stud
Threaded stud and retaining screw
Steel (5.8), blackened
Information
Adjustable hand levers GN 302 have a straight lever, not inclined, being parallel to the clamping space.
Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Technical information
- ISO-Fundamental TolerancesÂ
On request
- with insert in Stainless Steel
- with push-button
GN-302

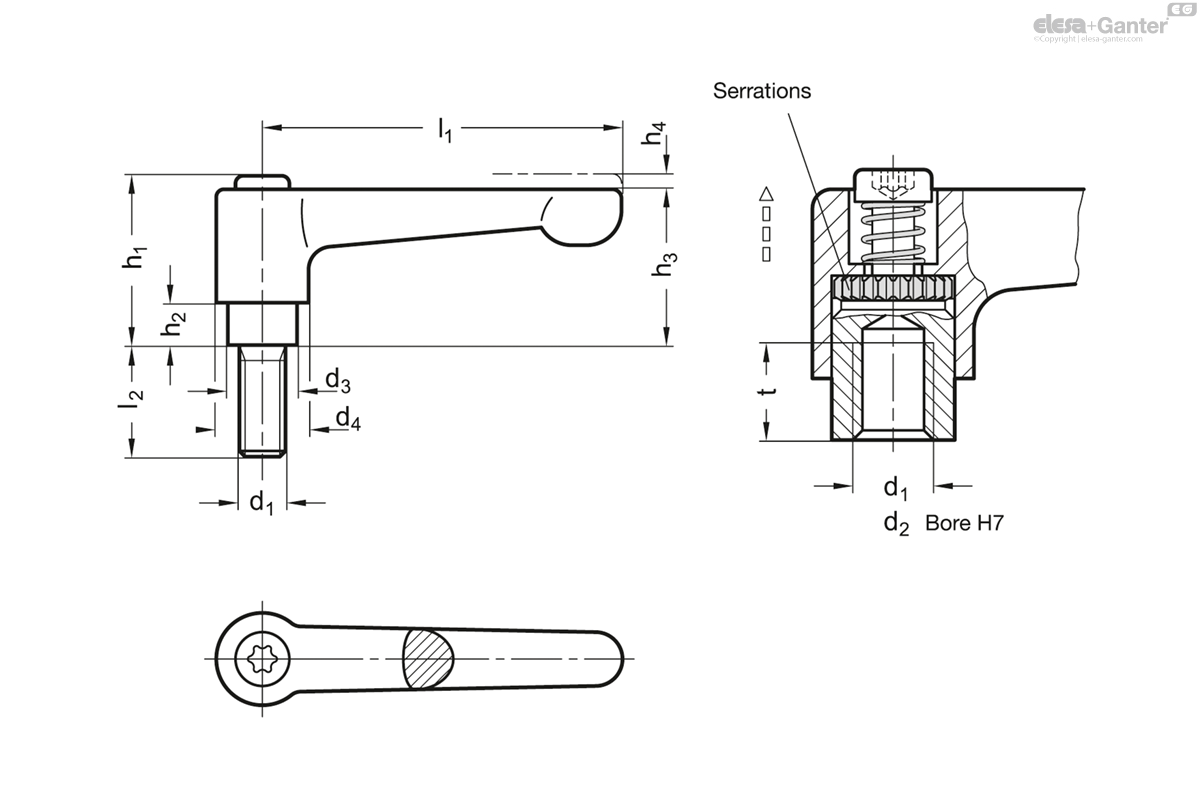

| Color | l1 | d1 | l2 | d3 | d4 | h1 | h2 | h3 | h4 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 302-22-M3-6-OS | OS - RAL 2004 | 22 | M 3 | 6 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-6-RS | RS - RAL 3000 | 22 | M 3 | 6 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-6-SR | SR - RAL 9006 | 22 | M 3 | 6 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-6-SW | SW - RAL 9004 | 22 | M 3 | 6 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-8-OS | OS - RAL 2004 | 22 | M 3 | 8 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-8-RS | RS - RAL 3000 | 22 | M 3 | 8 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-8-SR | SR - RAL 9006 | 22 | M 3 | 8 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-8-SW | SW - RAL 9004 | 22 | M 3 | 8 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 13 |
|
| GN 302-22-M3-10-OS | OS - RAL 2004 | 22 | M 3 | 10 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-10-RS | RS - RAL 3000 | 22 | M 3 | 10 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-10-SR | SR - RAL 9006 | 22 | M 3 | 10 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-10-SW | SW - RAL 9004 | 22 | M 3 | 10 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-12-OS | OS - RAL 2004 | 22 | M 3 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-12-RS | RS - RAL 3000 | 22 | M 3 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-12-SR | SR - RAL 9006 | 22 | M 3 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-12-SW | SW - RAL 9004 | 22 | M 3 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-16-OS | OS - RAL 2004 | 22 | M 3 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-16-RS | RS - RAL 3000 | 22 | M 3 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-16-SR | SR - RAL 9006 | 22 | M 3 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M3-16-SW | SW - RAL 9004 | 22 | M 3 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-12-OS | OS - RAL 2004 | 22 | M 4 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-12-RS | RS - RAL 3000 | 22 | M 4 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-12-SR | SR - RAL 9006 | 22 | M 4 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-12-SW | SW - RAL 9004 | 22 | M 4 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-16-OS | OS - RAL 2004 | 22 | M 4 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-16-RS | RS - RAL 3000 | 22 | M 4 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-16-SR | SR - RAL 9006 | 22 | M 4 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-16-SW | SW - RAL 9004 | 22 | M 4 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-20-OS | OS - RAL 2004 | 22 | M 4 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-20-RS | RS - RAL 3000 | 22 | M 4 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-20-SR | SR - RAL 9006 | 22 | M 4 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-20-SW | SW - RAL 9004 | 22 | M 4 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M4-25-OS | OS - RAL 2004 | 22 | M 4 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-25-RS | RS - RAL 3000 | 22 | M 4 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-25-SR | SR - RAL 9006 | 22 | M 4 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-25-SW | SW - RAL 9004 | 22 | M 4 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-32-OS | OS - RAL 2004 | 22 | M 4 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-32-RS | RS - RAL 3000 | 22 | M 4 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-32-SR | SR - RAL 9006 | 22 | M 4 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M4-32-SW | SW - RAL 9004 | 22 | M 4 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M5-12-OS | OS - RAL 2004 | 22 | M 5 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M5-12-RS | RS - RAL 3000 | 22 | M 5 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M5-12-SR | SR - RAL 9006 | 22 | M 5 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M5-12-SW | SW - RAL 9004 | 22 | M 5 | 12 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 14 |
|
| GN 302-22-M5-16-OS | OS - RAL 2004 | 22 | M 5 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M5-16-RS | RS - RAL 3000 | 22 | M 5 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M5-16-SR | SR - RAL 9006 | 22 | M 5 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M5-16-SW | SW - RAL 9004 | 22 | M 5 | 16 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 15 |
|
| GN 302-22-M5-20-OS | OS - RAL 2004 | 22 | M 5 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-20-RS | RS - RAL 3000 | 22 | M 5 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-20-SR | SR - RAL 9006 | 22 | M 5 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-20-SW | SW - RAL 9004 | 22 | M 5 | 20 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-25-OS | OS - RAL 2004 | 22 | M 5 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-25-RS | RS - RAL 3000 | 22 | M 5 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-25-SR | SR - RAL 9006 | 22 | M 5 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-25-SW | SW - RAL 9004 | 22 | M 5 | 25 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 16 |
|
| GN 302-22-M5-32-OS | OS - RAL 2004 | 22 | M 5 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 17 |
|
| GN 302-22-M5-32-RS | RS - RAL 3000 | 22 | M 5 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 17 |
|
| GN 302-22-M5-32-SR | SR - RAL 9006 | 22 | M 5 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 17 |
|
| GN 302-22-M5-32-SW | SW - RAL 9004 | 22 | M 5 | 32 | 8 | 10.5 | 18.5 | 2 | 16.5 | 3 | 17 |
|
| GN 302-30-M3-6-OS | OS - RAL 2004 | 30 | M 3 | 6 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-6-RS | RS - RAL 3000 | 30 | M 3 | 6 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-6-SR | SR - RAL 9006 | 30 | M 3 | 6 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-6-SW | SW - RAL 9004 | 30 | M 3 | 6 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-8-OS | OS - RAL 2004 | 30 | M 3 | 8 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-8-RS | RS - RAL 3000 | 30 | M 3 | 8 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-8-SR | SR - RAL 9006 | 30 | M 3 | 8 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-8-SW | SW - RAL 9004 | 30 | M 3 | 8 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-10-OS | OS - RAL 2004 | 30 | M 3 | 10 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M3-10-RS | RS - RAL 3000 | 30 | M 3 | 10 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M3-10-SR | SR - RAL 9006 | 30 | M 3 | 10 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M3-10-SW | SW - RAL 9004 | 30 | M 3 | 10 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M3-12-OS | OS - RAL 2004 | 30 | M 3 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-12-RS | RS - RAL 3000 | 30 | M 3 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-12-SR | SR - RAL 9006 | 30 | M 3 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-12-SW | SW - RAL 9004 | 30 | M 3 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-16-OS | OS - RAL 2004 | 30 | M 3 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-16-RS | RS - RAL 3000 | 30 | M 3 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-16-SR | SR - RAL 9006 | 30 | M 3 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M3-16-SW | SW - RAL 9004 | 30 | M 3 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 26 |
|
| GN 302-30-M4-12-OS | OS - RAL 2004 | 30 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-12-RS | RS - RAL 3000 | 30 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-12-SR | SR - RAL 9006 | 30 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-12-SW | SW - RAL 9004 | 30 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-16-OS | OS - RAL 2004 | 30 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-16-RS | RS - RAL 3000 | 30 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-16-SR | SR - RAL 9006 | 30 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-16-SW | SW - RAL 9004 | 30 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-20-OS | OS - RAL 2004 | 30 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-20-RS | RS - RAL 3000 | 30 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-20-SR | SR - RAL 9006 | 30 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-20-SW | SW - RAL 9004 | 30 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M4-25-OS | OS - RAL 2004 | 30 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-25-RS | RS - RAL 3000 | 30 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-25-SR | SR - RAL 9006 | 30 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-25-SW | SW - RAL 9004 | 30 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-32-OS | OS - RAL 2004 | 30 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-32-RS | RS - RAL 3000 | 30 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-32-SR | SR - RAL 9006 | 30 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M4-32-SW | SW - RAL 9004 | 30 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-12-OS | OS - RAL 2004 | 30 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M5-12-RS | RS - RAL 3000 | 30 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M5-12-SR | SR - RAL 9006 | 30 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M5-12-SW | SW - RAL 9004 | 30 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 27 |
|
| GN 302-30-M5-16-OS | OS - RAL 2004 | 30 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-16-RS | RS - RAL 3000 | 30 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-16-SR | SR - RAL 9006 | 30 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-16-SW | SW - RAL 9004 | 30 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-20-OS | OS - RAL 2004 | 30 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-20-RS | RS - RAL 3000 | 30 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-20-SR | SR - RAL 9006 | 30 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-20-SW | SW - RAL 9004 | 30 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M5-25-OS | OS - RAL 2004 | 30 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M5-25-RS | RS - RAL 3000 | 30 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M5-25-SR | SR - RAL 9006 | 30 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M5-25-SW | SW - RAL 9004 | 30 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M5-32-OS | OS - RAL 2004 | 30 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M5-32-RS | RS - RAL 3000 | 30 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M5-32-SR | SR - RAL 9006 | 30 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M5-32-SW | SW - RAL 9004 | 30 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M5-40-OS | OS - RAL 2004 | 30 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M5-40-RS | RS - RAL 3000 | 30 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M5-40-SR | SR - RAL 9006 | 30 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M5-40-SW | SW - RAL 9004 | 30 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M5-50-OS | OS - RAL 2004 | 30 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 32 |
|
| GN 302-30-M5-50-RS | RS - RAL 3000 | 30 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 32 |
|
| GN 302-30-M5-50-SR | SR - RAL 9006 | 30 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 32 |
|
| GN 302-30-M5-50-SW | SW - RAL 9004 | 30 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 32 |
|
| GN 302-30-M6-12-OS | OS - RAL 2004 | 30 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-12-RS | RS - RAL 3000 | 30 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-12-SR | SR - RAL 9006 | 30 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-12-SW | SW - RAL 9004 | 30 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-16-OS | OS - RAL 2004 | 30 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-16-RS | RS - RAL 3000 | 30 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-16-SR | SR - RAL 9006 | 30 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-16-SW | SW - RAL 9004 | 30 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 28 |
|
| GN 302-30-M6-20-OS | OS - RAL 2004 | 30 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M6-20-RS | RS - RAL 3000 | 30 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M6-20-SR | SR - RAL 9006 | 30 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M6-20-SW | SW - RAL 9004 | 30 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 29 |
|
| GN 302-30-M6-25-OS | OS - RAL 2004 | 30 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M6-25-RS | RS - RAL 3000 | 30 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M6-25-SR | SR - RAL 9006 | 30 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M6-25-SW | SW - RAL 9004 | 30 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 30 |
|
| GN 302-30-M6-32-OS | OS - RAL 2004 | 30 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M6-32-RS | RS - RAL 3000 | 30 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M6-32-SR | SR - RAL 9006 | 30 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M6-32-SW | SW - RAL 9004 | 30 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 31 |
|
| GN 302-30-M6-40-OS | OS - RAL 2004 | 30 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M6-40-RS | RS - RAL 3000 | 30 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M6-40-SR | SR - RAL 9006 | 30 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M6-40-SW | SW - RAL 9004 | 30 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 33 |
|
| GN 302-30-M6-50-OS | OS - RAL 2004 | 30 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 19 |
|
| GN 302-30-M6-50-RS | RS - RAL 3000 | 30 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 19 |
|
| GN 302-30-M6-50-SR | SR - RAL 9006 | 30 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 19 |
|
| GN 302-30-M6-50-SW | SW - RAL 9004 | 30 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 19 |
|
| GN 302-45-M4-12-OS | OS - RAL 2004 | 45 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-12-RS | RS - RAL 3000 | 45 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-12-SR | SR - RAL 9006 | 45 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-12-SW | SW - RAL 9004 | 45 | M 4 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-16-OS | OS - RAL 2004 | 45 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-16-RS | RS - RAL 3000 | 45 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-16-SR | SR - RAL 9006 | 45 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-16-SW | SW - RAL 9004 | 45 | M 4 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-20-OS | OS - RAL 2004 | 45 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-20-RS | RS - RAL 3000 | 45 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-20-SR | SR - RAL 9006 | 45 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-20-SW | SW - RAL 9004 | 45 | M 4 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M4-25-OS | OS - RAL 2004 | 45 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-25-RS | RS - RAL 3000 | 45 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-25-SR | SR - RAL 9006 | 45 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-25-SW | SW - RAL 9004 | 45 | M 4 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-32-OS | OS - RAL 2004 | 45 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-32-RS | RS - RAL 3000 | 45 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-32-SR | SR - RAL 9006 | 45 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M4-32-SW | SW - RAL 9004 | 45 | M 4 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-12-OS | OS - RAL 2004 | 45 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M5-12-RS | RS - RAL 3000 | 45 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M5-12-SR | SR - RAL 9006 | 45 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M5-12-SW | SW - RAL 9004 | 45 | M 5 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 34 |
|
| GN 302-45-M5-16-OS | OS - RAL 2004 | 45 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-16-RS | RS - RAL 3000 | 45 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-16-SR | SR - RAL 9006 | 45 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-16-SW | SW - RAL 9004 | 45 | M 5 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-20-OS | OS - RAL 2004 | 45 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-20-RS | RS - RAL 3000 | 45 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-20-SR | SR - RAL 9006 | 45 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-20-SW | SW - RAL 9004 | 45 | M 5 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M5-25-OS | OS - RAL 2004 | 45 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M5-25-RS | RS - RAL 3000 | 45 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M5-25-SR | SR - RAL 9006 | 45 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M5-25-SW | SW - RAL 9004 | 45 | M 5 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M5-32-OS | OS - RAL 2004 | 45 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M5-32-RS | RS - RAL 3000 | 45 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M5-32-SR | SR - RAL 9006 | 45 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M5-32-SW | SW - RAL 9004 | 45 | M 5 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M5-40-OS | OS - RAL 2004 | 45 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M5-40-RS | RS - RAL 3000 | 45 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M5-40-SR | SR - RAL 9006 | 45 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M5-40-SW | SW - RAL 9004 | 45 | M 5 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M5-50-OS | OS - RAL 2004 | 45 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 39 |
|
| GN 302-45-M5-50-RS | RS - RAL 3000 | 45 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 39 |
|
| GN 302-45-M5-50-SR | SR - RAL 9006 | 45 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 39 |
|
| GN 302-45-M5-50-SW | SW - RAL 9004 | 45 | M 5 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 39 |
|
| GN 302-45-M6-12-OS | OS - RAL 2004 | 45 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-12-RS | RS - RAL 3000 | 45 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-12-SR | SR - RAL 9006 | 45 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-12-SW | SW - RAL 9004 | 45 | M 6 | 12 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-16-OS | OS - RAL 2004 | 45 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-16-RS | RS - RAL 3000 | 45 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-16-SR | SR - RAL 9006 | 45 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-16-SW | SW - RAL 9004 | 45 | M 6 | 16 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 35 |
|
| GN 302-45-M6-20-OS | OS - RAL 2004 | 45 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M6-20-RS | RS - RAL 3000 | 45 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M6-20-SR | SR - RAL 9006 | 45 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M6-20-SW | SW - RAL 9004 | 45 | M 6 | 20 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 36 |
|
| GN 302-45-M6-25-OS | OS - RAL 2004 | 45 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M6-25-RS | RS - RAL 3000 | 45 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M6-25-SR | SR - RAL 9006 | 45 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M6-25-SW | SW - RAL 9004 | 45 | M 6 | 25 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 37 |
|
| GN 302-45-M6-32-OS | OS - RAL 2004 | 45 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M6-32-RS | RS - RAL 3000 | 45 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M6-32-SR | SR - RAL 9006 | 45 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M6-32-SW | SW - RAL 9004 | 45 | M 6 | 32 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 38 |
|
| GN 302-45-M6-40-OS | OS - RAL 2004 | 45 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 40 |
|
| GN 302-45-M6-40-RS | RS - RAL 3000 | 45 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 40 |
|
| GN 302-45-M6-40-SR | SR - RAL 9006 | 45 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 40 |
|
| GN 302-45-M6-40-SW | SW - RAL 9004 | 45 | M 6 | 40 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 40 |
|
| GN 302-45-M6-50-OS | OS - RAL 2004 | 45 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 41 |
|
| GN 302-45-M6-50-RS | RS - RAL 3000 | 45 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 41 |
|
| GN 302-45-M6-50-SR | SR - RAL 9006 | 45 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 41 |
|
| GN 302-45-M6-50-SW | SW - RAL 9004 | 45 | M 6 | 50 | 10 | 13 | 24.5 | 4 | 22 | 3.5 | 41 |
|
| GN 302-63-M6-12-OS | OS - RAL 2004 | 63 | M 6 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 73 |
|
| GN 302-63-M6-12-RS | RS - RAL 3000 | 63 | M 6 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 73 |
|
| GN 302-63-M6-12-SR | SR - RAL 9006 | 63 | M 6 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 73 |
|
| GN 302-63-M6-12-SW | SW - RAL 9004 | 63 | M 6 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 73 |
|
| GN 302-63-M6-16-OS | OS - RAL 2004 | 63 | M 6 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 74 |
|
| GN 302-63-M6-16-RS | RS - RAL 3000 | 63 | M 6 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 74 |
|
| GN 302-63-M6-16-SR | SR - RAL 9006 | 63 | M 6 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 74 |
|
| GN 302-63-M6-16-SW | SW - RAL 9004 | 63 | M 6 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 74 |
|
| GN 302-63-M6-20-OS | OS - RAL 2004 | 63 | M 6 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 75 |
|
| GN 302-63-M6-20-RS | RS - RAL 3000 | 63 | M 6 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 75 |
|
| GN 302-63-M6-20-SR | SR - RAL 9006 | 63 | M 6 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 75 |
|
| GN 302-63-M6-20-SW | SW - RAL 9004 | 63 | M 6 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 75 |
|
| GN 302-63-M6-25-OS | OS - RAL 2004 | 63 | M 6 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M6-25-RS | RS - RAL 3000 | 63 | M 6 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M6-25-SR | SR - RAL 9006 | 63 | M 6 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M6-25-SW | SW - RAL 9004 | 63 | M 6 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M6-32-OS | OS - RAL 2004 | 63 | M 6 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 77 |
|
| GN 302-63-M6-32-RS | RS - RAL 3000 | 63 | M 6 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 77 |
|
| GN 302-63-M6-32-SR | SR - RAL 9006 | 63 | M 6 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 77 |
|
| GN 302-63-M6-32-SW | SW - RAL 9004 | 63 | M 6 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 77 |
|
| GN 302-63-M6-40-OS | OS - RAL 2004 | 63 | M 6 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 79 |
|
| GN 302-63-M6-40-RS | RS - RAL 3000 | 63 | M 6 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 79 |
|
| GN 302-63-M6-40-SR | SR - RAL 9006 | 63 | M 6 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 79 |
|
| GN 302-63-M6-40-SW | SW - RAL 9004 | 63 | M 6 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 79 |
|
| GN 302-63-M6-50-OS | OS - RAL 2004 | 63 | M 6 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M6-50-RS | RS - RAL 3000 | 63 | M 6 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M6-50-SR | SR - RAL 9006 | 63 | M 6 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M6-50-SW | SW - RAL 9004 | 63 | M 6 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M6-63-OS | OS - RAL 2004 | 63 | M 6 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M6-63-RS | RS - RAL 3000 | 63 | M 6 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M6-63-SR | SR - RAL 9006 | 63 | M 6 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M6-63-SW | SW - RAL 9004 | 63 | M 6 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M8-12-OS | OS - RAL 2004 | 63 | M 8 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M8-12-RS | RS - RAL 3000 | 63 | M 8 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M8-12-SR | SR - RAL 9006 | 63 | M 8 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M8-12-SW | SW - RAL 9004 | 63 | M 8 | 12 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 76 |
|
| GN 302-63-M8-16-OS | OS - RAL 2004 | 63 | M 8 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 83 |
|
| GN 302-63-M8-16-RS | RS - RAL 3000 | 63 | M 8 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 83 |
|
| GN 302-63-M8-16-SR | SR - RAL 9006 | 63 | M 8 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 83 |
|
| GN 302-63-M8-16-SW | SW - RAL 9004 | 63 | M 8 | 16 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 83 |
|
| GN 302-63-M8-20-OS | OS - RAL 2004 | 63 | M 8 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 78 |
|
| GN 302-63-M8-20-RS | RS - RAL 3000 | 63 | M 8 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 78 |
|
| GN 302-63-M8-20-SR | SR - RAL 9006 | 63 | M 8 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 78 |
|
| GN 302-63-M8-20-SW | SW - RAL 9004 | 63 | M 8 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 78 |
|
| GN 302-63-M8-25-OS | OS - RAL 2004 | 63 | M 8 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M8-25-RS | RS - RAL 3000 | 63 | M 8 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M8-25-SR | SR - RAL 9006 | 63 | M 8 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M8-25-SW | SW - RAL 9004 | 63 | M 8 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 80 |
|
| GN 302-63-M8-32-OS | OS - RAL 2004 | 63 | M 8 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M8-32-RS | RS - RAL 3000 | 63 | M 8 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M8-32-SR | SR - RAL 9006 | 63 | M 8 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M8-32-SW | SW - RAL 9004 | 63 | M 8 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 82 |
|
| GN 302-63-M8-40-OS | OS - RAL 2004 | 63 | M 8 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M8-40-RS | RS - RAL 3000 | 63 | M 8 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M8-40-SR | SR - RAL 9006 | 63 | M 8 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M8-40-SW | SW - RAL 9004 | 63 | M 8 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M8-50-OS | OS - RAL 2004 | 63 | M 8 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 87 |
|
| GN 302-63-M8-50-RS | RS - RAL 3000 | 63 | M 8 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 87 |
|
| GN 302-63-M8-50-SR | SR - RAL 9006 | 63 | M 8 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 87 |
|
| GN 302-63-M8-50-SW | SW - RAL 9004 | 63 | M 8 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 87 |
|
| GN 302-63-M8-63-OS | OS - RAL 2004 | 63 | M 8 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 91 |
|
| GN 302-63-M8-63-RS | RS - RAL 3000 | 63 | M 8 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 91 |
|
| GN 302-63-M8-63-SR | SR - RAL 9006 | 63 | M 8 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 91 |
|
| GN 302-63-M8-63-SW | SW - RAL 9004 | 63 | M 8 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 91 |
|
| GN 302-63-M10-20-OS | OS - RAL 2004 | 63 | M 10 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 81 |
|
| GN 302-63-M10-20-RS | RS - RAL 3000 | 63 | M 10 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 81 |
|
| GN 302-63-M10-20-SW | SW - RAL 9004 | 63 | M 10 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 81 |
|
| GN 302-63-M10-25-OS | OS - RAL 2004 | 63 | M 10 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M10-25-RS | RS - RAL 3000 | 63 | M 10 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M10-25-SR | SR - RAL 9006 | 63 | M 10 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M10-25-SW | SW - RAL 9004 | 63 | M 10 | 25 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 84 |
|
| GN 302-63-M10-32-OS | OS - RAL 2004 | 63 | M 10 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 88 |
|
| GN 302-63-M10-32-RS | RS - RAL 3000 | 63 | M 10 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 88 |
|
| GN 302-63-M10-32-SR | SR - RAL 9006 | 63 | M 10 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 88 |
|
| GN 302-63-M10-32-SW | SW - RAL 9004 | 63 | M 10 | 32 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 88 |
|
| GN 302-63-M10-40-OS | OS - RAL 2004 | 63 | M 10 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 90 |
|
| GN 302-63-M10-40-RS | RS - RAL 3000 | 63 | M 10 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 90 |
|
| GN 302-63-M10-40-SR | SR - RAL 9006 | 63 | M 10 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 90 |
|
| GN 302-63-M10-40-SW | SW - RAL 9004 | 63 | M 10 | 40 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 90 |
|
| GN 302-63-M10-50-OS | OS - RAL 2004 | 63 | M 10 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 95 |
|
| GN 302-63-M10-50-RS | RS - RAL 3000 | 63 | M 10 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 95 |
|
| GN 302-63-M10-50-SR | SR - RAL 9006 | 63 | M 10 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 95 |
|
| GN 302-63-M10-50-SW | SW - RAL 9004 | 63 | M 10 | 50 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 95 |
|
| GN 302-63-M10-63-OS | OS - RAL 2004 | 63 | M 10 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 102 |
|
| GN 302-63-M10-63-RS | RS - RAL 3000 | 63 | M 10 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 102 |
|
| GN 302-63-M10-63-SR | SR - RAL 9006 | 63 | M 10 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 102 |
|
| GN 302-63-M10-63-SW | SW - RAL 9004 | 63 | M 10 | 63 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 102 |
|
| GN 302-63-M10-80-OS | OS - RAL 2004 | 63 | M 10 | 80 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 122 |
|
| GN 302-63-M10-80-RS | RS - RAL 3000 | 63 | M 10 | 80 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 122 |
|
| GN 302-63-M10-80-SR | SR - RAL 9006 | 63 | M 10 | 80 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 122 |
|
| GN 302-63-M10-80-SW | SW - RAL 9004 | 63 | M 10 | 80 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 122 |
|
| GN 302-78-M8-16-OS | OS - RAL 2004 | 78 | M 8 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 134 |
|
| GN 302-78-M8-16-RS | RS - RAL 3000 | 78 | M 8 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 134 |
|
| GN 302-78-M8-16-SR | SR - RAL 9006 | 78 | M 8 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 134 |
|
| GN 302-78-M8-16-SW | SW - RAL 9004 | 78 | M 8 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 129 |
|
| GN 302-78-M8-20-OS | OS - RAL 2004 | 78 | M 8 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 135 |
|
| GN 302-78-M8-20-RS | RS - RAL 3000 | 78 | M 8 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 135 |
|
| GN 302-78-M8-20-SR | SR - RAL 9006 | 78 | M 8 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 135 |
|
| GN 302-78-M8-20-SW | SW - RAL 9004 | 78 | M 8 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 130 |
|
| GN 302-78-M8-25-OS | OS - RAL 2004 | 78 | M 8 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 136 |
|
| GN 302-78-M8-25-RS | RS - RAL 3000 | 78 | M 8 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 136 |
|
| GN 302-78-M8-25-SR | SR - RAL 9006 | 78 | M 8 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 136 |
|
| GN 302-78-M8-25-SW | SW - RAL 9004 | 78 | M 8 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 131 |
|
| GN 302-78-M8-32-OS | OS - RAL 2004 | 78 | M 8 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 139 |
|
| GN 302-78-M8-32-RS | RS - RAL 3000 | 78 | M 8 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 139 |
|
| GN 302-78-M8-32-SR | SR - RAL 9006 | 78 | M 8 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 139 |
|
| GN 302-78-M8-32-SW | SW - RAL 9004 | 78 | M 8 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 134 |
|
| GN 302-78-M8-40-OS | OS - RAL 2004 | 78 | M 8 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 102 |
|
| GN 302-78-M8-40-RS | RS - RAL 3000 | 78 | M 8 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 102 |
|
| GN 302-78-M8-40-SR | SR - RAL 9006 | 78 | M 8 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 102 |
|
| GN 302-78-M8-40-SW | SW - RAL 9004 | 78 | M 8 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 97 |
|
| GN 302-78-M8-50-OS | OS - RAL 2004 | 78 | M 8 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 146 |
|
| GN 302-78-M8-50-RS | RS - RAL 3000 | 78 | M 8 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 146 |
|
| GN 302-78-M8-50-SR | SR - RAL 9006 | 78 | M 8 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 146 |
|
| GN 302-78-M8-50-SW | SW - RAL 9004 | 78 | M 8 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 141 |
|
| GN 302-78-M8-63-OS | OS - RAL 2004 | 78 | M 8 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 150 |
|
| GN 302-78-M8-63-RS | RS - RAL 3000 | 78 | M 8 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 150 |
|
| GN 302-78-M8-63-SR | SR - RAL 9006 | 78 | M 8 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 150 |
|
| GN 302-78-M8-63-SW | SW - RAL 9004 | 78 | M 8 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 145 |
|
| GN 302-78-M8-80-OS | OS - RAL 2004 | 78 | M 8 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 155 |
|
| GN 302-78-M8-80-RS | RS - RAL 3000 | 78 | M 8 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 155 |
|
| GN 302-78-M8-80-SR | SR - RAL 9006 | 78 | M 8 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 155 |
|
| GN 302-78-M8-80-SW | SW - RAL 9004 | 78 | M 8 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 150 |
|
| GN 302-78-M10-16-OS | OS - RAL 2004 | 78 | M 10 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 138 |
|
| GN 302-78-M10-16-RS | RS - RAL 3000 | 78 | M 10 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 138 |
|
| GN 302-78-M10-16-SR | SR - RAL 9006 | 78 | M 10 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 138 |
|
| GN 302-78-M10-16-SW | SW - RAL 9004 | 78 | M 10 | 16 | 16 | 21 | 36 | 8 | 34 | 4 | 133 |
|
| GN 302-78-M10-20-OS | OS - RAL 2004 | 78 | M 10 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 140 |
|
| GN 302-78-M10-20-RS | RS - RAL 3000 | 78 | M 10 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 140 |
|
| GN 302-78-M10-20-SR | SR - RAL 9006 | 78 | M 10 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 140 |
|
| GN 302-78-M10-20-SW | SW - RAL 9004 | 78 | M 10 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 135 |
|
| GN 302-78-M10-25-OS | OS - RAL 2004 | 78 | M 10 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 142 |
|
| GN 302-78-M10-25-RS | RS - RAL 3000 | 78 | M 10 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 142 |
|
| GN 302-78-M10-25-SR | SR - RAL 9006 | 78 | M 10 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 142 |
|
| GN 302-78-M10-25-SW | SW - RAL 9004 | 78 | M 10 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 137 |
|
| GN 302-78-M10-32-OS | OS - RAL 2004 | 78 | M 10 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 145 |
|
| GN 302-78-M10-32-RS | RS - RAL 3000 | 78 | M 10 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 145 |
|
| GN 302-78-M10-32-SR | SR - RAL 9006 | 78 | M 10 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 145 |
|
| GN 302-78-M10-32-SW | SW - RAL 9004 | 78 | M 10 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 140 |
|
| GN 302-78-M10-40-OS | OS - RAL 2004 | 78 | M 10 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 149 |
|
| GN 302-78-M10-40-RS | RS - RAL 3000 | 78 | M 10 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 149 |
|
| GN 302-78-M10-40-SR | SR - RAL 9006 | 78 | M 10 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 149 |
|
| GN 302-78-M10-40-SW | SW - RAL 9004 | 78 | M 10 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 144 |
|
| GN 302-78-M10-50-OS | OS - RAL 2004 | 78 | M 10 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 154 |
|
| GN 302-78-M10-50-RS | RS - RAL 3000 | 78 | M 10 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 154 |
|
| GN 302-78-M10-50-SR | SR - RAL 9006 | 78 | M 10 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 154 |
|
| GN 302-78-M10-50-SW | SW - RAL 9004 | 78 | M 10 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 149 |
|
| GN 302-78-M10-63-OS | OS - RAL 2004 | 78 | M 10 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 160 |
|
| GN 302-78-M10-63-RS | RS - RAL 3000 | 78 | M 10 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 160 |
|
| GN 302-78-M10-63-SR | SR - RAL 9006 | 78 | M 10 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 160 |
|
| GN 302-78-M10-63-SW | SW - RAL 9004 | 78 | M 10 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 155 |
|
| GN 302-78-M10-80-OS | OS - RAL 2004 | 78 | M 10 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 169 |
|
| GN 302-78-M10-80-RS | RS - RAL 3000 | 78 | M 10 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 169 |
|
| GN 302-78-M10-80-SR | SR - RAL 9006 | 78 | M 10 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 169 |
|
| GN 302-78-M10-80-SW | SW - RAL 9004 | 78 | M 10 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 164 |
|
| GN 302-78-M12-20-OS | OS - RAL 2004 | 78 | M 12 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 144 |
|
| GN 302-78-M12-20-RS | RS - RAL 3000 | 78 | M 12 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 144 |
|
| GN 302-78-M12-20-SR | SR - RAL 9006 | 78 | M 12 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 144 |
|
| GN 302-78-M12-20-SW | SW - RAL 9004 | 78 | M 12 | 20 | 16 | 21 | 36 | 8 | 34 | 4 | 139 |
|
| GN 302-78-M12-25-OS | OS - RAL 2004 | 78 | M 12 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 148 |
|
| GN 302-78-M12-25-RS | RS - RAL 3000 | 78 | M 12 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 148 |
|
| GN 302-78-M12-25-SR | SR - RAL 9006 | 78 | M 12 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 148 |
|
| GN 302-78-M12-25-SW | SW - RAL 9004 | 78 | M 12 | 25 | 16 | 21 | 36 | 8 | 34 | 4 | 143 |
|
| GN 302-78-M12-32-OS | OS - RAL 2004 | 78 | M 12 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 153 |
|
| GN 302-78-M12-32-RS | RS - RAL 3000 | 78 | M 12 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 153 |
|
| GN 302-78-M12-32-SR | SR - RAL 9006 | 78 | M 12 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 153 |
|
| GN 302-78-M12-32-SW | SW - RAL 9004 | 78 | M 12 | 32 | 16 | 21 | 36 | 8 | 34 | 4 | 148 |
|
| GN 302-78-M12-40-OS | OS - RAL 2004 | 78 | M 12 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 159 |
|
| GN 302-78-M12-40-RS | RS - RAL 3000 | 78 | M 12 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 159 |
|
| GN 302-78-M12-40-SR | SR - RAL 9006 | 78 | M 12 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 159 |
|
| GN 302-78-M12-40-SW | SW - RAL 9004 | 78 | M 12 | 40 | 16 | 21 | 36 | 8 | 34 | 4 | 154 |
|
| GN 302-78-M12-50-OS | OS - RAL 2004 | 78 | M 12 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 166 |
|
| GN 302-78-M12-50-RS | RS - RAL 3000 | 78 | M 12 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 166 |
|
| GN 302-78-M12-50-SR | SR - RAL 9006 | 78 | M 12 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 166 |
|
| GN 302-78-M12-50-SW | SW - RAL 9004 | 78 | M 12 | 50 | 16 | 21 | 36 | 8 | 34 | 4 | 161 |
|
| GN 302-78-M12-63-OS | OS - RAL 2004 | 78 | M 12 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 174 |
|
| GN 302-78-M12-63-RS | RS - RAL 3000 | 78 | M 12 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 174 |
|
| GN 302-78-M12-63-SR | SR - RAL 9006 | 78 | M 12 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 174 |
|
| GN 302-78-M12-63-SW | SW - RAL 9004 | 78 | M 12 | 63 | 16 | 21 | 36 | 8 | 34 | 4 | 169 |
|
| GN 302-78-M12-80-OS | OS - RAL 2004 | 78 | M 12 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 186 |
|
| GN 302-78-M12-80-RS | RS - RAL 3000 | 78 | M 12 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 186 |
|
| GN 302-78-M12-80-SR | SR - RAL 9006 | 78 | M 12 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 186 |
|
| GN 302-78-M12-80-SW | SW - RAL 9004 | 78 | M 12 | 80 | 16 | 21 | 36 | 8 | 34 | 4 | 181 |
|
GN 302
| Color | l1 | d1 | l2 | d3 | d4 | h1 | h2 | h3 | h4 | |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 302-63-M10-20-SR | SR - RAL 9006 | 63 | M 10 | 20 | 13.5 | 17.5 | 31 | 6.5 | 28.5 | 4 | 81 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
GN 300Adjustable hand leversZinc die casting, Bushing / Threaded bolt Steel, blackenedView Product -
MRX.Adjustable handlesTechnopolymerView Product
-
MRT.Adjustable handlesTechnopolymerView Product
-
GN 101Adjustable hand leversZinc die casting, Bushing / Threaded bolt SteelView Product
-
GN 300.4Adjustable Hand LeversZinc Die Casting, with Increased Clamping ForceView Product
-
ERX.Adjustable handlesTechnopolymerView Product
-
ERW.Adjustable handlesFlat lever, technopolymerView Product
-
GN 300.5Adjustable Stainless Steel-Hand leversMatte shot-blasted, with bushing / with threaded studView Product
