GN 302.1

Flat Adjustable Hand Levers

Zinc Die Casting, Bushing / Threaded bolt Stainless Steel

Enquire Now

GN 302.1

Flat Adjustable Hand Levers

with bushing

GN-302.1

Flat Adjustable Hand Levers

with threaded stud

Description

Specification

Handle

Zinc die casting

plastic coated

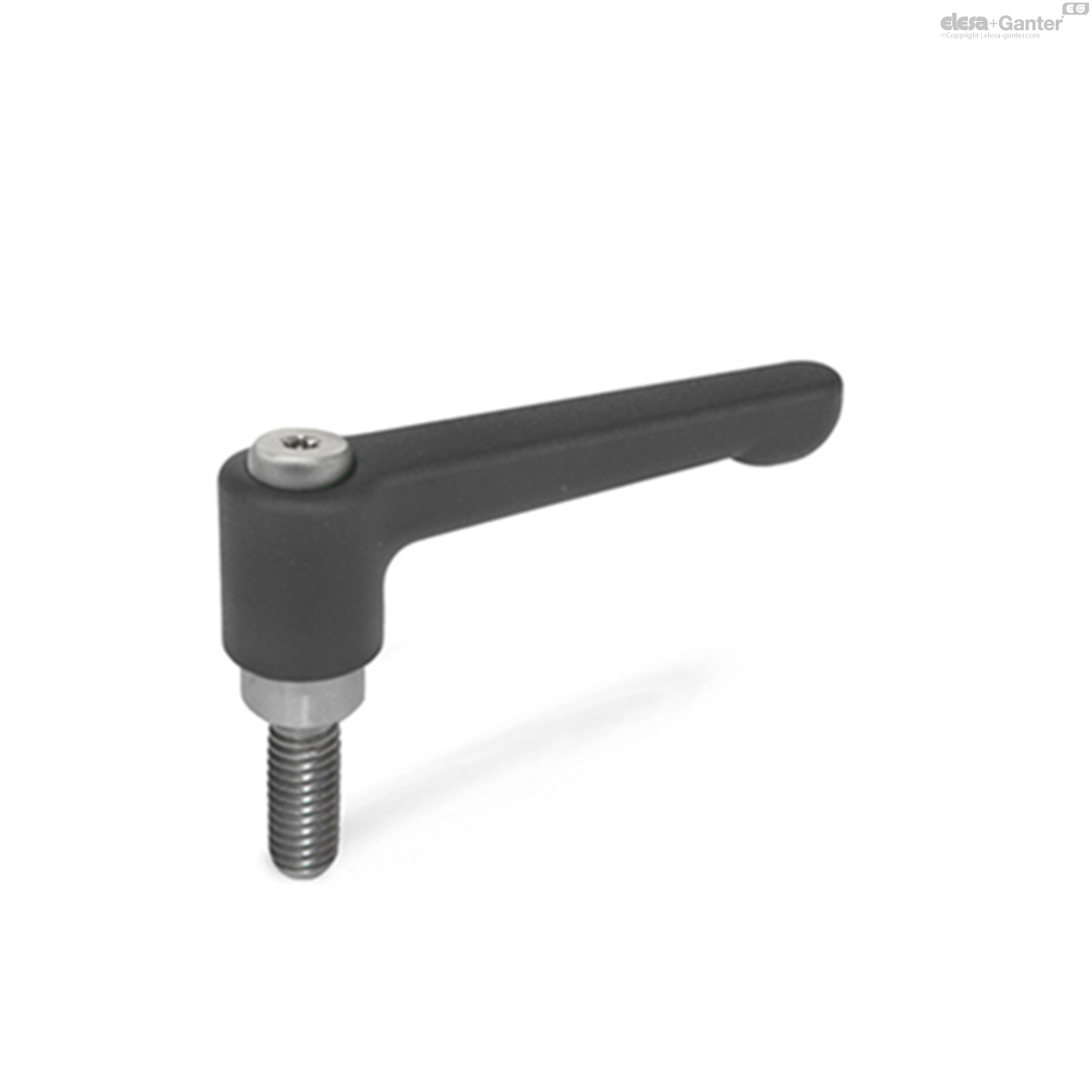

black, RAL 9005, textured finish SW

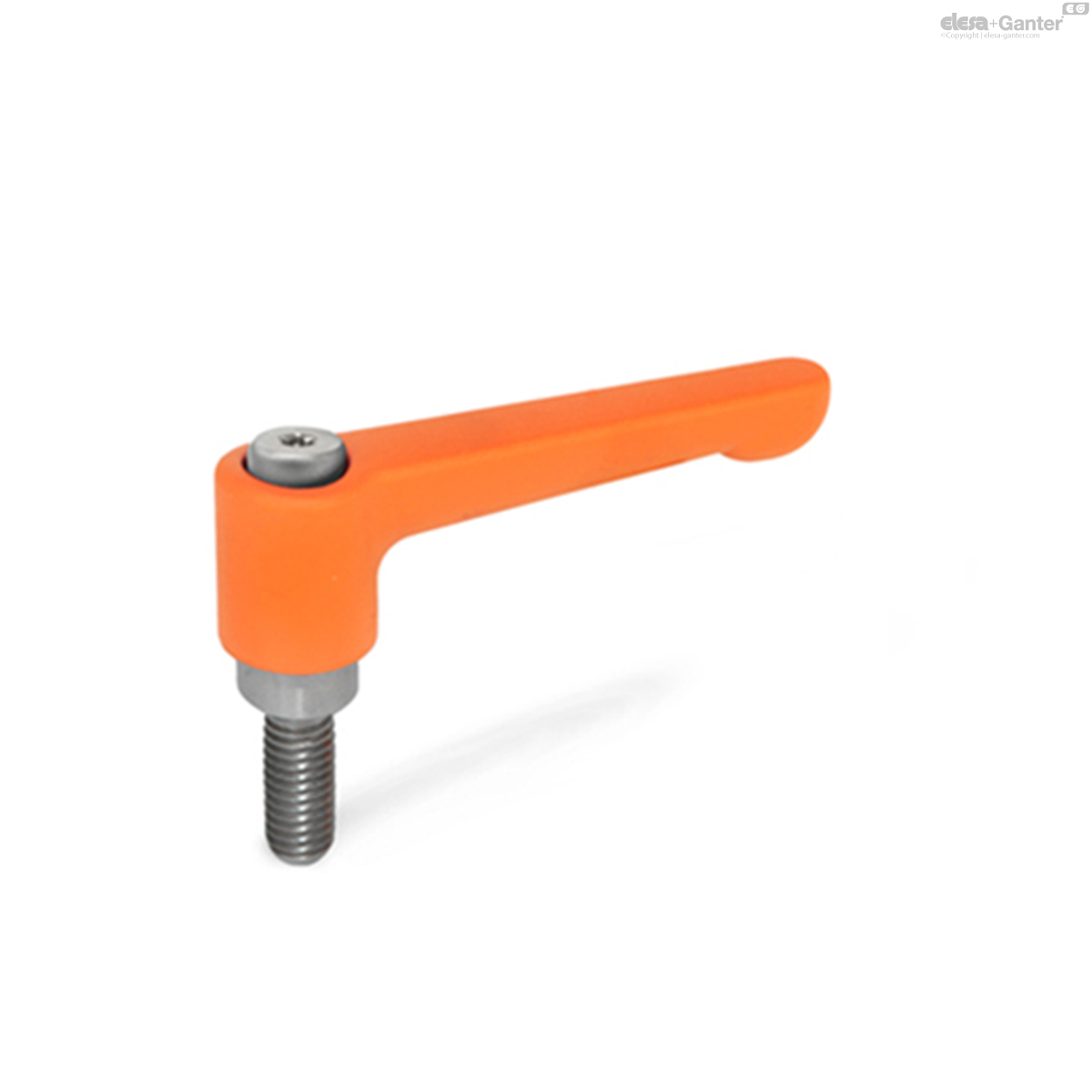

orange, RAL 2004, textured finish OS

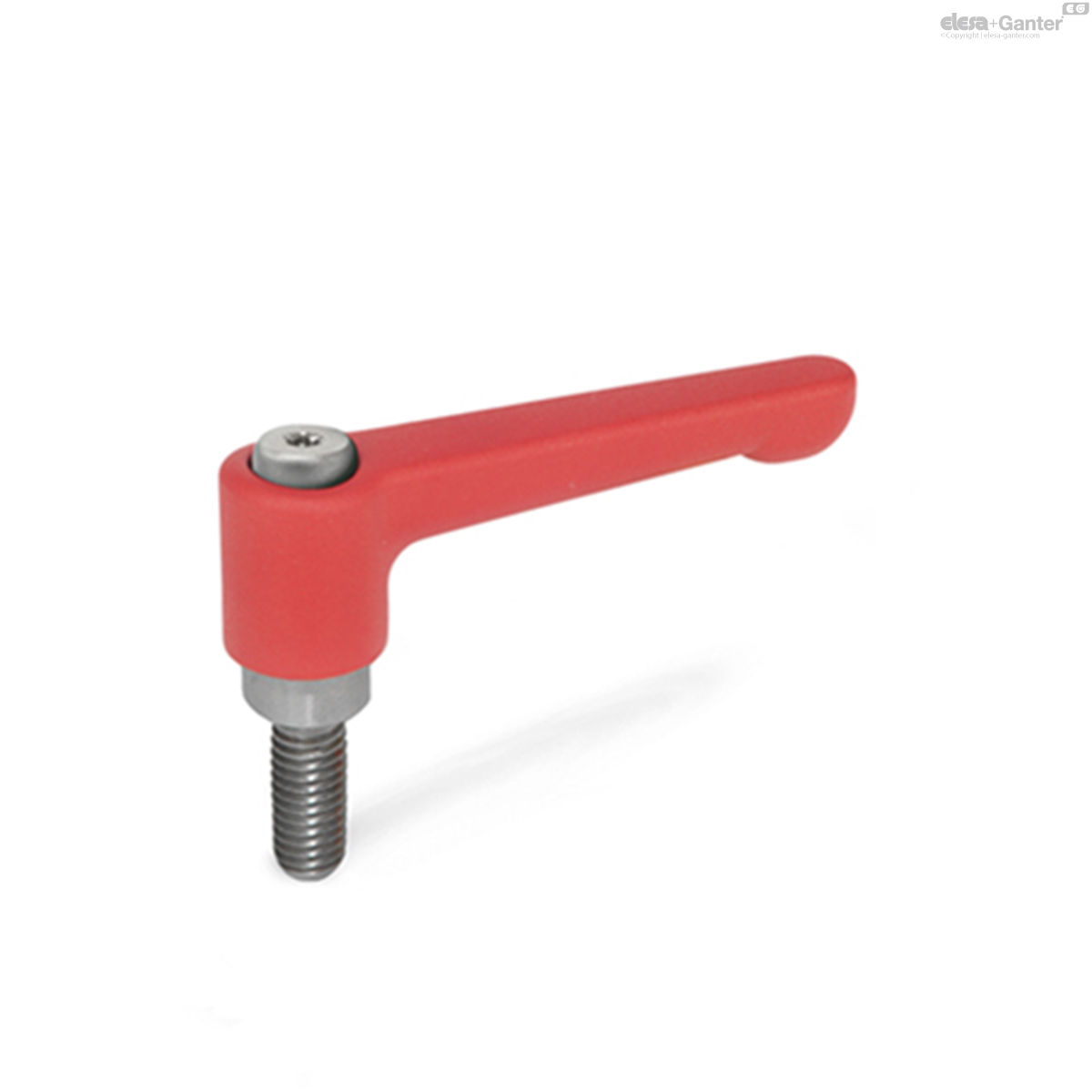

red, RAL 3000, textured finish RS

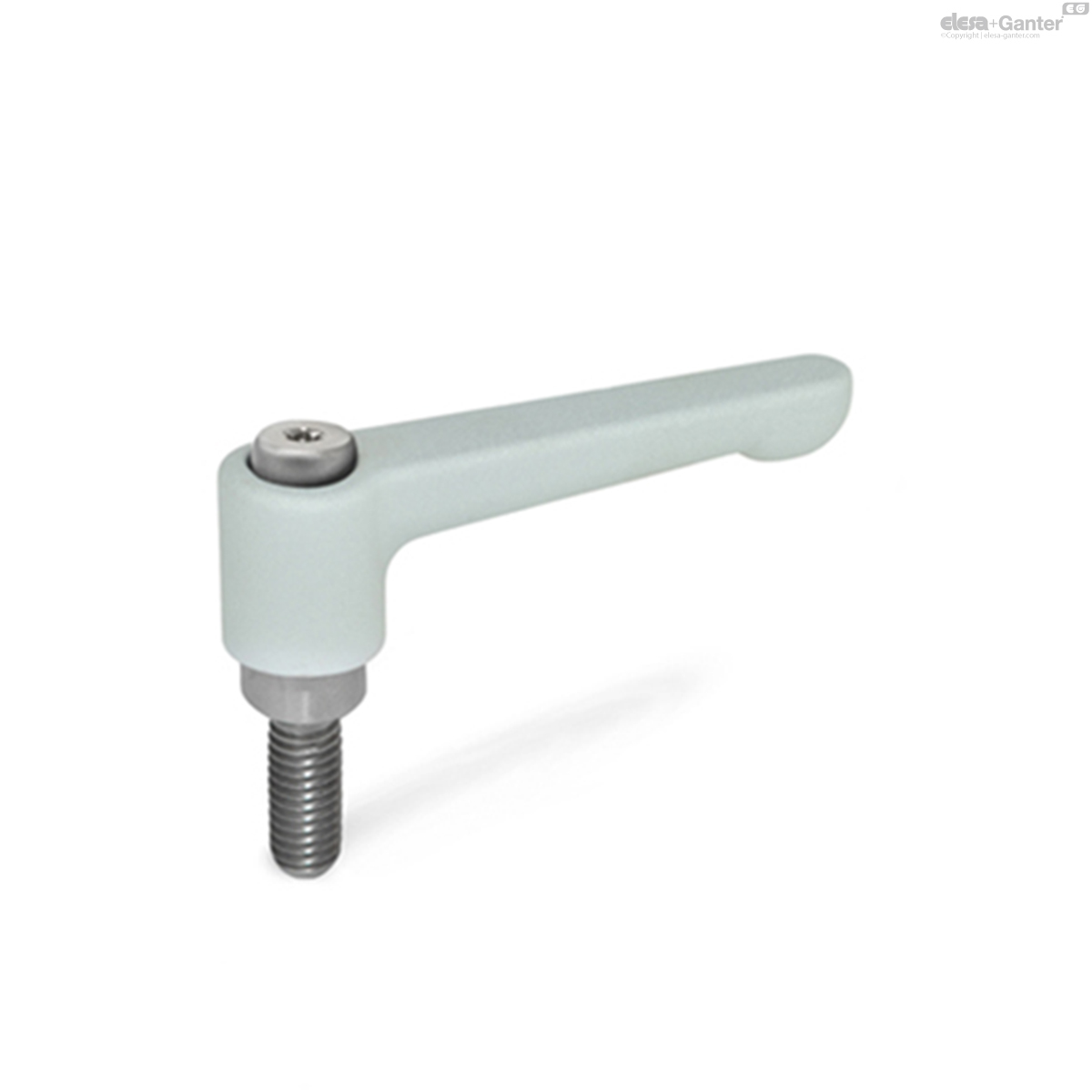

silver, RAL 9006, textured finish SR

Version with bushing

Bushing and retaining screw

Stainless Steel AISI 303

Version with threaded stud

Threaded stud and retaining screw

Stainless Steel AISI 303

Information

Adjustable hand levers GN 302.1 have a straight lever, not inclined, being parallel to the clamping space.

Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Technical information

ISO-Fundamental tolerances

Stainless Steel characteristics

GN-302.1

	Color	l₁	d₁	l₂	d₃	d₄	h₁	h₂	h₃	h₄
Code												Actions
GN 302.1-22-M3-6-OS	OS - RAL 2004	22	M 3	6	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-6-RS	RS - RAL 3000	22	M 3	6	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-6-SR	SR - RAL 9006	22	M 3	6	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-6-SW	SW - RAL 9004	22	M 3	6	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-8-OS	OS - RAL 2004	22	M 3	8	8	10.5	18.5	2	16.5	3	14
GN 302.1-22-M3-8-RS	RS - RAL 3000	22	M 3	8	8	10.5	18.5	2	16.5	3	14
GN 302.1-22-M3-8-SR	SR - RAL 9006	22	M 3	8	8	10.5	18.5	2	16.5	3	14
GN 302.1-22-M3-8-SW	SW - RAL 9004	22	M 3	8	8	10.5	18.5	2	16.5	3	14
GN 302.1-22-M3-10-OS	OS - RAL 2004	22	M 3	10	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-10-RS	RS - RAL 3000	22	M 3	10	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-10-SR	SR - RAL 9006	22	M 3	10	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-10-SW	SW - RAL 9004	22	M 3	10	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-12-OS	OS - RAL 2004	22	M 3	12	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-12-RS	RS - RAL 3000	22	M 3	12	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-12-SR	SR - RAL 9006	22	M 3	12	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-12-SW	SW - RAL 9004	22	M 3	12	8	10.5	18.5	2	16.5	3	15
GN 302.1-22-M3-16-OS	OS - RAL 2004	22	M 3	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M3-16-RS	RS - RAL 3000	22	M 3	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M3-16-SR	SR - RAL 9006	22	M 3	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M3-16-SW	SW - RAL 9004	22	M 3	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-12-OS	OS - RAL 2004	22	M 4	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-12-RS	RS - RAL 3000	22	M 4	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-12-SR	SR - RAL 9006	22	M 4	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-12-SW	SW - RAL 9004	22	M 4	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-16-OS	OS - RAL 2004	22	M 4	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-16-RS	RS - RAL 3000	22	M 4	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-16-SR	SR - RAL 9006	22	M 4	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-16-SW	SW - RAL 9004	22	M 4	16	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-20-OS	OS - RAL 2004	22	M 4	20	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-20-RS	RS - RAL 3000	22	M 4	20	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-20-SR	SR - RAL 9006	22	M 4	20	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-20-SW	SW - RAL 9004	22	M 4	20	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M4-25-OS	OS - RAL 2004	22	M 4	25	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-25-RS	RS - RAL 3000	22	M 4	25	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-25-SR	SR - RAL 9006	22	M 4	25	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-25-SW	SW - RAL 9004	22	M 4	25	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-32-OS	OS - RAL 2004	22	M 4	32	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-32-RS	RS - RAL 3000	22	M 4	32	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-32-SR	SR - RAL 9006	22	M 4	32	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M4-32-SW	SW - RAL 9004	22	M 4	32	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-12-OS	OS - RAL 2004	22	M 5	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-12-RS	RS - RAL 3000	22	M 5	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-12-SR	SR - RAL 9006	22	M 5	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-12-SW	SW - RAL 9004	22	M 5	12	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-16-OS	OS - RAL 2004	22	M 5	16	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-16-RS	RS - RAL 3000	22	M 5	16	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-16-SR	SR - RAL 9006	22	M 5	16	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-16-SW	SW - RAL 9004	22	M 5	16	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-20-OS	OS - RAL 2004	22	M 5	20	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-20-RS	RS - RAL 3000	22	M 5	20	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-20-SR	SR - RAL 9006	22	M 5	20	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-20-SW	SW - RAL 9004	22	M 5	20	8	10.5	18.5	2	16.5	3	17
GN 302.1-22-M5-25-OS	OS - RAL 2004	22	M 5	25	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-25-RS	RS - RAL 3000	22	M 5	25	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-25-SR	SR - RAL 9006	22	M 5	25	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-25-SW	SW - RAL 9004	22	M 5	25	8	10.5	18.5	2	16.5	3	16
GN 302.1-22-M5-32-OS	OS - RAL 2004	22	M 5	32	8	10.5	18.5	2	16.5	3	19
GN 302.1-22-M5-32-RS	RS - RAL 3000	22	M 5	32	8	10.5	18.5	2	16.5	3	19
GN 302.1-22-M5-32-SR	SR - RAL 9006	22	M 5	32	8	10.5	18.5	2	16.5	3	19
GN 302.1-22-M5-32-SW	SW - RAL 9004	22	M 5	32	8	10.5	18.5	2	16.5	3	19
GN 302.1-30-M4-12-OS	OS - RAL 2004	30	M 4	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-12-RS	RS - RAL 3000	30	M 4	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-12-SR	SR - RAL 9006	30	M 4	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-12-SW	SW - RAL 9004	30	M 4	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-16-OS	OS - RAL 2004	30	M 4	16	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-16-RS	RS - RAL 3000	30	M 4	16	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-16-SR	SR - RAL 9006	30	M 4	16	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-16-SW	SW - RAL 9004	30	M 4	16	10	13	24.5	4	22	3.5	27
GN 302.1-30-M4-20-OS	OS - RAL 2004	30	M 4	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-20-RS	RS - RAL 3000	30	M 4	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-20-SR	SR - RAL 9006	30	M 4	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-20-SW	SW - RAL 9004	30	M 4	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-25-OS	OS - RAL 2004	30	M 4	25	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-25-RS	RS - RAL 3000	30	M 4	25	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-25-SR	SR - RAL 9006	30	M 4	25	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-25-SW	SW - RAL 9004	30	M 4	25	10	13	24.5	4	22	3.5	28
GN 302.1-30-M4-32-OS	OS - RAL 2004	30	M 4	32	10	13	24.5	4	22	3.5	29
GN 302.1-30-M4-32-RS	RS - RAL 3000	30	M 4	32	10	13	24.5	4	22	3.5	29
GN 302.1-30-M4-32-SR	SR - RAL 9006	30	M 4	32	10	13	24.5	4	22	3.5	29
GN 302.1-30-M4-32-SW	SW - RAL 9004	30	M 4	32	10	13	24.5	4	22	3.5	29
GN 302.1-30-M5-12-OS	OS - RAL 2004	30	M 5	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M5-12-RS	RS - RAL 3000	30	M 5	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M5-12-SR	SR - RAL 9006	30	M 5	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M5-12-SW	SW - RAL 9004	30	M 5	12	10	13	24.5	4	22	3.5	27
GN 302.1-30-M5-16-OS	OS - RAL 2004	30	M 5	16	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-16-RS	RS - RAL 3000	30	M 5	16	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-16-SR	SR - RAL 9006	30	M 5	16	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-16-SW	SW - RAL 9004	30	M 5	16	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-20-OS	OS - RAL 2004	30	M 5	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-20-RS	RS - RAL 3000	30	M 5	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-20-SR	SR - RAL 9006	30	M 5	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-20-SW	SW - RAL 9004	30	M 5	20	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-25-OS	OS - RAL 2004	30	M 5	25	10	13	24.5	4	22	3.5	29
GN 302.1-30-M5-25-RS	RS - RAL 3000	30	M 5	25	10	13	24.5	4	22	3.5	29
GN 302.1-30-M5-25-SR	SR - RAL 9006	30	M 5	25	10	13	24.5	4	22	3.5	29
GN 302.1-30-M5-25-SW	SW - RAL 9004	30	M 5	25	10	13	24.5	4	22	3.5	29
GN 302.1-30-M5-32-OS	OS - RAL 2004	30	M 5	32	10	13	24.5	4	22	3.5	30
GN 302.1-30-M5-32-RS	RS - RAL 3000	30	M 5	32	10	13	24.5	4	22	3.5	30
GN 302.1-30-M5-32-SR	SR - RAL 9006	30	M 5	32	10	13	24.5	4	22	3.5	30
GN 302.1-30-M5-32-SW	SW - RAL 9004	30	M 5	32	10	13	24.5	4	22	3.5	30
GN 302.1-30-M5-40-OS	OS - RAL 2004	30	M 5	40	10	13	24.5	4	22	3.5	31
GN 302.1-30-M5-40-RS	RS - RAL 3000	30	M 5	40	10	13	24.5	4	22	3.5	31
GN 302.1-30-M5-40-SR	SR - RAL 9006	30	M 5	40	10	13	24.5	4	22	3.5	31
GN 302.1-30-M5-40-SW	SW - RAL 9004	30	M 5	40	10	13	24.5	4	22	3.5	31
GN 302.1-30-M5-50-OS	OS - RAL 2004	30	M 5	50	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-50-RS	RS - RAL 3000	30	M 5	50	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-50-SR	SR - RAL 9006	30	M 5	50	10	13	24.5	4	22	3.5	28
GN 302.1-30-M5-50-SW	SW - RAL 9004	30	M 5	50	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-12-OS	OS - RAL 2004	30	M 6	12	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-12-RS	RS - RAL 3000	30	M 6	12	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-12-SR	SR - RAL 9006	30	M 6	12	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-12-SW	SW - RAL 9004	30	M 6	12	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-16-OS	OS - RAL 2004	30	M 6	16	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-16-RS	RS - RAL 3000	30	M 6	16	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-16-SR	SR - RAL 9006	30	M 6	16	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-16-SW	SW - RAL 9004	30	M 6	16	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-20-OS	OS - RAL 2004	30	M 6	20	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-20-RS	RS - RAL 3000	30	M 6	20	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-20-SR	SR - RAL 9006	30	M 6	20	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-20-SW	SW - RAL 9004	30	M 6	20	10	13	24.5	4	22	3.5	29
GN 302.1-30-M6-25-OS	OS - RAL 2004	30	M 6	25	10	13	24.5	4	22	3.5	30
GN 302.1-30-M6-25-RS	RS - RAL 3000	30	M 6	25	10	13	24.5	4	22	3.5	30
GN 302.1-30-M6-25-SR	SR - RAL 9006	30	M 6	25	10	13	24.5	4	22	3.5	30
GN 302.1-30-M6-25-SW	SW - RAL 9004	30	M 6	25	10	13	24.5	4	22	3.5	30
GN 302.1-30-M6-32-OS	OS - RAL 2004	30	M 6	32	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-32-RS	RS - RAL 3000	30	M 6	32	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-32-SR	SR - RAL 9006	30	M 6	32	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-32-SW	SW - RAL 9004	30	M 6	32	10	13	24.5	4	22	3.5	28
GN 302.1-30-M6-40-OS	OS - RAL 2004	30	M 6	40	10	13	24.5	4	22	3.5	33
GN 302.1-30-M6-40-RS	RS - RAL 3000	30	M 6	40	10	13	24.5	4	22	3.5	33
GN 302.1-30-M6-40-SR	SR - RAL 9006	30	M 6	40	10	13	24.5	4	22	3.5	33
GN 302.1-30-M6-40-SW	SW - RAL 9004	30	M 6	40	10	13	24.5	4	22	3.5	33
GN 302.1-30-M6-50-OS	OS - RAL 2004	30	M 6	50	10	13	24.5	4	22	3.5	34
GN 302.1-30-M6-50-RS	RS - RAL 3000	30	M 6	50	10	13	24.5	4	22	3.5	34
GN 302.1-30-M6-50-SR	SR - RAL 9006	30	M 6	50	10	13	24.5	4	22	3.5	34
GN 302.1-30-M6-50-SW	SW - RAL 9004	30	M 6	50	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-12-OS	OS - RAL 2004	45	M 4	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-12-RS	RS - RAL 3000	45	M 4	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-12-SR	SR - RAL 9006	45	M 4	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-12-SW	SW - RAL 9004	45	M 4	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-16-OS	OS - RAL 2004	45	M 4	16	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-16-RS	RS - RAL 3000	45	M 4	16	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-16-SR	SR - RAL 9006	45	M 4	16	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-16-SW	SW - RAL 9004	45	M 4	16	10	13	24.5	4	22	3.5	34
GN 302.1-45-M4-20-OS	OS - RAL 2004	45	M 4	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-20-RS	RS - RAL 3000	45	M 4	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-20-SR	SR - RAL 9006	45	M 4	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-20-SW	SW - RAL 9004	45	M 4	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-25-OS	OS - RAL 2004	45	M 4	25	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-25-RS	RS - RAL 3000	45	M 4	25	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-25-SR	SR - RAL 9006	45	M 4	25	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-25-SW	SW - RAL 9004	45	M 4	25	10	13	24.5	4	22	3.5	35
GN 302.1-45-M4-32-OS	OS - RAL 2004	45	M 4	32	10	13	24.5	4	22	3.5	36
GN 302.1-45-M4-32-RS	RS - RAL 3000	45	M 4	32	10	13	24.5	4	22	3.5	36
GN 302.1-45-M4-32-SR	SR - RAL 9006	45	M 4	32	10	13	24.5	4	22	3.5	36
GN 302.1-45-M4-32-SW	SW - RAL 9004	45	M 4	32	10	13	24.5	4	22	3.5	36
GN 302.1-45-M5-12-OS	OS - RAL 2004	45	M 5	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M5-12-RS	RS - RAL 3000	45	M 5	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M5-12-SR	SR - RAL 9006	45	M 5	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M5-12-SW	SW - RAL 9004	45	M 5	12	10	13	24.5	4	22	3.5	34
GN 302.1-45-M5-16-OS	OS - RAL 2004	45	M 5	16	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-16-RS	RS - RAL 3000	45	M 5	16	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-16-SR	SR - RAL 9006	45	M 5	16	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-16-SW	SW - RAL 9004	45	M 5	16	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-20-OS	OS - RAL 2004	45	M 5	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-20-RS	RS - RAL 3000	45	M 5	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-20-SR	SR - RAL 9006	45	M 5	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-20-SW	SW - RAL 9004	45	M 5	20	10	13	24.5	4	22	3.5	35
GN 302.1-45-M5-25-OS	OS - RAL 2004	45	M 5	25	10	13	24.5	4	22	3.5	36
GN 302.1-45-M5-25-RS	RS - RAL 3000	45	M 5	25	10	13	24.5	4	22	3.5	36
GN 302.1-45-M5-25-SR	SR - RAL 9006	45	M 5	25	10	13	24.5	4	22	3.5	36
GN 302.1-45-M5-25-SW	SW - RAL 9004	45	M 5	25	10	13	24.5	4	22	3.5	36
GN 302.1-45-M5-32-OS	OS - RAL 2004	45	M 5	32	10	13	24.5	4	22	3.5	37
GN 302.1-45-M5-32-RS	RS - RAL 3000	45	M 5	32	10	13	24.5	4	22	3.5	37
GN 302.1-45-M5-32-SR	SR - RAL 9006	45	M 5	32	10	13	24.5	4	22	3.5	37
GN 302.1-45-M5-32-SW	SW - RAL 9004	45	M 5	32	10	13	24.5	4	22	3.5	37
GN 302.1-45-M5-40-OS	OS - RAL 2004	45	M 5	40	10	13	24.5	4	22	3.5	38
GN 302.1-45-M5-40-RS	RS - RAL 3000	45	M 5	40	10	13	24.5	4	22	3.5	38
GN 302.1-45-M5-40-SR	SR - RAL 9006	45	M 5	40	10	13	24.5	4	22	3.5	38
GN 302.1-45-M5-40-SW	SW - RAL 9004	45	M 5	40	10	13	24.5	4	22	3.5	38
GN 302.1-45-M5-50-OS	OS - RAL 2004	45	M 5	50	10	13	24.5	4	22	3.5	39
GN 302.1-45-M5-50-RS	RS - RAL 3000	45	M 5	50	10	13	24.5	4	22	3.5	39
GN 302.1-45-M5-50-SR	SR - RAL 9006	45	M 5	50	10	13	24.5	4	22	3.5	39
GN 302.1-45-M5-50-SW	SW - RAL 9004	45	M 5	50	10	13	24.5	4	22	3.5	39
GN 302.1-45-M6-12-OS	OS - RAL 2004	45	M 6	12	10	13	24.5	4	22	3.5	35
GN 302.1-45-M6-12-RS	RS - RAL 3000	45	M 6	12	10	13	24.5	4	22	3.5	35
GN 302.1-45-M6-12-SR	SR - RAL 9006	45	M 6	12	10	13	24.5	4	22	3.5	35
GN 302.1-45-M6-12-SW	SW - RAL 9004	45	M 6	12	10	13	24.5	4	22	3.5	35
GN 302.1-45-M6-16-OS	OS - RAL 2004	45	M 6	16	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-16-RS	RS - RAL 3000	45	M 6	16	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-16-SR	SR - RAL 9006	45	M 6	16	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-16-SW	SW - RAL 9004	45	M 6	16	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-20-OS	OS - RAL 2004	45	M 6	20	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-20-RS	RS - RAL 3000	45	M 6	20	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-20-SR	SR - RAL 9006	45	M 6	20	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-20-SW	SW - RAL 9004	45	M 6	20	10	13	24.5	4	22	3.5	36
GN 302.1-45-M6-25-OS	OS - RAL 2004	45	M 6	25	10	13	24.5	4	22	3.5	37
GN 302.1-45-M6-25-RS	RS - RAL 3000	45	M 6	25	10	13	24.5	4	22	3.5	37
GN 302.1-45-M6-25-SR	SR - RAL 9006	45	M 6	25	10	13	24.5	4	22	3.5	37
GN 302.1-45-M6-25-SW	SW - RAL 9004	45	M 6	25	10	13	24.5	4	22	3.5	37
GN 302.1-45-M6-32-OS	OS - RAL 2004	45	M 6	32	10	13	24.5	4	22	3.5	38
GN 302.1-45-M6-32-RS	RS - RAL 3000	45	M 6	32	10	13	24.5	4	22	3.5	38
GN 302.1-45-M6-32-SR	SR - RAL 9006	45	M 6	32	10	13	24.5	4	22	3.5	38
GN 302.1-45-M6-32-SW	SW - RAL 9004	45	M 6	32	10	13	24.5	4	22	3.5	38
GN 302.1-45-M6-40-OS	OS - RAL 2004	45	M 6	40	10	13	24.5	4	22	3.5	40
GN 302.1-45-M6-40-RS	RS - RAL 3000	45	M 6	40	10	13	24.5	4	22	3.5	40
GN 302.1-45-M6-40-SR	SR - RAL 9006	45	M 6	40	10	13	24.5	4	22	3.5	40
GN 302.1-45-M6-40-SW	SW - RAL 9004	45	M 6	40	10	13	24.5	4	22	3.5	40
GN 302.1-45-M6-50-OS	OS - RAL 2004	45	M 6	50	10	13	24.5	4	22	3.5	41
GN 302.1-45-M6-50-RS	RS - RAL 3000	45	M 6	50	10	13	24.5	4	22	3.5	41
GN 302.1-45-M6-50-SR	SR - RAL 9006	45	M 6	50	10	13	24.5	4	22	3.5	41
GN 302.1-45-M6-50-SW	SW - RAL 9004	45	M 6	50	10	13	24.5	4	22	3.5	41
GN 302.1-63-M6-16-OS	OS - RAL 2004	63	M 6	16	13.5	17.5	31	6.5	28.5	4	79
GN 302.1-63-M6-16-RS	RS - RAL 3000	63	M 6	16	13.5	17.5	31	6.5	28.5	4	79
GN 302.1-63-M6-16-SR	SR - RAL 9006	63	M 6	16	13.5	17.5	31	6.5	28.5	4	79
GN 302.1-63-M6-16-SW	SW - RAL 9004	63	M 6	16	13.5	17.5	31	6.5	28.5	4	79
GN 302.1-63-M6-20-OS	OS - RAL 2004	63	M 6	20	13.5	17.5	31	6.5	28.5	4	80
GN 302.1-63-M6-20-RS	RS - RAL 3000	63	M 6	20	13.5	17.5	31	6.5	28.5	4	80
GN 302.1-63-M6-20-SR	SR - RAL 9006	63	M 6	20	13.5	17.5	31	6.5	28.5	4	80
GN 302.1-63-M6-20-SW	SW - RAL 9004	63	M 6	20	13.5	17.5	31	6.5	28.5	4	80
GN 302.1-63-M6-25-OS	OS - RAL 2004	63	M 6	25	13.5	17.5	31	6.5	28.5	4	81
GN 302.1-63-M6-25-RS	RS - RAL 3000	63	M 6	25	13.5	17.5	31	6.5	28.5	4	81
GN 302.1-63-M6-25-SR	SR - RAL 9006	63	M 6	25	13.5	17.5	31	6.5	28.5	4	81
GN 302.1-63-M6-25-SW	SW - RAL 9004	63	M 6	25	13.5	17.5	31	6.5	28.5	4	81
GN 302.1-63-M6-32-OS	OS - RAL 2004	63	M 6	32	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M6-32-RS	RS - RAL 3000	63	M 6	32	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M6-32-SR	SR - RAL 9006	63	M 6	32	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M6-32-SW	SW - RAL 9004	63	M 6	32	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M6-40-OS	OS - RAL 2004	63	M 6	40	13.5	17.5	31	6.5	28.5	4	84
GN 302.1-63-M6-40-RS	RS - RAL 3000	63	M 6	40	13.5	17.5	31	6.5	28.5	4	84
GN 302.1-63-M6-40-SR	SR - RAL 9006	63	M 6	40	13.5	17.5	31	6.5	28.5	4	84
GN 302.1-63-M6-40-SW	SW - RAL 9004	63	M 6	40	13.5	17.5	31	6.5	28.5	4	84
GN 302.1-63-M6-50-OS	OS - RAL 2004	63	M 6	50	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M6-50-RS	RS - RAL 3000	63	M 6	50	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M6-50-SR	SR - RAL 9006	63	M 6	50	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M6-50-SW	SW - RAL 9004	63	M 6	50	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M6-63-OS	OS - RAL 2004	63	M 6	63	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M6-63-RS	RS - RAL 3000	63	M 6	63	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M6-63-SR	SR - RAL 9006	63	M 6	63	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M6-63-SW	SW - RAL 9004	63	M 6	63	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M8-16-OS	OS - RAL 2004	63	M 8	16	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M8-16-RS	RS - RAL 3000	63	M 8	16	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M8-16-SR	SR - RAL 9006	63	M 8	16	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M8-16-SW	SW - RAL 9004	63	M 8	16	13.5	17.5	31	6.5	28.5	4	82
GN 302.1-63-M8-20-OS	OS - RAL 2004	63	M 8	20	13.5	17.5	31	6.5	28.5	4	83
GN 302.1-63-M8-20-RS	RS - RAL 3000	63	M 8	20	13.5	17.5	31	6.5	28.5	4	83
GN 302.1-63-M8-20-SR	SR - RAL 9006	63	M 8	20	13.5	17.5	31	6.5	28.5	4	83
GN 302.1-63-M8-20-SW	SW - RAL 9004	63	M 8	20	13.5	17.5	31	6.5	28.5	4	83
GN 302.1-63-M8-25-OS	OS - RAL 2004	63	M 8	25	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M8-25-RS	RS - RAL 3000	63	M 8	25	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M8-25-SR	SR - RAL 9006	63	M 8	25	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M8-25-SW	SW - RAL 9004	63	M 8	25	13.5	17.5	31	6.5	28.5	4	85
GN 302.1-63-M8-32-OS	OS - RAL 2004	63	M 8	32	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M8-32-RS	RS - RAL 3000	63	M 8	32	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M8-32-SR	SR - RAL 9006	63	M 8	32	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M8-32-SW	SW - RAL 9004	63	M 8	32	13.5	17.5	31	6.5	28.5	4	87
GN 302.1-63-M8-40-OS	OS - RAL 2004	63	M 8	40	13.5	17.5	31	6.5	28.5	4	89
GN 302.1-63-M8-40-RS	RS - RAL 3000	63	M 8	40	13.5	17.5	31	6.5	28.5	4	89
GN 302.1-63-M8-40-SR	SR - RAL 9006	63	M 8	40	13.5	17.5	31	6.5	28.5	4	89
GN 302.1-63-M8-40-SW	SW - RAL 9004	63	M 8	40	13.5	17.5	31	6.5	28.5	4	89
GN 302.1-63-M8-50-OS	OS - RAL 2004	63	M 8	50	13.5	17.5	31	6.5	28.5	4	93
GN 302.1-63-M8-50-RS	RS - RAL 3000	63	M 8	50	13.5	17.5	31	6.5	28.5	4	93
GN 302.1-63-M8-50-SR	SR - RAL 9006	63	M 8	50	13.5	17.5	31	6.5	28.5	4	93
GN 302.1-63-M8-50-SW	SW - RAL 9004	63	M 8	50	13.5	17.5	31	6.5	28.5	4	93
GN 302.1-63-M8-63-OS	OS - RAL 2004	63	M 8	63	13.5	17.5	31	6.5	28.5	4	97
GN 302.1-63-M8-63-RS	RS - RAL 3000	63	M 8	63	13.5	17.5	31	6.5	28.5	4	97
GN 302.1-63-M8-63-SR	SR - RAL 9006	63	M 8	63	13.5	17.5	31	6.5	28.5	4	97
GN 302.1-63-M8-63-SW	SW - RAL 9004	63	M 8	63	13.5	17.5	31	6.5	28.5	4	97
GN 302.1-78-M8-20-OS	OS - RAL 2004	78	M 8	20	16	21	36	8	34	4	137
GN 302.1-78-M8-20-RS	RS - RAL 3000	78	M 8	20	16	21	36	8	34	4	137
GN 302.1-78-M8-20-SR	SR - RAL 9006	78	M 8	20	16	21	36	8	34	4	137
GN 302.1-78-M8-20-SW	SW - RAL 9004	78	M 8	20	16	21	36	8	34	4	137
GN 302.1-78-M8-25-OS	OS - RAL 2004	78	M 8	25	16	21	36	8	34	4	138
GN 302.1-78-M8-25-RS	RS - RAL 3000	78	M 8	25	16	21	36	8	34	4	138
GN 302.1-78-M8-25-SR	SR - RAL 9006	78	M 8	25	16	21	36	8	34	4	138
GN 302.1-78-M8-25-SW	SW - RAL 9004	78	M 8	25	16	21	36	8	34	4	138
GN 302.1-78-M8-32-OS	OS - RAL 2004	78	M 8	32	16	21	36	8	34	4	140
GN 302.1-78-M8-32-RS	RS - RAL 3000	78	M 8	32	16	21	36	8	34	4	140
GN 302.1-78-M8-32-SR	SR - RAL 9006	78	M 8	32	16	21	36	8	34	4	140
GN 302.1-78-M8-32-SW	SW - RAL 9004	78	M 8	32	16	21	36	8	34	4	140
GN 302.1-78-M8-40-OS	OS - RAL 2004	78	M 8	40	16	21	36	8	34	4	143
GN 302.1-78-M8-40-RS	RS - RAL 3000	78	M 8	40	16	21	36	8	34	4	143
GN 302.1-78-M8-40-SR	SR - RAL 9006	78	M 8	40	16	21	36	8	34	4	143
GN 302.1-78-M8-40-SW	SW - RAL 9004	78	M 8	40	16	21	36	8	34	4	143
GN 302.1-78-M8-50-OS	OS - RAL 2004	78	M 8	50	16	21	36	8	34	4	146
GN 302.1-78-M8-50-RS	RS - RAL 3000	78	M 8	50	16	21	36	8	34	4	146
GN 302.1-78-M8-50-SR	SR - RAL 9006	78	M 8	50	16	21	36	8	34	4	146
GN 302.1-78-M8-50-SW	SW - RAL 9004	78	M 8	50	16	21	36	8	34	4	146
GN 302.1-78-M8-63-OS	OS - RAL 2004	78	M 8	63	16	21	36	8	34	4	150
GN 302.1-78-M8-63-RS	RS - RAL 3000	78	M 8	63	16	21	36	8	34	4	150
GN 302.1-78-M8-63-SR	SR - RAL 9006	78	M 8	63	16	21	36	8	34	4	150
GN 302.1-78-M8-63-SW	SW - RAL 9004	78	M 8	63	16	21	36	8	34	4	150
GN 302.1-78-M8-80-OS	OS - RAL 2004	78	M 8	80	16	21	36	8	34	4	155
GN 302.1-78-M8-80-RS	RS - RAL 3000	78	M 8	80	16	21	36	8	34	4	155
GN 302.1-78-M8-80-SR	SR - RAL 9006	78	M 8	80	16	21	36	8	34	4	155
GN 302.1-78-M8-80-SW	SW - RAL 9004	78	M 8	80	16	21	36	8	34	4	155
GN 302.1-78-M10-20-OS	OS - RAL 2004	78	M 10	20	16	21	36	8	34	4	140
GN 302.1-78-M10-20-RS	RS - RAL 3000	78	M 10	20	16	21	36	8	34	4	140
GN 302.1-78-M10-20-SR	SR - RAL 9006	78	M 10	20	16	21	36	8	34	4	140
GN 302.1-78-M10-20-SW	SW - RAL 9004	78	M 10	20	16	21	36	8	34	4	140
GN 302.1-78-M10-25-OS	OS - RAL 2004	78	M 10	25	16	21	36	8	34	4	142
GN 302.1-78-M10-25-RS	RS - RAL 3000	78	M 10	25	16	21	36	8	34	4	142
GN 302.1-78-M10-25-SR	SR - RAL 9006	78	M 10	25	16	21	36	8	34	4	142
GN 302.1-78-M10-25-SW	SW - RAL 9004	78	M 10	25	16	21	36	8	34	4	142
GN 302.1-78-M10-32-OS	OS - RAL 2004	78	M 10	32	16	21	36	8	34	4	145
GN 302.1-78-M10-32-RS	RS - RAL 3000	78	M 10	32	16	21	36	8	34	4	145
GN 302.1-78-M10-32-SR	SR - RAL 9006	78	M 10	32	16	21	36	8	34	4	145
GN 302.1-78-M10-32-SW	SW - RAL 9004	78	M 10	32	16	21	36	8	34	4	145
GN 302.1-78-M10-40-OS	OS - RAL 2004	78	M 10	40	16	21	36	8	34	4	150
GN 302.1-78-M10-40-RS	RS - RAL 3000	78	M 10	40	16	21	36	8	34	4	150
GN 302.1-78-M10-40-SR	SR - RAL 9006	78	M 10	40	16	21	36	8	34	4	150
GN 302.1-78-M10-40-SW	SW - RAL 9004	78	M 10	40	16	21	36	8	34	4	150
GN 302.1-78-M10-50-OS	OS - RAL 2004	78	M 10	50	16	21	36	8	34	4	155
GN 302.1-78-M10-50-RS	RS - RAL 3000	78	M 10	50	16	21	36	8	34	4	155
GN 302.1-78-M10-50-SR	SR - RAL 9006	78	M 10	50	16	21	36	8	34	4	155
GN 302.1-78-M10-50-SW	SW - RAL 9004	78	M 10	50	16	21	36	8	34	4	155
GN 302.1-78-M10-63-OS	OS - RAL 2004	78	M 10	63	16	21	36	8	34	4	162
GN 302.1-78-M10-63-RS	RS - RAL 3000	78	M 10	63	16	21	36	8	34	4	162
GN 302.1-78-M10-63-SR	SR - RAL 9006	78	M 10	63	16	21	36	8	34	4	162
GN 302.1-78-M10-63-SW	SW - RAL 9004	78	M 10	63	16	21	36	8	34	4	162
GN 302.1-78-M10-80-OS	OS - RAL 2004	78	M 10	80	16	21	36	8	34	4	169
GN 302.1-78-M10-80-RS	RS - RAL 3000	78	M 10	80	16	21	36	8	34	4	169
GN 302.1-78-M10-80-SR	SR - RAL 9006	78	M 10	80	16	21	36	8	34	4	169
GN 302.1-78-M10-80-SW	SW - RAL 9004	78	M 10	80	16	21	36	8	34	4	169
GN 302.1-78-M12-20-OS	OS - RAL 2004	78	M 12	20	16	21	36	8	34	4	145
GN 302.1-78-M12-20-RS	RS - RAL 3000	78	M 12	20	16	21	36	8	34	4	145
GN 302.1-78-M12-20-SR	SR - RAL 9006	78	M 12	20	16	21	36	8	34	4	145
GN 302.1-78-M12-20-SW	SW - RAL 9004	78	M 12	20	16	21	36	8	34	4	145
GN 302.1-78-M12-25-OS	OS - RAL 2004	78	M 12	25	16	21	36	8	34	4	148
GN 302.1-78-M12-25-RS	RS - RAL 3000	78	M 12	25	16	21	36	8	34	4	148
GN 302.1-78-M12-25-SR	SR - RAL 9006	78	M 12	25	16	21	36	8	34	4	148
GN 302.1-78-M12-25-SW	SW - RAL 9004	78	M 12	25	16	21	36	8	34	4	143
GN 302.1-78-M12-32-OS	OS - RAL 2004	78	M 12	32	16	21	36	8	34	4	153
GN 302.1-78-M12-32-RS	RS - RAL 3000	78	M 12	32	16	21	36	8	34	4	153
GN 302.1-78-M12-32-SR	SR - RAL 9006	78	M 12	32	16	21	36	8	34	4	153
GN 302.1-78-M12-32-SW	SW - RAL 9004	78	M 12	32	16	21	36	8	34	4	153
GN 302.1-78-M12-40-OS	OS - RAL 2004	78	M 12	40	16	21	36	8	34	4	160
GN 302.1-78-M12-40-RS	RS - RAL 3000	78	M 12	40	16	21	36	8	34	4	160
GN 302.1-78-M12-40-SR	SR - RAL 9006	78	M 12	40	16	21	36	8	34	4	160
GN 302.1-78-M12-40-SW	SW - RAL 9004	78	M 12	40	16	21	36	8	34	4	160
GN 302.1-78-M12-50-OS	OS - RAL 2004	78	M 12	50	16	21	36	8	34	4	167
GN 302.1-78-M12-50-RS	RS - RAL 3000	78	M 12	50	16	21	36	8	34	4	167
GN 302.1-78-M12-50-SR	SR - RAL 9006	78	M 12	50	16	21	36	8	34	4	167
GN 302.1-78-M12-50-SW	SW - RAL 9004	78	M 12	50	16	21	36	8	34	4	167
GN 302.1-78-M12-63-OS	OS - RAL 2004	78	M 12	63	16	21	36	8	34	4	175
GN 302.1-78-M12-63-RS	RS - RAL 3000	78	M 12	63	16	21	36	8	34	4	175
GN 302.1-78-M12-63-SR	SR - RAL 9006	78	M 12	63	16	21	36	8	34	4	175
GN 302.1-78-M12-63-SW	SW - RAL 9004	78	M 12	63	16	21	36	8	34	4	175
GN 302.1-78-M12-80-OS	OS - RAL 2004	78	M 12	80	16	21	36	8	34	4	187
GN 302.1-78-M12-80-RS	RS - RAL 3000	78	M 12	80	16	21	36	8	34	4	187
GN 302.1-78-M12-80-SR	SR - RAL 9006	78	M 12	80	16	21	36	8	34	4	187
GN 302.1-78-M12-80-SW	SW - RAL 9004	78	M 12	80	16	21	36	8	34	4	187

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
