Home Clamping Levers Adjustable handles GN 300.2

GN 300.2

Adjustable hand levers

Zinc die casting, Bushing / Threaded bolt Steel zinc plated

Enquire Now

GN 300.2

Adjustable hand levers

with bushing

GN-300.2

Adjustable hand levers

with threaded stud

Description

Specification

Handle

Zinc die casting

Plastic coated

black, RAL 9005, textured finish SW

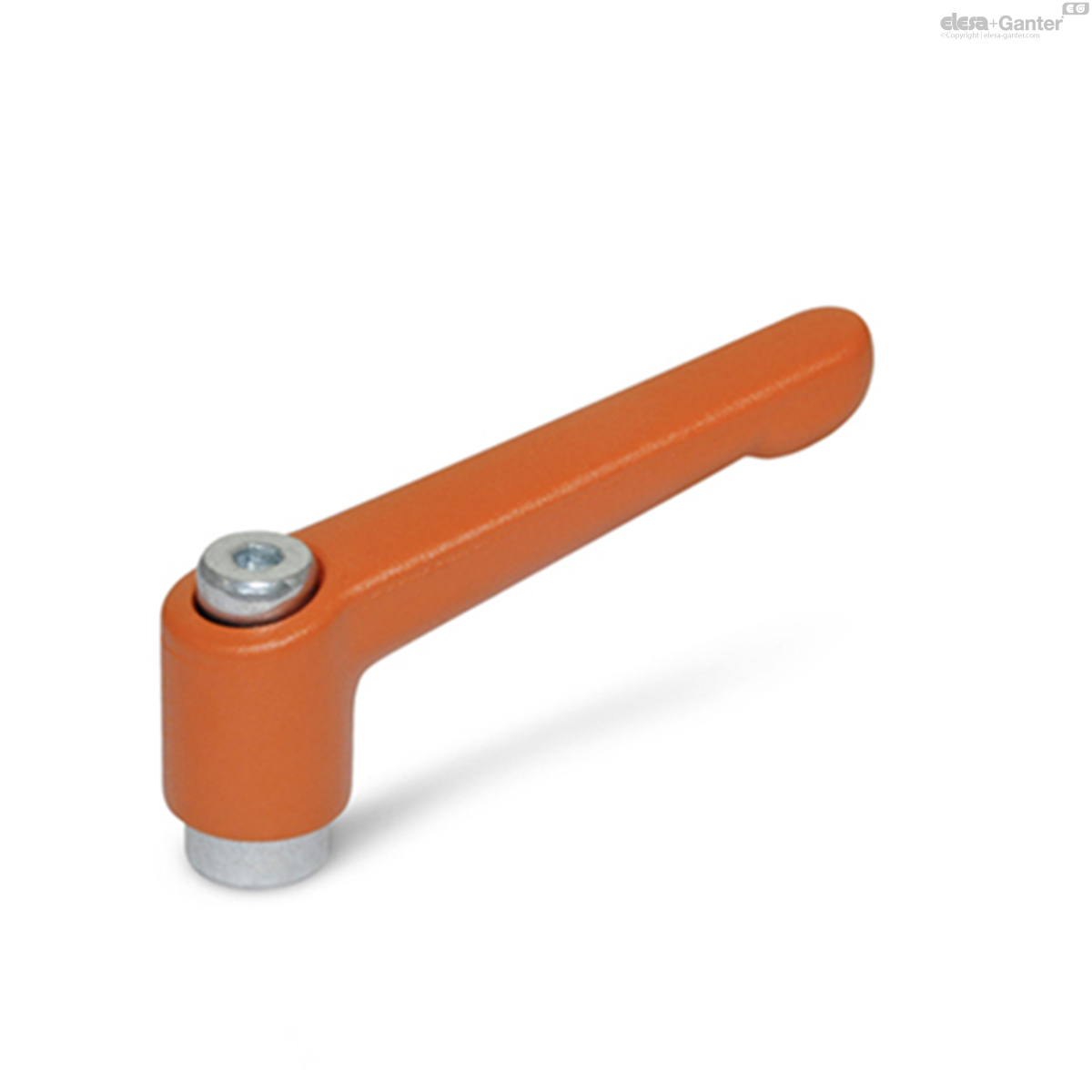

orange, RAL 2004, textured finish OS

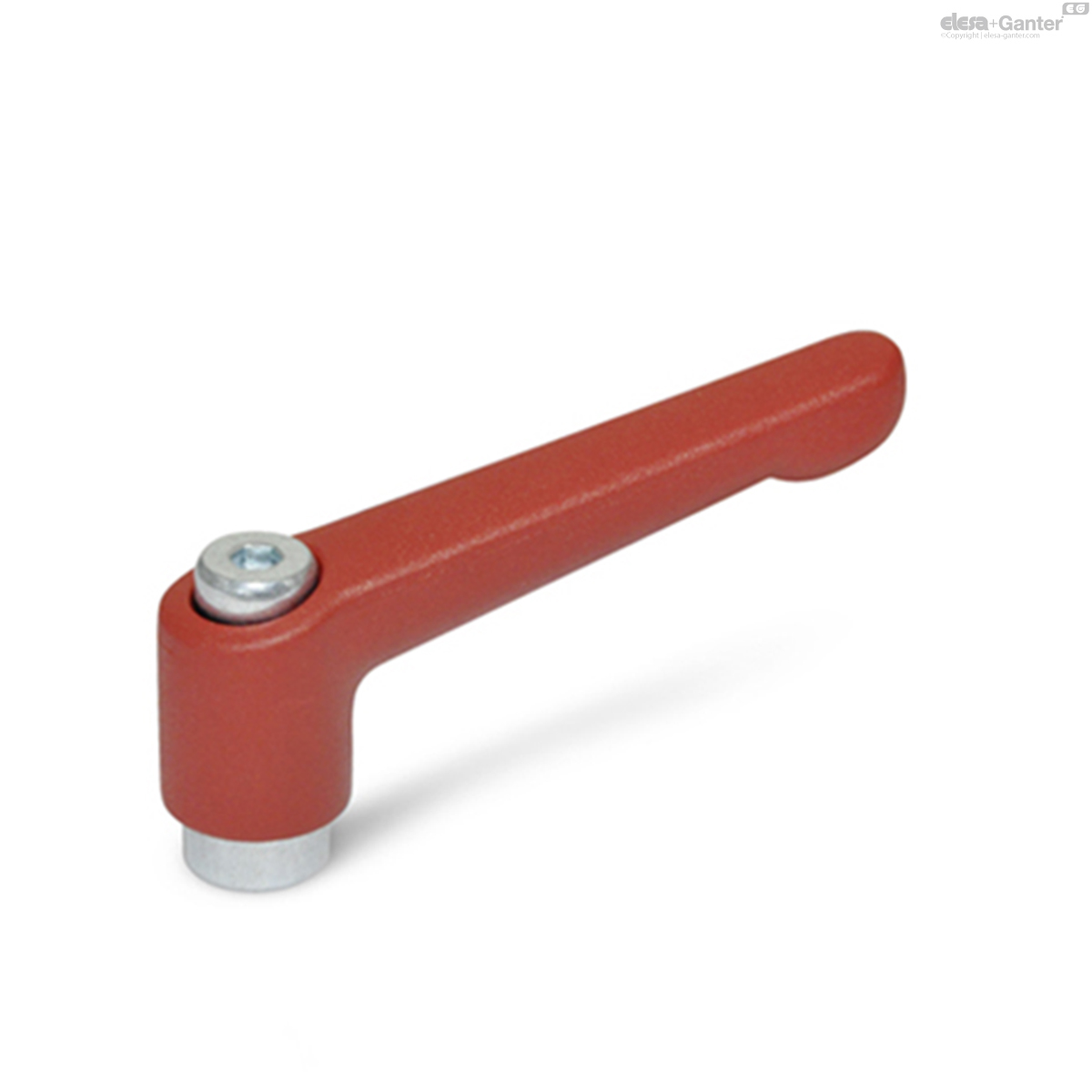

red, RAL 3000, textured finish RS

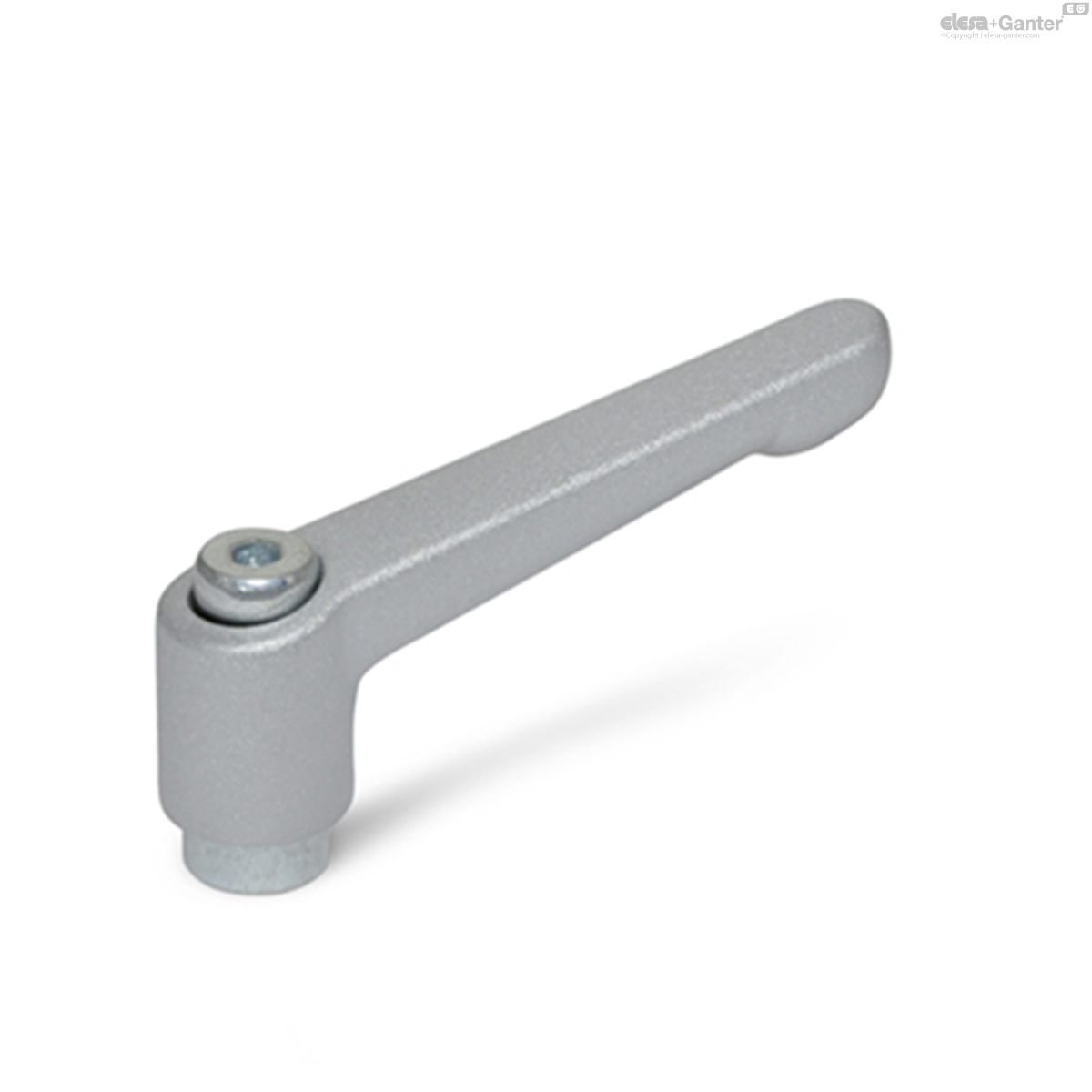

silver, RAL 9006, textured finish SR

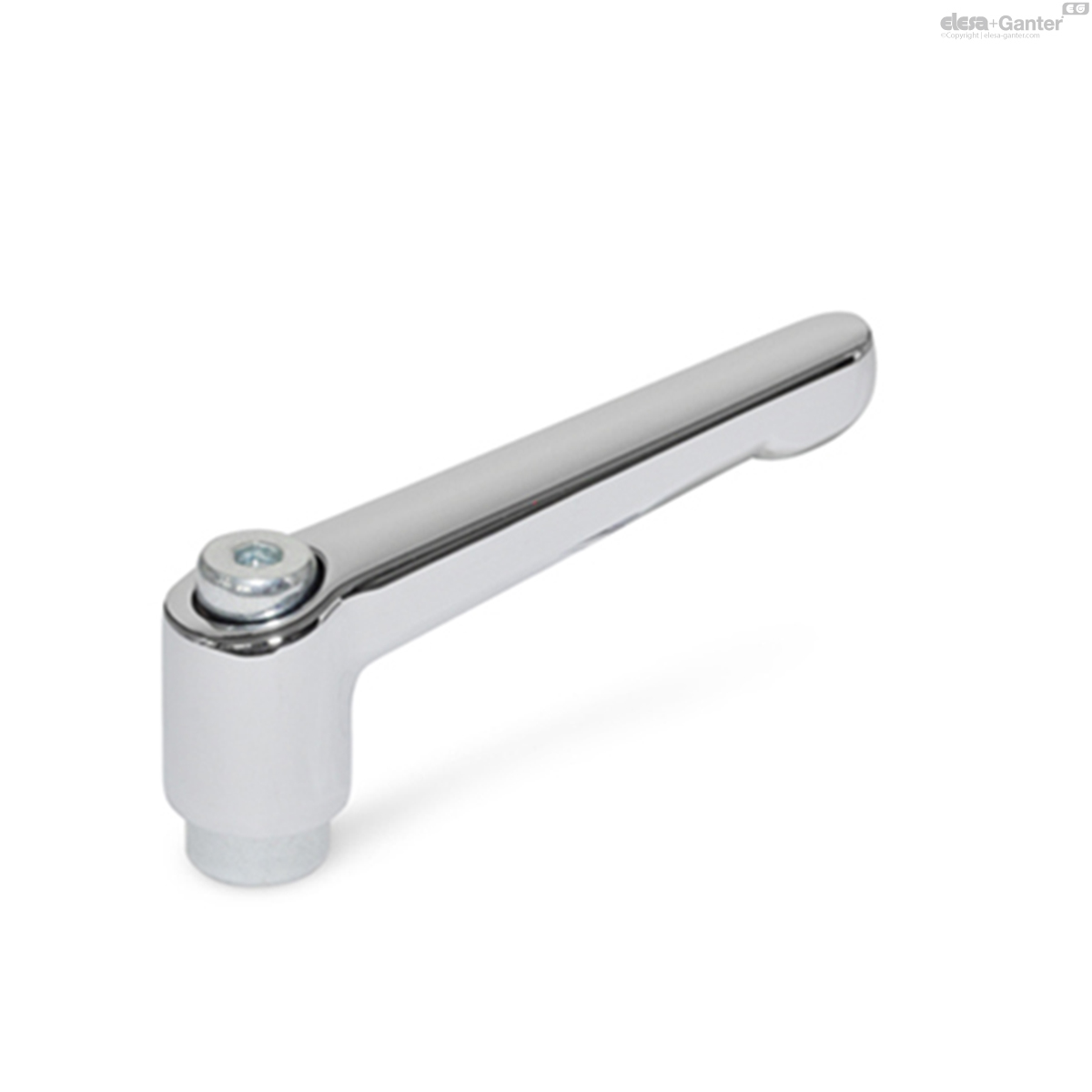

chrome-plated CR

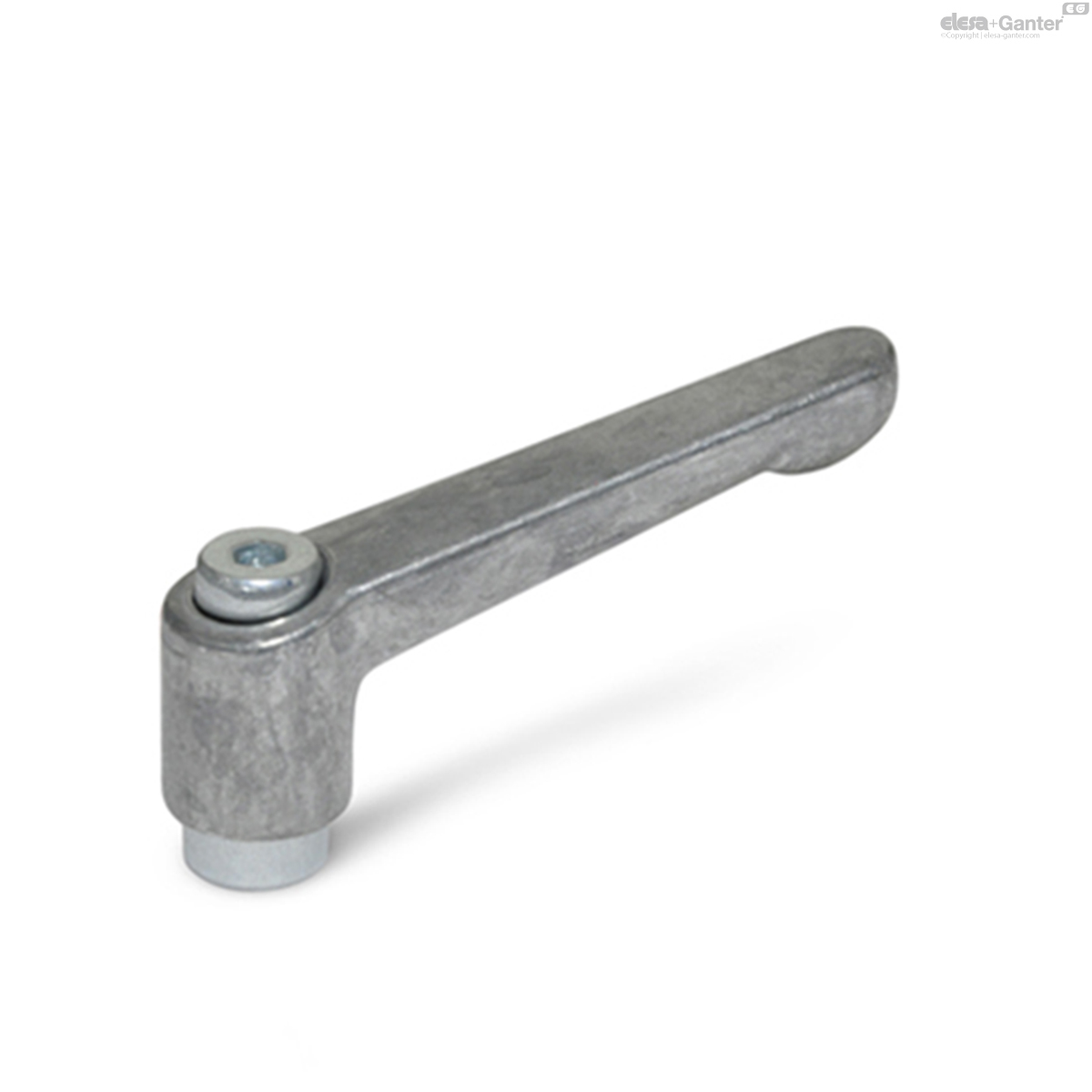

uncoated, slide grinded RH

Version with bushing

Bushing and retaining screw

Steel

zinc plated, blue passivated

Version with threaded stud

Threaded stud and retaining screw

Steel

zinc plated, blue passivated

Information

Adjustable hand levers GN 300.2 are ideal whenever parts have to be clamped in a confined space or in a particular lever position._|s|The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Technical information

ISO-Fundamental Tolerances

GN 300.2

	Color	l₁	d₁	d₃	d₄	h₁	h₂	h₃	h₄	t min.
Code												Actions
GN 300.2-22-M3-CR	CR - Chrome plated	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M3-OS	OS - RAL 2004	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M3-RH	RH - Uncoated	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M3-RS	RS - RAL 3000	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M3-SR	SR - RAL 9006	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M3-SW	SW - RAL 9004	22	M3	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-CR	CR - Chrome plated	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-OS	OS - RAL 2004	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-RH	RH - Uncoated	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-RS	RS - RAL 3000	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-SR	SR - RAL 9006	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M4-SW	SW - RAL 9004	22	M4	8	10.5	18.5	2	23	3	5	13
GN 300.2-22-M5-CR	CR - Chrome plated	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-22-M5-OS	OS - RAL 2004	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-22-M5-RH	RH - Uncoated	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-22-M5-RS	RS - RAL 3000	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-22-M5-SR	SR - RAL 9006	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-22-M5-SW	SW - RAL 9004	22	M5	8	10.5	18.5	2	23	3	5	12
GN 300.2-30-M4-CR	CR - Chrome plated	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M4-OS	OS - RAL 2004	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M4-RH	RH - Uncoated	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M4-RS	RS - RAL 3000	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M4-SR	SR - RAL 9006	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M4-SW	SW - RAL 9004	30	M4	10	13	24.5	4	31	3.5	9	31
GN 300.2-30-M5-CR	CR - Chrome plated	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M5-OS	OS - RAL 2004	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M5-RH	RH - Uncoated	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M5-RS	RS - RAL 3000	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M5-SR	SR - RAL 9006	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M5-SW	SW - RAL 9004	30	M5	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-CR	CR - Chrome plated	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-OS	OS - RAL 2004	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-RH	RH - Uncoated	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-RS	RS - RAL 3000	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-SR	SR - RAL 9006	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-30-M6-SW	SW - RAL 9004	30	M6	10	13	24.5	4	31	3.5	9	30
GN 300.2-45-M4-CR	CR - Chrome plated	45	M4	10	13	24.5	4	34	3.5	9	35
GN 300.2-45-M4-OS	OS - RAL 2004	45	M4	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M4-RH	RH - Uncoated	45	M4	10	13	24.5	4	34	3.5	9	35
GN 300.2-45-M4-RS	RS - RAL 3000	45	M4	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M4-SR	SR - RAL 9006	45	M4	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M4-SW	SW - RAL 9004	45	M4	10	13	24.5	4	34	3.5	9	36
GN 300.2-45-M5-CR	CR - Chrome plated	45	M5	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M5-OS	OS - RAL 2004	45	M5	10	13	24.5	4	34	3.5	9	33
GN 300.2-45-M5-RH	RH - Uncoated	45	M5	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M5-RS	RS - RAL 3000	45	M5	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M5-SR	SR - RAL 9006	45	M5	10	13	24.5	4	34	3.5	9	33
GN 300.2-45-M5-SW	SW - RAL 9004	45	M5	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M6-CR	CR - Chrome plated	45	M6	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M6-OS	OS - RAL 2004	45	M6	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M6-RH	RH - Uncoated	45	M6	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M6-RS	RS - RAL 3000	45	M6	10	13	24.5	4	34	3.5	9	33
GN 300.2-45-M6-SR	SR - RAL 9006	45	M6	10	13	24.5	4	34	3.5	9	34
GN 300.2-45-M6-SW	SW - RAL 9004	45	M6	10	13	24.5	4	34	3.5	9	34
GN 300.2-63-M6-CR	CR - Chrome plated	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M6-OS	OS - RAL 2004	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M6-RH	RH - Uncoated	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M6-RS	RS - RAL 3000	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M6-SR	SR - RAL 9006	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M6-SW	SW - RAL 9004	63	M6	13.5	17.5	31	6.5	45	4	11	76
GN 300.2-63-M8-CR	CR - Chrome plated	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-63-M8-OS	OS - RAL 2004	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-63-M8-RH	RH - Uncoated	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-63-M8-RS	RS - RAL 3000	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-63-M8-SR	SR - RAL 9006	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-63-M8-SW	SW - RAL 9004	63	M8	13.5	17.5	31	6.5	45	4	11	75
GN 300.2-78-M8-CR	CR - Chrome plated	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M8-OS	OS - RAL 2004	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M8-RH	RH - Uncoated	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M8-RS	RS - RAL 3000	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M8-SR	SR - RAL 9006	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M8-SW	SW - RAL 9004	78	M8	16	21	36	8	54	4	14	123
GN 300.2-78-M10-CR	CR - Chrome plated	78	M10	16	21	36	8	54	4	14	120
GN 300.2-78-M10-OS	OS - RAL 2004	78	M10	16	21	36	8	54	4	14	120
GN 300.2-78-M10-RH	RH - Uncoated	78	M10	16	21	36	8	54	4	14	120
GN 300.2-78-M10-RS	RS - RAL 3000	78	M10	16	21	36	8	54	4	14	120
GN 300.2-78-M10-SR	SR - RAL 9006	78	M10	16	21	36	8	54	4	14	120
GN 300.2-78-M10-SW	SW - RAL 9004	78	M10	16	21	36	8	54	4	14	120
GN 300.2-92-M10-CR	CR - Chrome plated	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M10-OS	OS - RAL 2004	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M10-RH	RH - Uncoated	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M10-RS	RS - RAL 3000	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M10-SR	SR - RAL 9006	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M10-SW	SW - RAL 9004	92	M10	19	24	43	11	64	4	17	187
GN 300.2-92-M12-CR	CR - Chrome plated	92	M12	19	24	43	11	64	4	17	181
GN 300.2-92-M12-OS	OS - RAL 2004	92	M12	19	24	43	11	64	4	17	181
GN 300.2-92-M12-RH	RH - Uncoated	92	M12	19	24	43	11	64	4	17	181
GN 300.2-92-M12-RS	RS - RAL 3000	92	M12	19	24	43	11	64	4	17	181
GN 300.2-92-M12-SR	SR - RAL 9006	92	M12	19	24	43	11	64	4	17	181
GN 300.2-92-M12-SW	SW - RAL 9004	92	M12	19	24	43	11	64	4	17	174
GN 300.2-108-M12-CR	CR - Chrome plated	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M12-OS	OS - RAL 2004	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M12-RH	RH - Uncoated	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M12-RS	RS - RAL 3000	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M12-SR	SR - RAL 9006	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M12-SW	SW - RAL 9004	108	M12	23	30	50.5	12	75	5	22	305
GN 300.2-108-M16-CR	CR - Chrome plated	108	M16	23	30	50.5	12	75	5	22	289
GN 300.2-108-M16-OS	OS - RAL 2004	108	M16	23	30	50.5	12	75	5	22	289
GN 300.2-108-M16-RH	RH - Uncoated	108	M16	23	30	50.5	12	75	5	22	289
GN 300.2-108-M16-RS	RS - RAL 3000	108	M16	23	30	50.5	12	75	5	22	289
GN 300.2-108-M16-SR	SR - RAL 9006	108	M16	23	30	50.5	12	75	5	22	289
GN 300.2-108-M16-SW	SW - RAL 9004	108	M16	23	30	50.5	12	75	5	22	289
