GN 300.1

Adjustable hand levers
Zinc die casting, Bushing / Threaded bolt Stainless Steel
__logo__RoHS__
Enquire Now
product image

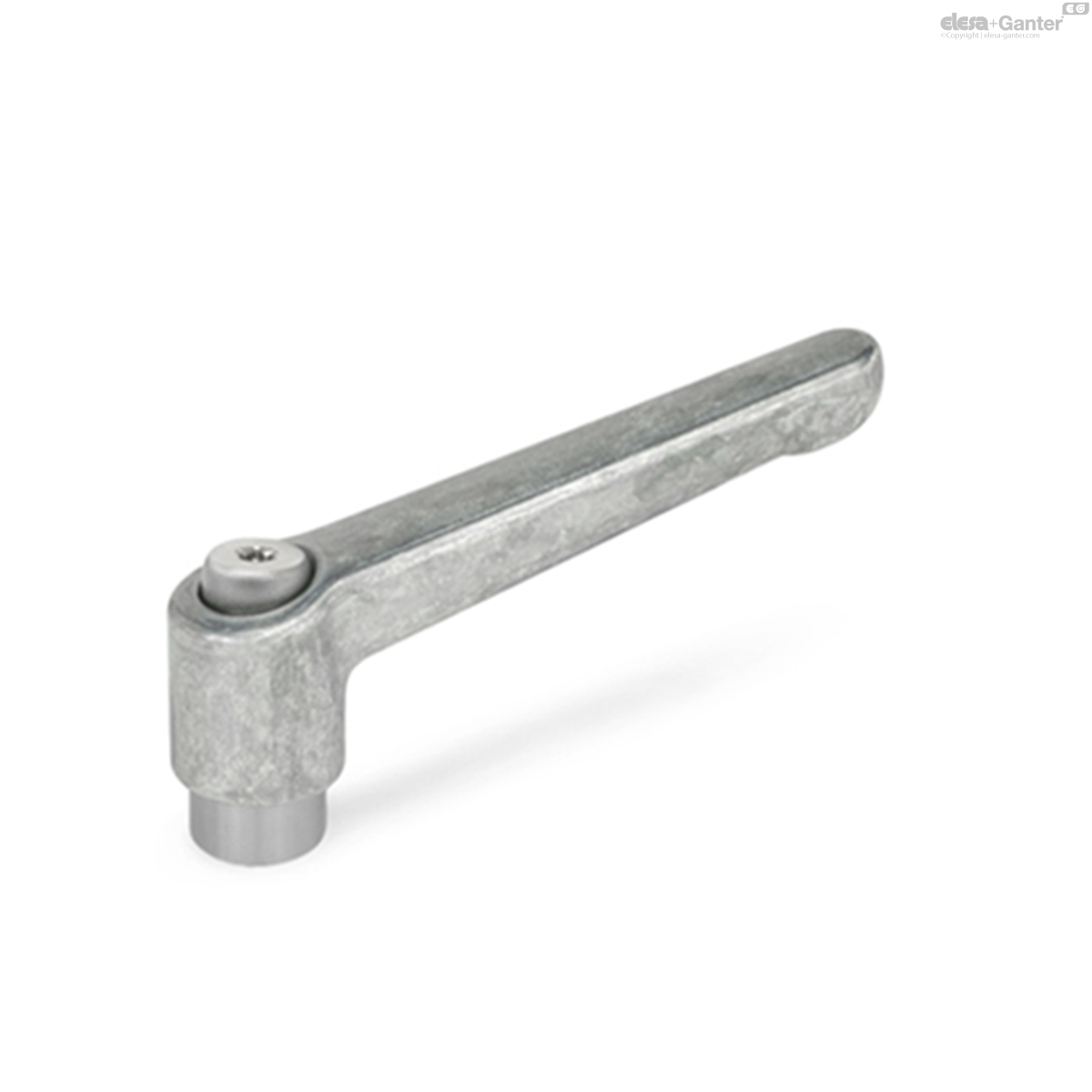

GN 300.1
Adjustable hand levers

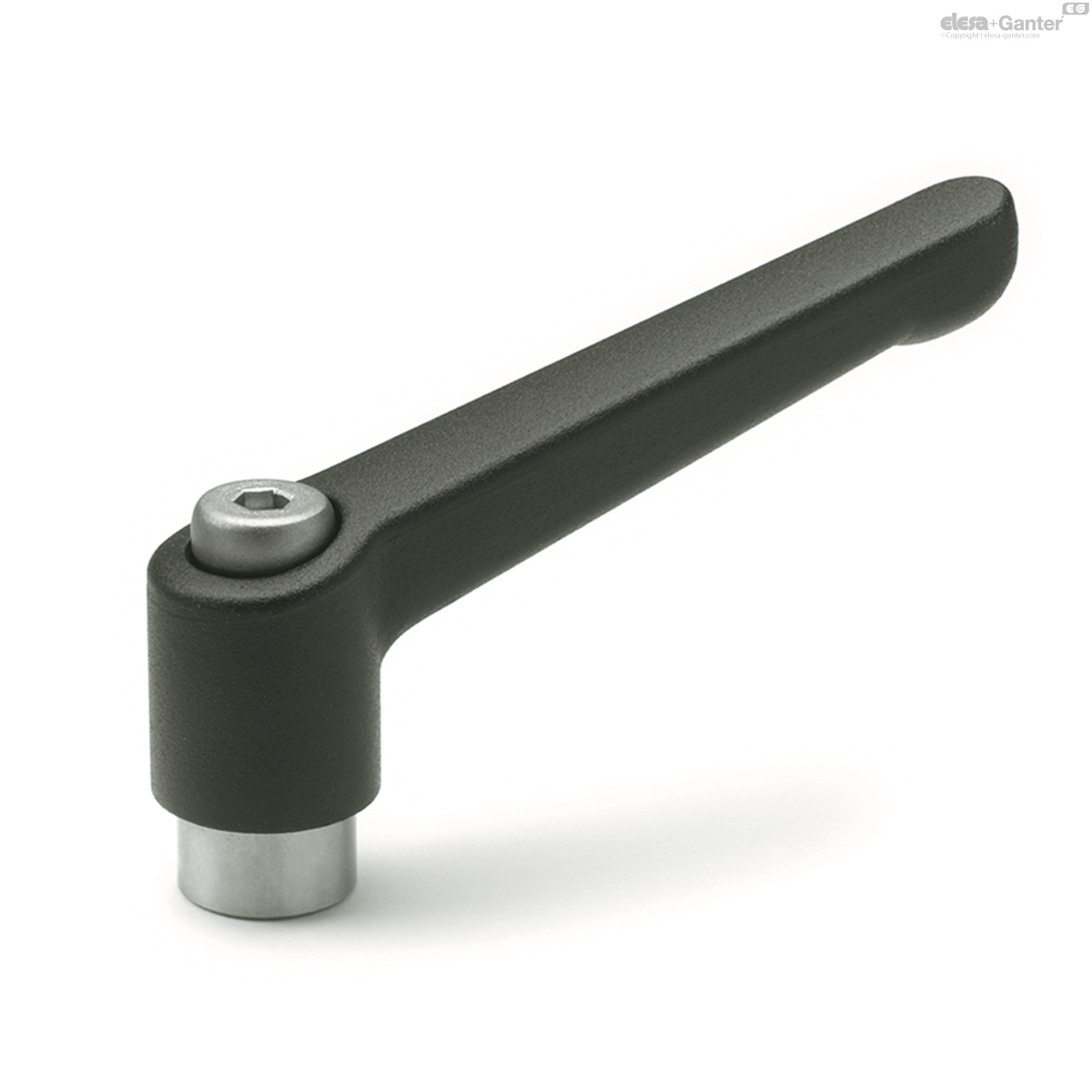

with threaded insert
product image
GN-300.1
Adjustable hand levers

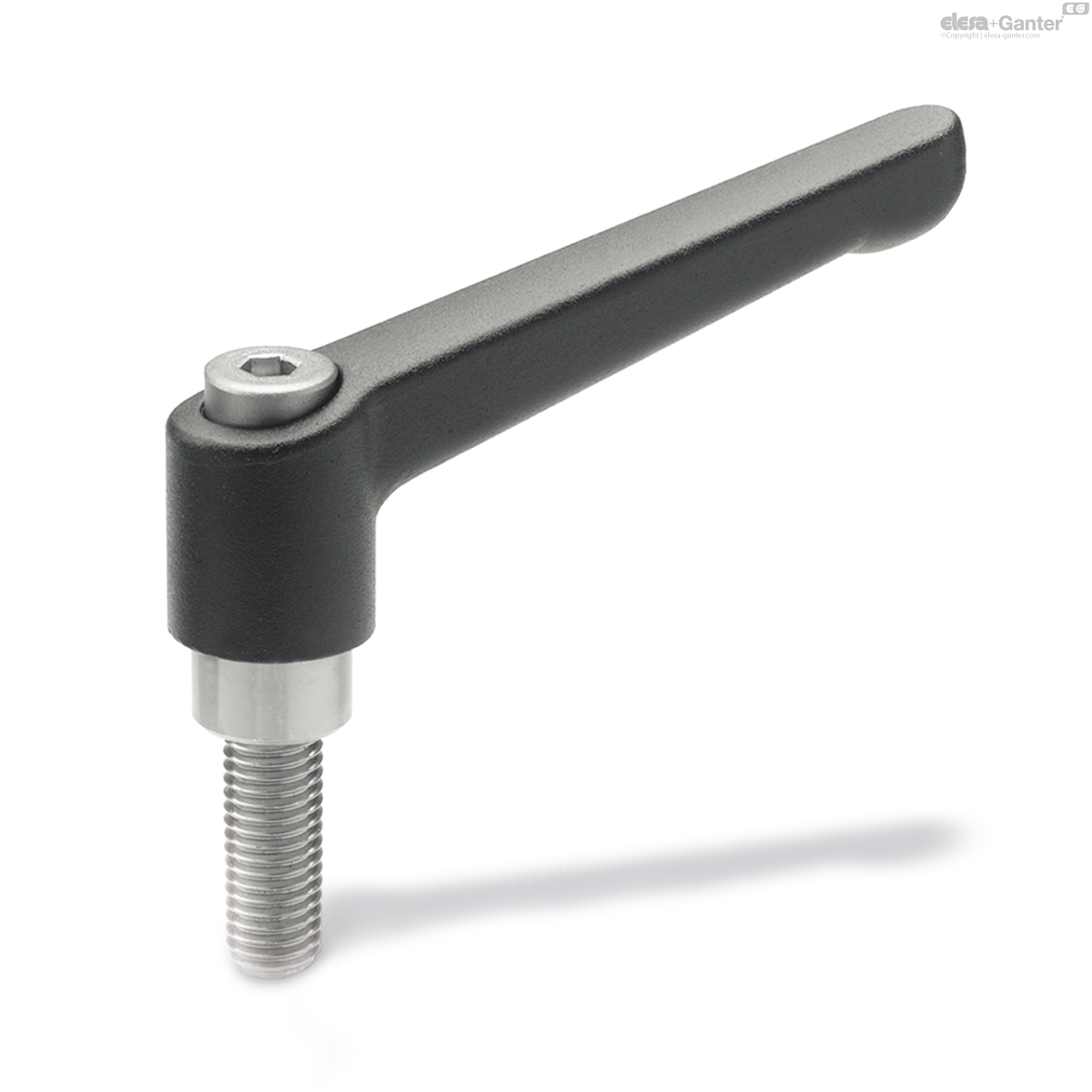

with threaded stud
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image
  • product-image

Description

Specification

Handle

Zinc die casting

plastic coated

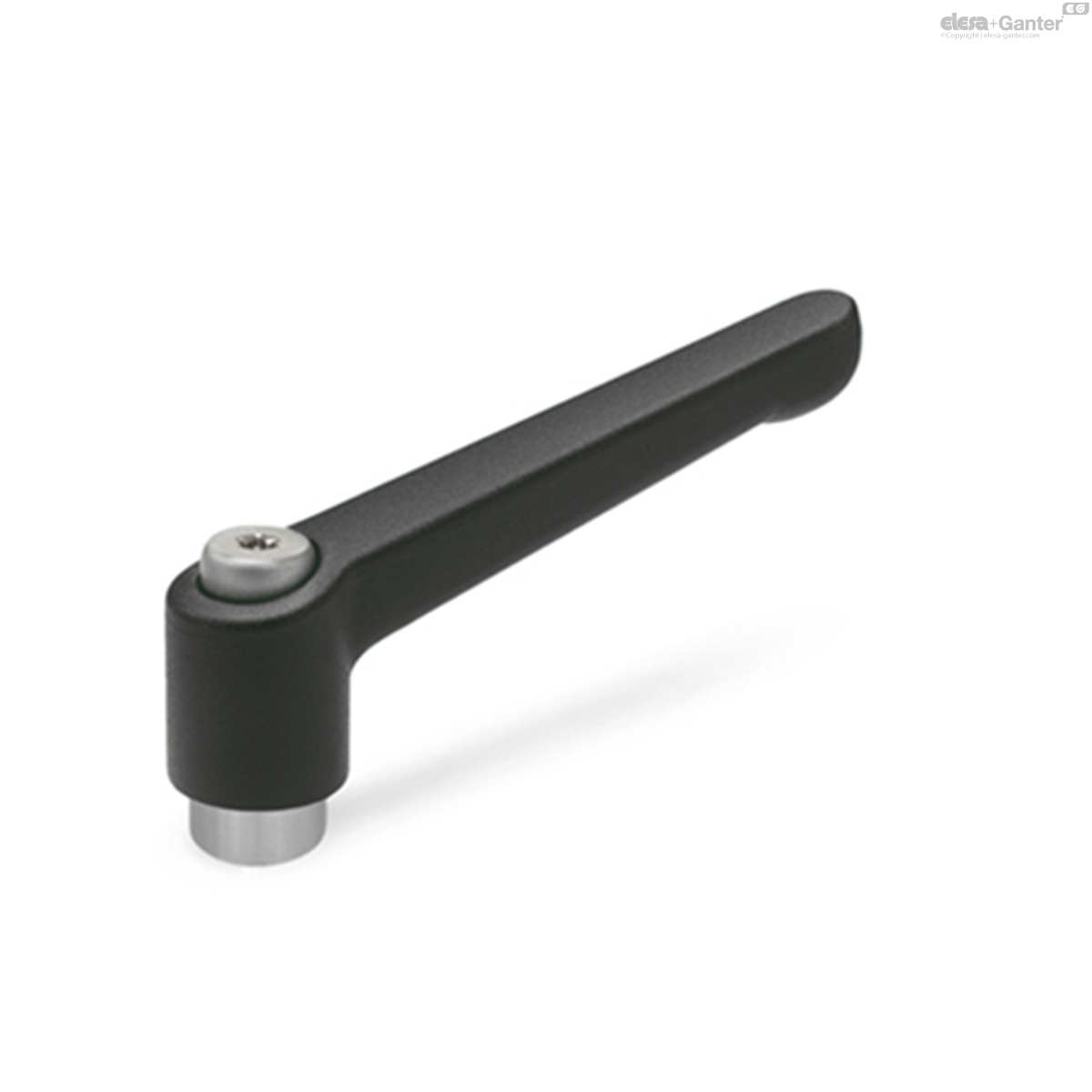

black, RAL 9005, textured finish SW

black, RAL 9011, silk finish SZ

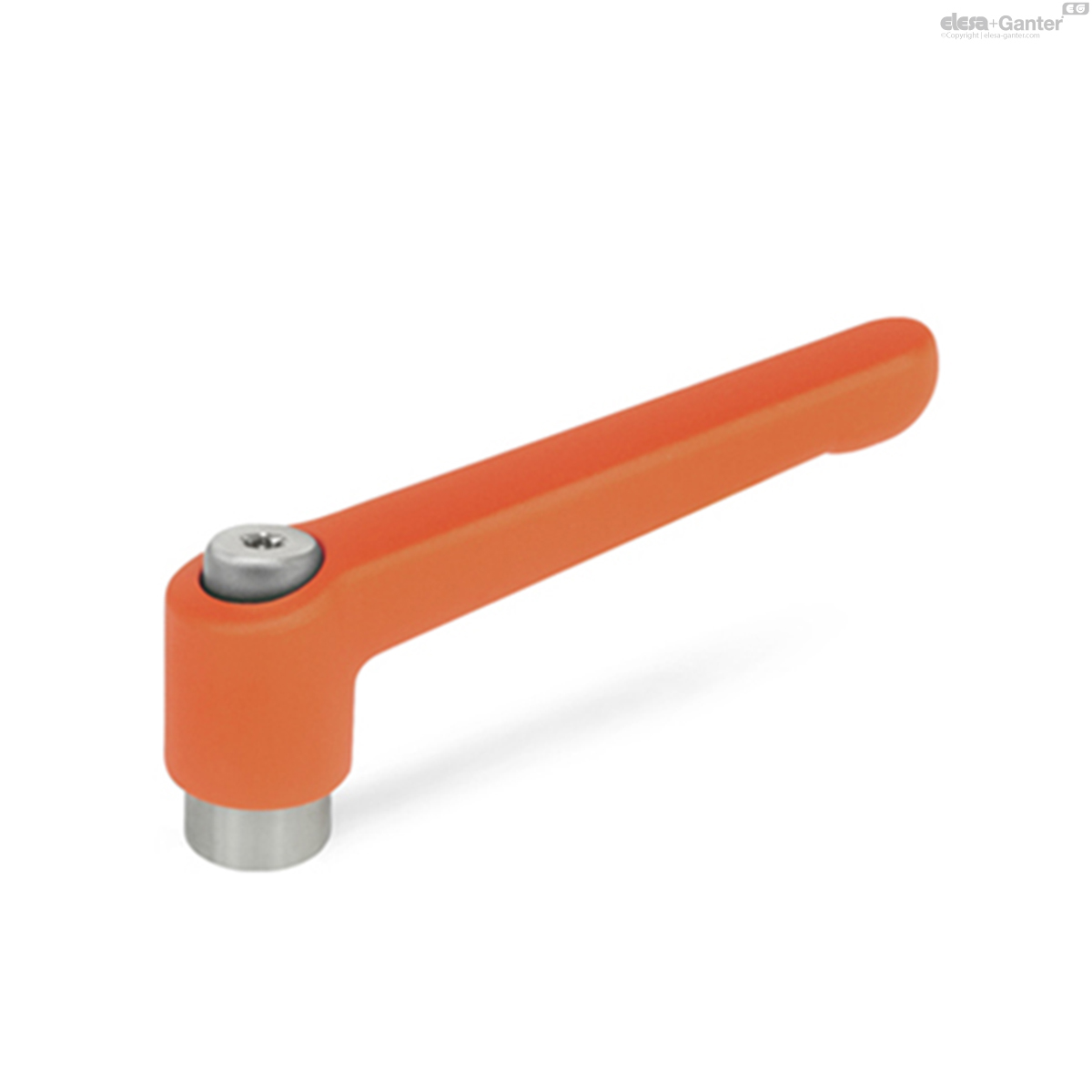

orange, RAL 2004, textured finish OS

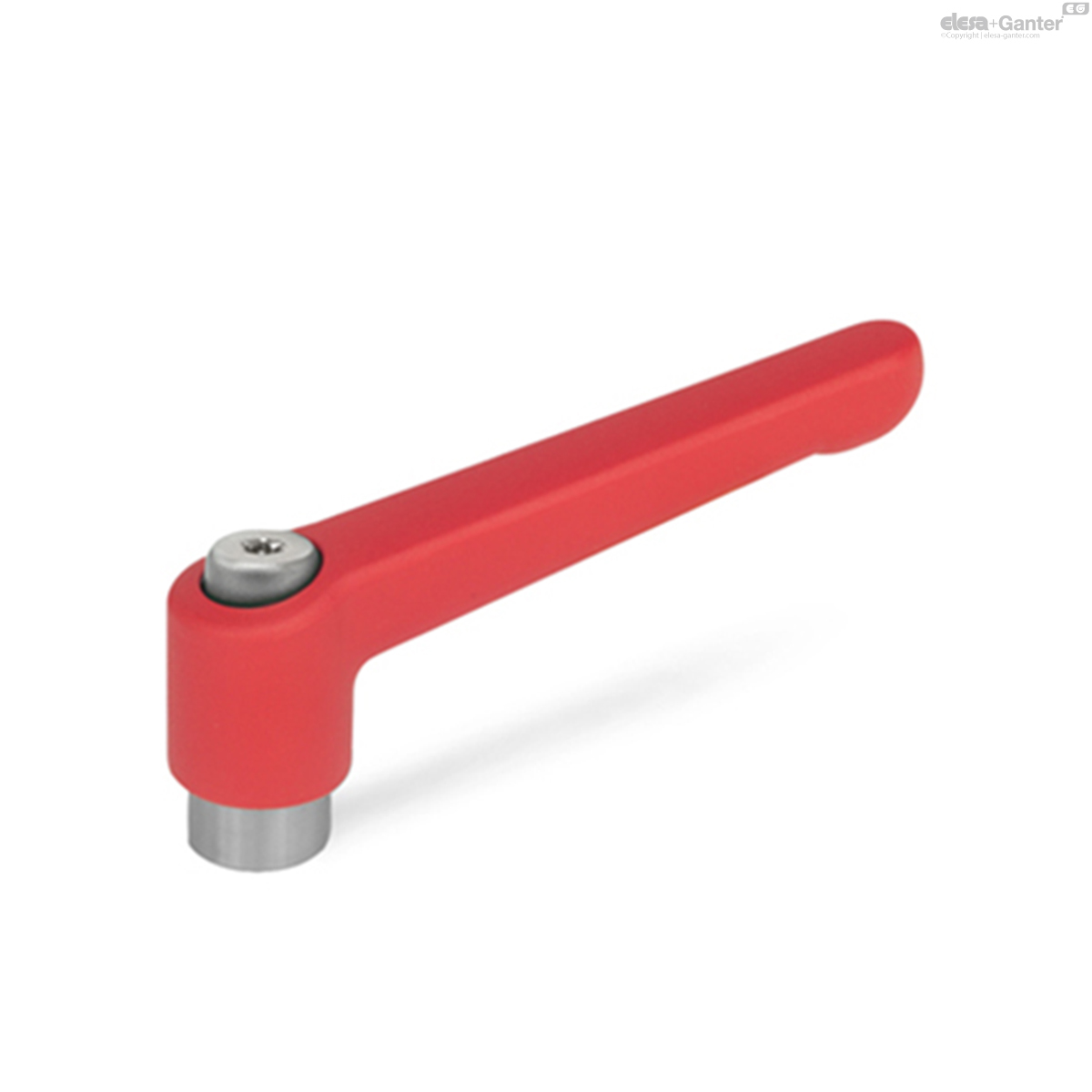

red, RAL 3000, textured finish RS

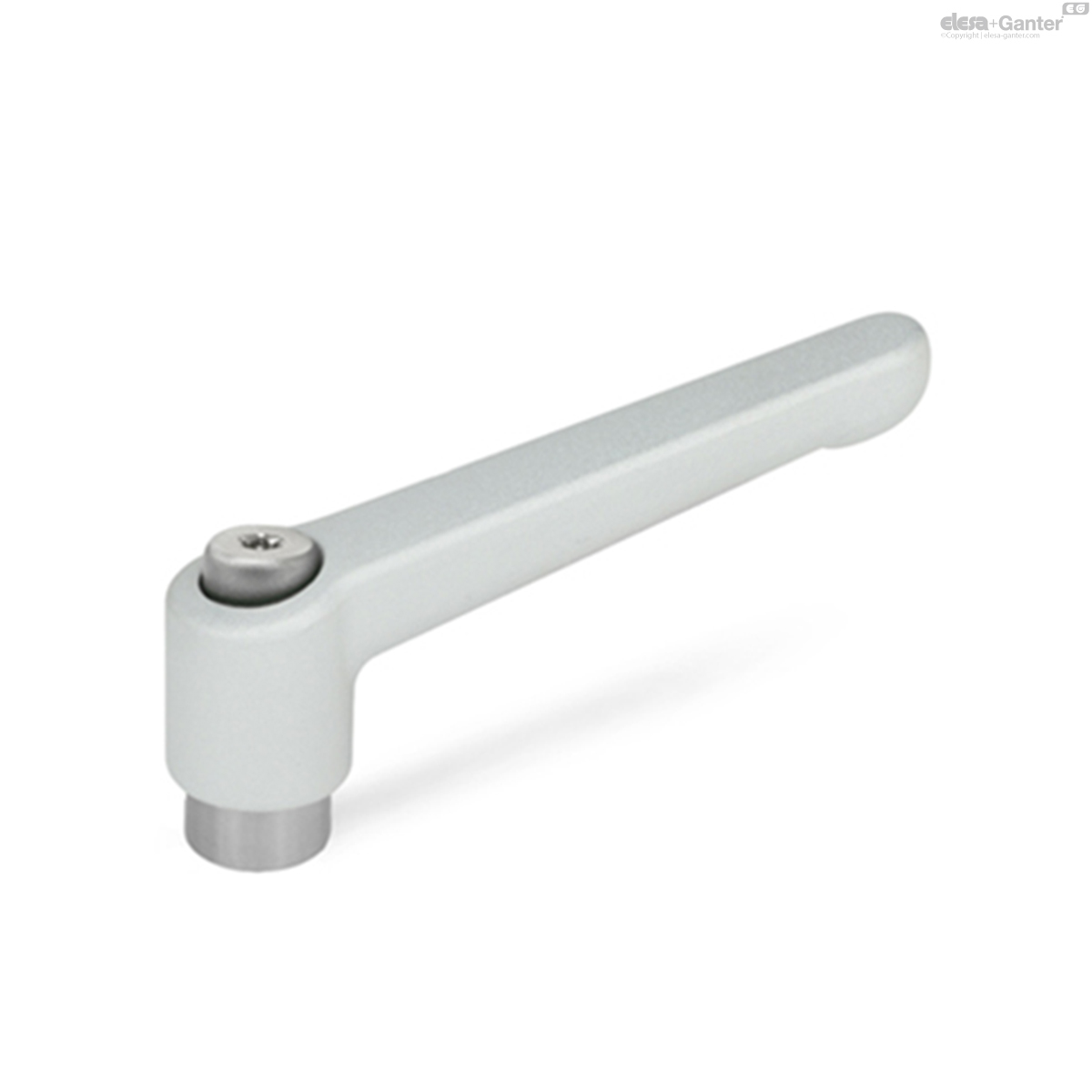

silver, RAL 9006, textured finish SR

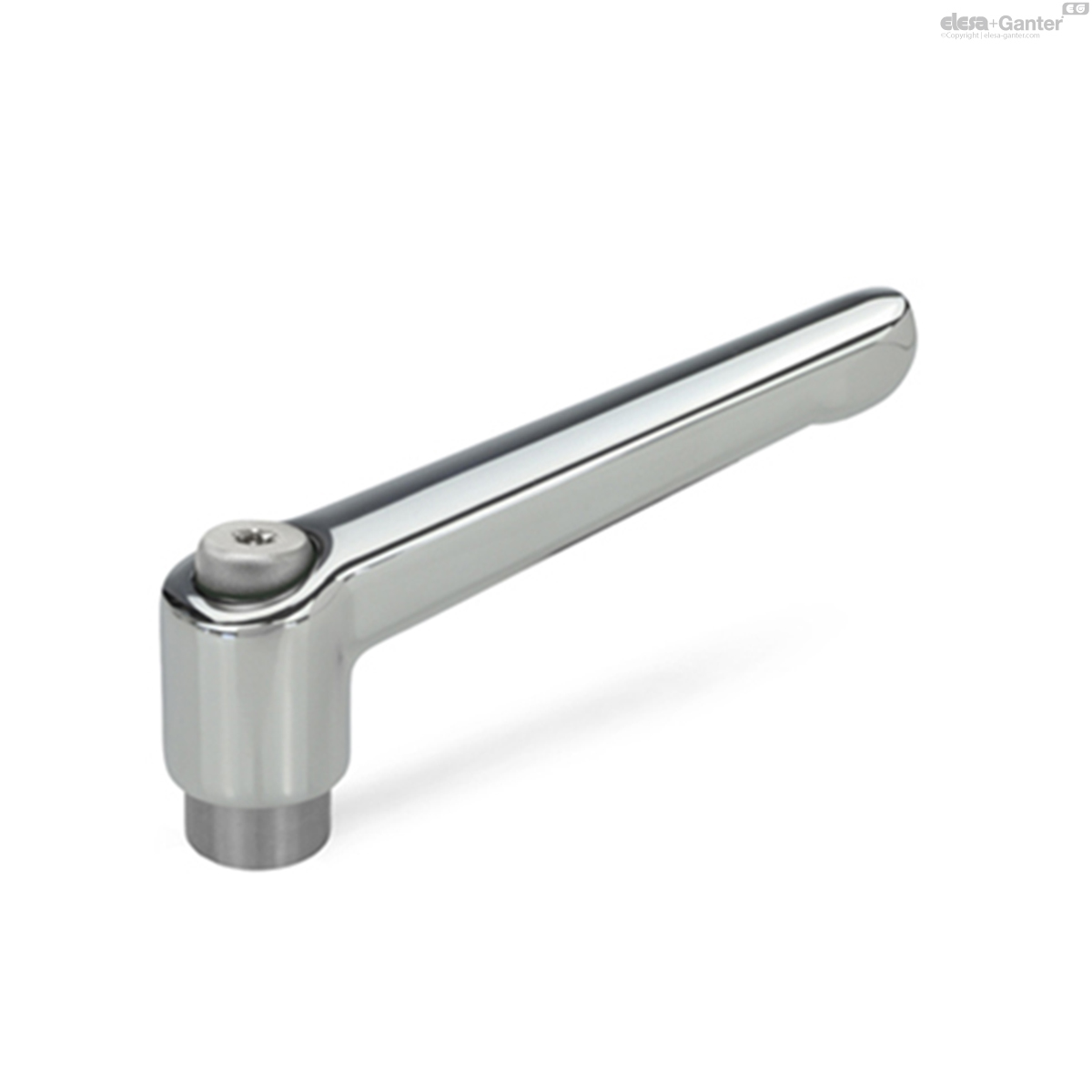

chrome-plated CR

uncoated, slide grinded RH

Version with threaded insert

Threaded insert and retaining screw

Stainless Steel AISI 303

Version with threaded stud

Threaded stud and retaining screw

Stainless Steel AISI 303

Information

Adjustable hand levers GN 300.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

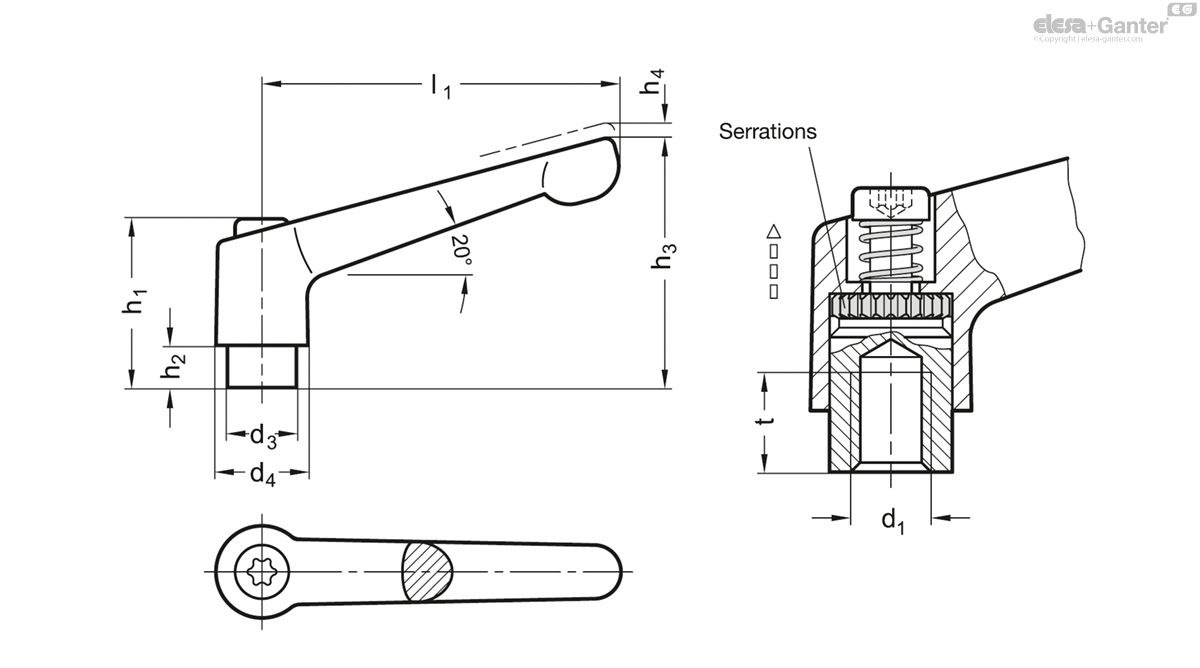

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Technical information
  • Stainless Steel characteristics
  • ISO-Fundamental Tolerances

GN 300.1

Color l1 d1 d2 H7 d2 d3 d3 H7 d4 d8 h1 h2 h2 ≈ h3 h3 ≈ h4 s t min. t2 min. __logo__weight__
Code Actions
GN 300.1-22-M3-CR CR - Chrome plated 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-OS OS - RAL 2004 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-RH RH - Uncoated 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-RS RS - RAL 3000 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-SR SR - RAL 9006 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-SW SW - RAL 9004 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M3-SZ SZ - RAL 9011 22 M 3 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-CR CR - Chrome plated 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-OS OS - RAL 2004 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-RH RH - Uncoated 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-RS RS - RAL 3000 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-SR SR - RAL 9006 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-SW SW - RAL 9004 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M4-SZ SZ - RAL 9011 22 M 4 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-CR CR - Chrome plated 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-OS OS - RAL 2004 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-RH RH - Uncoated 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-RS RS - RAL 3000 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-SR SR - RAL 9006 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-SW SW - RAL 9004 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-22-M5-SZ SZ - RAL 9011 22 M 5 - - 8 - 10.5 - 18.5 2 - 23 - 3 - 5 - 13 cart-icon
GN 300.1-30-B5-CR CR - Chrome plated 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-OS OS - RAL 2004 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-RH RH - Uncoated 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-RS RS - RAL 3000 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-SR SR - RAL 9006 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-SW SW - RAL 9004 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B5-SZ SZ - RAL 9011 30 - B 5 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-B6-CR CR - Chrome plated 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-OS OS - RAL 2004 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-RH RH - Uncoated 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-RS RS - RAL 3000 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-SR SR - RAL 9006 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-SW SW - RAL 9004 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-B6-SZ SZ - RAL 9011 30 - B 6 - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M3-CR CR - Chrome plated 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-OS OS - RAL 2004 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-RH RH - Uncoated 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-RS RS - RAL 3000 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-SR SR - RAL 9006 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-SW SW - RAL 9004 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M3-SZ SZ - RAL 9011 30 M 3 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 7 - 26 cart-icon
GN 300.1-30-M4-CR CR - Chrome plated 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-OS OS - RAL 2004 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-RH RH - Uncoated 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-RS RS - RAL 3000 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-SR SR - RAL 9006 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-SW SW - RAL 9004 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M4-SZ SZ - RAL 9011 30 M 4 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 27 cart-icon
GN 300.1-30-M5-CR CR - Chrome plated 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-OS OS - RAL 2004 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-RH RH - Uncoated 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-RS RS - RAL 3000 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-SR SR - RAL 9006 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-SW SW - RAL 9004 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M5-SZ SZ - RAL 9011 30 M 5 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 25 cart-icon
GN 300.1-30-M6-CR CR - Chrome plated 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-OS OS - RAL 2004 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-RH RH - Uncoated 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-RS RS - RAL 3000 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-SR SR - RAL 9006 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-SW SW - RAL 9004 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-30-M6-SZ SZ - RAL 9011 30 M 6 - - 10 - 13 - 24.5 4 - 31 - 3.5 - 8 - 26 cart-icon
GN 300.1-45-B5-CR CR - Chrome plated 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-OS OS - RAL 2004 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-RH RH - Uncoated 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-RS RS - RAL 3000 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-SR SR - RAL 9006 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-SW SW - RAL 9004 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B5-SZ SZ - RAL 9011 45 - B 5 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-B6-CR CR - Chrome plated 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-OS OS - RAL 2004 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-RH RH - Uncoated 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-RS RS - RAL 3000 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-SR SR - RAL 9006 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-SW SW - RAL 9004 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-B6-SZ SZ - RAL 9011 45 - B 6 - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M4-CR CR - Chrome plated 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-OS OS - RAL 2004 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-RH RH - Uncoated 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-RS RS - RAL 3000 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-SR SR - RAL 9006 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-SW SW - RAL 9004 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M4-SZ SZ - RAL 9011 45 M 4 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 35 cart-icon
GN 300.1-45-M5-CR CR - Chrome plated 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-OS OS - RAL 2004 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-RH RH - Uncoated 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-RS RS - RAL 3000 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-SR SR - RAL 9006 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-SW SW - RAL 9004 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M5-SZ SZ - RAL 9011 45 M 5 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 33 cart-icon
GN 300.1-45-M6-CR CR - Chrome plated 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-OS OS - RAL 2004 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-RH RH - Uncoated 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-RS RS - RAL 3000 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-SR SR - RAL 9006 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-SW SW - RAL 9004 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-45-M6-SZ SZ - RAL 9011 45 M 6 - - 10 - 13 - 24.5 4 - 34 - 3.5 - 8 - 34 cart-icon
GN 300.1-63-B8-CR CR - Chrome plated 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-OS OS - RAL 2004 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-RH RH - Uncoated 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-RS RS - RAL 3000 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-SR SR - RAL 9006 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-SW SW - RAL 9004 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-B8-SZ SZ - RAL 9011 63 - B 8 - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 73 cart-icon
GN 300.1-63-M6-CR CR - Chrome plated 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-OS OS - RAL 2004 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-RH RH - Uncoated 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-RS RS - RAL 3000 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-SR SR - RAL 9006 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-SW SW - RAL 9004 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M6-SZ SZ - RAL 9011 63 M 6 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 76 cart-icon
GN 300.1-63-M8-CR CR - Chrome plated 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-OS OS - RAL 2004 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-RH RH - Uncoated 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-RS RS - RAL 3000 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-SR SR - RAL 9006 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-SW SW - RAL 9004 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-63-M8-SZ SZ - RAL 9011 63 M 8 - - 13.5 - 17.5 - 31 6.5 - 45 - 4 - 11 - 61 cart-icon
GN 300.1-78-B8-CR CR - Chrome plated 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-OS OS - RAL 2004 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-RH RH - Uncoated 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-RS RS - RAL 3000 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-SR SR - RAL 9006 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-SW SW - RAL 9004 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B8-SZ SZ - RAL 9011 78 - B 8 - 16 - 21 - 36 8 - 54 - 4 - 14 - 120 cart-icon
GN 300.1-78-B10-CR CR - Chrome plated 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-B10-OS OS - RAL 2004 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-B10-RH RH - Uncoated 78 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 123 122 cart-icon
GN 300.1-78-B10-RS RS - RAL 3000 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-B10-SR SR - RAL 9006 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-B10-SW SW - RAL 9004 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-B10-SZ SZ - RAL 9011 78 - B 10 - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-CR CR - Chrome plated 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-OS OS - RAL 2004 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-RH RH - Uncoated 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-RS RS - RAL 3000 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-SR SR - RAL 9006 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-SW SW - RAL 9004 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M8-SZ SZ - RAL 9011 78 M 8 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-CR CR - Chrome plated 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-OS OS - RAL 2004 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-RH RH - Uncoated 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-RS RS - RAL 3000 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-SR SR - RAL 9006 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-SW SW - RAL 9004 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M10-SZ SZ - RAL 9011 78 M 10 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-CR CR - Chrome plated 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-OS OS - RAL 2004 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-RH RH - Uncoated 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-RS RS - RAL 3000 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-SR SR - RAL 9006 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-SW SW - RAL 9004 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-78-M12-SZ SZ - RAL 9011 78 M 12 - - 16 - 21 - 36 8 - 54 - 4 - 14 - 122 cart-icon
GN 300.1-92-B12-CR CR - Chrome plated 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-OS OS - RAL 2004 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-RH RH - Uncoated 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-RS RS - RAL 3000 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-SR SR - RAL 9006 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-SW SW - RAL 9004 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-B12-SZ SZ - RAL 9011 92 - B 12 - 19 - 24 - 43 11 - 64 - 4 - 17 - 174 cart-icon
GN 300.1-92-M10-CR CR - Chrome plated 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-OS OS - RAL 2004 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-RH RH - Uncoated 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-RS RS - RAL 3000 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-SR SR - RAL 9006 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-SW SW - RAL 9004 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M10-SZ SZ - RAL 9011 92 M 10 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 178 cart-icon
GN 300.1-92-M12-CR CR - Chrome plated 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-OS OS - RAL 2004 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-RH RH - Uncoated 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-RS RS - RAL 3000 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-SR SR - RAL 9006 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-SW SW - RAL 9004 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-92-M12-SZ SZ - RAL 9011 92 M 12 - - 19 - 24 - 43 11 - 64 - 4 - 17 - 172 cart-icon
GN 300.1-108-B12-CR CR - Chrome plated 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-OS OS - RAL 2004 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-RH RH - Uncoated 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-RS RS - RAL 3000 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-SR SR - RAL 9006 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-SW SW - RAL 9004 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B12-SZ SZ - RAL 9011 108 - B 12 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-B16-CR CR - Chrome plated 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-OS OS - RAL 2004 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-RH RH - Uncoated 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-RS RS - RAL 3000 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-SR SR - RAL 9006 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-SW SW - RAL 9004 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-B16-SZ SZ - RAL 9011 108 - B 16 - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 297 cart-icon
GN 300.1-108-M12-CR CR - Chrome plated 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-OS OS - RAL 2004 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-RH RH - Uncoated 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-RS RS - RAL 3000 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-SR SR - RAL 9006 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-SW SW - RAL 9004 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M12-SZ SZ - RAL 9011 108 M 12 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 299 cart-icon
GN 300.1-108-M16-CR CR - Chrome plated 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
GN 300.1-108-M16-OS OS - RAL 2004 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
GN 300.1-108-M16-RH RH - Uncoated 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - - cart-icon
GN 300.1-108-M16-RS RS - RAL 3000 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
GN 300.1-108-M16-SR SR - RAL 9006 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
GN 300.1-108-M16-SW SW - RAL 9004 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
GN 300.1-108-M16-SZ SZ - RAL 9011 108 M 16 - - 23 - 30 - 50.5 12 - 75 - 5 - 22 - 282 cart-icon
form-enquire-bg

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.

    Attachment File

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    logo-text
    Related Products
    Proud Australian Distributor for World-Leading Brands Content
    movex elesa-ganter
