GN 300.1

Adjustable hand levers

Zinc die casting, Bushing / Threaded bolt Stainless Steel

Enquire Now

GN 300

Adjustable hand levers

with bushing

GN-300

Adjustable hand levers

with threaded stud

Description

Specification

Handle

Zinc die casting

plastic coated

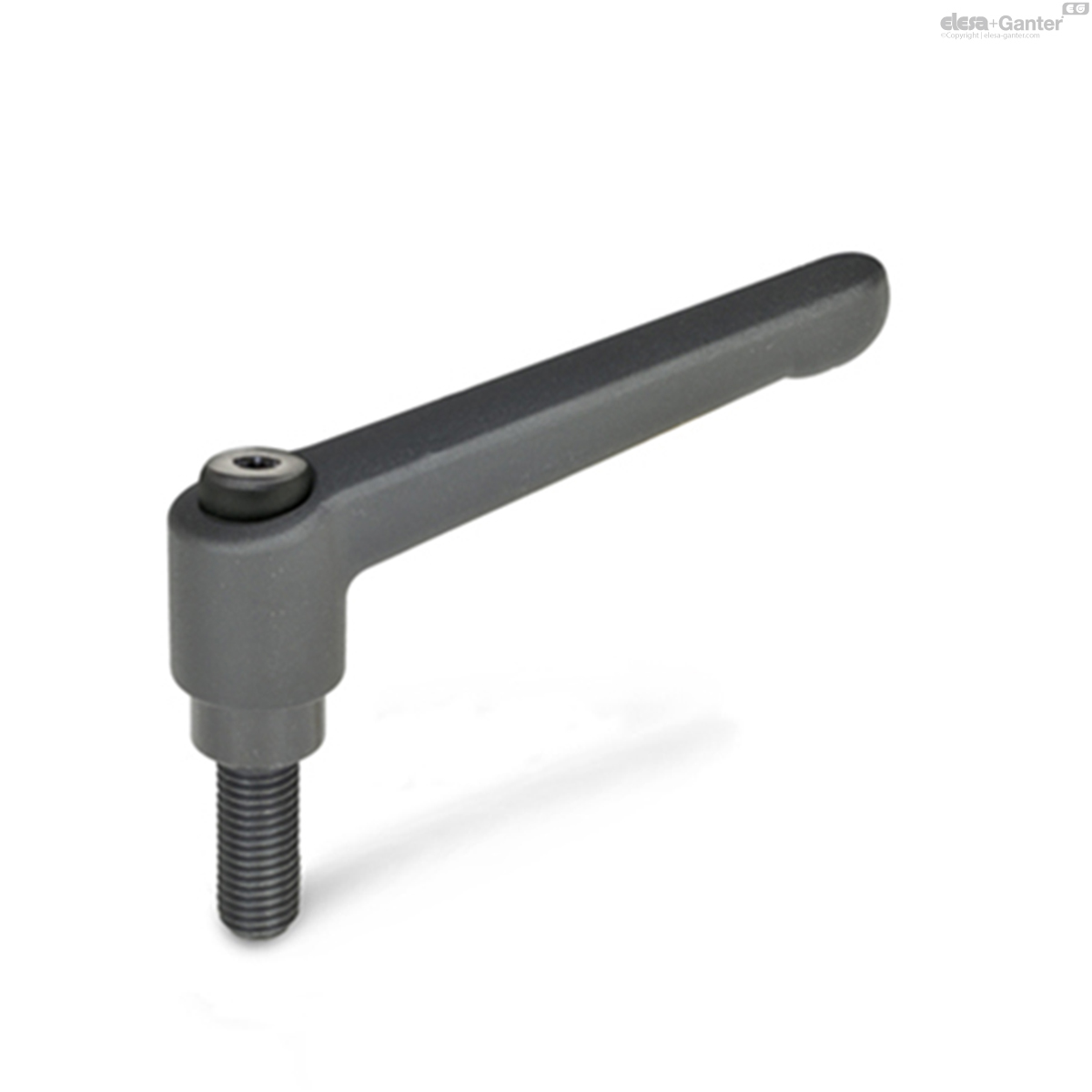

black, RAL 9005, textured finish SW

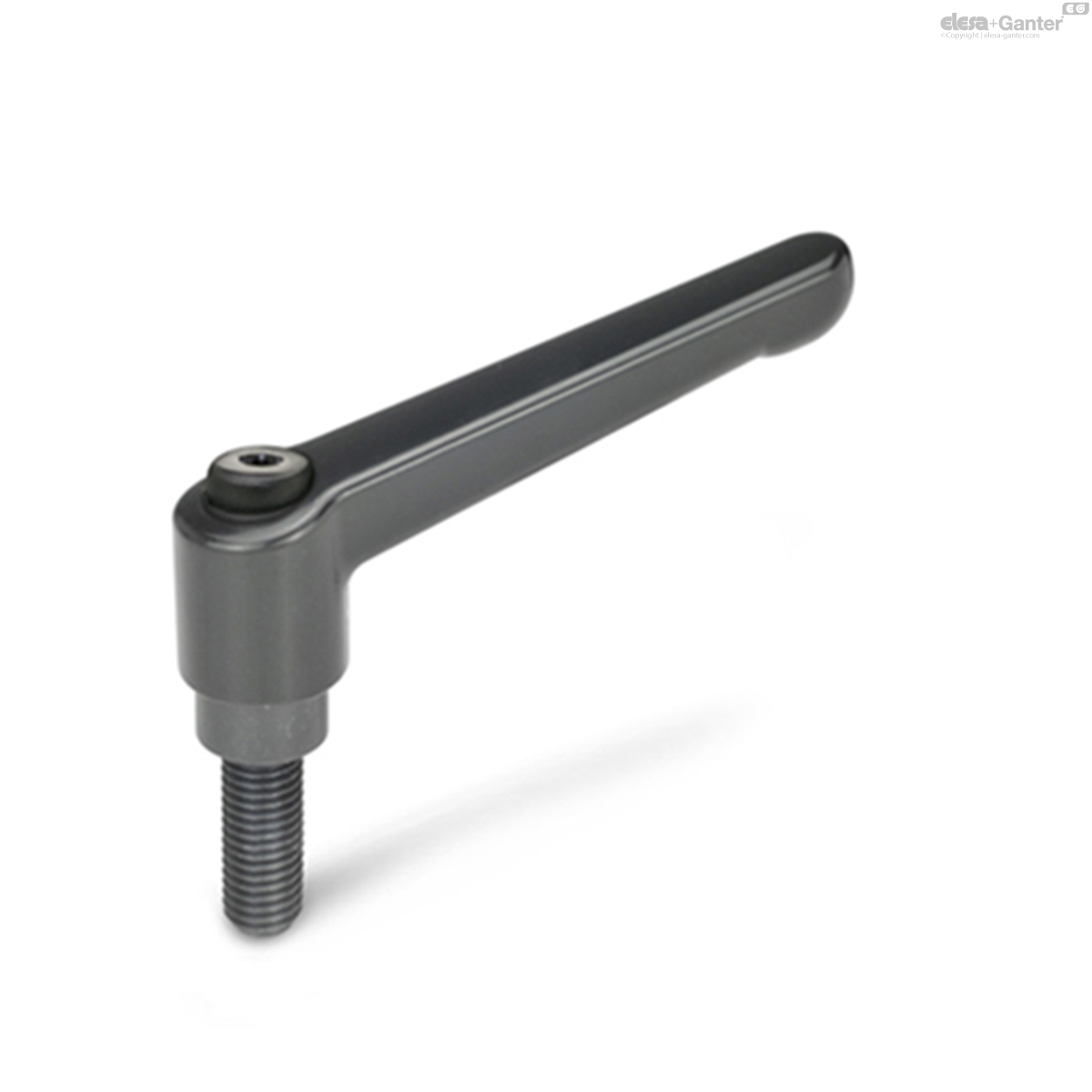

black, RAL 9011, silk finish SZ

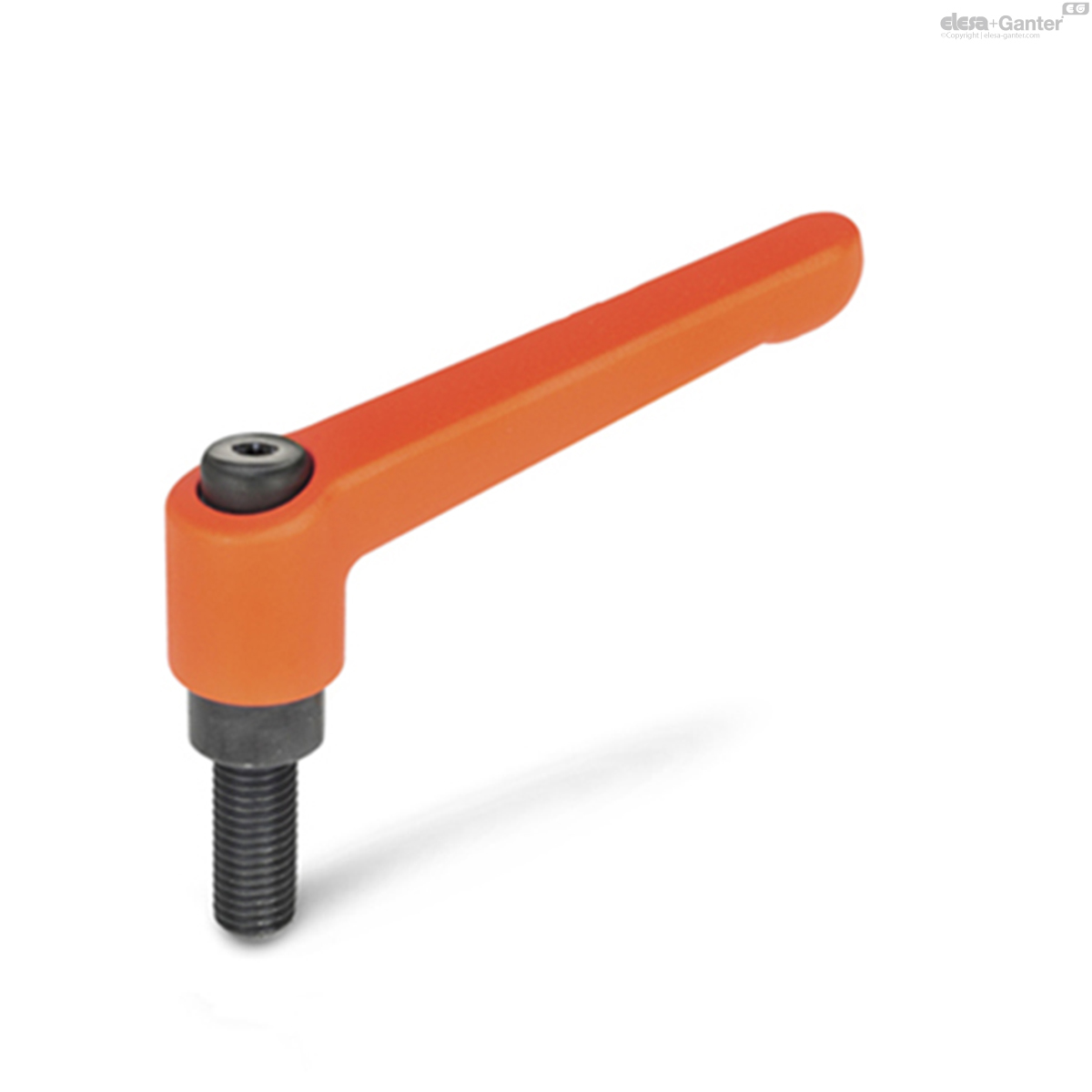

orange, RAL 2004, textured finish OS

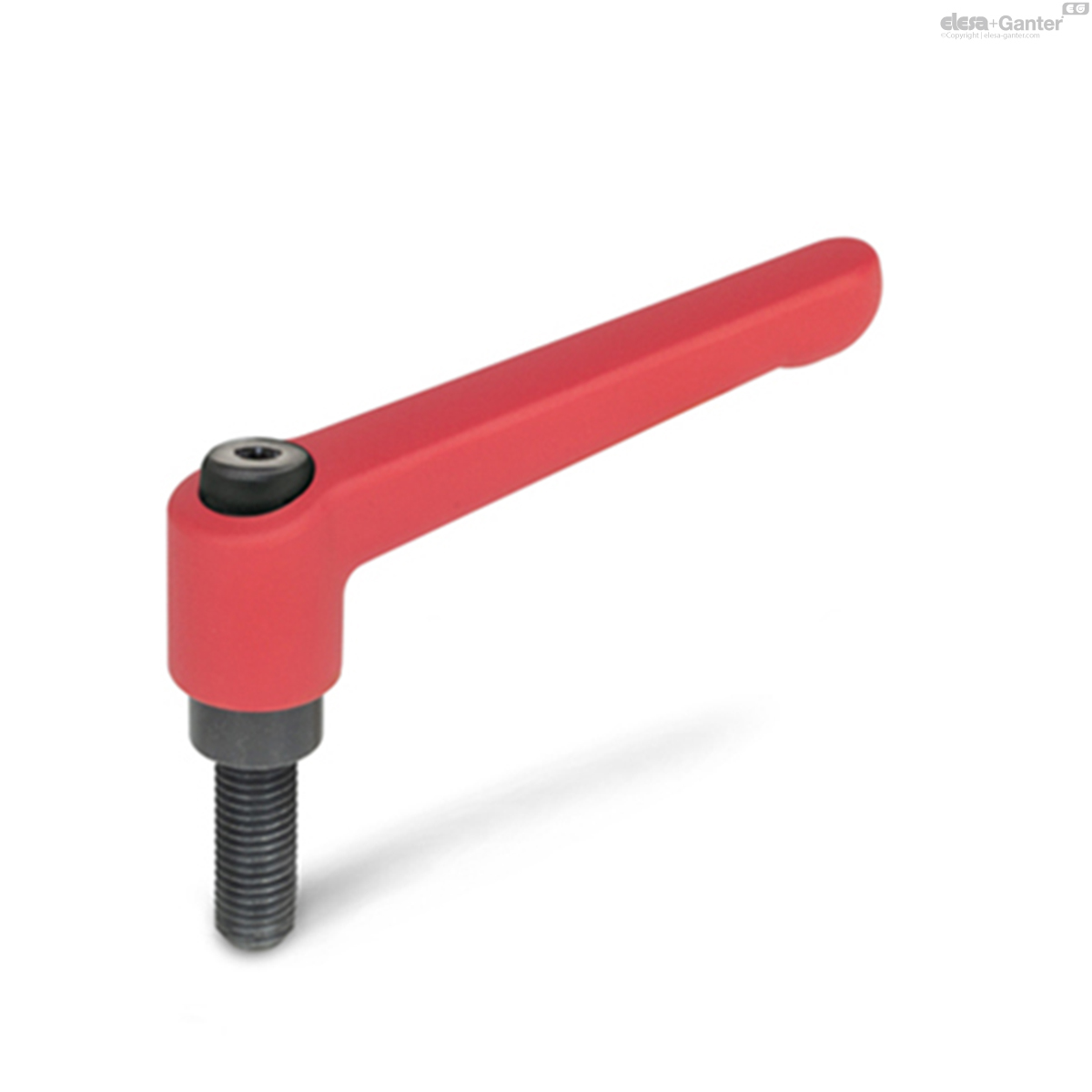

red, RAL 3000, textured finish RS

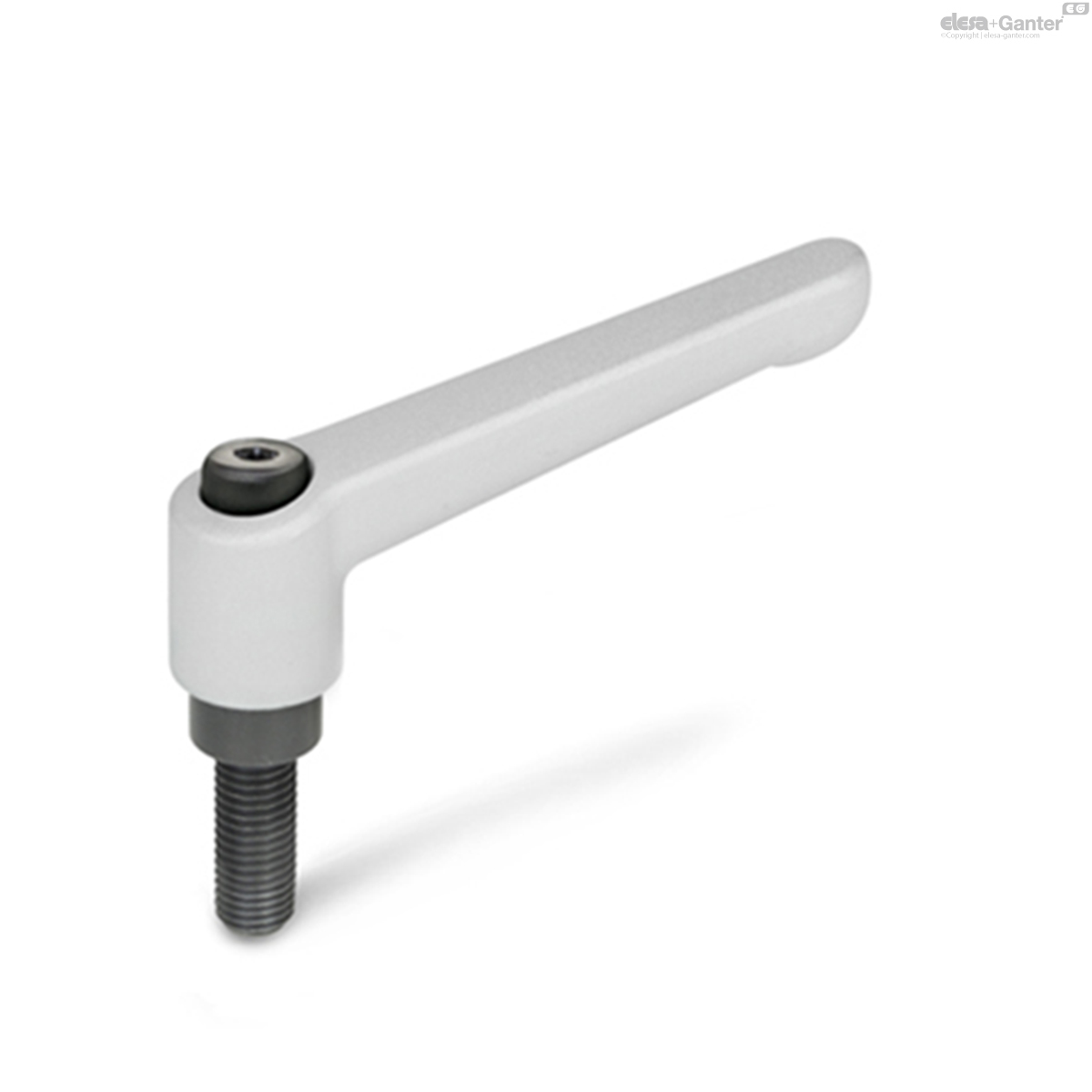

silver, RAL 9006, textured finish SR

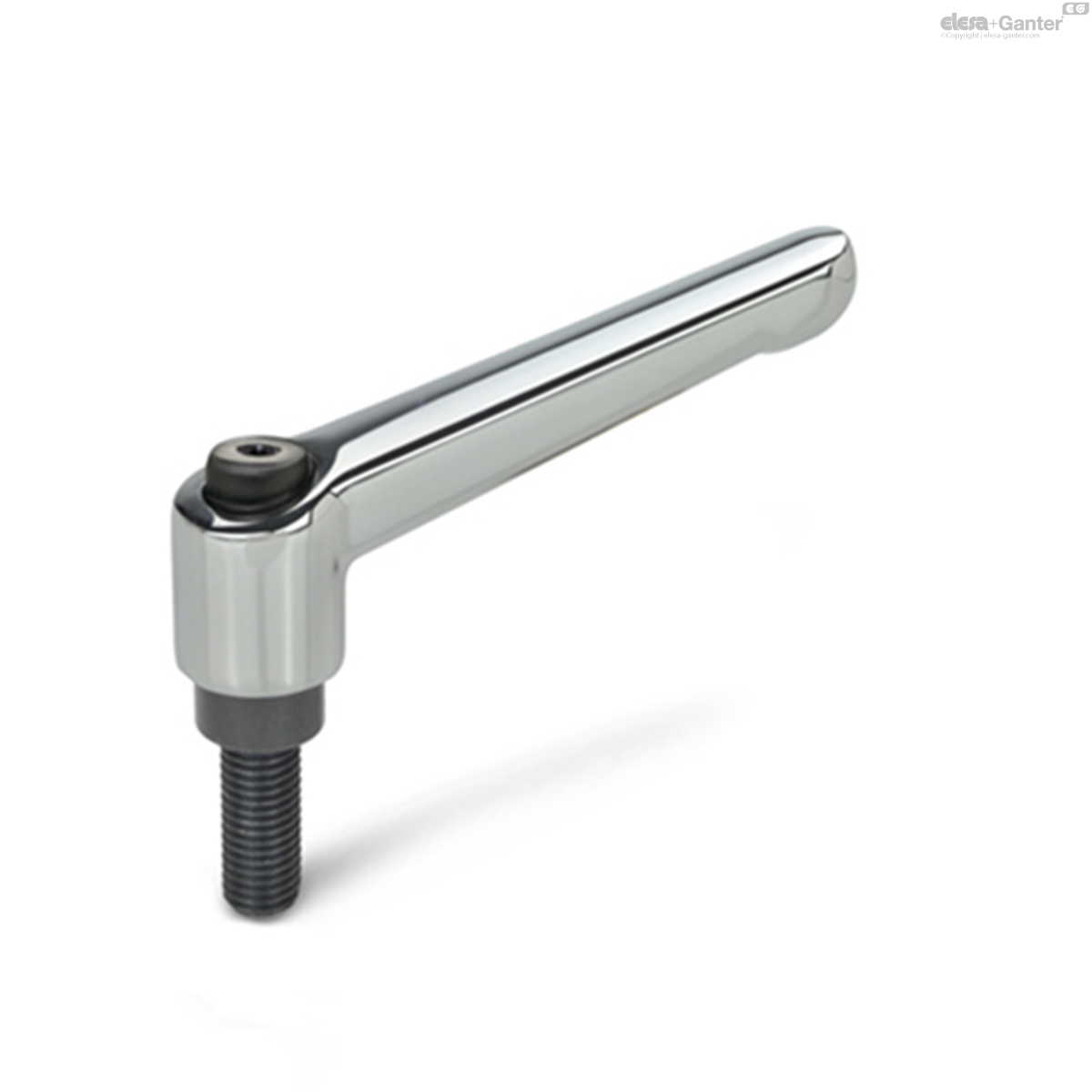

chrome-plated CR

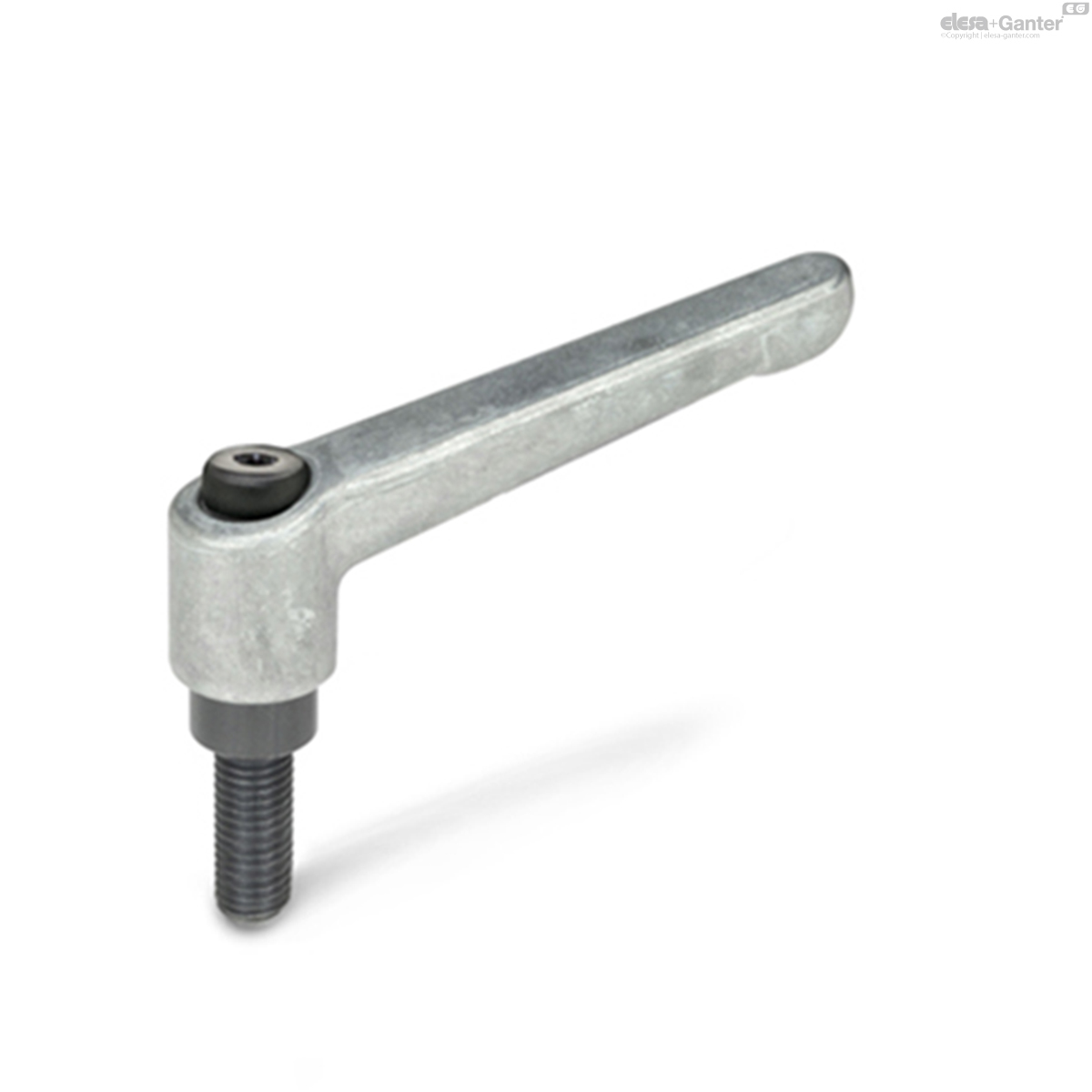

uncoated, slide grinded RH

Version with bushing

Threaded insert and retaining screw

Steel, blackened

Version with threaded stud

Threaded stud and retaining screw

Steel, blackened

Information

Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Technical information

ISO-Fundamental Tolerances
Strength values of screws

GN-300

	Color	l₁	d₁	l₂	d₃	d₄	h₁	h₂	h₃	h₄ Stroke
Code												Actions
GN 300-22-M3-6-CR	CR - Chrome plated	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-OS	OS - RAL 2004	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-RH	RH - Uncoated	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-RS	RS - RAL 3000	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-SR	SR - RAL 9006	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-SW	SW - RAL 9005	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-6-SZ	SZ - RAL 9011	22	M 3	6	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-CR	CR - Chrome plated	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-OS	OS - RAL 2004	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-RH	RH - Uncoated	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-RS	RS - RAL 3000	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-SR	SR - RAL 9006	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-SW	SW - RAL 9005	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-8-SZ	SZ - RAL 9011	22	M 3	8	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-CR	CR - Chrome plated	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-OS	OS - RAL 2004	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-RH	RH - Uncoated	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-RS	RS - RAL 3000	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-SR	SR - RAL 9006	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-SW	SW - RAL 9005	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-10-SZ	SZ - RAL 9011	22	M 3	10	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-CR	CR - Chrome plated	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-OS	OS - RAL 2004	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-RH	RH - Uncoated	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-RS	RS - RAL 3000	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-SR	SR - RAL 9006	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-SW	SW - RAL 9005	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-12-SZ	SZ - RAL 9011	22	M 3	12	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-CR	CR - Chrome plated	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-OS	OS - RAL 2004	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-RH	RH - Uncoated	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-RS	RS - RAL 3000	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-SR	SR - RAL 9006	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-SW	SW - RAL 9005	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M3-16-SZ	SZ - RAL 9011	22	M 3	16	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-CR	CR - Chrome plated	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-OS	OS - RAL 2004	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-RH	RH - Uncoated	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-RS	RS - RAL 3000	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-SR	SR - RAL 9006	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-SW	SW - RAL 9005	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-12-SZ	SZ - RAL 9011	22	M 4	12	8	10.5	18.5	2	23	3	14
GN 300-22-M4-16-CR	CR - Chrome plated	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-OS	OS - RAL 2004	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-RH	RH - Uncoated	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-RS	RS - RAL 3000	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-SR	SR - RAL 9006	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-SW	SW - RAL 9005	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-16-SZ	SZ - RAL 9011	22	M 4	16	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-CR	CR - Chrome plated	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-OS	OS - RAL 2004	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-RH	RH - Uncoated	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-RS	RS - RAL 3000	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-SR	SR - RAL 9006	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-SW	SW - RAL 9005	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-20-SZ	SZ - RAL 9011	22	M 4	20	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-CR	CR - Chrome plated	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-OS	OS - RAL 2004	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-RH	RH - Uncoated	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-RS	RS - RAL 3000	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-SR	SR - RAL 9006	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-SW	SW - RAL 9005	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-25-SZ	SZ - RAL 9011	22	M 4	25	8	10.5	18.5	2	23	3	15
GN 300-22-M4-32-CR	CR - Chrome plated	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-OS	OS - RAL 2004	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-RH	RH - Uncoated	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-RS	RS - RAL 3000	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-SR	SR - RAL 9006	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-SW	SW - RAL 9005	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M4-32-SZ	SZ - RAL 9011	22	M 4	32	8	10.5	18.5	2	23	3	16
GN 300-22-M5-12-CR	CR - Chrome plated	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-OS	OS - RAL 2004	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-RH	RH - Uncoated	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-RS	RS - RAL 3000	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-SR	SR - RAL 9006	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-SW	SW - RAL 9005	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-12-SZ	SZ - RAL 9011	22	M 5	12	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-CR	CR - Chrome plated	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-OS	OS - RAL 2004	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-RH	RH - Uncoated	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-RS	RS - RAL 3000	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-SR	SR - RAL 9006	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-SW	SW - RAL 9005	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-16-SZ	SZ - RAL 9011	22	M 5	16	8	10.5	18.5	2	23	3	15
GN 300-22-M5-20-CR	CR - Chrome plated	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-OS	OS - RAL 2004	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-RH	RH - Uncoated	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-RS	RS - RAL 3000	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-SR	SR - RAL 9006	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-SW	SW - RAL 9005	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-20-SZ	SZ - RAL 9011	22	M 5	20	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-CR	CR - Chrome plated	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-OS	OS - RAL 2004	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-RH	RH - Uncoated	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-RS	RS - RAL 3000	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-SR	SR - RAL 9006	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-SW	SW - RAL 9005	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-25-SZ	SZ - RAL 9011	22	M 5	25	8	10.5	18.5	2	23	3	16
GN 300-22-M5-32-CR	CR - Chrome plated	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-OS	OS - RAL 2004	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-RH	RH - Uncoated	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-RS	RS - RAL 3000	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-SR	SR - RAL 9006	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-SW	SW - RAL 9005	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-22-M5-32-SZ	SZ - RAL 9011	22	M 5	32	8	10.5	18.5	2	23	3	17
GN 300-30-M3-6-CR	CR - Chrome plated	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-OS	OS - RAL 2004	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-RH	RH - Uncoated	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-RS	RS - RAL 3000	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-SR	SR - RAL 9006	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-SW	SW - RAL 9005	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-6-SZ	SZ - RAL 9011	30	M 3	6	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-CR	CR - Chrome plated	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-OS	OS - RAL 2004	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-RH	RH - Uncoated	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-RS	RS - RAL 3000	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-SR	SR - RAL 9006	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-SW	SW - RAL 9005	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-8-SZ	SZ - RAL 9011	30	M 3	8	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-CR	CR - Chrome plated	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-OS	OS - RAL 2004	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-RH	RH - Uncoated	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-RS	RS - RAL 3000	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-SR	SR - RAL 9006	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-SW	SW - RAL 9005	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-10-SZ	SZ - RAL 9011	30	M 3	10	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-CR	CR - Chrome plated	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-OS	OS - RAL 2004	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-RH	RH - Uncoated	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-RS	RS - RAL 3000	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-SR	SR - RAL 9006	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-SW	SW - RAL 9005	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-12-SZ	SZ - RAL 9011	30	M 3	12	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-CR	CR - Chrome plated	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-OS	OS - RAL 2004	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-RH	RH - Uncoated	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-RS	RS - RAL 3000	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-SR	SR - RAL 9006	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-SW	SW - RAL 9005	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M3-16-SZ	SZ - RAL 9011	30	M 3	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-CR	CR - Chrome plated	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-OS	OS - RAL 2004	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-RH	RH - Uncoated	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-RS	RS - RAL 3000	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-SR	SR - RAL 9006	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-SW	SW - RAL 9005	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-12-SZ	SZ - RAL 9011	30	M 4	12	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-CR	CR - Chrome plated	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-OS	OS - RAL 2004	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-RH	RH - Uncoated	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-RS	RS - RAL 3000	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-SR	SR - RAL 9006	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-SW	SW - RAL 9005	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-16-SZ	SZ - RAL 9011	30	M 4	16	10	13	24.5	4	31	3.5	27
GN 300-30-M4-20-CR	CR - Chrome plated	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-OS	OS - RAL 2004	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-RH	RH - Uncoated	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-RS	RS - RAL 3000	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-SR	SR - RAL 9006	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-SW	SW - RAL 9005	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-20-SZ	SZ - RAL 9011	30	M 4	20	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-CR	CR - Chrome plated	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-OS	OS - RAL 2004	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-RH	RH - Uncoated	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-RS	RS - RAL 3000	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-SR	SR - RAL 9006	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-SW	SW - RAL 9005	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-25-SZ	SZ - RAL 9011	30	M 4	25	10	13	24.5	4	31	3.5	28
GN 300-30-M4-32-CR	CR - Chrome plated	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-OS	OS - RAL 2004	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-RH	RH - Uncoated	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-RS	RS - RAL 3000	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-SR	SR - RAL 9006	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-SW	SW - RAL 9005	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M4-32-SZ	SZ - RAL 9011	30	M 4	32	10	13	24.5	4	31	3.5	29
GN 300-30-M5-12-CR	CR - Chrome plated	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-OS	OS - RAL 2004	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-RH	RH - Uncoated	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-RS	RS - RAL 3000	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-SR	SR - RAL 9006	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-SW	SW - RAL 9005	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-12-SZ	SZ - RAL 9011	30	M 5	12	10	13	24.5	4	31	3.5	28
GN 300-30-M5-16-CR	CR - Chrome plated	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-OS	OS - RAL 2004	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-RH	RH - Uncoated	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-RS	RS - RAL 3000	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-SR	SR - RAL 9006	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-SW	SW - RAL 9005	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-16-SZ	SZ - RAL 9011	30	M 5	16	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-CR	CR - Chrome plated	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-OS	OS - RAL 2004	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-RH	RH - Uncoated	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-RS	RS - RAL 3000	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-SR	SR - RAL 9006	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-SW	SW - RAL 9005	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-20-SZ	SZ - RAL 9011	30	M 5	20	10	13	24.5	4	31	3.5	29
GN 300-30-M5-25-CR	CR - Chrome plated	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-OS	OS - RAL 2004	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-RH	RH - Uncoated	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-RS	RS - RAL 3000	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-SR	SR - RAL 9006	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-SW	SW - RAL 9005	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-25-SZ	SZ - RAL 9011	30	M 5	25	10	13	24.5	4	31	3.5	30
GN 300-30-M5-32-CR	CR - Chrome plated	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-OS	OS - RAL 2004	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-RH	RH - Uncoated	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-RS	RS - RAL 3000	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-SR	SR - RAL 9006	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-SW	SW - RAL 9005	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-32-SZ	SZ - RAL 9011	30	M 5	32	10	13	24.5	4	31	3.5	31
GN 300-30-M5-40-CR	CR - Chrome plated	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-OS	OS - RAL 2004	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-RH	RH - Uncoated	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-RS	RS - RAL 3000	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-SR	SR - RAL 9006	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-SW	SW - RAL 9005	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-40-SZ	SZ - RAL 9011	30	M 5	40	10	13	24.5	4	31	3.5	32
GN 300-30-M5-50-CR	CR - Chrome plated	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-OS	OS - RAL 2004	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-RH	RH - Uncoated	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-RS	RS - RAL 3000	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-SR	SR - RAL 9006	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-SW	SW - RAL 9005	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M5-50-SZ	SZ - RAL 9011	30	M 5	50	10	13	24.5	4	31	3.5	33
GN 300-30-M6-12-CR	CR - Chrome plated	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-OS	OS - RAL 2004	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-RH	RH - Uncoated	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-RS	RS - RAL 3000	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-SR	SR - RAL 9006	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-SW	SW - RAL 9005	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-12-SZ	SZ - RAL 9011	30	M 6	12	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-CR	CR - Chrome plated	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-OS	OS - RAL 2004	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-RH	RH - Uncoated	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-RS	RS - RAL 3000	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-SR	SR - RAL 9006	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-SW	SW - RAL 9005	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-16-SZ	SZ - RAL 9011	30	M 6	16	10	13	24.5	4	31	3.5	29
GN 300-30-M6-20-CR	CR - Chrome plated	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-OS	OS - RAL 2004	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-RH	RH - Uncoated	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-RS	RS - RAL 3000	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-SR	SR - RAL 9006	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-SW	SW - RAL 9005	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-20-SZ	SZ - RAL 9011	30	M 6	20	10	13	24.5	4	31	3.5	30
GN 300-30-M6-25-CR	CR - Chrome plated	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-OS	OS - RAL 2004	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-RH	RH - Uncoated	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-RS	RS - RAL 3000	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-SR	SR - RAL 9006	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-SW	SW - RAL 9005	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-25-SZ	SZ - RAL 9011	30	M 6	25	10	13	24.5	4	31	3.5	31
GN 300-30-M6-32-CR	CR - Chrome plated	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-OS	OS - RAL 2004	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-RH	RH - Uncoated	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-RS	RS - RAL 3000	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-SR	SR - RAL 9006	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-SW	SW - RAL 9005	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-32-SZ	SZ - RAL 9011	30	M 6	32	10	13	24.5	4	31	3.5	32
GN 300-30-M6-40-CR	CR - Chrome plated	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-OS	OS - RAL 2004	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-RH	RH - Uncoated	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-RS	RS - RAL 3000	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-SR	SR - RAL 9006	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-SW	SW - RAL 9005	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-40-SZ	SZ - RAL 9011	30	M 6	40	10	13	24.5	4	31	3.5	34
GN 300-30-M6-50-CR	CR - Chrome plated	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-OS	OS - RAL 2004	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-RH	RH - Uncoated	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-RS	RS - RAL 3000	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-SR	SR - RAL 9006	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-SW	SW - RAL 9005	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-30-M6-50-SZ	SZ - RAL 9011	30	M 6	50	10	13	24.5	4	31	3.5	35
GN 300-45-M4-12-CR	CR - Chrome plated	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-OS	OS - RAL 2004	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-RH	RH - Uncoated	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-RS	RS - RAL 3000	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-SR	SR - RAL 9006	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-SW	SW - RAL 9005	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-12-SZ	SZ - RAL 9011	45	M 4	12	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-CR	CR - Chrome plated	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-OS	OS - RAL 2004	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-RH	RH - Uncoated	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-RS	RS - RAL 3000	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-SR	SR - RAL 9006	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-SW	SW - RAL 9005	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-16-SZ	SZ - RAL 9011	45	M 4	16	10	13	24.5	4	34	3.5	35
GN 300-45-M4-20-CR	CR - Chrome plated	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-OS	OS - RAL 2004	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-RH	RH - Uncoated	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-RS	RS - RAL 3000	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-SR	SR - RAL 9006	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-SW	SW - RAL 9005	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-20-SZ	SZ - RAL 9011	45	M 4	20	10	13	24.5	4	34	3.5	36
GN 300-45-M4-25-CR	CR - Chrome plated	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-OS	OS - RAL 2004	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-RH	RH - Uncoated	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-RS	RS - RAL 3000	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-SR	SR - RAL 9006	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-SW	SW - RAL 9005	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-25-SZ	SZ - RAL 9011	45	M 4	25	10	13	24.5	4	34	3.5	37
GN 300-45-M4-32-CR	CR - Chrome plated	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-OS	OS - RAL 2004	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-RH	RH - Uncoated	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-RS	RS - RAL 3000	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-SR	SR - RAL 9006	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-SW	SW - RAL 9005	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M4-32-SZ	SZ - RAL 9011	45	M 4	32	10	13	24.5	4	34	3.5	38
GN 300-45-M5-12-CR	CR - Chrome plated	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-OS	OS - RAL 2004	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-RH	RH - Uncoated	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-RS	RS - RAL 3000	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-SR	SR - RAL 9006	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-SW	SW - RAL 9005	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-12-SZ	SZ - RAL 9011	45	M 5	12	10	13	24.5	4	34	3.5	36
GN 300-45-M5-16-CR	CR - Chrome plated	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-OS	OS - RAL 2004	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-RH	RH - Uncoated	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-RS	RS - RAL 3000	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-SR	SR - RAL 9006	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-SW	SW - RAL 9005	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-16-SZ	SZ - RAL 9011	45	M 5	16	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-CR	CR - Chrome plated	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-OS	OS - RAL 2004	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-RH	RH - Uncoated	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-RS	RS - RAL 3000	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-SR	SR - RAL 9006	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-SW	SW - RAL 9005	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-20-SZ	SZ - RAL 9011	45	M 5	20	10	13	24.5	4	34	3.5	37
GN 300-45-M5-25-CR	CR - Chrome plated	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-OS	OS - RAL 2004	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-RH	RH - Uncoated	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-RS	RS - RAL 3000	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-SR	SR - RAL 9006	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-SW	SW - RAL 9005	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-25-SZ	SZ - RAL 9011	45	M 5	25	10	13	24.5	4	34	3.5	38
GN 300-45-M5-32-CR	CR - Chrome plated	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-OS	OS - RAL 2004	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-RH	RH - Uncoated	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-RS	RS - RAL 3000	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-SR	SR - RAL 9006	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-SW	SW - RAL 9005	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-32-SZ	SZ - RAL 9011	45	M 5	32	10	13	24.5	4	34	3.5	39
GN 300-45-M5-40-CR	CR - Chrome plated	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-OS	OS - RAL 2004	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-RH	RH - Uncoated	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-RS	RS - RAL 3000	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-SR	SR - RAL 9006	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-SW	SW - RAL 9005	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-40-SZ	SZ - RAL 9011	45	M 5	40	10	13	24.5	4	34	3.5	40
GN 300-45-M5-50-CR	CR - Chrome plated	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-OS	OS - RAL 2004	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-RH	RH - Uncoated	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-RS	RS - RAL 3000	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-SR	SR - RAL 9006	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-SW	SW - RAL 9005	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M5-50-SZ	SZ - RAL 9011	45	M 5	50	10	13	24.5	4	34	3.5	41
GN 300-45-M6-12-CR	CR - Chrome plated	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-OS	OS - RAL 2004	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-RH	RH - Uncoated	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-RS	RS - RAL 3000	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-SR	SR - RAL 9006	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-SW	SW - RAL 9005	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-12-SZ	SZ - RAL 9011	45	M 6	12	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-CR	CR - Chrome plated	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-OS	OS - RAL 2004	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-RH	RH - Uncoated	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-RS	RS - RAL 3000	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-SR	SR - RAL 9006	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-SW	SW - RAL 9005	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-16-SZ	SZ - RAL 9011	45	M 6	16	10	13	24.5	4	34	3.5	37
GN 300-45-M6-20-CR	CR - Chrome plated	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-OS	OS - RAL 2004	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-RH	RH - Uncoated	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-RS	RS - RAL 3000	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-SR	SR - RAL 9006	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-SW	SW - RAL 9005	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-20-SZ	SZ - RAL 9011	45	M 6	20	10	13	24.5	4	34	3.5	38
GN 300-45-M6-25-CR	CR - Chrome plated	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-OS	OS - RAL 2004	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-RH	RH - Uncoated	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-RS	RS - RAL 3000	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-SR	SR - RAL 9006	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-SW	SW - RAL 9005	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-25-SZ	SZ - RAL 9011	45	M 6	25	10	13	24.5	4	34	3.5	39
GN 300-45-M6-32-CR	CR - Chrome plated	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-OS	OS - RAL 2004	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-RH	RH - Uncoated	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-RS	RS - RAL 3000	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-SR	SR - RAL 9006	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-SW	SW - RAL 9005	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-32-SZ	SZ - RAL 9011	45	M 6	32	10	13	24.5	4	34	3.5	40
GN 300-45-M6-40-CR	CR - Chrome plated	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-OS	OS - RAL 2004	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-RH	RH - Uncoated	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-RS	RS - RAL 3000	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-SR	SR - RAL 9006	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-SW	SW - RAL 9005	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-40-SZ	SZ - RAL 9011	45	M 6	40	10	13	24.5	4	34	3.5	42
GN 300-45-M6-50-CR	CR - Chrome plated	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-OS	OS - RAL 2004	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-RH	RH - Uncoated	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-RS	RS - RAL 3000	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-SR	SR - RAL 9006	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-SW	SW - RAL 9005	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-45-M6-50-SZ	SZ - RAL 9011	45	M 6	50	10	13	24.5	4	34	3.5	43
GN 300-63-M6-12-CR	CR - Chrome plated	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-OS	OS - RAL 2004	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-RH	RH - Uncoated	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-RS	RS - RAL 3000	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-SR	SR - RAL 9006	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-SW	SW - RAL 9005	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-12-SZ	SZ - RAL 9011	63	M 6	12	13.5	17.5	31	6.5	45	4	79
GN 300-63-M6-16-CR	CR - Chrome plated	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-OS	OS - RAL 2004	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-RH	RH - Uncoated	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-RS	RS - RAL 3000	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-SR	SR - RAL 9006	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-SW	SW - RAL 9005	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-16-SZ	SZ - RAL 9011	63	M 6	16	13.5	17.5	31	6.5	45	4	80
GN 300-63-M6-20-CR	CR - Chrome plated	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-OS	OS - RAL 2004	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-RH	RH - Uncoated	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-RS	RS - RAL 3000	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-SR	SR - RAL 9006	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-SW	SW - RAL 9005	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-20-SZ	SZ - RAL 9011	63	M 6	20	13.5	17.5	31	6.5	45	4	81
GN 300-63-M6-25-CR	CR - Chrome plated	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-OS	OS - RAL 2004	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-RH	RH - Uncoated	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-RS	RS - RAL 3000	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-SR	SR - RAL 9006	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-SW	SW - RAL 9005	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-25-SZ	SZ - RAL 9011	63	M 6	25	13.5	17.5	31	6.5	45	4	82
GN 300-63-M6-32-CR	CR - Chrome plated	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-OS	OS - RAL 2004	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-RH	RH - Uncoated	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-RS	RS - RAL 3000	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-SR	SR - RAL 9006	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-SW	SW - RAL 9005	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-32-SZ	SZ - RAL 9011	63	M 6	32	13.5	17.5	31	6.5	45	4	83
GN 300-63-M6-40-CR	CR - Chrome plated	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-OS	OS - RAL 2004	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-RH	RH - Uncoated	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-RS	RS - RAL 3000	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-SR	SR - RAL 9006	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-SW	SW - RAL 9005	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-40-SZ	SZ - RAL 9011	63	M 6	40	13.5	17.5	31	6.5	45	4	85
GN 300-63-M6-50-CR	CR - Chrome plated	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-OS	OS - RAL 2004	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-RH	RH - Uncoated	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-RS	RS - RAL 3000	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-SR	SR - RAL 9006	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-SW	SW - RAL 9005	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-50-SZ	SZ - RAL 9011	63	M 6	50	13.5	17.5	31	6.5	45	4	86
GN 300-63-M6-63-CR	CR - Chrome plated	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-OS	OS - RAL 2004	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-RH	RH - Uncoated	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-RS	RS - RAL 3000	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-SR	SR - RAL 9006	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-SW	SW - RAL 9005	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M6-63-SZ	SZ - RAL 9011	63	M 6	63	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-12-CR	CR - Chrome plated	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-OS	OS - RAL 2004	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-RH	RH - Uncoated	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-RS	RS - RAL 3000	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-SR	SR - RAL 9006	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-SW	SW - RAL 9005	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-12-SZ	SZ - RAL 9011	63	M 8	12	13.5	17.5	31	6.5	45	4	82
GN 300-63-M8-16-CR	CR - Chrome plated	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-OS	OS - RAL 2004	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-RH	RH - Uncoated	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-RS	RS - RAL 3000	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-SR	SR - RAL 9006	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-SW	SW - RAL 9005	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-16-SZ	SZ - RAL 9011	63	M 8	16	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-CR	CR - Chrome plated	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-OS	OS - RAL 2004	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-RH	RH - Uncoated	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-RS	RS - RAL 3000	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-SR	SR - RAL 9006	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-SW	SW - RAL 9005	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-20-SZ	SZ - RAL 9011	63	M 8	20	13.5	17.5	31	6.5	45	4	84
GN 300-63-M8-25-CR	CR - Chrome plated	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-OS	OS - RAL 2004	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-RH	RH - Uncoated	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-RS	RS - RAL 3000	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-SR	SR - RAL 9006	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-SW	SW - RAL 9005	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-25-SZ	SZ - RAL 9011	63	M 8	25	13.5	17.5	31	6.5	45	4	86
GN 300-63-M8-32-CR	CR - Chrome plated	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-OS	OS - RAL 2004	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-RH	RH - Uncoated	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-RS	RS - RAL 3000	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-SR	SR - RAL 9006	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-SW	SW - RAL 9005	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-32-SZ	SZ - RAL 9011	63	M 8	32	13.5	17.5	31	6.5	45	4	88
GN 300-63-M8-40-CR	CR - Chrome plated	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-OS	OS - RAL 2004	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-RH	RH - Uncoated	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-RS	RS - RAL 3000	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-SR	SR - RAL 9006	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-SW	SW - RAL 9005	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-40-SZ	SZ - RAL 9011	63	M 8	40	13.5	17.5	31	6.5	45	4	90
GN 300-63-M8-50-CR	CR - Chrome plated	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-OS	OS - RAL 2004	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-RH	RH - Uncoated	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-RS	RS - RAL 3000	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-SR	SR - RAL 9006	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-SW	SW - RAL 9005	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-50-SZ	SZ - RAL 9011	63	M 8	50	13.5	17.5	31	6.5	45	4	93
GN 300-63-M8-63-CR	CR - Chrome plated	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-OS	OS - RAL 2004	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-RH	RH - Uncoated	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-RS	RS - RAL 3000	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-SR	SR - RAL 9006	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-SW	SW - RAL 9005	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M8-63-SZ	SZ - RAL 9011	63	M 8	63	13.5	17.5	31	6.5	45	4	97
GN 300-63-M10-20-CR	CR - Chrome plated	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-OS	OS - RAL 2004	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-RH	RH - Uncoated	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-RS	RS - RAL 3000	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-SR	SR - RAL 9006	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-SW	SW - RAL 9005	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-20-SZ	SZ - RAL 9011	63	M 10	20	13.5	17.5	31	6.5	45	4	87
GN 300-63-M10-25-CR	CR - Chrome plated	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-OS	OS - RAL 2004	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-RH	RH - Uncoated	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-RS	RS - RAL 3000	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-SR	SR - RAL 9006	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-SW	SW - RAL 9005	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-25-SZ	SZ - RAL 9011	63	M 10	25	13.5	17.5	31	6.5	45	4	90
GN 300-63-M10-32-CR	CR - Chrome plated	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-OS	OS - RAL 2004	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-RH	RH - Uncoated	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-RS	RS - RAL 3000	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-SR	SR - RAL 9006	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-SW	SW - RAL 9005	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-32-SZ	SZ - RAL 9011	63	M 10	32	13.5	17.5	31	6.5	45	4	94
GN 300-63-M10-40-CR	CR - Chrome plated	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-OS	OS - RAL 2004	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-RH	RH - Uncoated	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-RS	RS - RAL 3000	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-SR	SR - RAL 9006	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-SW	SW - RAL 9005	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-40-SZ	SZ - RAL 9011	63	M 10	40	13.5	17.5	31	6.5	45	4	96
GN 300-63-M10-50-CR	CR - Chrome plated	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-OS	OS - RAL 2004	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-RH	RH - Uncoated	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-RS	RS - RAL 3000	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-SR	SR - RAL 9006	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-SW	SW - RAL 9005	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-50-SZ	SZ - RAL 9011	63	M 10	50	13.5	17.5	31	6.5	45	4	101
GN 300-63-M10-63-CR	CR - Chrome plated	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-OS	OS - RAL 2004	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-RH	RH - Uncoated	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-RS	RS - RAL 3000	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-SR	SR - RAL 9006	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-SW	SW - RAL 9005	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-63-SZ	SZ - RAL 9011	63	M 10	63	13.5	17.5	31	6.5	45	4	108
GN 300-63-M10-80-CR	CR - Chrome plated	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-OS	OS - RAL 2004	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-RH	RH - Uncoated	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-RS	RS - RAL 3000	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-SR	SR - RAL 9006	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-SW	SW - RAL 9005	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-63-M10-80-SZ	SZ - RAL 9011	63	M 10	80	13.5	17.5	31	6.5	45	4	128
GN 300-78-M8-16-CR	CR - Chrome plated	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-OS	OS - RAL 2004	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-RH	RH - Uncoated	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-RS	RS - RAL 3000	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-SR	SR - RAL 9006	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-SW	SW - RAL 9005	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-16-SZ	SZ - RAL 9011	78	M 8	16	16	21	36	8	54	4	131
GN 300-78-M8-20-CR	CR - Chrome plated	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-OS	OS - RAL 2004	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-RH	RH - Uncoated	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-RS	RS - RAL 3000	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-SR	SR - RAL 9006	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-SW	SW - RAL 9005	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-20-SZ	SZ - RAL 9011	78	M 8	20	16	21	36	8	54	4	132
GN 300-78-M8-25-CR	CR - Chrome plated	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-OS	OS - RAL 2004	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-RH	RH - Uncoated	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-RS	RS - RAL 3000	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-SR	SR - RAL 9006	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-SW	SW - RAL 9005	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-25-SZ	SZ - RAL 9011	78	M 8	25	16	21	36	8	54	4	133
GN 300-78-M8-32-CR	CR - Chrome plated	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-OS	OS - RAL 2004	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-RH	RH - Uncoated	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-RS	RS - RAL 3000	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-SR	SR - RAL 9006	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-SW	SW - RAL 9005	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-32-SZ	SZ - RAL 9011	78	M 8	32	16	21	36	8	54	4	136
GN 300-78-M8-40-CR	CR - Chrome plated	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-OS	OS - RAL 2004	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-RH	RH - Uncoated	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-RS	RS - RAL 3000	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-SR	SR - RAL 9006	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-SW	SW - RAL 9005	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-40-SZ	SZ - RAL 9011	78	M 8	40	16	21	36	8	54	4	140
GN 300-78-M8-50-CR	CR - Chrome plated	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-OS	OS - RAL 2004	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-RH	RH - Uncoated	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-RS	RS - RAL 3000	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-SR	SR - RAL 9006	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-SW	SW - RAL 9005	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-50-SZ	SZ - RAL 9011	78	M 8	50	16	21	36	8	54	4	143
GN 300-78-M8-63-CR	CR - Chrome plated	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-OS	OS - RAL 2004	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-RH	RH - Uncoated	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-RS	RS - RAL 3000	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-SR	SR - RAL 9006	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-SW	SW - RAL 9005	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-63-SZ	SZ - RAL 9011	78	M 8	63	16	21	36	8	54	4	147
GN 300-78-M8-80-CR	CR - Chrome plated	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-OS	OS - RAL 2004	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-RH	RH - Uncoated	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-RS	RS - RAL 3000	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-SR	SR - RAL 9006	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-SW	SW - RAL 9005	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M8-80-SZ	SZ - RAL 9011	78	M 8	80	16	21	36	8	54	4	152
GN 300-78-M10-16-CR	CR - Chrome plated	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-OS	OS - RAL 2004	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-RH	RH - Uncoated	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-RS	RS - RAL 3000	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-SR	SR - RAL 9006	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-SW	SW - RAL 9005	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-16-SZ	SZ - RAL 9011	78	M 10	16	16	21	36	8	54	4	135
GN 300-78-M10-20-CR	CR - Chrome plated	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-OS	OS - RAL 2004	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-RH	RH - Uncoated	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-RS	RS - RAL 3000	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-SR	SR - RAL 9006	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-SW	SW - RAL 9005	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-20-SZ	SZ - RAL 9011	78	M 10	20	16	21	36	8	54	4	137
GN 300-78-M10-25-CR	CR - Chrome plated	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-OS	OS - RAL 2004	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-RH	RH - Uncoated	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-RS	RS - RAL 3000	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-SR	SR - RAL 9006	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-SW	SW - RAL 9005	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-25-SZ	SZ - RAL 9011	78	M 10	25	16	21	36	8	54	4	139
GN 300-78-M10-32-CR	CR - Chrome plated	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-OS	OS - RAL 2004	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-RH	RH - Uncoated	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-RS	RS - RAL 3000	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-SR	SR - RAL 9006	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-SW	SW - RAL 9005	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-32-SZ	SZ - RAL 9011	78	M 10	32	16	21	36	8	54	4	142
GN 300-78-M10-40-CR	CR - Chrome plated	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-OS	OS - RAL 2004	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-RH	RH - Uncoated	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-RS	RS - RAL 3000	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-SR	SR - RAL 9006	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-SW	SW - RAL 9005	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-40-SZ	SZ - RAL 9011	78	M 10	40	16	21	36	8	54	4	146
GN 300-78-M10-50-CR	CR - Chrome plated	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-OS	OS - RAL 2004	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-RH	RH - Uncoated	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-RS	RS - RAL 3000	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-SR	SR - RAL 9006	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-SW	SW - RAL 9005	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-50-SZ	SZ - RAL 9011	78	M 10	50	16	21	36	8	54	4	151
GN 300-78-M10-63-CR	CR - Chrome plated	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-OS	OS - RAL 2004	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-RH	RH - Uncoated	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-RS	RS - RAL 3000	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-SR	SR - RAL 9006	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-SW	SW - RAL 9005	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-63-SZ	SZ - RAL 9011	78	M 10	63	16	21	36	8	54	4	157
GN 300-78-M10-80-CR	CR - Chrome plated	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-OS	OS - RAL 2004	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-RH	RH - Uncoated	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-RS	RS - RAL 3000	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-SR	SR - RAL 9006	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-SW	SW - RAL 9005	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M10-80-SZ	SZ - RAL 9011	78	M 10	80	16	21	36	8	54	4	166
GN 300-78-M12-20-CR	CR - Chrome plated	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-OS	OS - RAL 2004	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-RH	RH - Uncoated	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-RS	RS - RAL 3000	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-SR	SR - RAL 9006	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-SW	SW - RAL 9005	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-20-SZ	SZ - RAL 9011	78	M 12	20	16	21	36	8	54	4	141
GN 300-78-M12-25-CR	CR - Chrome plated	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-OS	OS - RAL 2004	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-RH	RH - Uncoated	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-RS	RS - RAL 3000	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-SR	SR - RAL 9006	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-SW	SW - RAL 9005	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-25-SZ	SZ - RAL 9011	78	M 12	25	16	21	36	8	54	4	145
GN 300-78-M12-32-CR	CR - Chrome plated	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-OS	OS - RAL 2004	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-RH	RH - Uncoated	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-RS	RS - RAL 3000	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-SR	SR - RAL 9006	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-SW	SW - RAL 9005	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-32-SZ	SZ - RAL 9011	78	M 12	32	16	21	36	8	54	4	150
GN 300-78-M12-40-CR	CR - Chrome plated	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-OS	OS - RAL 2004	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-RH	RH - Uncoated	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-RS	RS - RAL 3000	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-SR	SR - RAL 9006	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-SW	SW - RAL 9005	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-40-SZ	SZ - RAL 9011	78	M 12	40	16	21	36	8	54	4	156
GN 300-78-M12-50-CR	CR - Chrome plated	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-OS	OS - RAL 2004	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-RH	RH - Uncoated	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-RS	RS - RAL 3000	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-SR	SR - RAL 9006	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-SW	SW - RAL 9005	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-50-SZ	SZ - RAL 9011	78	M 12	50	16	21	36	8	54	4	163
GN 300-78-M12-63-CR	CR - Chrome plated	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-OS	OS - RAL 2004	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-RH	RH - Uncoated	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-RS	RS - RAL 3000	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-SR	SR - RAL 9006	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-SW	SW - RAL 9005	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-63-SZ	SZ - RAL 9011	78	M 12	63	16	21	36	8	54	4	171
GN 300-78-M12-80-CR	CR - Chrome plated	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-OS	OS - RAL 2004	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-RH	RH - Uncoated	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-RS	RS - RAL 3000	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-SR	SR - RAL 9006	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-SW	SW - RAL 9005	78	M 12	80	16	21	36	8	54	4	183
GN 300-78-M12-80-SZ	SZ - RAL 9011	78	M 12	80	16	21	36	8	54	4	183
GN 300-92-M10-16-CR	CR - Chrome plated	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-OS	OS - RAL 2004	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-RH	RH - Uncoated	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-RS	RS - RAL 3000	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-SR	SR - RAL 9006	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-SW	SW - RAL 9005	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-16-SZ	SZ - RAL 9011	92	M 10	16	19	24	43	11	64	4	193
GN 300-92-M10-20-CR	CR - Chrome plated	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-OS	OS - RAL 2004	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-RH	RH - Uncoated	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-RS	RS - RAL 3000	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-SR	SR - RAL 9006	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-SW	SW - RAL 9005	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-20-SZ	SZ - RAL 9011	92	M 10	20	19	24	43	11	64	4	196
GN 300-92-M10-25-CR	CR - Chrome plated	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-OS	OS - RAL 2004	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-RH	RH - Uncoated	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-RS	RS - RAL 3000	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-SR	SR - RAL 9006	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-SW	SW - RAL 9005	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-25-SZ	SZ - RAL 9011	92	M 10	25	19	24	43	11	64	4	199
GN 300-92-M10-32-CR	CR - Chrome plated	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-OS	OS - RAL 2004	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-RH	RH - Uncoated	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-RS	RS - RAL 3000	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-SR	SR - RAL 9006	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-SW	SW - RAL 9005	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-32-SZ	SZ - RAL 9011	92	M 10	32	19	24	43	11	64	4	203
GN 300-92-M10-40-CR	CR - Chrome plated	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-OS	OS - RAL 2004	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-RH	RH - Uncoated	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-RS	RS - RAL 3000	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-SR	SR - RAL 9006	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-SW	SW - RAL 9005	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-40-SZ	SZ - RAL 9011	92	M 10	40	19	24	43	11	64	4	207
GN 300-92-M10-50-CR	CR - Chrome plated	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-OS	OS - RAL 2004	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-RH	RH - Uncoated	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-RS	RS - RAL 3000	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-SR	SR - RAL 9006	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-SW	SW - RAL 9005	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-50-SZ	SZ - RAL 9011	92	M 10	50	19	24	43	11	64	4	213
GN 300-92-M10-63-CR	CR - Chrome plated	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-OS	OS - RAL 2004	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-RH	RH - Uncoated	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-RS	RS - RAL 3000	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-SR	SR - RAL 9006	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-SW	SW - RAL 9005	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-63-SZ	SZ - RAL 9011	92	M 10	63	19	24	43	11	64	4	218
GN 300-92-M10-80-CR	CR - Chrome plated	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-OS	OS - RAL 2004	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-RH	RH - Uncoated	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-RS	RS - RAL 3000	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-SR	SR - RAL 9006	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-SW	SW - RAL 9005	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M10-80-SZ	SZ - RAL 9011	92	M 10	80	19	24	43	11	64	4	229
GN 300-92-M12-16-CR	CR - Chrome plated	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-OS	OS - RAL 2004	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-RH	RH - Uncoated	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-RS	RS - RAL 3000	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-SR	SR - RAL 9006	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-SW	SW - RAL 9005	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-16-SZ	SZ - RAL 9011	92	M 12	16	19	24	43	11	64	4	200
GN 300-92-M12-20-CR	CR - Chrome plated	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-OS	OS - RAL 2004	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-RH	RH - Uncoated	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-RS	RS - RAL 3000	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-SR	SR - RAL 9006	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-SW	SW - RAL 9005	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-20-SZ	SZ - RAL 9011	92	M 12	20	19	24	43	11	64	4	201
GN 300-92-M12-25-CR	CR - Chrome plated	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-OS	OS - RAL 2004	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-RH	RH - Uncoated	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-RS	RS - RAL 3000	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-SR	SR - RAL 9006	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-SW	SW - RAL 9005	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-25-SZ	SZ - RAL 9011	92	M 12	25	19	24	43	11	64	4	206
GN 300-92-M12-32-CR	CR - Chrome plated	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-OS	OS - RAL 2004	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-RH	RH - Uncoated	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-RS	RS - RAL 3000	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-SR	SR - RAL 9006	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-SW	SW - RAL 9005	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-32-SZ	SZ - RAL 9011	92	M 12	32	19	24	43	11	64	4	210
GN 300-92-M12-40-CR	CR - Chrome plated	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-OS	OS - RAL 2004	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-RH	RH - Uncoated	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-RS	RS - RAL 3000	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-SR	SR - RAL 9006	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-SW	SW - RAL 9005	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-40-SZ	SZ - RAL 9011	92	M 12	40	19	24	43	11	64	4	215
GN 300-92-M12-50-CR	CR - Chrome plated	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-OS	OS - RAL 2004	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-RH	RH - Uncoated	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-RS	RS - RAL 3000	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-SR	SR - RAL 9006	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-SW	SW - RAL 9005	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-50-SZ	SZ - RAL 9011	92	M 12	50	19	24	43	11	64	4	223
GN 300-92-M12-63-CR	CR - Chrome plated	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-OS	OS - RAL 2004	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-RH	RH - Uncoated	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-RS	RS - RAL 3000	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-SR	SR - RAL 9006	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-SW	SW - RAL 9005	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-63-SZ	SZ - RAL 9011	92	M 12	63	19	24	43	11	64	4	232
GN 300-92-M12-80-CR	CR - Chrome plated	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-OS	OS - RAL 2004	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-RH	RH - Uncoated	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-RS	RS - RAL 3000	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-SR	SR - RAL 9006	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-SW	SW - RAL 9005	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M12-80-SZ	SZ - RAL 9011	92	M 12	80	19	24	43	11	64	4	243
GN 300-92-M16-25-CR	CR - Chrome plated	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-OS	OS - RAL 2004	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-RH	RH - Uncoated	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-RS	RS - RAL 3000	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-SR	SR - RAL 9006	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-SW	SW - RAL 9005	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-25-SZ	SZ - RAL 9011	92	M 16	25	19	24	43	11	64	4	220
GN 300-92-M16-32-CR	CR - Chrome plated	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-OS	OS - RAL 2004	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-RH	RH - Uncoated	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-RS	RS - RAL 3000	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-SR	SR - RAL 9006	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-SW	SW - RAL 9005	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-32-SZ	SZ - RAL 9011	92	M 16	32	19	24	43	11	64	4	228
GN 300-92-M16-40-CR	CR - Chrome plated	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-OS	OS - RAL 2004	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-RH	RH - Uncoated	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-RS	RS - RAL 3000	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-SR	SR - RAL 9006	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-SW	SW - RAL 9005	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-40-SZ	SZ - RAL 9011	92	M 16	40	19	24	43	11	64	4	239
GN 300-92-M16-50-CR	CR - Chrome plated	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-OS	OS - RAL 2004	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-RH	RH - Uncoated	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-RS	RS - RAL 3000	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-SR	SR - RAL 9006	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-SW	SW - RAL 9005	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-50-SZ	SZ - RAL 9011	92	M 16	50	19	24	43	11	64	4	253
GN 300-92-M16-63-CR	CR - Chrome plated	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-OS	OS - RAL 2004	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-RH	RH - Uncoated	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-RS	RS - RAL 3000	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-SR	SR - RAL 9006	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-SW	SW - RAL 9005	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-63-SZ	SZ - RAL 9011	92	M 16	63	19	24	43	11	64	4	260
GN 300-92-M16-80-CR	CR - Chrome plated	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-OS	OS - RAL 2004	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-RH	RH - Uncoated	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-RS	RS - RAL 3000	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-SR	SR - RAL 9006	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-SW	SW - RAL 9005	92	M 16	80	19	24	43	11	64	4	287
GN 300-92-M16-80-SZ	SZ - RAL 9011	92	M 16	80	19	24	43	11	64	4	287
GN 300-108-M12-25-CR	CR - Chrome plated	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-OS	OS - RAL 2004	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-RH	RH - Uncoated	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-RS	RS - RAL 3000	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-SR	SR - RAL 9006	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-SW	SW - RAL 9005	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-25-SZ	SZ - RAL 9011	108	M 12	25	23	30	50.5	12	75	5	338
GN 300-108-M12-32-CR	CR - Chrome plated	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-OS	OS - RAL 2004	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-RH	RH - Uncoated	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-RS	RS - RAL 3000	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-SR	SR - RAL 9006	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-SW	SW - RAL 9005	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-32-SZ	SZ - RAL 9011	108	M 12	32	23	30	50.5	12	75	5	343
GN 300-108-M12-40-CR	CR - Chrome plated	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-OS	OS - RAL 2004	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-RH	RH - Uncoated	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-RS	RS - RAL 3000	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-SR	SR - RAL 9006	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-SW	SW - RAL 9005	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-40-SZ	SZ - RAL 9011	108	M 12	40	23	30	50.5	12	75	5	349
GN 300-108-M12-50-CR	CR - Chrome plated	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-OS	OS - RAL 2004	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-RH	RH - Uncoated	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-RS	RS - RAL 3000	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-SR	SR - RAL 9006	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-SW	SW - RAL 9005	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-50-SZ	SZ - RAL 9011	108	M 12	50	23	30	50.5	12	75	5	356
GN 300-108-M12-63-CR	CR - Chrome plated	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-OS	OS - RAL 2004	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-RH	RH - Uncoated	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-RS	RS - RAL 3000	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-SR	SR - RAL 9006	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-SW	SW - RAL 9005	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-63-SZ	SZ - RAL 9011	108	M 12	63	23	30	50.5	12	75	5	364
GN 300-108-M12-80-CR	CR - Chrome plated	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-OS	OS - RAL 2004	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-RH	RH - Uncoated	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-RS	RS - RAL 3000	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-SR	SR - RAL 9006	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-SW	SW - RAL 9005	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-80-SZ	SZ - RAL 9011	108	M 12	80	23	30	50.5	12	75	5	376
GN 300-108-M12-120-CR	CR - Chrome plated	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-OS	OS - RAL 2004	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-RH	RH - Uncoated	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-RS	RS - RAL 3000	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-SR	SR - RAL 9006	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-SW	SW - RAL 9005	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M12-120-SZ	SZ - RAL 9011	108	M 12	120	23	30	50.5	12	75	5	403
GN 300-108-M16-25-CR	CR - Chrome plated	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-OS	OS - RAL 2004	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-RH	RH - Uncoated	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-RS	RS - RAL 3000	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-SR	SR - RAL 9006	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-SW	SW - RAL 9005	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-25-SZ	SZ - RAL 9011	108	M 16	25	23	30	50.5	12	75	5	350
GN 300-108-M16-32-CR	CR - Chrome plated	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-OS	OS - RAL 2004	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-RH	RH - Uncoated	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-RS	RS - RAL 3000	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-SR	SR - RAL 9006	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-SW	SW - RAL 9005	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-32-SZ	SZ - RAL 9011	108	M 16	32	23	30	50.5	12	75	5	358
GN 300-108-M16-40-CR	CR - Chrome plated	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-OS	OS - RAL 2004	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-RH	RH - Uncoated	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-RS	RS - RAL 3000	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-SR	SR - RAL 9006	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-SW	SW - RAL 9005	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-40-SZ	SZ - RAL 9011	108	M 16	40	23	30	50.5	12	75	5	369
GN 300-108-M16-50-CR	CR - Chrome plated	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-OS	OS - RAL 2004	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-RH	RH - Uncoated	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-RS	RS - RAL 3000	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-SR	SR - RAL 9006	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-SW	SW - RAL 9005	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-50-SZ	SZ - RAL 9011	108	M 16	50	23	30	50.5	12	75	5	381
GN 300-108-M16-63-CR	CR - Chrome plated	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-OS	OS - RAL 2004	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-RH	RH - Uncoated	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-RS	RS - RAL 3000	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-SR	SR - RAL 9006	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-SW	SW - RAL 9005	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-63-SZ	SZ - RAL 9011	108	M 16	63	23	30	50.5	12	75	5	400
GN 300-108-M16-80-CR	CR - Chrome plated	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-OS	OS - RAL 2004	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-RH	RH - Uncoated	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-RS	RS - RAL 3000	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-SR	SR - RAL 9006	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-SW	SW - RAL 9005	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-80-SZ	SZ - RAL 9011	108	M 16	80	23	30	50.5	12	75	5	422
GN 300-108-M16-120-CR	CR - Chrome plated	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-OS	OS - RAL 2004	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-RH	RH - Uncoated	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-RS	RS - RAL 3000	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-SR	SR - RAL 9006	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-SW	SW - RAL 9005	108	M 16	120	23	30	50.5	12	75	5	484
GN 300-108-M16-120-SZ	SZ - RAL 9011	108	M 16	120	23	30	50.5	12	75	5	484

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
