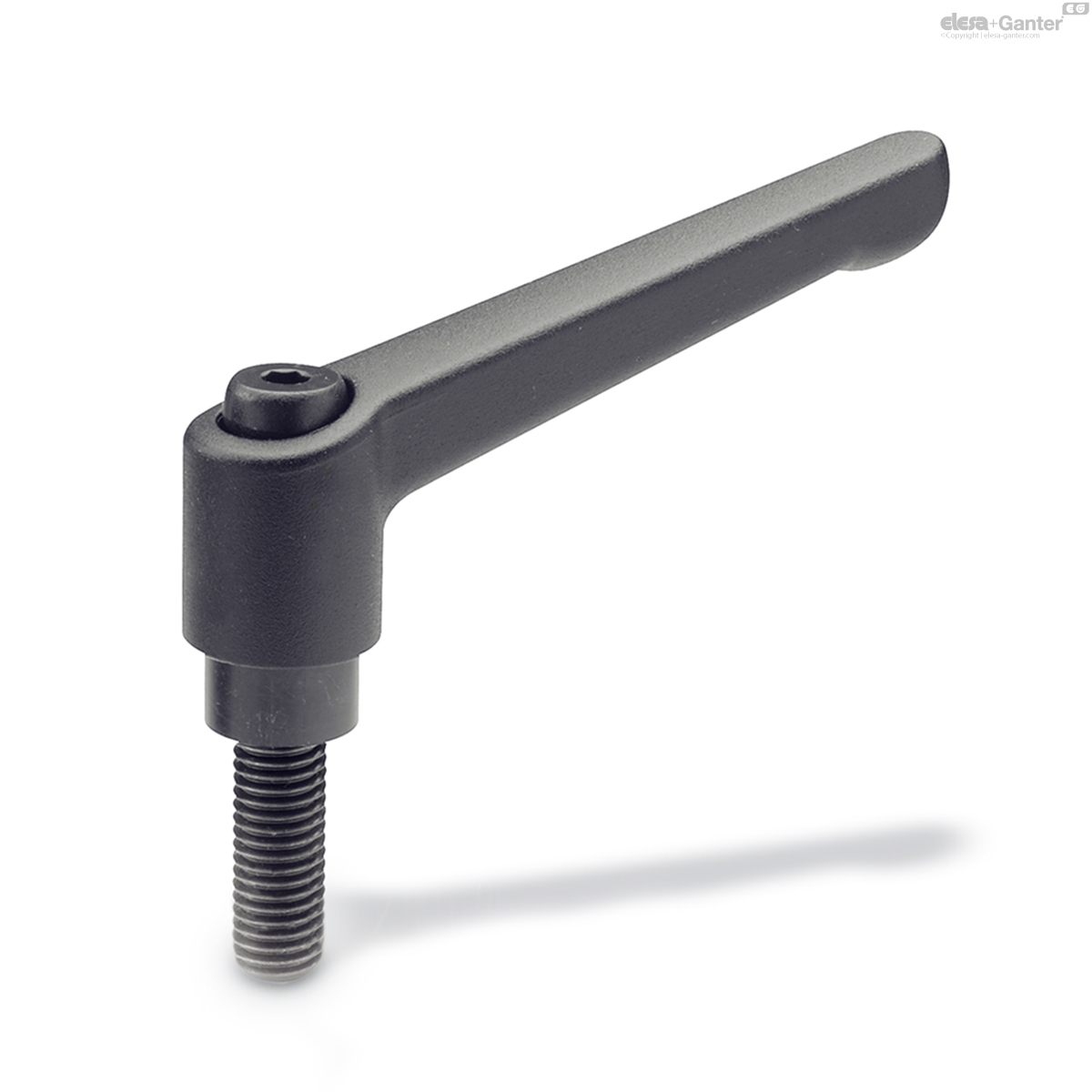

GN 300
Adjustable hand levers
Zinc die casting, Bushing / Threaded bolt Steel, blackened
Description
Specification
Handle
Zinc die casting
plastic coated

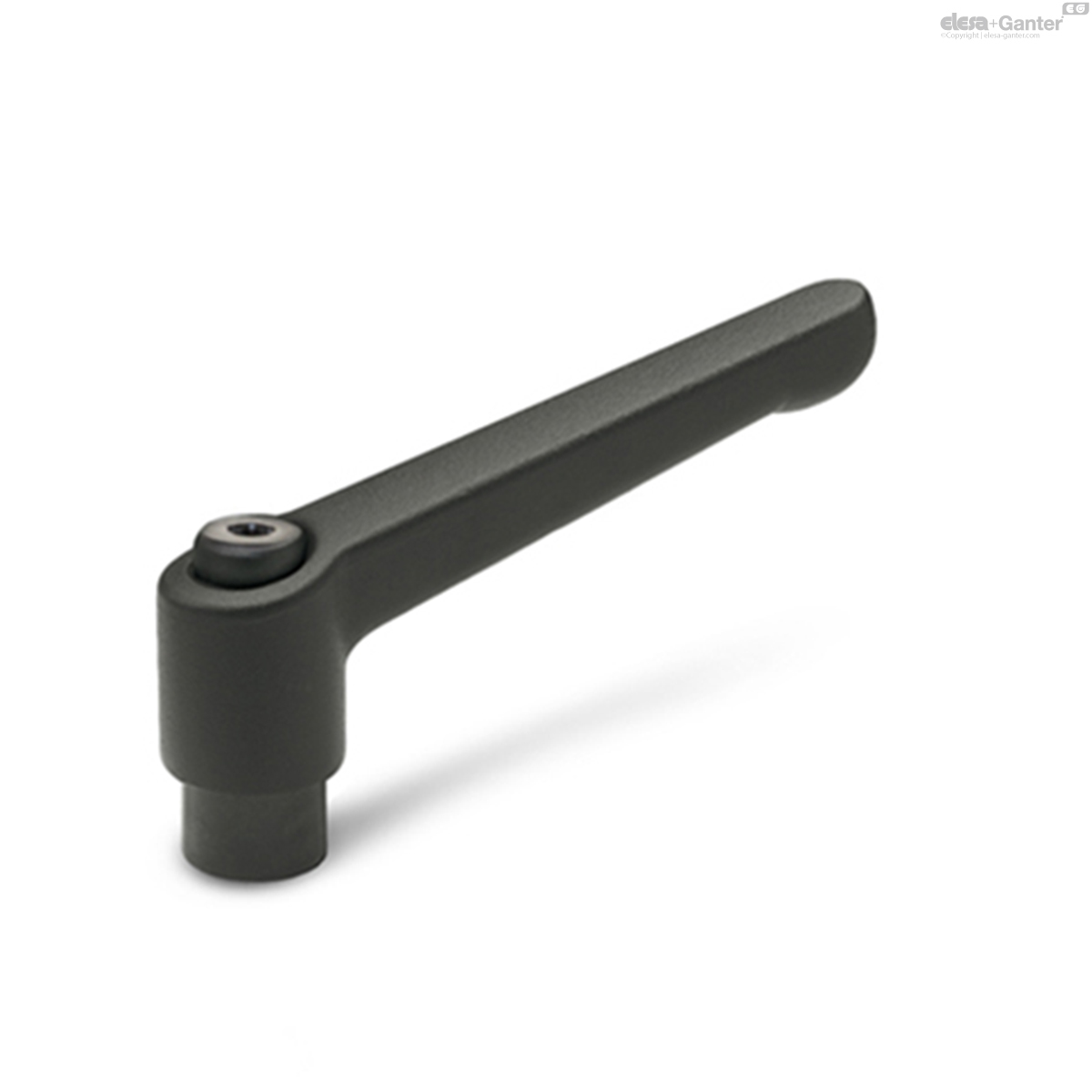

black, RAL 9005, textured finish SW

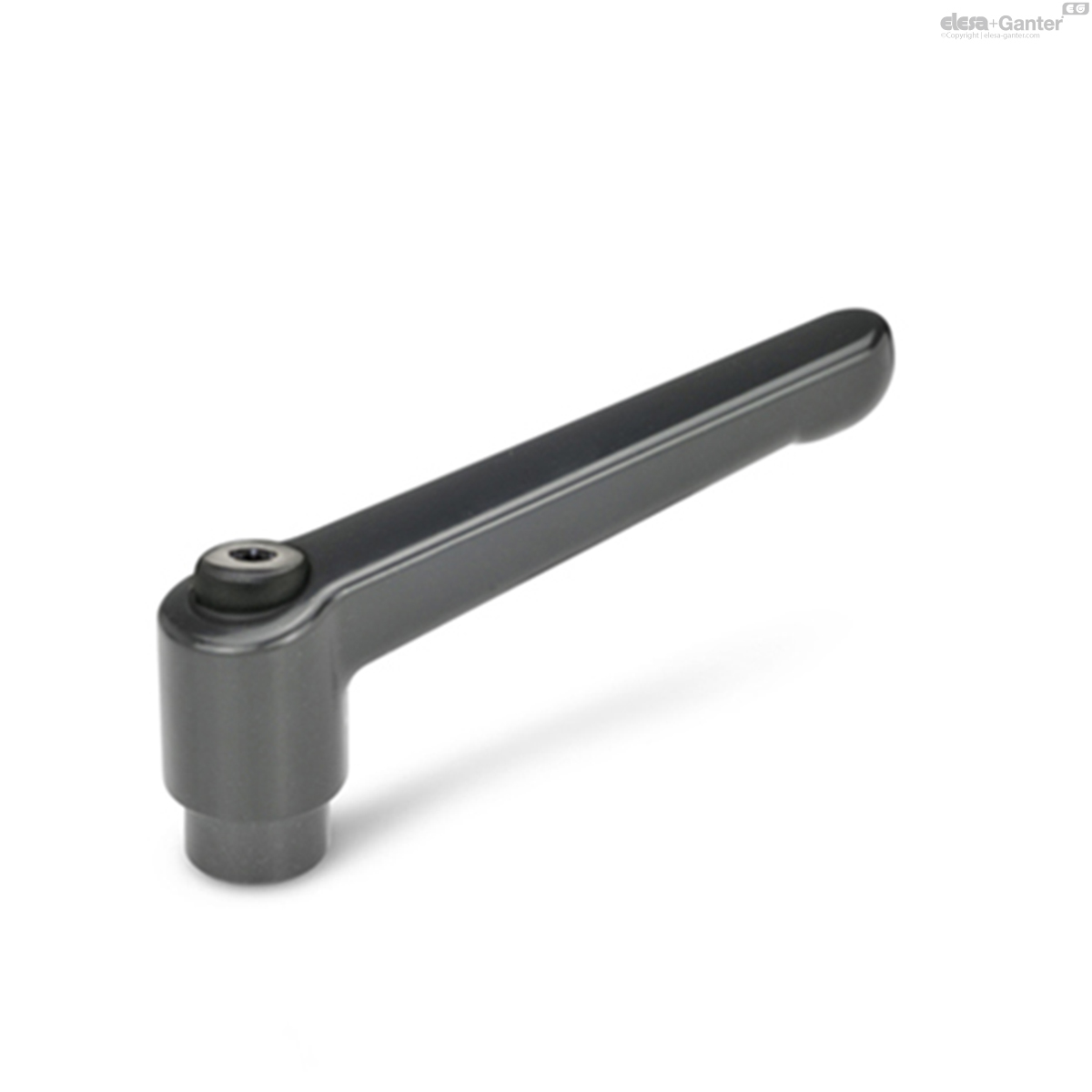

black, RAL 9011, silk finish SZ

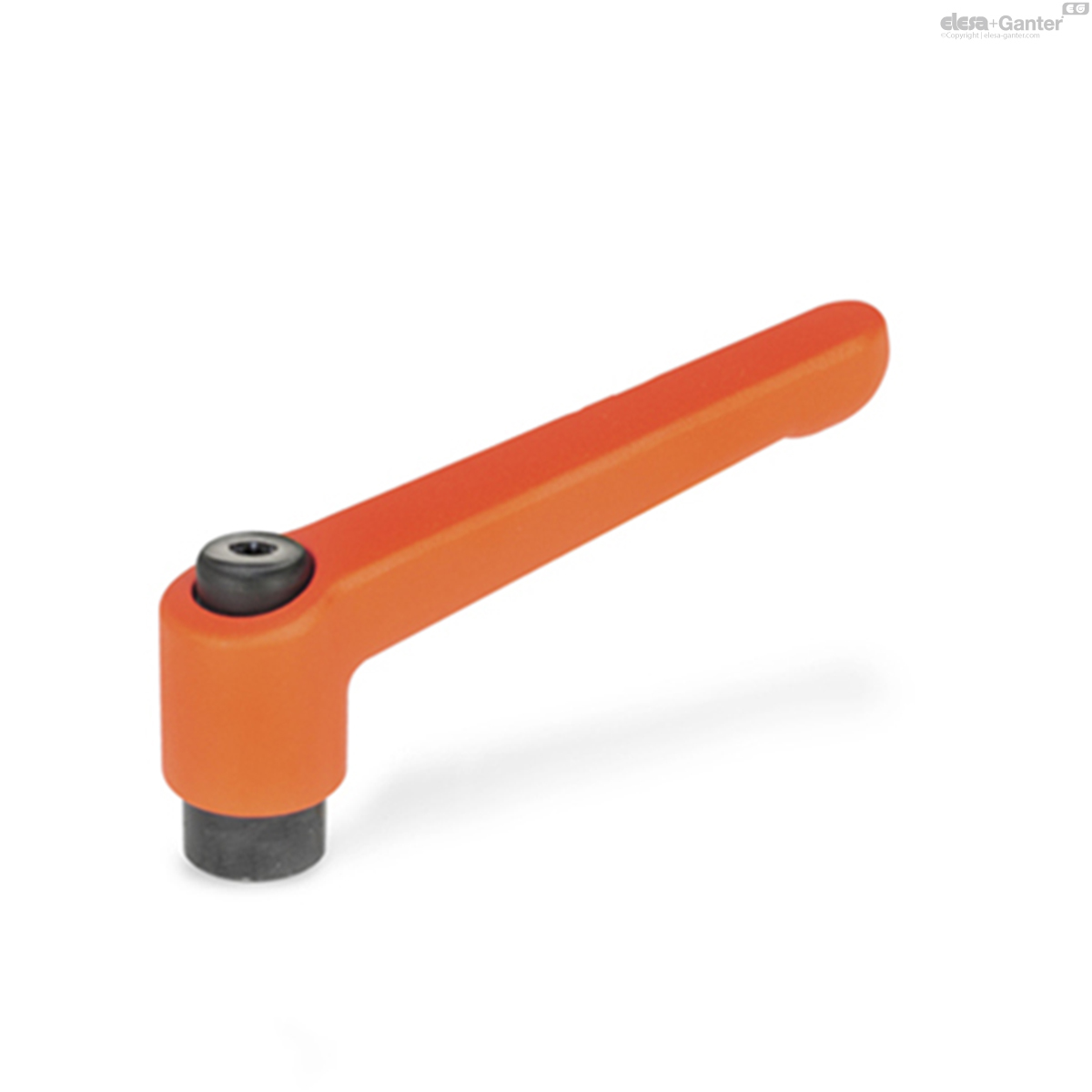

orange, RAL 2004, textured finish OS

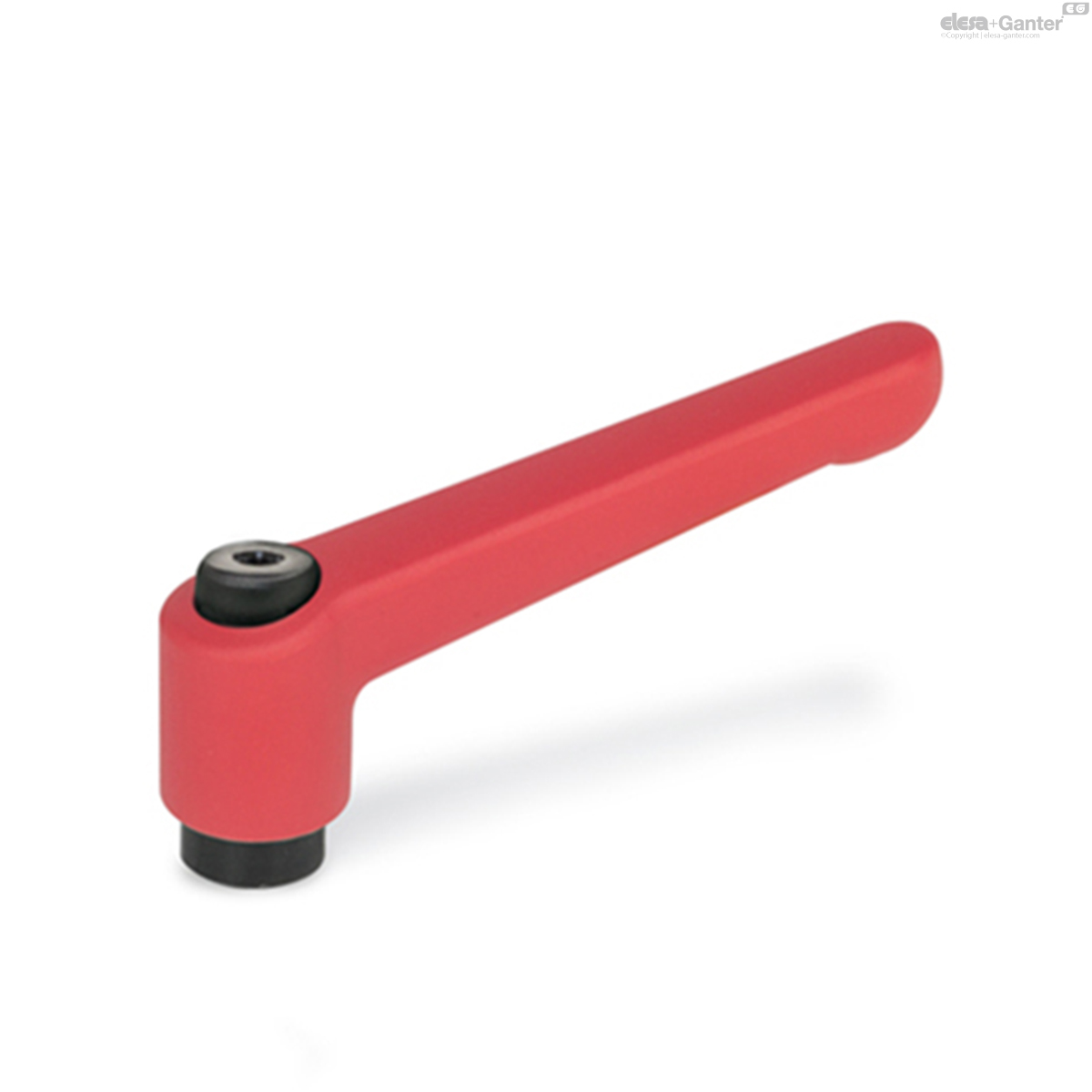

red, RAL 3000, textured finish RS

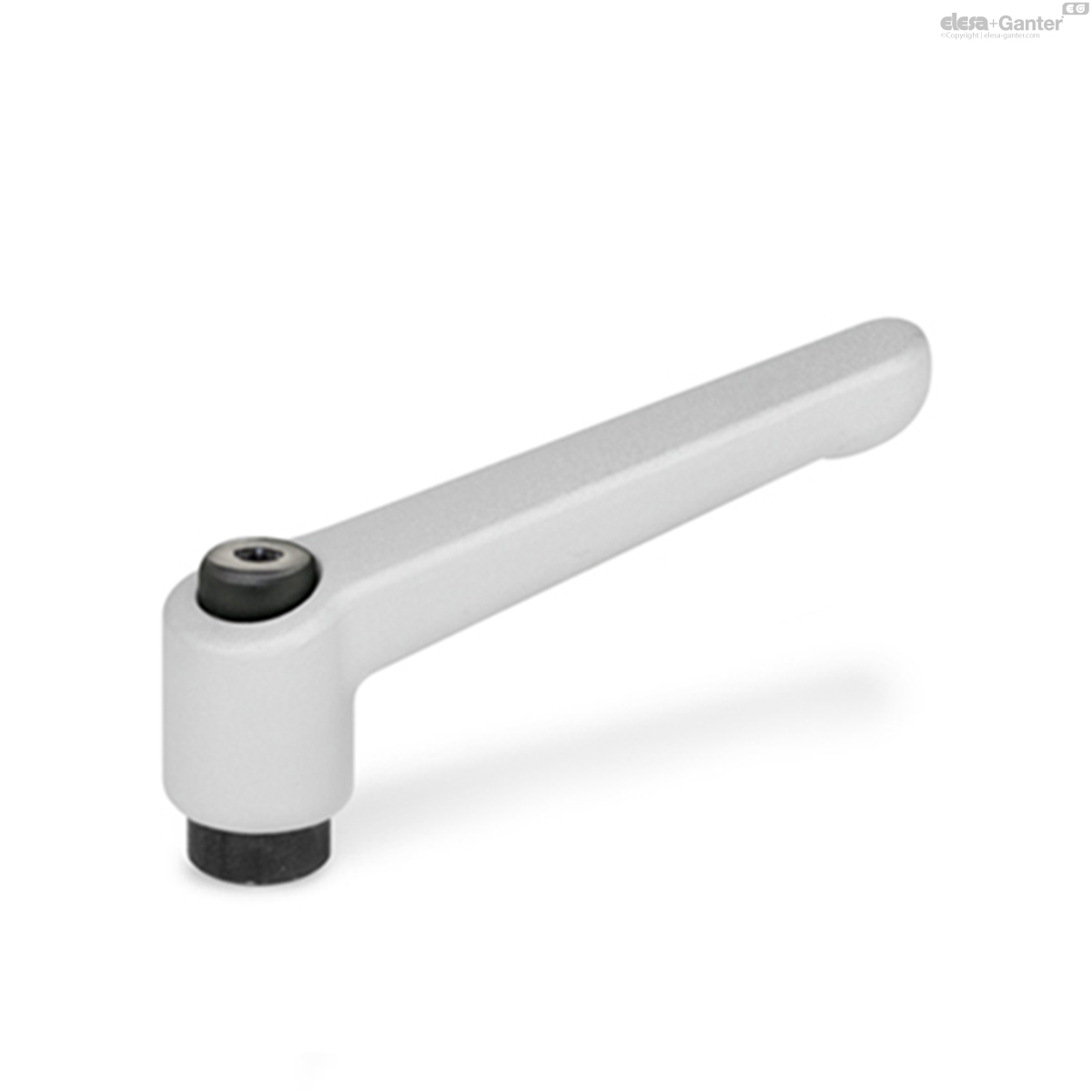

silver, RAL 9006, textured finish SR
chrome-plated CR

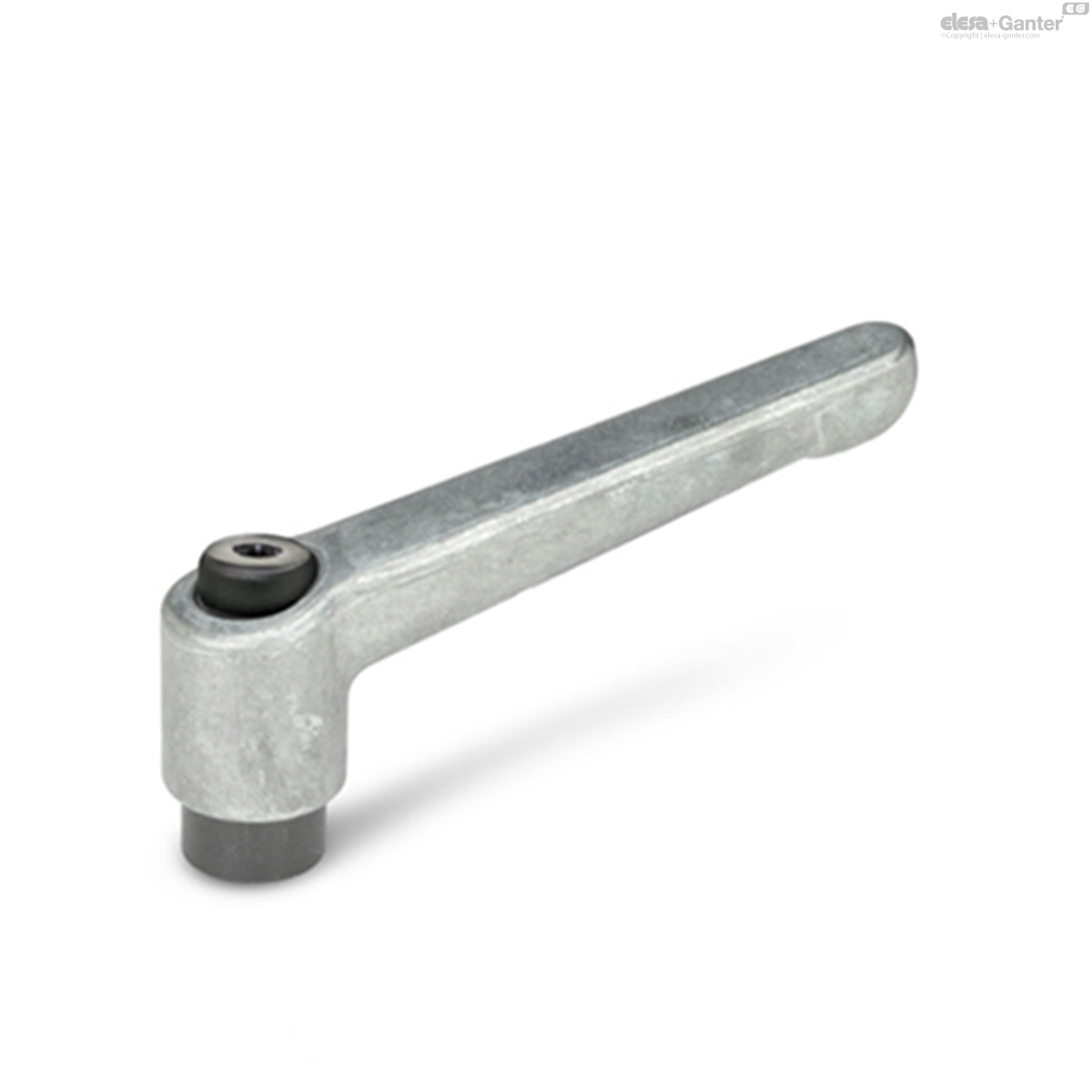

uncoated, slide grinded RH
Version with bushing
Threaded insert and retaining screw
Steel, blackened
Version with threaded stud
Threaded stud and retaining screw
Steel, blackened
Information
Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Technical information
- ISO-Fundamental TolerancesÂ
- Strength values of screwsÂ
GN 300

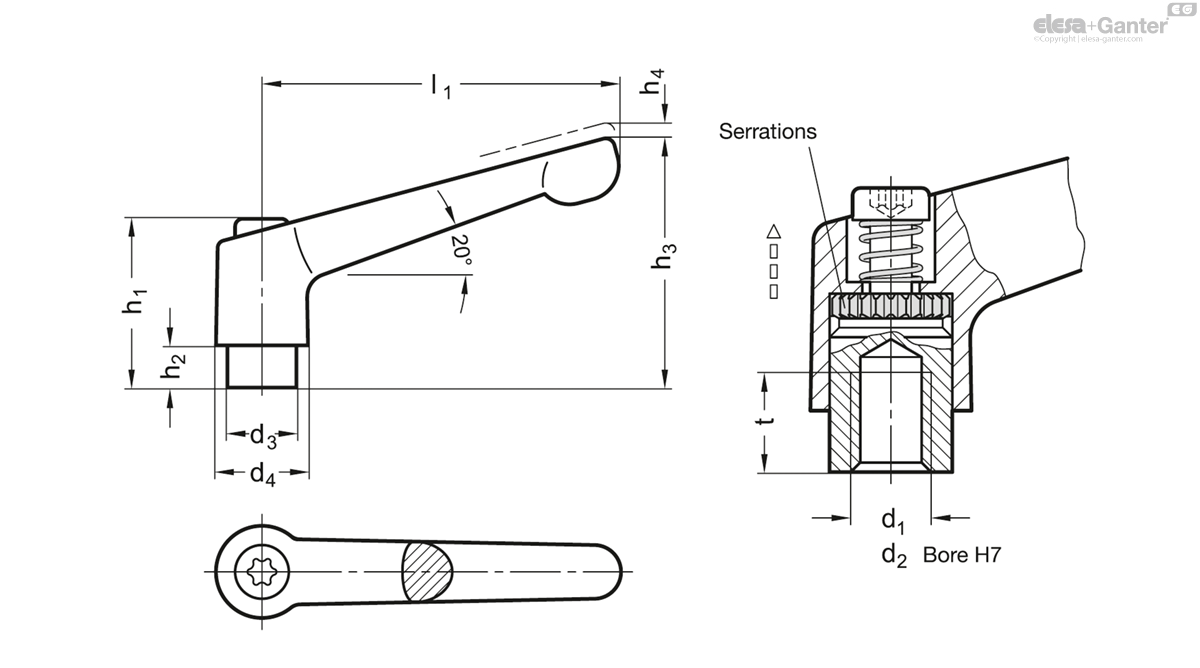

| Color | l1 | d1 | d2 H7 | d3 | d4 | h1 | h2 | h3 | h4 Stroke | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 300-22-B4-CR | CR - Chrome plated | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-OS | OS - RAL 2004 | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-RH | RH - Uncoated | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-RS | RS - RAL 3000 | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-SR | SR - RAL 9006 | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-SW | SW - RAL 9005 | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B4-SZ | SZ - RAL 9011 | 22 | - | B 4 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-CR | CR - Chrome plated | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-OS | OS - RAL 2004 | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-RH | RH - Uncoated | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-RS | RS - RAL 3000 | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-SR | SR - RAL 9006 | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-SW | SW - RAL 9005 | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-B5-SZ | SZ - RAL 9011 | 22 | - | B 5 | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-CR | CR - Chrome plated | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-OS | OS - RAL 2004 | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-RH | RH - Uncoated | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-RS | RS - RAL 3000 | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-SR | SR - RAL 9006 | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-SW | SW - RAL 9005 | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M3-SZ | SZ - RAL 9011 | 22 | M 3 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-CR | CR - Chrome plated | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-OS | OS - RAL 2004 | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-RH | RH - Uncoated | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-RS | RS - RAL 3000 | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-SR | SR - RAL 9006 | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-SW | SW - RAL 9005 | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M4-SZ | SZ - RAL 9011 | 22 | M 4 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-CR | CR - Chrome plated | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-OS | OS - RAL 2004 | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-RH | RH - Uncoated | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-RS | RS - RAL 3000 | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-SR | SR - RAL 9006 | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-SW | SW - RAL 9005 | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-22-M5-SZ | SZ - RAL 9011 | 22 | M 5 | - | 8 | 10.5 | 18.5 | 2 | 23 | 3 | 5 | 13 |
|
| GN 300-30-B5-CR | CR - Chrome plated | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-OS | OS - RAL 2004 | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-RH | RH - Uncoated | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-RS | RS - RAL 3000 | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-SR | SR - RAL 9006 | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-SW | SW - RAL 9005 | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B5-SZ | SZ - RAL 9011 | 30 | - | B 5 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 26 |
|
| GN 300-30-B6-CR | CR - Chrome plated | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-OS | OS - RAL 2004 | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-RH | RH - Uncoated | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-RS | RS - RAL 3000 | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-SR | SR - RAL 9006 | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-SW | SW - RAL 9005 | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-B6-SZ | SZ - RAL 9011 | 30 | - | B 6 | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M3-CR | CR - Chrome plated | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-OS | OS - RAL 2004 | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-RH | RH - Uncoated | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-RS | RS - RAL 3000 | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-SR | SR - RAL 9006 | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-SW | SW - RAL 9005 | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M3-SZ | SZ - RAL 9011 | 30 | M 3 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 7 | 26 |
|
| GN 300-30-M4-CR | CR - Chrome plated | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-OS | OS - RAL 2004 | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-RH | RH - Uncoated | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-RS | RS - RAL 3000 | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-SR | SR - RAL 9006 | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-SW | SW - RAL 9005 | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M4-SZ | SZ - RAL 9011 | 30 | M 4 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 27 |
|
| GN 300-30-M5-CR | CR - Chrome plated | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-OS | OS - RAL 2004 | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-RH | RH - Uncoated | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-RS | RS - RAL 3000 | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-SR | SR - RAL 9006 | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-SW | SW - RAL 9005 | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M5-SZ | SZ - RAL 9011 | 30 | M 5 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-CR | CR - Chrome plated | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-OS | OS - RAL 2004 | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-RH | RH - Uncoated | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-RS | RS - RAL 3000 | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-SR | SR - RAL 9006 | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-SW | SW - RAL 9005 | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-30-M6-SZ | SZ - RAL 9011 | 30 | M 6 | - | 10 | 13 | 24.5 | 4 | 31 | 3.5 | 9 | 25 |
|
| GN 300-45-B5-CR | CR - Chrome plated | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-OS | OS - RAL 2004 | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-RH | RH - Uncoated | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-RS | RS - RAL 3000 | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-SR | SR - RAL 9006 | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-SW | SW - RAL 9005 | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B5-SZ | SZ - RAL 9011 | 45 | - | B 5 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-B6-CR | CR - Chrome plated | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-OS | OS - RAL 2004 | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-RH | RH - Uncoated | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-RS | RS - RAL 3000 | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-SR | SR - RAL 9006 | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-SW | SW - RAL 9005 | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-B6-SZ | SZ - RAL 9011 | 45 | - | B 6 | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M4-CR | CR - Chrome plated | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-OS | OS - RAL 2004 | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-RH | RH - Uncoated | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-RS | RS - RAL 3000 | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-SR | SR - RAL 9006 | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-SW | SW - RAL 9005 | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M4-SZ | SZ - RAL 9011 | 45 | M 4 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 35 |
|
| GN 300-45-M5-CR | CR - Chrome plated | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-OS | OS - RAL 2004 | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-RH | RH - Uncoated | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-RS | RS - RAL 3000 | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-SR | SR - RAL 9006 | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-SW | SW - RAL 9005 | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M5-SZ | SZ - RAL 9011 | 45 | M 5 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 34 |
|
| GN 300-45-M6-CR | CR - Chrome plated | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-OS | OS - RAL 2004 | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-RH | RH - Uncoated | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-RS | RS - RAL 3000 | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-SR | SR - RAL 9006 | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-SW | SW - RAL 9005 | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-45-M6-SZ | SZ - RAL 9011 | 45 | M 6 | - | 10 | 13 | 24.5 | 4 | 34 | 3.5 | 9 | 33 |
|
| GN 300-63-B8-CR | CR - Chrome plated | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-OS | OS - RAL 2004 | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-RH | RH - Uncoated | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-RS | RS - RAL 3000 | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-SR | SR - RAL 9006 | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-SW | SW - RAL 9005 | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-B8-SZ | SZ - RAL 9011 | 63 | - | B 8 | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 71 |
|
| GN 300-63-M6-CR | CR - Chrome plated | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-OS | OS - RAL 2004 | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-RH | RH - Uncoated | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-RS | RS - RAL 3000 | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-SR | SR - RAL 9006 | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-SW | SW - RAL 9005 | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M6-SZ | SZ - RAL 9011 | 63 | M 6 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 76 |
|
| GN 300-63-M8-CR | CR - Chrome plated | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-OS | OS - RAL 2004 | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-RH | RH - Uncoated | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-RS | RS - RAL 3000 | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-SR | SR - RAL 9006 | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-SW | SW - RAL 9005 | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-63-M8-SZ | SZ - RAL 9011 | 63 | M 8 | - | 13.5 | 17.5 | 31 | 6.5 | 45 | 4 | 11 | 74 |
|
| GN 300-78-B8-CR | CR - Chrome plated | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-OS | OS - RAL 2004 | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-RH | RH - Uncoated | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-RS | RS - RAL 3000 | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-SR | SR - RAL 9006 | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-SW | SW - RAL 9005 | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B8-SZ | SZ - RAL 9011 | 78 | - | B 8 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 122 |
|
| GN 300-78-B10-CR | CR - Chrome plated | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-OS | OS - RAL 2004 | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-RH | RH - Uncoated | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-RS | RS - RAL 3000 | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-SR | SR - RAL 9006 | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-SW | SW - RAL 9005 | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-B10-SZ | SZ - RAL 9011 | 78 | - | B 10 | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M8-CR | CR - Chrome plated | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-OS | OS - RAL 2004 | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-RH | RH - Uncoated | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-RS | RS - RAL 3000 | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-SR | SR - RAL 9006 | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-SW | SW - RAL 9005 | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M8-SZ | SZ - RAL 9011 | 78 | M 8 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 121 |
|
| GN 300-78-M10-CR | CR - Chrome plated | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-OS | OS - RAL 2004 | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-RH | RH - Uncoated | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-RS | RS - RAL 3000 | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-SR | SR - RAL 9006 | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-SW | SW - RAL 9005 | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M10-SZ | SZ - RAL 9011 | 78 | M 10 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 118 |
|
| GN 300-78-M12-CR | CR - Chrome plated | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-OS | OS - RAL 2004 | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-RH | RH - Uncoated | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-RS | RS - RAL 3000 | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-SR | SR - RAL 9006 | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-SW | SW - RAL 9005 | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-78-M12-SZ | SZ - RAL 9011 | 78 | M 12 | - | 16 | 21 | 36 | 8 | 54 | 4 | 14 | 114 |
|
| GN 300-92-B12-CR | CR - Chrome plated | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-OS | OS - RAL 2004 | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-RH | RH - Uncoated | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-RS | RS - RAL 3000 | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-SR | SR - RAL 9006 | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-SW | SW - RAL 9005 | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-B12-SZ | SZ - RAL 9011 | 92 | - | B 12 | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M10-CR | CR - Chrome plated | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-OS | OS - RAL 2004 | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-RH | RH - Uncoated | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-RS | RS - RAL 3000 | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-SR | SR - RAL 9006 | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-SW | SW - RAL 9005 | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M10-SZ | SZ - RAL 9011 | 92 | M 10 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 177 |
|
| GN 300-92-M12-CR | CR - Chrome plated | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-OS | OS - RAL 2004 | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-RH | RH - Uncoated | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-RS | RS - RAL 3000 | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-SR | SR - RAL 9006 | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-SW | SW - RAL 9005 | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-92-M12-SZ | SZ - RAL 9011 | 92 | M 12 | - | 19 | 24 | 43 | 11 | 64 | 4 | 17 | 172 |
|
| GN 300-108-B12-CR | CR - Chrome plated | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-OS | OS - RAL 2004 | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-RH | RH - Uncoated | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-RS | RS - RAL 3000 | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-SR | SR - RAL 9006 | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-SW | SW - RAL 9005 | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B12-SZ | SZ - RAL 9011 | 108 | - | B 12 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-B16-CR | CR - Chrome plated | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-OS | OS - RAL 2004 | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-RH | RH - Uncoated | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-RS | RS - RAL 3000 | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-SR | SR - RAL 9006 | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-SW | SW - RAL 9005 | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-B16-SZ | SZ - RAL 9011 | 108 | - | B 16 | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 297 |
|
| GN 300-108-M12-CR | CR - Chrome plated | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-OS | OS - RAL 2004 | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-RH | RH - Uncoated | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-RS | RS - RAL 3000 | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-SR | SR - RAL 9006 | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-SW | SW - RAL 9005 | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M12-SZ | SZ - RAL 9011 | 108 | M 12 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 299 |
|
| GN 300-108-M14-CR | CR - Chrome plated | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-OS | OS - RAL 2004 | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-RH | RH - Uncoated | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-RS | RS - RAL 3000 | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-SR | SR - RAL 9006 | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-SW | SW - RAL 9005 | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M14-SZ | SZ - RAL 9011 | 108 | M 14 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 291 |
|
| GN 300-108-M16-CR | CR - Chrome plated | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-OS | OS - RAL 2004 | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-RH | RH - Uncoated | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-RS | RS - RAL 3000 | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-SR | SR - RAL 9006 | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-SW | SW - RAL 9005 | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
| GN 300-108-M16-SZ | SZ - RAL 9011 | 108 | M 16 | - | 23 | 30 | 50.5 | 12 | 75 | 5 | 22 | 282 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
GN 300.5Adjustable Stainless Steel-Hand leversMatte shot-blasted, with bushing / with threaded studView Product -
GN 300.1Adjustable hand leversZinc die casting, Bushing / Threaded bolt Stainless SteelView Product
-
ERW.Adjustable handlesFlat lever, technopolymerView Product
-
MR.Adjustable handlesTechnopolymerView Product
-
GN 300.4Adjustable Hand LeversZinc Die Casting, with Increased Clamping ForceView Product
-
ERX.Adjustable handlesTechnopolymerView Product
-
ERM.Adjustable handlesZinc alloy, steel or stainless steel clamping elementView Product
-
GN 302.1Flat Adjustable Hand LeversZinc Die Casting, Bushing / Threaded bolt Stainless SteelView Product
