GN 30
Leveling Feet
with Rubber Pad

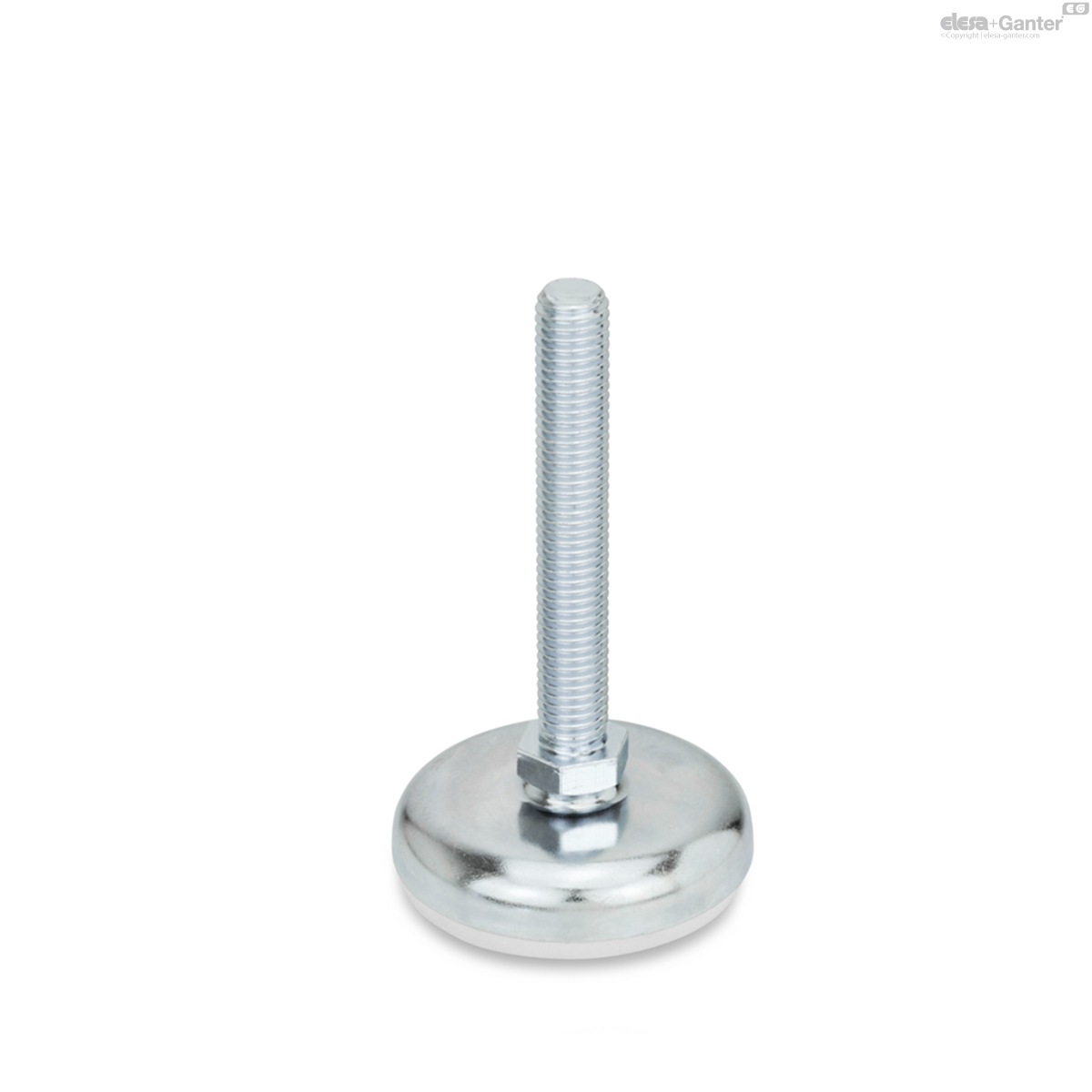

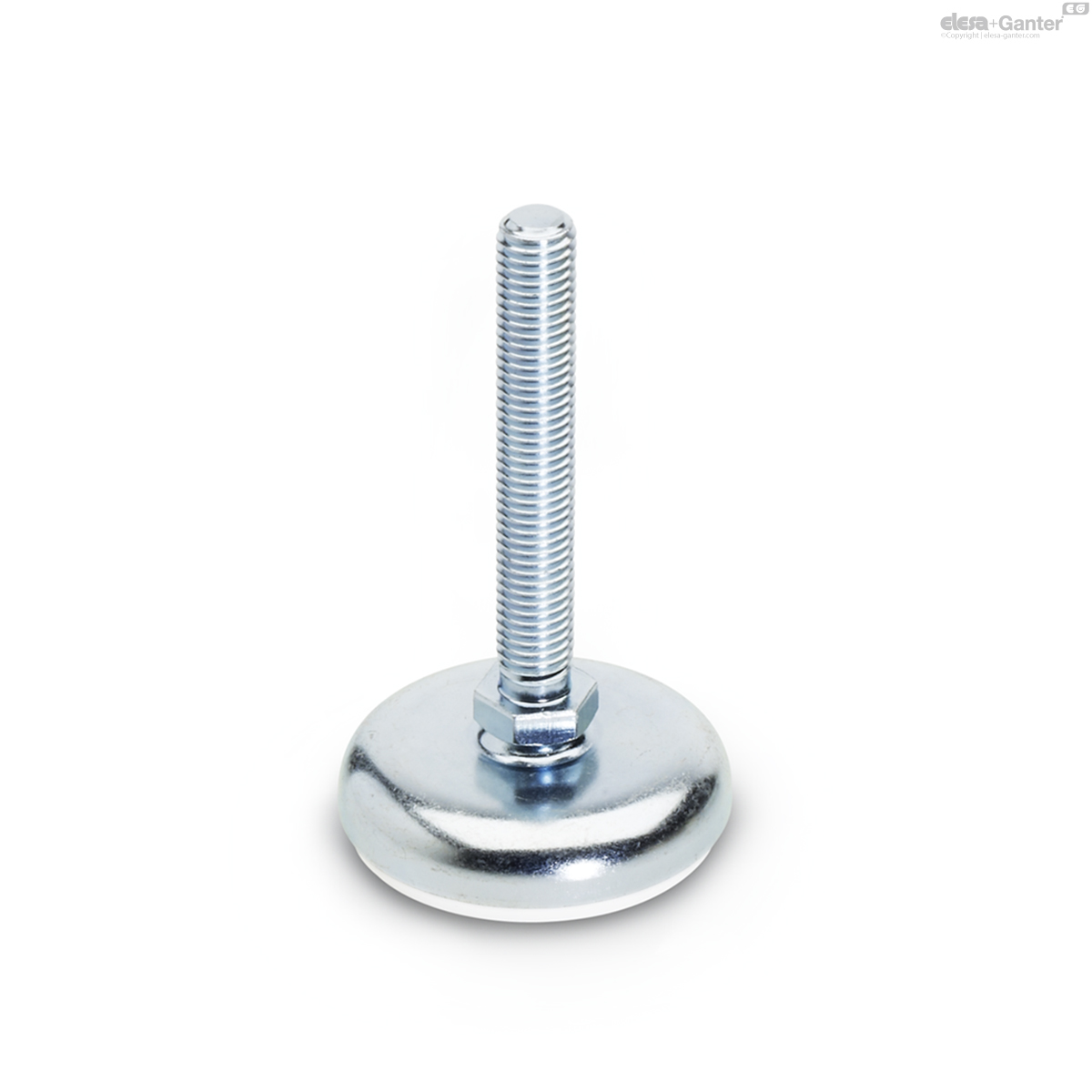

GN 30-S/SK
Leveling Feet
With / without nut, external hex at the bottom

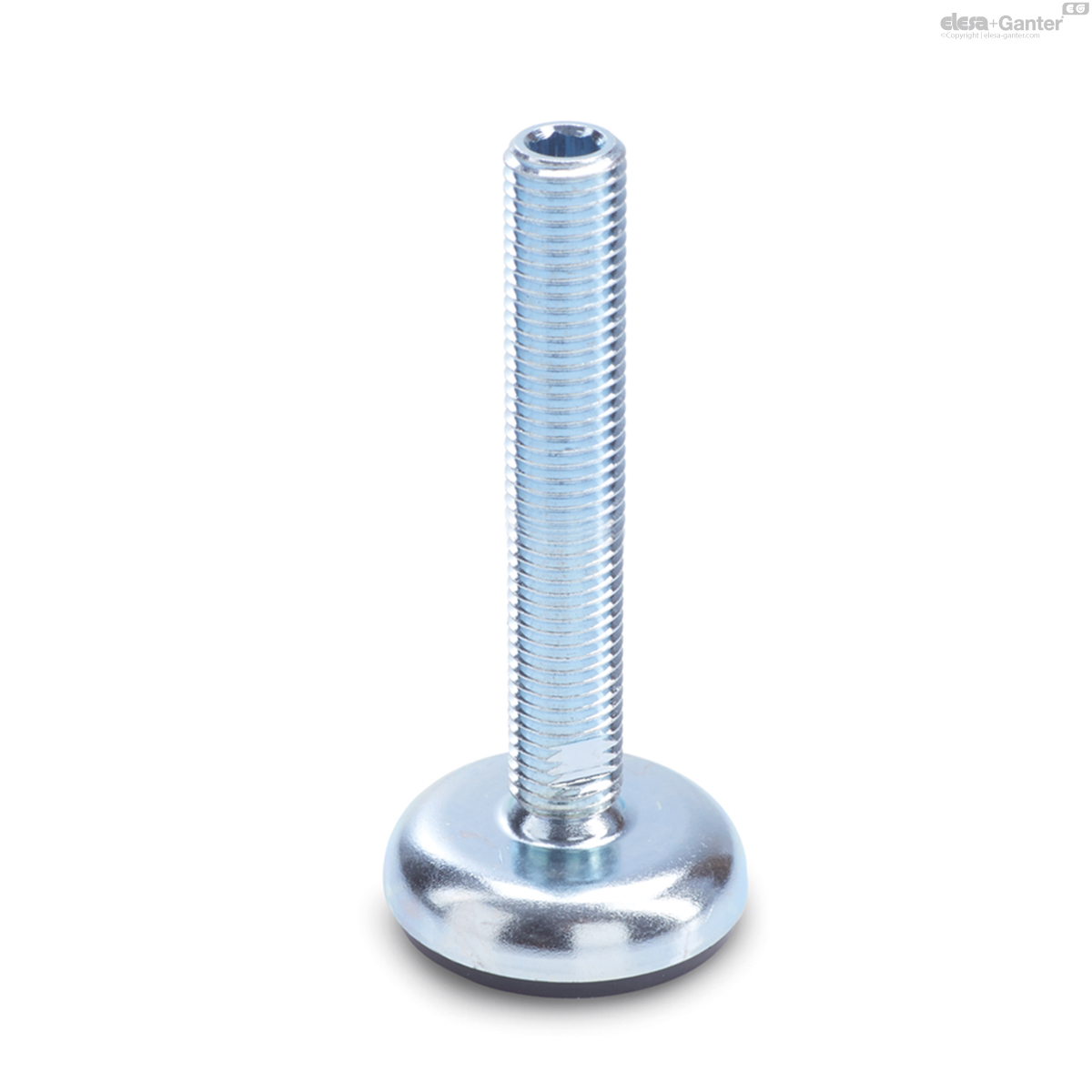

GN 30-U/UK
Leveling Feet
With / without nut, hex socket at the top and wrench flat at the bottom

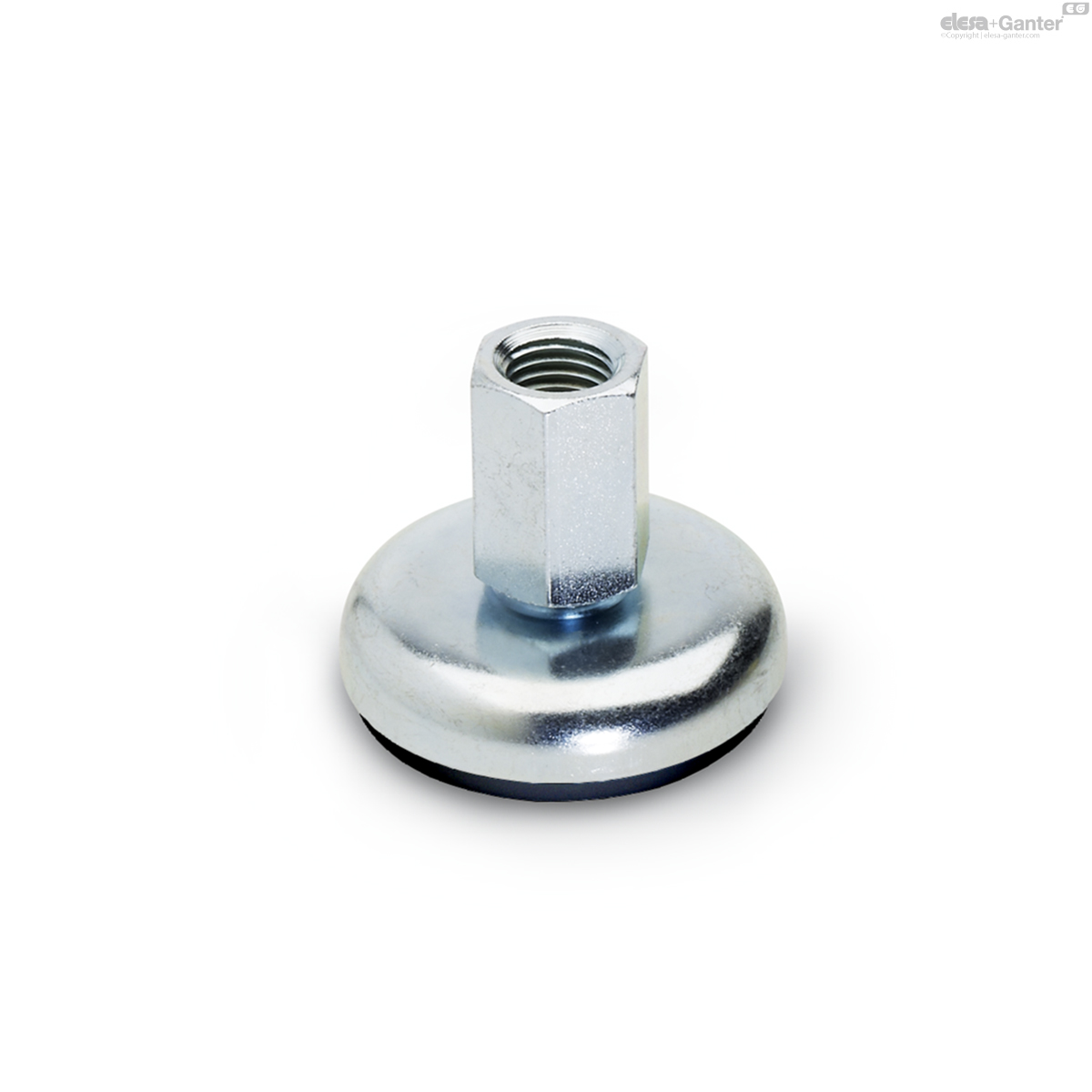

GN 30-X
Leveling Feet
External hex with internal thread

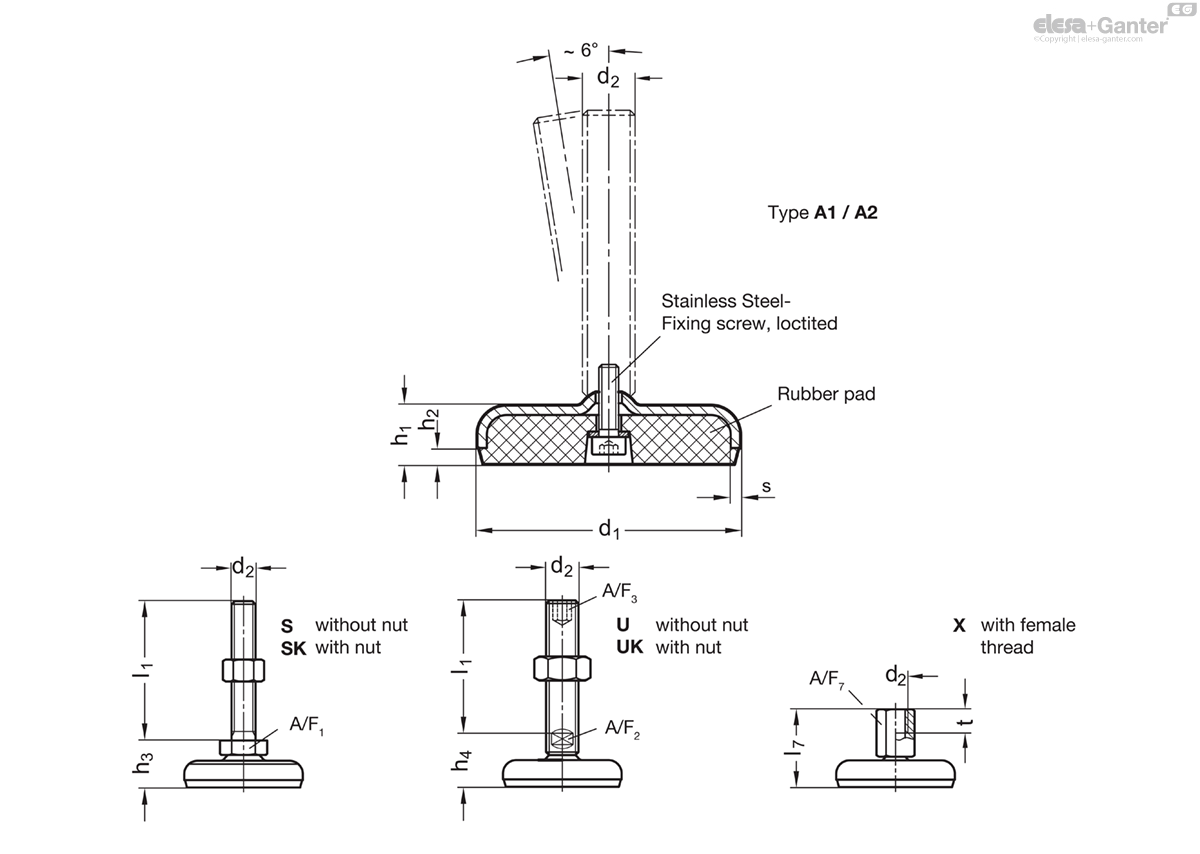

Description
Specification
Type (Base)
- Type A1: Steel, zinc plated, rubber inlaid, black
- Type A2: Steel, zinc plated, rubber inlaid, white
- Type A5: Steel, plastic coated black, rubber inlaid, black
Version (Screw)
- Version S: Without nut, external hex at the bottom
- Version SK: With nut, external hex at the bottom
- Version U: Without nut, hex socket at the top and wrench flat at the bottom
- Version UK: With nut, hex socket at the top and wrench flat at the bottom
- Version X: External hex with Internal Thread
Base plate, steel sheet metal
Type A1, A2:
Steel, zinc plated, blue passivated
Type A5:
Steel, powder coated
Black, RAL 9005
Threaded stem
Steel, zinc plated, blue passivated
Hex nut ISO 4032
Steel, zinc plated, blue passivated
Rubber pad, inlaid
- Black: NBR (Perbunan®)
- 80±5 Shore A
- White: TPE (Santoprene®)
- 80±5 Shore A
Information
Leveling feet GN 30 will be delivered mounted and are not removable.
Technical information
- Elastomer characteristicsÂ

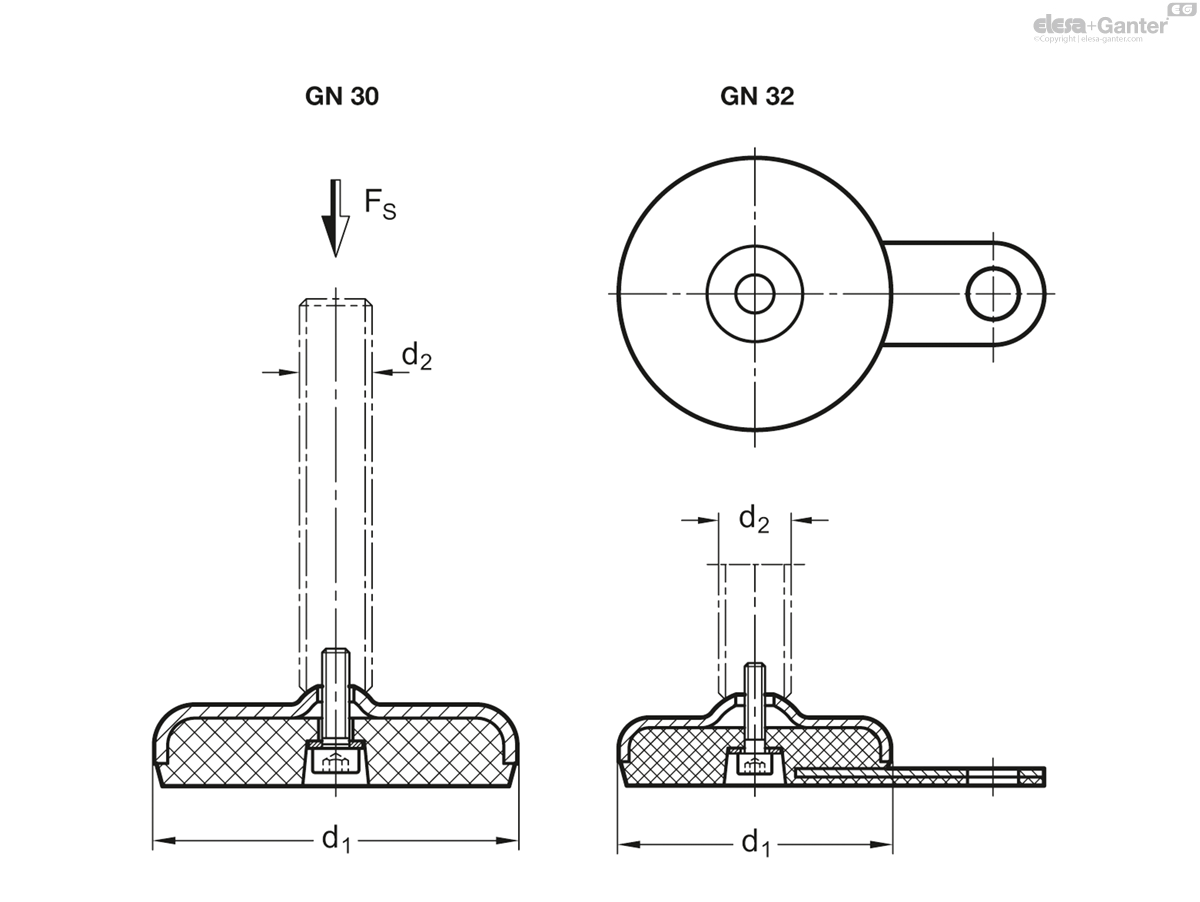

Load rating of leveling feet
 Information
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate. For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.
| d1 | d2 | Static load in kN | - | - | - | - | - |
| - | - | Versions of threaded stem | - | - | - | - | - |
| - | - | S / SK | - | U / UK | - | X | - |
| - | - | Rubber black | Rubber white | Rubber black | Rubber white | Rubber black | Rubber white |
| 50 | M 8 | 8 | 8 | - | - | 8 | 8 |
| 50 | M 10 | 10 | 10 | - | - | 13 | 13 |
| 50 | M 12 | 12 | 12 | - | - | 16 | 13 |
| 50 | M 16 | - | - | 16 | 13 | 16 | 13 |
| 60 | M 8 | 8 | 8 | - | - | 8 | 8 |
| 60 | M 10 | 10 | 10 | - | - | 13 | 13 |
| 60 | M 12 | 12 | 12 | - | - | 16 | 13 |
| 60 | M 16 | - | - | 16 | 13 | 16 | 13 |
| 80 | M 8 | 8 | 8 | - | - | 8 | 8 |
| 80 | M 10 | 10 | 10 | - | - | 12 | 11 |
| 80 | M 12 | 12 | 12 | - | - | 12 | 11 |
| 80 | M 16 | - | - | 12 | 11 | 12 | 11 |
| 80 | M 20 | - | - | 12 | 11 | 12 | 11 |
| 80 | M 24 | - | - | 12 | 11 | - | - |
| 100 | M 8 | 8 | 8 | - | - | 8 | 8 |
| 100 | M 10 | 10 | 10 | - | - | 11 | 10 |
| 100 | M 12 | 11 | 10 | - | - | 11 | 10 |
| 100 | M 16 | - | - | 11 | 10 | 11 | 10 |
| 100 | M 20 | - | - | 11 | 10 | 11 | 10 |
| 100 | M 24 | - | - | 11 | 10 | - | - |
| 120 | M 20 | - | - | 20 | 16 | 20 | 16 |
| 120 | M 24 | - | - | 20 | 16 | - | - |
| 120 | M 30 | - | - | 20 | 16 | - | - |
GN 30-S/SK
| Color | d1 | d2 | l1 | h1 | h2 | h3 | s | A/F 1 | Static load in kN |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 30-50-M8-40-A1-S | Type S | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-40-A1-SK | SK | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-40-A2-S | Type S | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-40-A2-SK | SK | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-40-A5-S | Type S | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 106 |
|
| GN 30-50-M8-40-A5-SK | SK | 50 | M 8 | 40 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 106 |
|
| GN 30-50-M8-50-A1-S | Type S | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 110 |
|
| GN 30-50-M8-50-A1-SK | SK | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 110 |
|
| GN 30-50-M8-50-A2-S | Type S | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 110 |
|
| GN 30-50-M8-50-A2-SK | SK | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 110 |
|
| GN 30-50-M8-50-A5-S | Type S | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-50-A5-SK | SK | 50 | M 8 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 108 |
|
| GN 30-50-M8-63-A1-S | Type S | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 114 |
|
| GN 30-50-M8-63-A1-SK | SK | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 114 |
|
| GN 30-50-M8-63-A2-S | Type S | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 114 |
|
| GN 30-50-M8-63-A2-SK | SK | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 114 |
|
| GN 30-50-M8-63-A5-S | Type S | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 112 |
|
| GN 30-50-M8-63-A5-SK | SK | 50 | M 8 | 63 | 14.5 | 3.5 | 23 | 3 | 17 | 8 | 112 |
|
| GN 30-50-M10-50-A1-S | Type S | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 157 |
|
| GN 30-50-M10-50-A1-SK | SK | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 157 |
|
| GN 30-50-M10-50-A2-S | Type S | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 148 |
|
| GN 30-50-M10-50-A2-SK | SK | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 148 |
|
| GN 30-50-M10-50-A5-S | Type S | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 157 |
|
| GN 30-50-M10-50-A5-SK | SK | 50 | M 10 | 50 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 157 |
|
| GN 30-50-M10-60-A1-S | Type S | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 174 |
|
| GN 30-50-M10-60-A1-SK | SK | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 174 |
|
| GN 30-50-M10-60-A2-S | Type S | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 165 |
|
| GN 30-50-M10-60-A2-SK | SK | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 165 |
|
| GN 30-50-M10-60-A5-S | Type S | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 174 |
|
| GN 30-50-M10-60-A5-SK | SK | 50 | M 10 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 174 |
|
| GN 30-50-M10-80-A1-S | Type S | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 135 |
|
| GN 30-50-M10-80-A1-SK | SK | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 135 |
|
| GN 30-50-M10-80-A2-S | Type S | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 125 |
|
| GN 30-50-M10-80-A2-SK | SK | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 125 |
|
| GN 30-50-M10-80-A5-S | Type S | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 132 |
|
| GN 30-50-M10-80-A5-SK | SK | 50 | M 10 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 132 |
|
| GN 30-50-M10-100-A1-S | Type S | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 193 |
|
| GN 30-50-M10-100-A1-SK | SK | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 193 |
|
| GN 30-50-M10-100-A2-S | Type S | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 184 |
|
| GN 30-50-M10-100-A2-SK | SK | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 184 |
|
| GN 30-50-M10-100-A5-S | Type S | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 193 |
|
| GN 30-50-M10-100-A5-SK | SK | 50 | M 10 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 10 | 193 |
|
| GN 30-50-M12-60-A1-S | Type S | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 186 |
|
| GN 30-50-M12-60-A1-SK | SK | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 186 |
|
| GN 30-50-M12-60-A2-S | Type S | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 177 |
|
| GN 30-50-M12-60-A2-SK | SK | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 177 |
|
| GN 30-50-M12-60-A5-S | Type S | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 186 |
|
| GN 30-50-M12-60-A5-SK | SK | 50 | M 12 | 60 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 186 |
|
| GN 30-50-M12-80-A1-S | Type S | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 201 |
|
| GN 30-50-M12-80-A1-SK | SK | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 201 |
|
| GN 30-50-M12-80-A2-S | Type S | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 192 |
|
| GN 30-50-M12-80-A2-SK | SK | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 192 |
|
| GN 30-50-M12-80-A5-S | Type S | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 201 |
|
| GN 30-50-M12-80-A5-SK | SK | 50 | M 12 | 80 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 201 |
|
| GN 30-50-M12-100-A1-S | Type S | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 215 |
|
| GN 30-50-M12-100-A1-SK | SK | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 215 |
|
| GN 30-50-M12-100-A2-S | Type S | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 206 |
|
| GN 30-50-M12-100-A2-SK | SK | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 206 |
|
| GN 30-50-M12-100-A5-S | Type S | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 215 |
|
| GN 30-50-M12-100-A5-SK | SK | 50 | M 12 | 100 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 215 |
|
| GN 30-50-M12-125-A1-S | Type S | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 237 |
|
| GN 30-50-M12-125-A1-SK | SK | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 237 |
|
| GN 30-50-M12-125-A2-S | Type S | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 228 |
|
| GN 30-50-M12-125-A2-SK | SK | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 228 |
|
| GN 30-50-M12-125-A5-S | Type S | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 237 |
|
| GN 30-50-M12-125-A5-SK | SK | 50 | M 12 | 125 | 14.5 | 3.5 | 23 | 3 | 17 | 12 | 237 |
|
| GN 30-60-M8-40-A1-S | Type S | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 266 |
|
| GN 30-60-M8-40-A1-SK | SK | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 266 |
|
| GN 30-60-M8-40-A2-S | Type S | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 247 |
|
| GN 30-60-M8-40-A2-SK | SK | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 247 |
|
| GN 30-60-M8-40-A5-S | Type S | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 266 |
|
| GN 30-60-M8-40-A5-SK | SK | 60 | M 8 | 40 | 16 | 4 | 24 | 3 | 17 | 8 | 266 |
|
| GN 30-60-M8-50-A1-S | Type S | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 269 |
|
| GN 30-60-M8-50-A1-SK | SK | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 269 |
|
| GN 30-60-M8-50-A2-S | Type S | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 250 |
|
| GN 30-60-M8-50-A2-SK | SK | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 250 |
|
| GN 30-60-M8-50-A5-S | Type S | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 269 |
|
| GN 30-60-M8-50-A5-SK | SK | 60 | M 8 | 50 | 16 | 4 | 24 | 3 | 17 | 8 | 269 |
|
| GN 30-60-M8-63-A1-S | Type S | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 273 |
|
| GN 30-60-M8-63-A1-SK | SK | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 273 |
|
| GN 30-60-M8-63-A2-S | Type S | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 254 |
|
| GN 30-60-M8-63-A2-SK | SK | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 254 |
|
| GN 30-60-M8-63-A5-S | Type S | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 273 |
|
| GN 30-60-M8-63-A5-SK | SK | 60 | M 8 | 63 | 16 | 4 | 24 | 3 | 17 | 8 | 273 |
|
| GN 30-60-M10-50-A1-S | Type S | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 160 |
|
| GN 30-60-M10-50-A1-SK | SK | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 160 |
|
| GN 30-60-M10-50-A2-S | Type S | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 189 |
|
| GN 30-60-M10-50-A2-SK | SK | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 189 |
|
| GN 30-60-M10-50-A5-S | Type S | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 208 |
|
| GN 30-60-M10-50-A5-SK | SK | 60 | M 10 | 50 | 16 | 4 | 24 | 3 | 17 | 10 | 208 |
|
| GN 30-60-M10-60-A1-S | Type S | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-60-A1-SK | SK | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-60-A2-S | Type S | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 206 |
|
| GN 30-60-M10-60-A2-SK | SK | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 206 |
|
| GN 30-60-M10-60-A5-S | Type S | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-60-A5-SK | SK | 60 | M 10 | 60 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-80-A1-S | Type S | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 234 |
|
| GN 30-60-M10-80-A1-SK | SK | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 234 |
|
| GN 30-60-M10-80-A2-S | Type S | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 215 |
|
| GN 30-60-M10-80-A2-SK | SK | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 215 |
|
| GN 30-60-M10-80-A5-S | Type S | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 234 |
|
| GN 30-60-M10-80-A5-SK | SK | 60 | M 10 | 80 | 16 | 4 | 24 | 3 | 17 | 10 | 234 |
|
| GN 30-60-M10-100-A1-S | Type S | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 244 |
|
| GN 30-60-M10-100-A1-SK | SK | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 244 |
|
| GN 30-60-M10-100-A2-S | Type S | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-100-A2-SK | SK | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 225 |
|
| GN 30-60-M10-100-A5-S | Type S | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 244 |
|
| GN 30-60-M10-100-A5-SK | SK | 60 | M 10 | 100 | 16 | 4 | 24 | 3 | 17 | 10 | 244 |
|
| GN 30-60-M12-60-A1-S | Type S | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 237 |
|
| GN 30-60-M12-60-A1-SK | SK | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 237 |
|
| GN 30-60-M12-60-A2-S | Type S | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 218 |
|
| GN 30-60-M12-60-A2-SK | SK | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 218 |
|
| GN 30-60-M12-60-A5-S | Type S | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 187 |
|
| GN 30-60-M12-60-A5-SK | SK | 60 | M 12 | 60 | 16 | 4 | 24 | 3 | 17 | 12 | 187 |
|
| GN 30-60-M12-80-A1-S | Type S | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 252 |
|
| GN 30-60-M12-80-A1-SK | SK | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 252 |
|
| GN 30-60-M12-80-A2-S | Type S | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 233 |
|
| GN 30-60-M12-80-A2-SK | SK | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 233 |
|
| GN 30-60-M12-80-A5-S | Type S | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 252 |
|
| GN 30-60-M12-80-A5-SK | SK | 60 | M 12 | 80 | 16 | 4 | 24 | 3 | 17 | 12 | 252 |
|
| GN 30-60-M12-100-A1-S | Type S | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 211 |
|
| GN 30-60-M12-100-A1-SK | SK | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 211 |
|
| GN 30-60-M12-100-A2-S | Type S | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 192 |
|
| GN 30-60-M12-100-A2-SK | SK | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 192 |
|
| GN 30-60-M12-100-A5-S | Type S | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 212 |
|
| GN 30-60-M12-100-A5-SK | SK | 60 | M 12 | 100 | 16 | 4 | 24 | 3 | 17 | 12 | 212 |
|
| GN 30-60-M12-125-A1-S | Type S | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 288 |
|
| GN 30-60-M12-125-A1-SK | SK | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 288 |
|
| GN 30-60-M12-125-A2-S | Type S | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 269 |
|
| GN 30-60-M12-125-A2-SK | SK | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 269 |
|
| GN 30-60-M12-125-A5-S | Type S | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 288 |
|
| GN 30-60-M12-125-A5-SK | SK | 60 | M 12 | 125 | 16 | 4 | 24 | 3 | 17 | 12 | 288 |
|
| GN 30-80-M8-40-A1-S | Type S | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 260 |
|
| GN 30-80-M8-40-A1-SK | SK | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 260 |
|
| GN 30-80-M8-40-A2-S | Type S | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 217 |
|
| GN 30-80-M8-40-A2-SK | SK | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 217 |
|
| GN 30-80-M8-40-A5-S | Type S | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 260 |
|
| GN 30-80-M8-40-A5-SK | SK | 80 | M 8 | 40 | 18 | 5 | 26 | 3 | 17 | 8 | 260 |
|
| GN 30-80-M8-50-A1-S | Type S | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 263 |
|
| GN 30-80-M8-50-A1-SK | SK | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 263 |
|
| GN 30-80-M8-50-A2-S | Type S | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 220 |
|
| GN 30-80-M8-50-A2-SK | SK | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 220 |
|
| GN 30-80-M8-50-A5-S | Type S | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 263 |
|
| GN 30-80-M8-50-A5-SK | SK | 80 | M 8 | 50 | 18 | 5 | 26 | 3 | 17 | 8 | 263 |
|
| GN 30-80-M8-63-A1-S | Type S | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 267 |
|
| GN 30-80-M8-63-A1-SK | SK | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 267 |
|
| GN 30-80-M8-63-A2-S | Type S | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 224 |
|
| GN 30-80-M8-63-A2-SK | SK | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 224 |
|
| GN 30-80-M8-63-A5-S | Type S | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 267 |
|
| GN 30-80-M8-63-A5-SK | SK | 80 | M 8 | 63 | 18 | 5 | 26 | 3 | 17 | 8 | 267 |
|
| GN 30-80-M10-50-A1-S | Type S | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 281 |
|
| GN 30-80-M10-50-A1-SK | SK | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 281 |
|
| GN 30-80-M10-50-A2-S | Type S | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 238 |
|
| GN 30-80-M10-50-A2-SK | SK | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 238 |
|
| GN 30-80-M10-50-A5-S | Type S | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 281 |
|
| GN 30-80-M10-50-A5-SK | SK | 80 | M 10 | 50 | 18 | 5 | 26 | 3 | 17 | 10 | 281 |
|
| GN 30-80-M10-60-A1-S | Type S | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 298 |
|
| GN 30-80-M10-60-A1-SK | SK | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 298 |
|
| GN 30-80-M10-60-A2-S | Type S | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 255 |
|
| GN 30-80-M10-60-A2-SK | SK | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 255 |
|
| GN 30-80-M10-60-A5-S | Type S | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 298 |
|
| GN 30-80-M10-60-A5-SK | SK | 80 | M 10 | 60 | 18 | 5 | 26 | 3 | 17 | 10 | 298 |
|
| GN 30-80-M10-80-A1-S | Type S | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 307 |
|
| GN 30-80-M10-80-A1-SK | SK | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 307 |
|
| GN 30-80-M10-80-A2-S | Type S | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 264 |
|
| GN 30-80-M10-80-A2-SK | SK | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 264 |
|
| GN 30-80-M10-80-A5-S | Type S | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 307 |
|
| GN 30-80-M10-80-A5-SK | SK | 80 | M 10 | 80 | 18 | 5 | 26 | 3 | 17 | 10 | 307 |
|
| GN 30-80-M10-100-A1-S | Type S | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 317 |
|
| GN 30-80-M10-100-A1-SK | SK | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 317 |
|
| GN 30-80-M10-100-A2-S | Type S | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 274 |
|
| GN 30-80-M10-100-A2-SK | SK | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 274 |
|
| GN 30-80-M10-100-A5-S | Type S | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 317 |
|
| GN 30-80-M10-100-A5-SK | SK | 80 | M 10 | 100 | 18 | 5 | 26 | 3 | 17 | 10 | 317 |
|
| GN 30-80-M12-60-A1-S | Type S | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 310 |
|
| GN 30-80-M12-60-A1-SK | SK | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 310 |
|
| GN 30-80-M12-60-A2-S | Type S | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 267 |
|
| GN 30-80-M12-60-A2-SK | SK | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 267 |
|
| GN 30-80-M12-60-A5-S | Type S | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 310 |
|
| GN 30-80-M12-60-A5-SK | SK | 80 | M 12 | 60 | 18 | 5 | 26 | 3 | 17 | 12 | 310 |
|
| GN 30-80-M12-80-A1-S | Type S | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 325 |
|
| GN 30-80-M12-80-A1-SK | SK | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 325 |
|
| GN 30-80-M12-80-A2-S | Type S | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 282 |
|
| GN 30-80-M12-80-A2-SK | SK | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 282 |
|
| GN 30-80-M12-80-A5-S | Type S | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 325 |
|
| GN 30-80-M12-80-A5-SK | SK | 80 | M 12 | 80 | 18 | 5 | 26 | 3 | 17 | 12 | 325 |
|
| GN 30-80-M12-100-A1-S | Type S | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 339 |
|
| GN 30-80-M12-100-A1-SK | SK | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 339 |
|
| GN 30-80-M12-100-A2-S | Type S | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 296 |
|
| GN 30-80-M12-100-A2-SK | SK | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 296 |
|
| GN 30-80-M12-100-A5-S | Type S | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 339 |
|
| GN 30-80-M12-100-A5-SK | SK | 80 | M 12 | 100 | 18 | 5 | 26 | 3 | 17 | 12 | 339 |
|
| GN 30-80-M12-125-A1-S | Type S | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 361 |
|
| GN 30-80-M12-125-A1-SK | SK | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 361 |
|
| GN 30-80-M12-125-A2-S | Type S | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 318 |
|
| GN 30-80-M12-125-A2-SK | SK | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 318 |
|
| GN 30-80-M12-125-A5-S | Type S | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 361 |
|
| GN 30-80-M12-125-A5-SK | SK | 80 | M 12 | 125 | 18 | 5 | 26 | 3 | 17 | 12 | 361 |
|
| GN 30-100-M8-40-A1-S | Type S | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 392 |
|
| GN 30-100-M8-40-A1-SK | SK | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 392 |
|
| GN 30-100-M8-40-A2-S | Type S | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 326 |
|
| GN 30-100-M8-40-A2-SK | SK | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 326 |
|
| GN 30-100-M8-40-A5-S | Type S | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 392 |
|
| GN 30-100-M8-40-A5-SK | SK | 100 | M 8 | 40 | 20 | 6 | 28 | 3 | 17 | 8 | 392 |
|
| GN 30-100-M8-50-A1-S | Type S | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 395 |
|
| GN 30-100-M8-50-A1-SK | SK | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 395 |
|
| GN 30-100-M8-50-A2-S | Type S | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 329 |
|
| GN 30-100-M8-50-A2-SK | SK | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 329 |
|
| GN 30-100-M8-50-A5-S | Type S | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 395 |
|
| GN 30-100-M8-50-A5-SK | SK | 100 | M 8 | 50 | 20 | 6 | 28 | 3 | 17 | 8 | 395 |
|
| GN 30-100-M8-63-A1-S | Type S | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 399 |
|
| GN 30-100-M8-63-A1-SK | SK | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 399 |
|
| GN 30-100-M8-63-A2-S | Type S | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 333 |
|
| GN 30-100-M8-63-A2-SK | SK | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 333 |
|
| GN 30-100-M8-63-A5-S | Type S | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 399 |
|
| GN 30-100-M8-63-A5-SK | SK | 100 | M 8 | 63 | 20 | 6 | 28 | 3 | 17 | 8 | 399 |
|
| GN 30-100-M10-50-A1-S | Type S | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 413 |
|
| GN 30-100-M10-50-A1-SK | SK | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 413 |
|
| GN 30-100-M10-50-A2-S | Type S | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 347 |
|
| GN 30-100-M10-50-A2-SK | SK | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 347 |
|
| GN 30-100-M10-50-A5-S | Type S | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 413 |
|
| GN 30-100-M10-50-A5-SK | SK | 100 | M 10 | 50 | 20 | 6 | 28 | 3 | 17 | 10 | 413 |
|
| GN 30-100-M10-60-A1-S | Type S | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 430 |
|
| GN 30-100-M10-60-A1-SK | SK | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 430 |
|
| GN 30-100-M10-60-A2-S | Type S | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 364 |
|
| GN 30-100-M10-60-A2-SK | SK | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 364 |
|
| GN 30-100-M10-60-A5-S | Type S | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 430 |
|
| GN 30-100-M10-60-A5-SK | SK | 100 | M 10 | 60 | 20 | 6 | 28 | 3 | 17 | 10 | 430 |
|
| GN 30-100-M10-80-A1-S | Type S | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 439 |
|
| GN 30-100-M10-80-A1-SK | SK | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 439 |
|
| GN 30-100-M10-80-A2-S | Type S | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 373 |
|
| GN 30-100-M10-80-A2-SK | SK | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 373 |
|
| GN 30-100-M10-80-A5-S | Type S | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 439 |
|
| GN 30-100-M10-80-A5-SK | SK | 100 | M 10 | 80 | 20 | 6 | 28 | 3 | 17 | 10 | 439 |
|
| GN 30-100-M10-100-A1-S | Type S | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 449 |
|
| GN 30-100-M10-100-A1-SK | SK | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 449 |
|
| GN 30-100-M10-100-A2-S | Type S | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 383 |
|
| GN 30-100-M10-100-A2-SK | SK | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 383 |
|
| GN 30-100-M10-100-A5-S | Type S | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 449 |
|
| GN 30-100-M10-100-A5-SK | SK | 100 | M 10 | 100 | 20 | 6 | 28 | 3 | 17 | 10 | 449 |
|
| GN 30-100-M12-60-A1-S | Type S | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 442 |
|
| GN 30-100-M12-60-A1-SK | SK | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 442 |
|
| GN 30-100-M12-60-A2-S | Type S | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 376 |
|
| GN 30-100-M12-60-A2-SK | SK | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 376 |
|
| GN 30-100-M12-60-A5-S | Type S | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 442 |
|
| GN 30-100-M12-60-A5-SK | SK | 100 | M 12 | 60 | 20 | 6 | 28 | 3 | 17 | 12 | 442 |
|
| GN 30-100-M12-80-A1-S | Type S | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 457 |
|
| GN 30-100-M12-80-A1-SK | SK | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 457 |
|
| GN 30-100-M12-80-A2-S | Type S | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 391 |
|
| GN 30-100-M12-80-A2-SK | SK | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 391 |
|
| GN 30-100-M12-80-A5-S | Type S | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 457 |
|
| GN 30-100-M12-80-A5-SK | SK | 100 | M 12 | 80 | 20 | 6 | 28 | 3 | 17 | 12 | 457 |
|
| GN 30-100-M12-100-A1-S | Type S | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 471 |
|
| GN 30-100-M12-100-A1-SK | SK | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 471 |
|
| GN 30-100-M12-100-A2-S | Type S | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 405 |
|
| GN 30-100-M12-100-A2-SK | SK | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 405 |
|
| GN 30-100-M12-100-A5-S | Type S | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 471 |
|
| GN 30-100-M12-100-A5-SK | SK | 100 | M 12 | 100 | 20 | 6 | 28 | 3 | 17 | 12 | 471 |
|
| GN 30-100-M12-125-A1-S | Type S | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 493 |
|
| GN 30-100-M12-125-A1-SK | SK | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 493 |
|
| GN 30-100-M12-125-A2-S | Type S | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 427 |
|
| GN 30-100-M12-125-A2-SK | SK | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 427 |
|
| GN 30-100-M12-125-A5-S | Type S | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 493 |
|
| GN 30-100-M12-125-A5-SK | SK | 100 | M 12 | 125 | 20 | 6 | 28 | 3 | 17 | 12 | 493 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
GN 42Leveling FeetSteel, with Fixing Lug, Drop ShapeView Product -
GN 31Leveling FeetStainless Steel, with Rubber PadView Product
-
LXLevelling elements, fixed stemTechnopolymer base, steel stemView Product
-
LV.A-ESD-CLevelling feetESD conductive technopolymer base, steel stemView Product
-
GN 33Leveling FeetStainless Steel, with Rubber Pad, with Mounting FlangeView Product
-
LV.A-SSTLevelling feetTechnopolymer base, stainless steel stemView Product
-
LV.ALevelling feetTechnopolymer base, steel stemView Product
-
GN 32Leveling FeetSteel Sheet Metal, with Rubber Pad, with Mounting FlangeView Product
