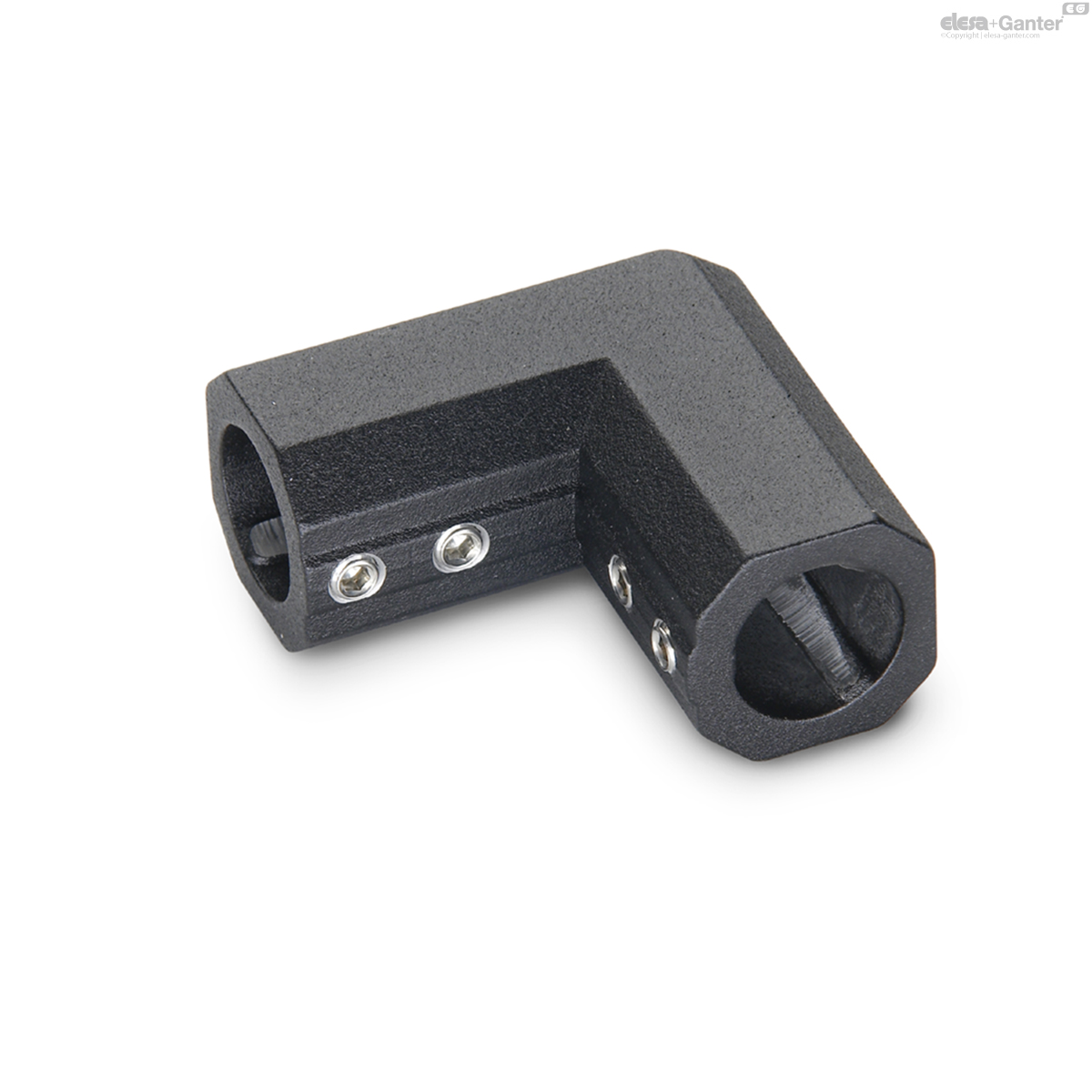

GN 298
Housings
for angular gears / T-gears
Description
Specification
Types
- Type W: Housing for angular gears
- Type T: Housing for T-gears
Aluminium gravity die casting
plastic coated
black, RAL 9005, textured finish SW
Thrust screws
Stainless Steel
Information
Housings GN 298 for angular / T-gears are used in connection with bevel gear wheels  GN 297  and linear actuators / transfer units. The angular / T-gears are designed to deflect the rotary movement of a linear actuator / transfer unit by 90°.
An operating instruction with more details and specifications is included with every delivery.
- Operating insctruction for GN 298
Assembly of linear actuators

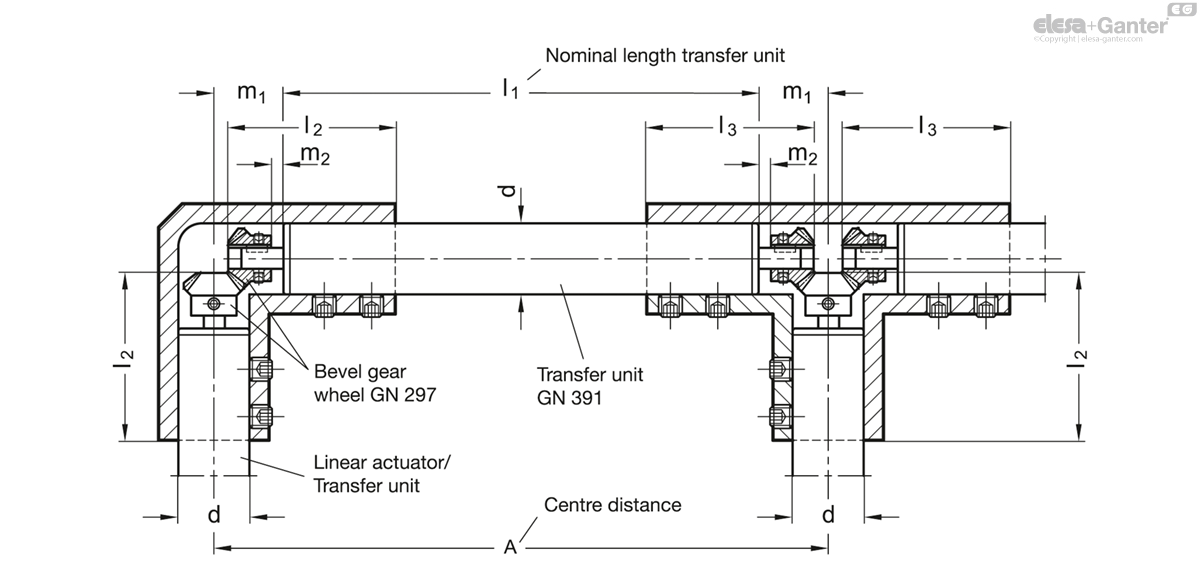

Assembly of linear actuators and transfer units with bevel gear wheels in housings GN 298
 | d Ø Linear actuator / transfer unit | l2 | l3 | m1 | m2 | Bevel gear wheel | Housing | Length of the transfer unit GN 391: l1 = A - 2 x m1 |
| 18 | 41 | 40 | 20 | 4 | GN 297-17,5-K6 | GN 298-28-B18-W/T-SW | |
| 30 | 58 | 57 | 26 | 1 | GN 297-26-K8 | GN 298-40-B30-W/T-SW | |
| 40 | 75.5 | 73.5 | 32 | 1 | GN 297-35-K12 | GN 298-50-B40-W/T-SW | |
| 50 | 90.5 | 87.5 | 32 | 1 | GN 297-35-K12 | GN 298-60-B50-W/T-SW |
Application examples
 Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.
The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.
 Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.
The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.

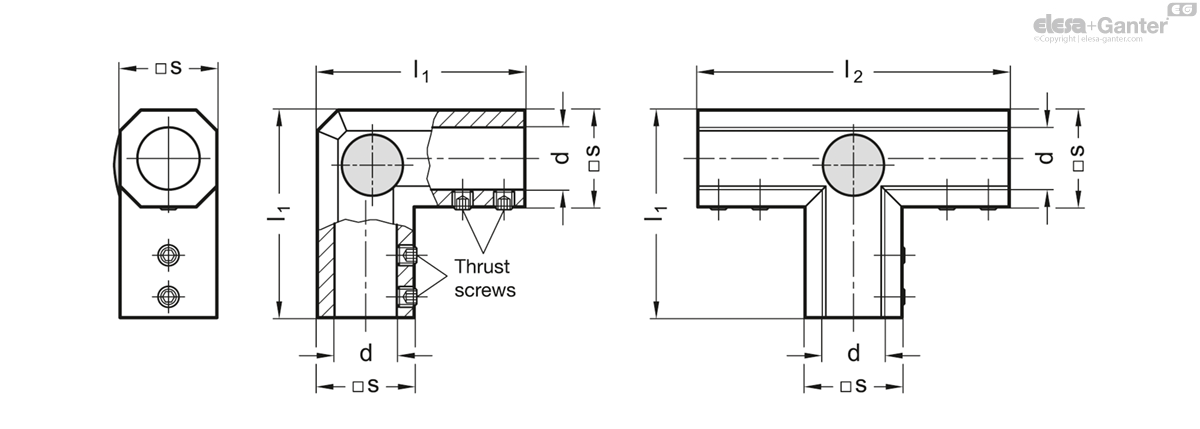

GN 298
| s | d | l1 | l2 |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 298-28-B18-T-SW | 28 | B 18 | 60 | 90 | 139 |
|
| GN 298-28-B18-W-SW | 28 | B 18 | 60 | 90 | 107 |
|
| GN 298-40-B30-T-SW | 40 | B 30 | 84 | 126 | 280 |
|
| GN 298-40-B30-W-SW | 40 | B 30 | 84 | 126 | 240 |
|
| GN 298-50-B40-T-SW | 50 | B 40 | 108 | 162 | 542 |
|
| GN 298-50-B40-W-SW | 50 | B 40 | 108 | 162 | 434 |
|
| GN 298-60-B50-T-SW | 60 | B 50 | 128 | 190 | 851 |
|
| GN 298-60-B50-W-SW | 60 | B 50 | 128 | 190 | 700 |
|
