GN 296
Installation kits
for position indicators used on square linear actuators GN 291.1
Description
Specification
Coding
- Coding 1: for mechanical position indicators DD51  / DD52R)
- Coding 2: for electronic position indicators DD52R-E DD51-E  / DD52R-E DD51-E)
Adaptor shaft
Steel
blackened
Torque support
Aluminium
blank, ground
Information

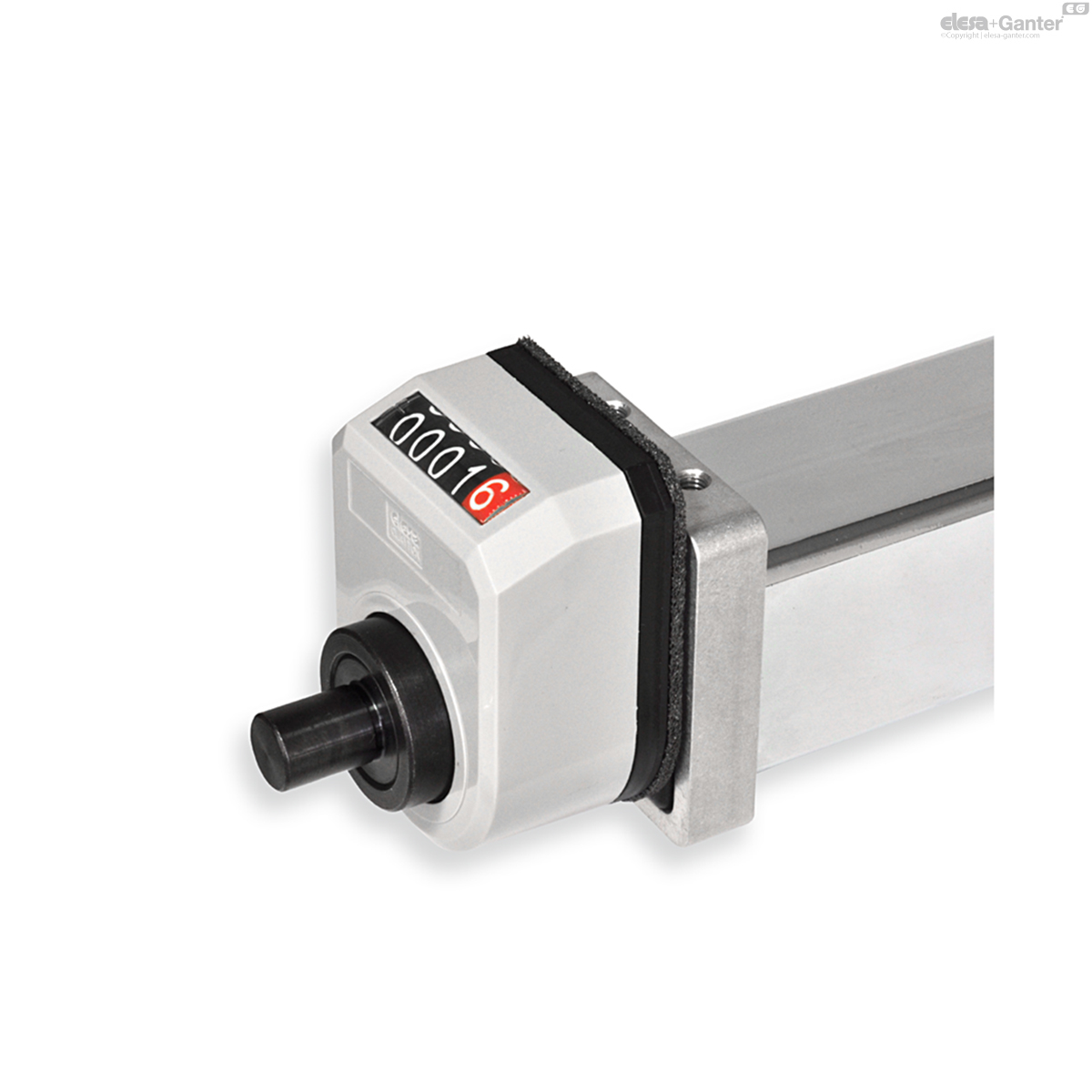

The GN 296 installation kits are needed for mounting a position indicator on linear units. The installation kits comprise an adapter shaft and a torque support including attachment screws.
Order mechanical position indicators DD52R / DD51 / DD50 with a counter pitch that corresponds to that of the trapezoidal threaded spindle.
For position indicators DD52R-E / DD51-E, the position indicator pitch is programmed.
Accessory
- Position indicators and handwheels have to be ordered seperately.
Technical Information
- ISO-Fundamental tolerancesÂ
GN 296

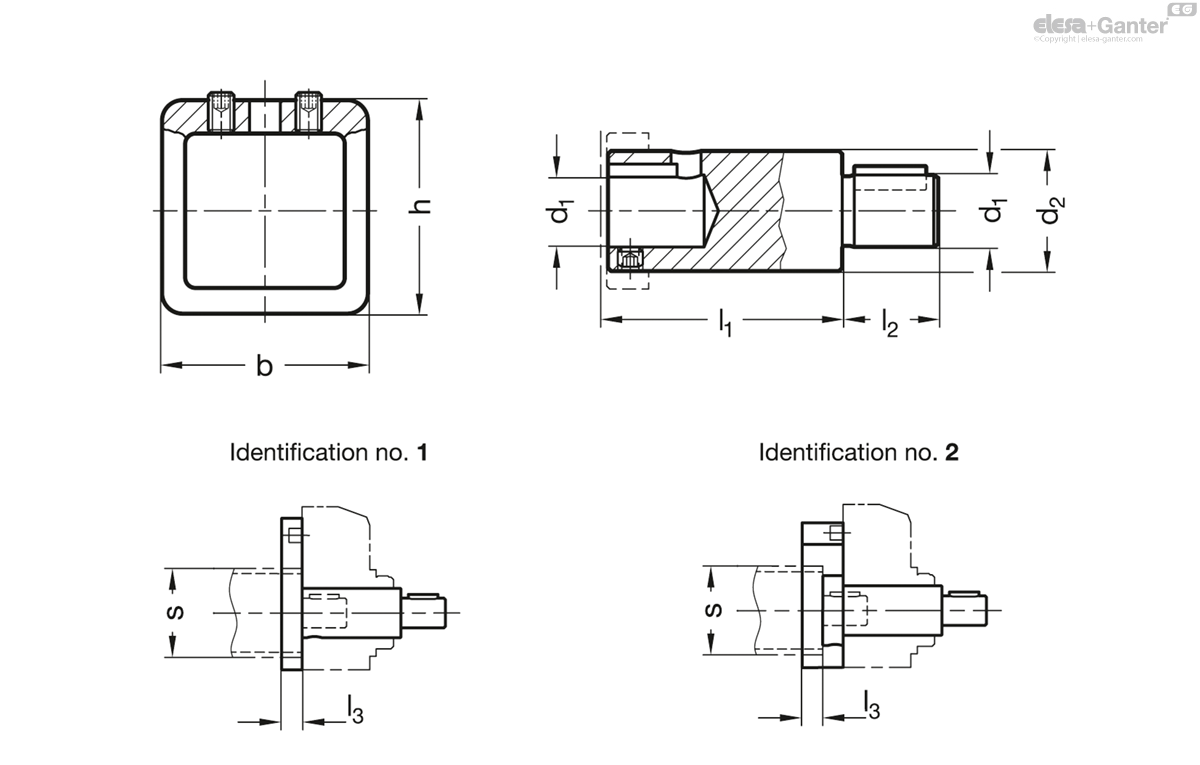

| s | d1 f7 | d2 | b | h | l1 | l2 | l3 | For position indicator |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 296-30-8-1 | 30 | 8 | 14 | 40 | 43.5 | 35 | 15 | 12 | DD51 | 76 |
|
| GN 296-30-8-2 | 30 | 8 | 14 | 40 | 43.5 | 42 | 15 | 12 | DD51 | 58 |
|
| GN 296-40-12-1 | 40 | 12 | 20 | 50 | 56.5 | 39 | 16 | 12 | DD52R | 130 |
|
| GN 296-40-12-2 | 40 | 12 | 20 | 50 | 56.5 | 49 | 16 | 12 | DD52R | 123 |
|
| GN 296-50-12-1 | 50 | 12 | 20 | 60 | 61.5 | 39 | 17 | 12 | DD52R | 140 |
|
| GN 296-50-12-2 | 50 | 12 | 20 | 60 | 61.5 | 49 | 17 | 12 | DD52R | 122 |
|
