GN 287
Swivel Clamp Connector Joints
Aluminum / Stainless Steel
GN 287-AL
Swivel Clamp Connector Joints
Aluminum

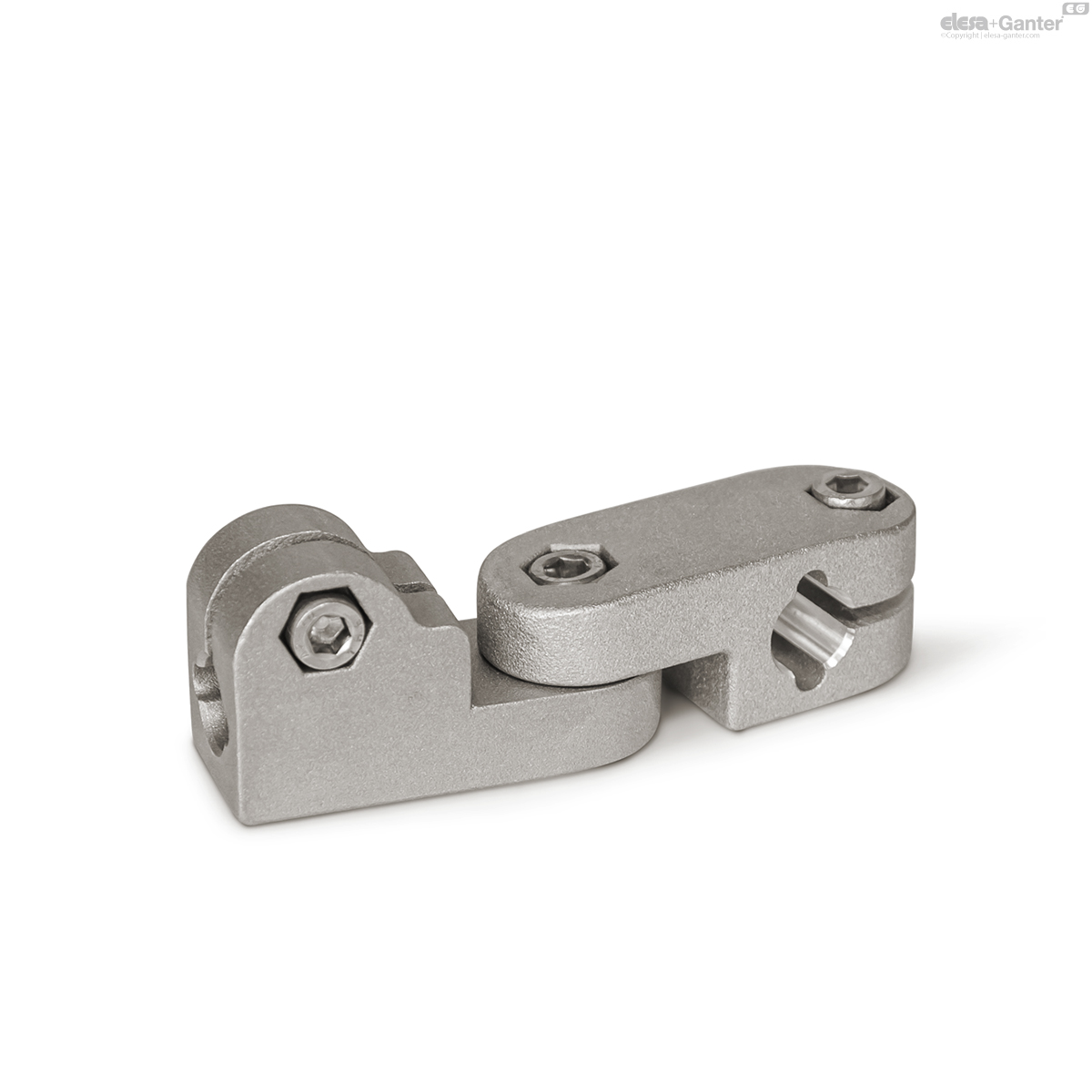

GN 287-NI
Swivel Clamp Connector Joints
Stainless Steel
Description
Specification
Identification no.
No. 2: With 3 stainless steel socket cap screws DIN 912
Aluminum
- Powder coated
Black, RAL 9005, textured finish SW
- Plain, matte shot-blasted BL
Stainless steel AISI CF-8 NI
Matte shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information
Swivel clamp connector joints GN 287 are an assembly of two swivel clamp connectors GN 275  and GN 277 .
The clamping bores are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462.

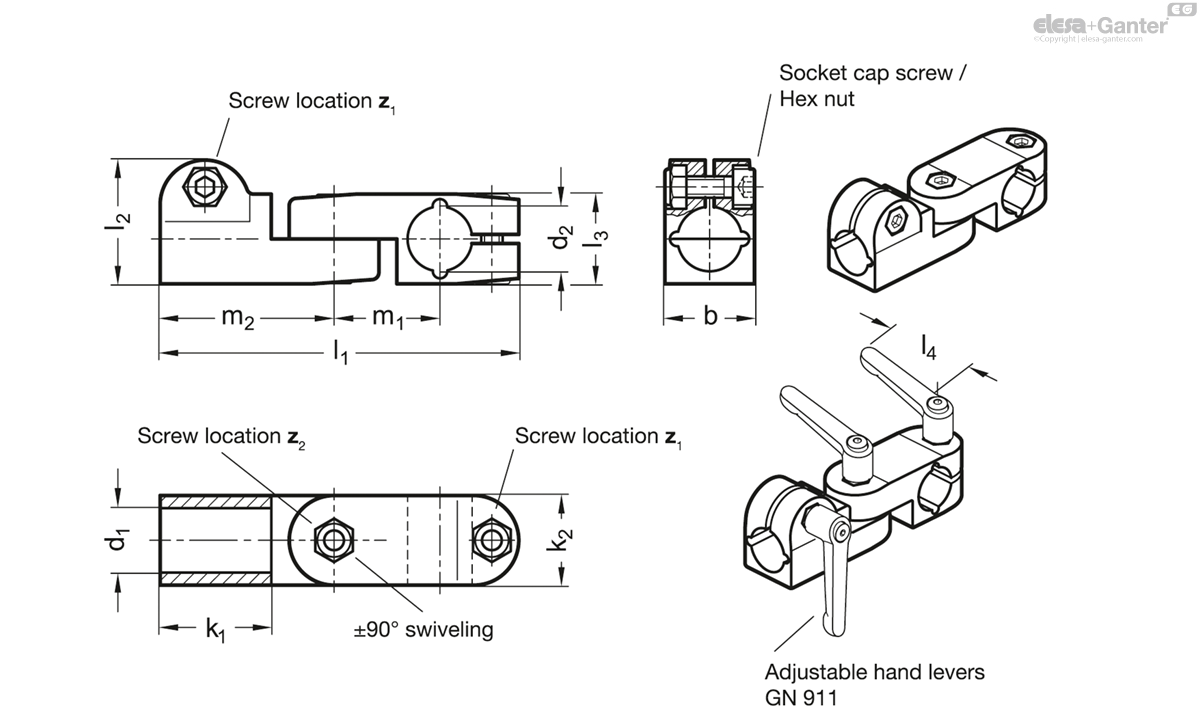

At the screw locations z1, the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  /GN 911.3  listed in the table as accessory.
Accessory
- Adjustable Hand Levers GN 911  /GN 911.3Â
Technical information
- Stainless Steel CharacteristicsÂ
GN 287-AL
| Color | d1 Bore |
d2 Bore |
b | k1 | k2 | l1 | l2 | l3 | m1 | m2 | z1 Screw locations |
z2 Screw locations |
Accessory Recom. hand lever GN 911 for z1 l4 |
Accessory Recom. hand lever GN 911 for z2 l4 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||
| GN 287-B12-B12-2-BL | BL - Plain finish | B 12 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B12-B12-2-SW | SW - RAL 9005 | B 12 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B12-B14-2-BL | BL - Plain finish | B 12 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 150 |
|
| GN 287-B12-B14-2-SW | SW - RAL 9005 | B 12 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 150 |
|
| GN 287-B12-B15-2-BL | BL - Plain finish | B 12 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 144 |
|
| GN 287-B12-B15-2-SW | SW - RAL 9005 | B 12 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 144 |
|
| GN 287-B12-B16-2-BL | BL - Plain finish | B 12 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B12-B16-2-SW | SW - RAL 9005 | B 12 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B12-B18-2-BL | BL - Plain finish | B 12 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B12-B18-2-SW | SW - RAL 9005 | B 12 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 63 | - | 45 | 63 | 145 |
|
| GN 287-B14-B12-2-BL | BL - Plain finish | B 14 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B14-B12-2-SW | SW - RAL 9005 | B 14 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B14-B14-2-BL | BL - Plain finish | B 14 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B14-B14-2-SW | SW - RAL 9005 | B 14 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B14-B15-2-BL | BL - Plain finish | B 14 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 142 |
|
| GN 287-B14-B15-2-SW | SW - RAL 9005 | B 14 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 142 |
|
| GN 287-B14-B16-2-BL | BL - Plain finish | B 14 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B14-B16-2-SW | SW - RAL 9005 | B 14 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B14-B18-2-BL | BL - Plain finish | B 14 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
| GN 287-B14-B18-2-SW | SW - RAL 9005 | B 14 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
| GN 287-B15-B12-2-BL | BL - Plain finish | B 15 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 144 |
|
| GN 287-B15-B12-2-SW | SW - RAL 9005 | B 15 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 144 |
|
| GN 287-B15-B14-2-BL | BL - Plain finish | B 15 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 142 |
|
| GN 287-B15-B14-2-SW | SW - RAL 9005 | B 15 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 142 |
|
| GN 287-B15-B15-2-BL | BL - Plain finish | B 15 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B15-B15-2-SW | SW - RAL 9005 | B 15 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B15-B16-2-BL | BL - Plain finish | B 15 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 138 |
|
| GN 287-B15-B16-2-SW | SW - RAL 9005 | B 15 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 138 |
|
| GN 287-B15-B18-2-BL | BL - Plain finish | B 15 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 136 |
|
| GN 287-B15-B18-2-SW | SW - RAL 9005 | B 15 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 136 |
|
| GN 287-B16-B12-2-BL | BL - Plain finish | B 16 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 145 |
|
| GN 287-B16-B12-2-SW | SW - RAL 9005 | B 16 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 145 |
|
| GN 287-B16-B14-2-BL | BL - Plain finish | B 16 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B16-B14-2-SW | SW - RAL 9005 | B 16 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B16-B15-2-BL | BL - Plain finish | B 16 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 137 |
|
| GN 287-B16-B15-2-SW | SW - RAL 9005 | B 16 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 137 |
|
| GN 287-B16-B16-2-BL | BL - Plain finish | B 16 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B16-B16-2-SW | SW - RAL 9005 | B 16 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B16-B18-2-BL | BL - Plain finish | B 16 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
| GN 287-B16-B18-2-SW | SW - RAL 9005 | B 16 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
| GN 287-B18-B12-2-BL | BL - Plain finish | B 18 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 145 |
|
| GN 287-B18-B12-2-SW | SW - RAL 9005 | B 18 | B 12 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 145 |
|
| GN 287-B18-B14-2-BL | BL - Plain finish | B 18 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B18-B14-2-SW | SW - RAL 9005 | B 18 | B 14 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 140 |
|
| GN 287-B18-B15-2-BL | BL - Plain finish | B 18 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 132 |
|
| GN 287-B18-B15-2-SW | SW - RAL 9005 | B 18 | B 15 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 132 |
|
| GN 287-B18-B16-2-BL | BL - Plain finish | B 18 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B18-B16-2-SW | SW - RAL 9005 | B 18 | B 16 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 135 |
|
| GN 287-B18-B18-2-BL | BL - Plain finish | B 18 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
| GN 287-B18-B18-2-SW | SW - RAL 9005 | B 18 | B 18 | 25 | 31.5 | 25 | 100 | 34.5 | 25 | 29.5 | 48.5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 | 130 |
|
