GN 282

Swivel clamp connector joints

Aluminium

Enquire Now

Description

Specification

Identification No.

No. 2: with 2 Stainless Steel-clamping screws DIN 912

Types

Type S: stepless adjustment

Type T: adjustment by 15°- division (serration)

Aluminium

plastic coated

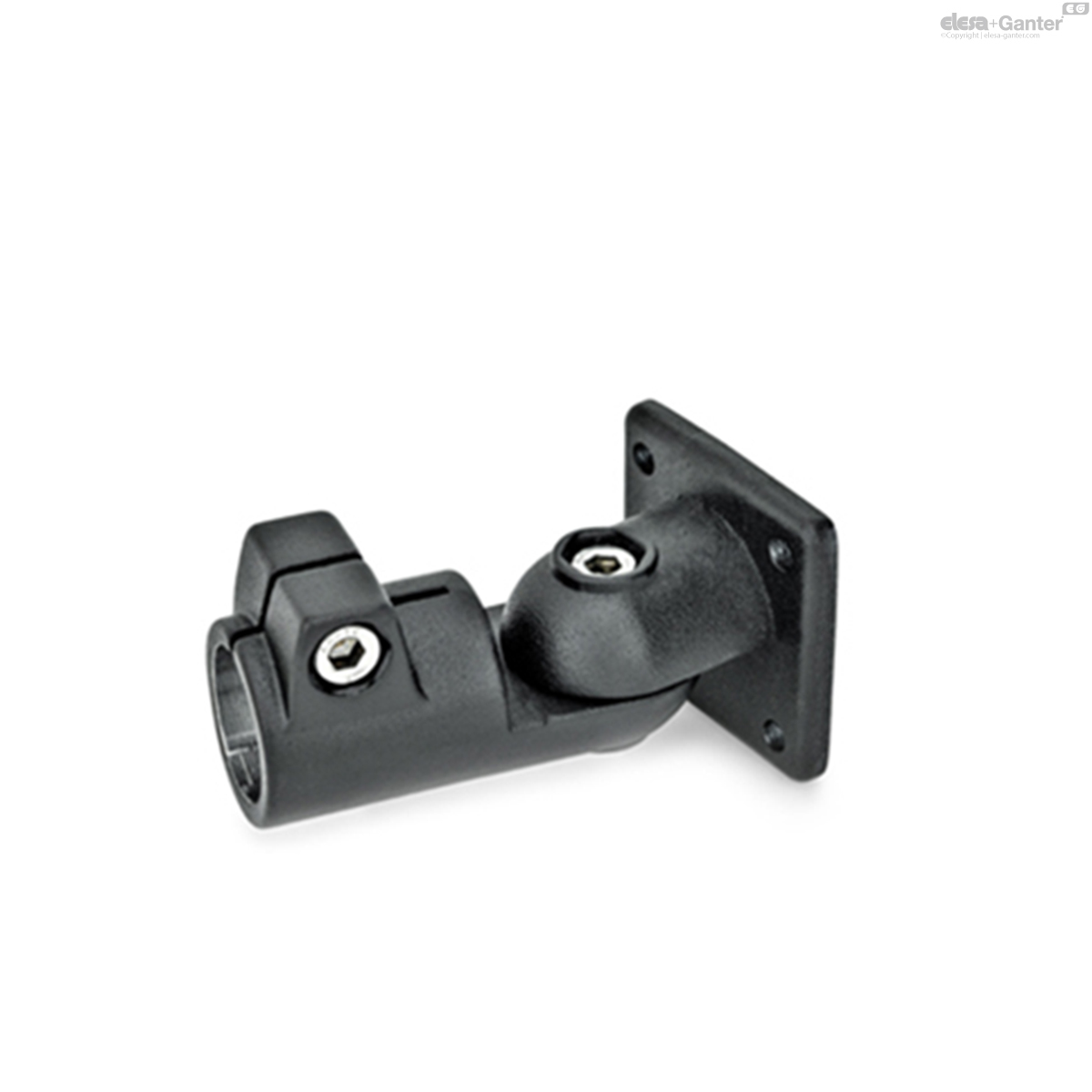

black RAL 9005, textured finish SW

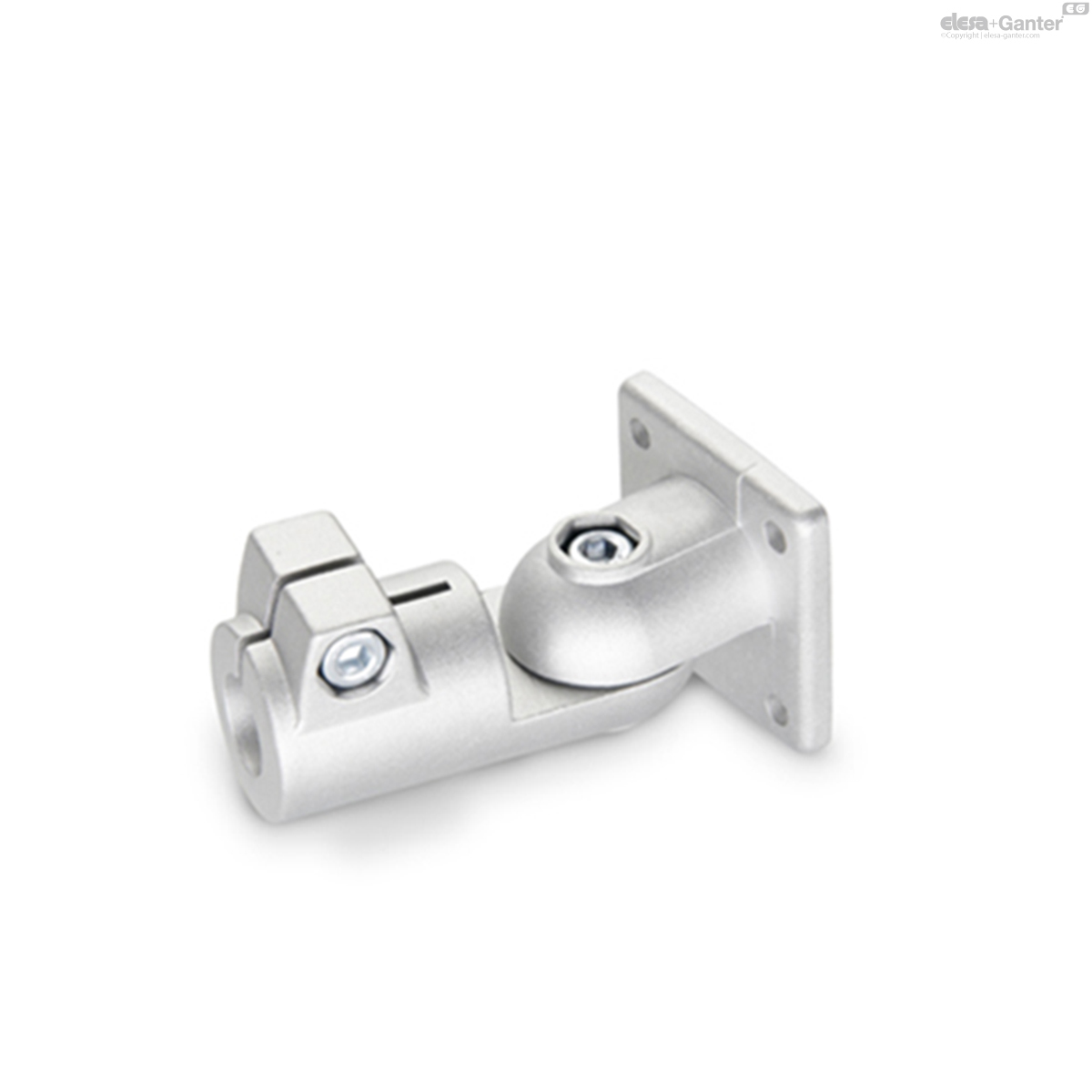

blank BL

matt shot-blasted

Clamping bore mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

Information

The swivel clamp connector joints GN 282 are an assembly of of the swivel clamp connectors GN 272 and GN 276 .

For the type with stepless adjustment (Type S) swivel clamp connectors with a centring step are used.

The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard clamping screws are socket cap screws DIN 912. They can be replaced by clamping kits GN 911 (article code see table of dimensions).

Accessory

Clamping kits GN 911

Technical information

Stainless Steel characteristics

GN 282

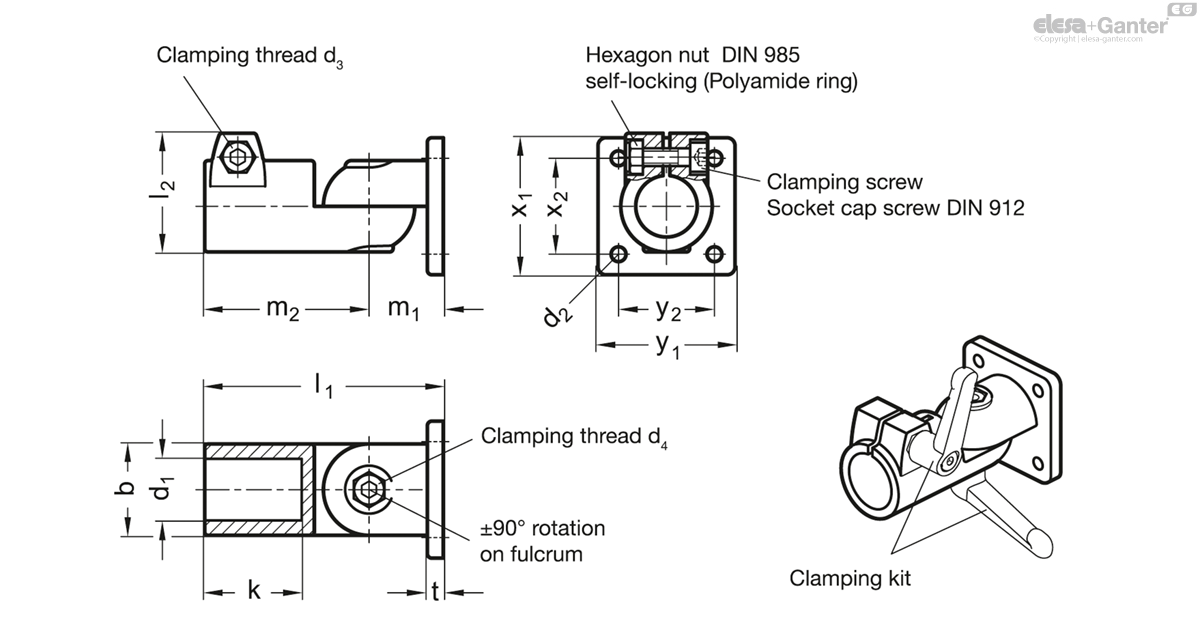

	Color	d₁	b	d₂	d₃	d₄	k	l₁	l₂	m₁	m₂	t	x₁	x₂	y₁	y₂	Clamping kit for d₃	Clamping kit for d₄
Code																				Actions
GN 282-B20-S-2-BL	BL - Blank	B 20	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	342
GN 282-B20-S-2-SW	SW - RAL 9004	B 20	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	342
GN 282-B20-T-2-BL	BL - Blank	B 20	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M8-35	342
GN 282-B20-T-2-SW	SW - RAL 9004	B 20	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M8-35	342
GN 282-B25-S-2-BL	BL - Blank	B 25	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	323
GN 282-B25-S-2-SW	SW - RAL 9004	B 25	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	323
GN 282-B25-T-2-BL	BL - Blank	B 25	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M8-35	323
GN 282-B25-T-2-SW	SW - RAL 9004	B 25	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M8-35	323
GN 282-B30-S-2-BL	BL - Blank	B 30	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	298
GN 282-B30-S-2-SW	SW - RAL 9004	B 30	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-32	GN 911-M8-35	298
GN 282-B30-T-2-BL	BL - Blank	B 30	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M10-63	298
GN 282-B30-T-2-SW	SW - RAL 9004	B 30	40	6.5	M 8	M 8	42.5	104.5	52	32.5	72	7	60	42	60	42	GN 911-M8-35	GN 911-M8-35	298
GN 282-B40-S-2-BL	BL - Blank	B 40	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1385
GN 282-B40-S-2-SW	SW - RAL 9004	B 40	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1385
GN 282-B40-T-2-BL	BL - Blank	B 40	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1385
GN 282-B40-T-2-SW	SW - RAL 9004	B 40	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1385
GN 282-B42-S-2-BL	BL - Blank	B 42	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1341
GN 282-B42-S-2-SW	SW - RAL 9004	B 42	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1341
GN 282-B42-T-2-BL	BL - Blank	B 42	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1341
GN 282-B42-T-2-SW	SW - RAL 9004	B 42	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1341
GN 282-B45-S-2-BL	BL - Blank	B 45	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1315
GN 282-B45-S-2-SW	SW - RAL 9004	B 45	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1315
GN 282-B45-T-2-BL	BL - Blank	B 45	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1315
GN 282-B45-T-2-SW	SW - RAL 9004	B 45	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1315
GN 282-B48-S-2-BL	BL - Blank	B 48	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1245
GN 282-B48-S-2-SW	SW - RAL 9004	B 48	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1245
GN 282-B48-T-2-BL	BL - Blank	B 48	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1245
GN 282-B48-T-2-SW	SW - RAL 9004	B 48	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1245
GN 282-B50-S-2-BL	BL - Blank	B 50	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1234
GN 282-B50-S-2-SW	SW - RAL 9004	B 50	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1234
GN 282-B50-T-2-BL	BL - Blank	B 50	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1234
GN 282-B50-T-2-SW	SW - RAL 9004	B 50	65	11	M 10	M 10	74	167	77.5	52	115	14	105	74	105	74	GN 911-M10-55	GN 911-M10-63	1234
