GN 276

Swivel Clamp Connectors

Aluminum

Enquire Now

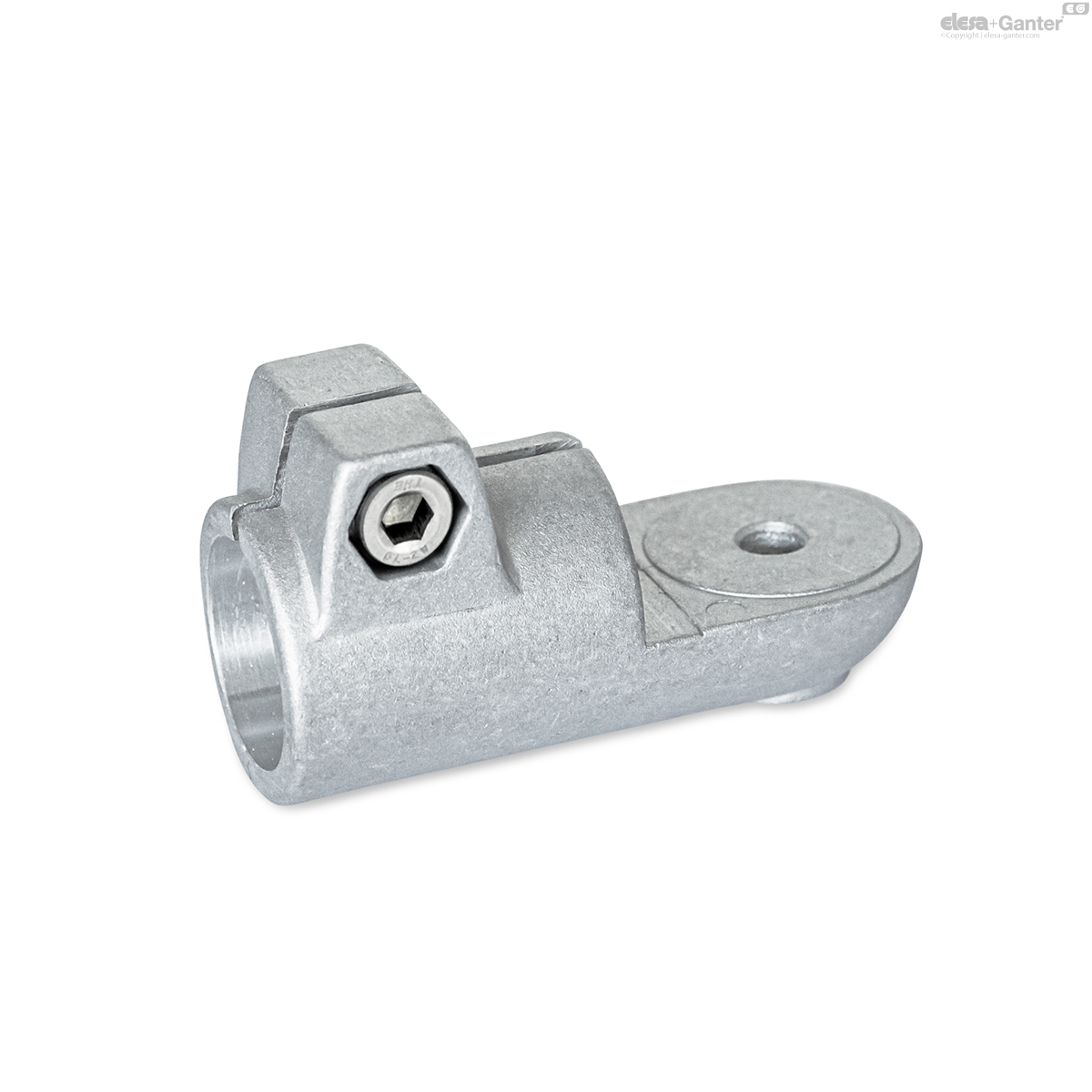

GN 276-OZ

Swivel Clamp Connectors

Without centering step (smooth)

GN 276-MZ

Swivel Clamp Connectors

With centering step

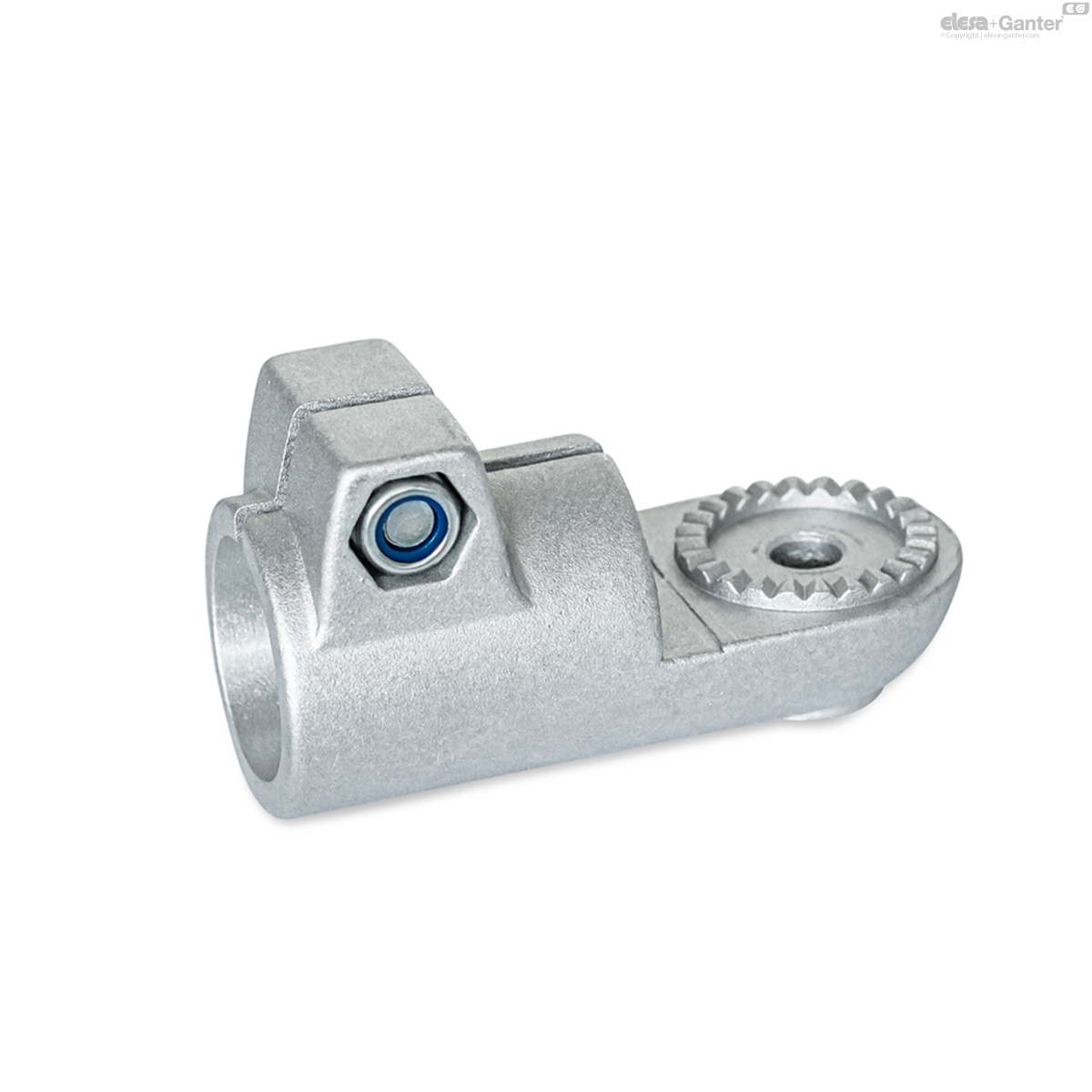

GN 276-AV

Swivel Clamp Connectors

With external serration

GN 276-IV

Swivel Clamp Connectors

With internal serration

Description

Specification

Types

Type OZ: Without centering step (smooth)

Type MZ: With centering step

Type AV: With external serration

Type IV: With internal serration

Identification No.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

Powder coated

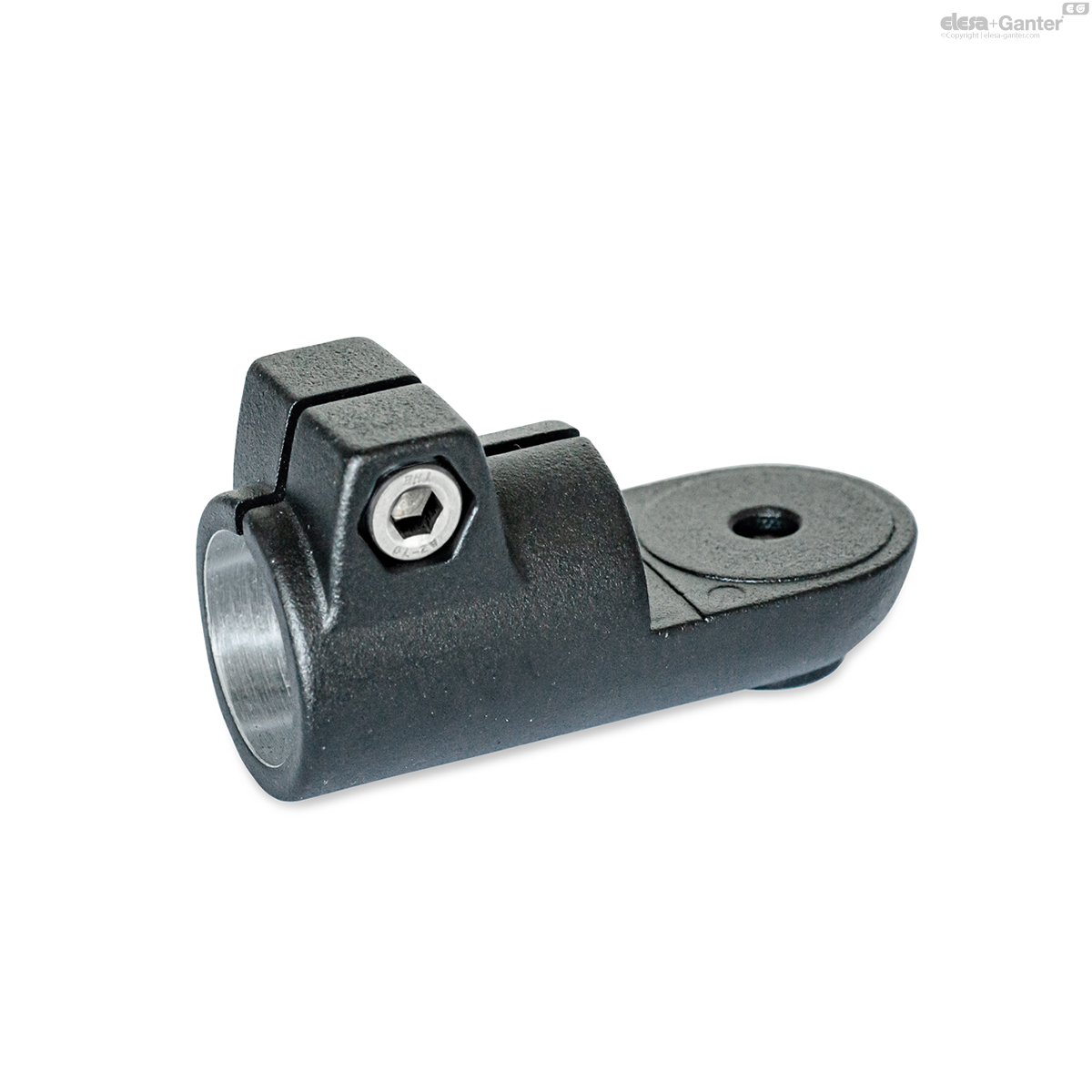

Black, RAL 9005, textured finish SW

Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

Information

The clamping bore of swivel clamp connectors GN 276 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping. For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.

Swivel clamp connectors GN 276 can be combined with swivel clamp connectors GN 272, GN 274 or GN 278 to swivel clamp connector joints.

Accessory

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

GN 276-OZ

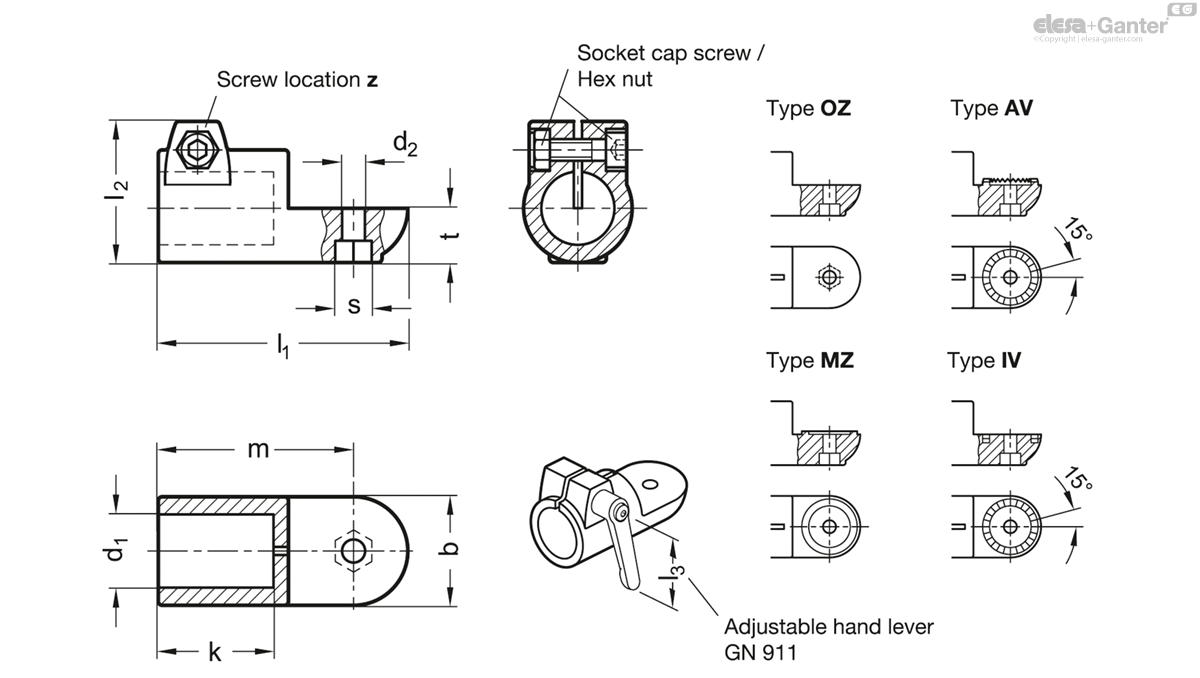

	Color	d₁ Bore	b	d₂	k	l₁	l₂	m	s	t	z Screw location	Accessory Recom. hand lever GN 911 for z l₃
Code														Actions
GN 276-B20-OZ-2-BL	BL - Plain finish	B 20	40	8.5	42.5	92	52	72	13	20	M8-25	-	210
GN 276-B20-OZ-2-SW	SW - RAL 9005	B 20	40	8.5	42.5	92	52	72	13	20	M8-25	-	210
GN 276-B25-OZ-2-BL	BL - Plain finish	B 25	40	8.5	42.5	92	52	72	13	20	M8-25	63 \| 78	185
GN 276-B25-OZ-2-SW	SW - RAL 9005	B 25	40	8.5	42.5	92	52	72	13	20	M8-25	63 \| 78	185
GN 276-B30-OZ-2-BL	BL - Plain finish	B 30	40	8.5	42.5	92	52	72	13	20	M8-25	63 \| 78	160
GN 276-B30-OZ-2-SW	SW - RAL 9005	B 30	40	8.5	42.5	92	52	72	13	20	M8-25	63 \| 78	160
GN 276-B40-OZ-2-BL	BL - Plain finish	B 40	65	10.5	74	148	77.5	115	17	32.5	M10-50	-	775
GN 276-B40-OZ-2-SW	SW - RAL 9005	B 40	65	10.5	74	148	77.5	115	17	32.5	M10-50	-	775
GN 276-B42-OZ-2-BL	BL - Plain finish	B 42	65	10.5	74	148	77.5	115	17	32.5	M10-50	-	750
GN 276-B42-OZ-2-SW	SW - RAL 9005	B 42	65	10.5	74	148	77.5	115	17	32.5	M10-50	-	750
GN 276-B45-OZ-2-BL	BL - Plain finish	B 45	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	725
GN 276-B45-OZ-2-SW	SW - RAL 9005	B 45	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	725
GN 276-B48-OZ-2-BL	BL - Plain finish	B 48	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	675
GN 276-B48-OZ-2-SW	SW - RAL 9005	B 48	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	675
GN 276-B50-OZ-2-BL	BL - Plain finish	B 50	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	650
GN 276-B50-OZ-2-SW	SW - RAL 9005	B 50	65	10.5	74	148	77.5	115	17	32.5	M10-50	78 \| 92	650
