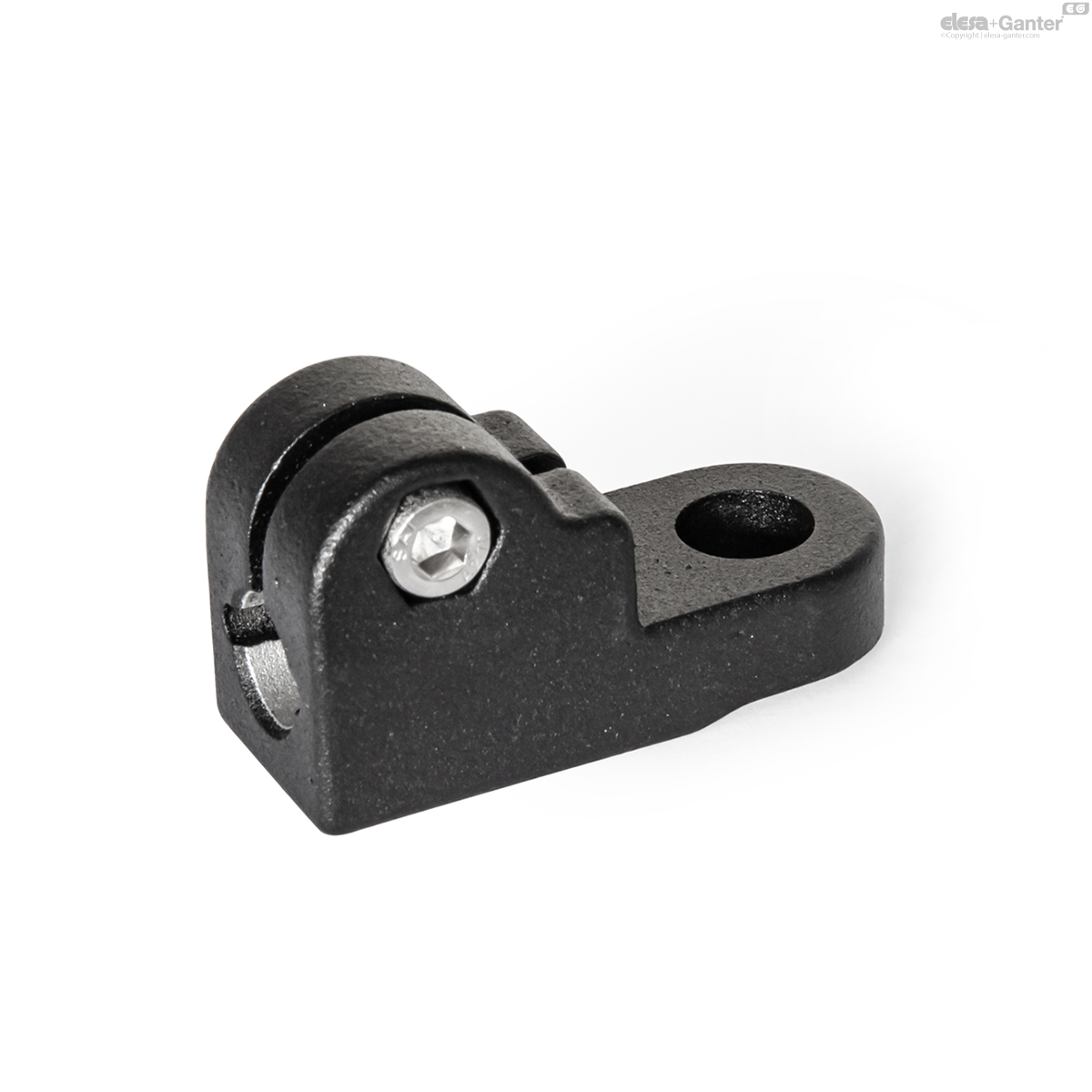

Home Tube Clamp Connectors Tube clamp connectors GN 275.4

GN 275.4

Sensor Holders

Aluminum

Enquire Now

Description

Specification

Identification no.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

The clamping bore of the sensor holders GN 275.4 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screw can be replaced by an adjustable lever GN 911 listed in the table as accessory.

Accessory

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

GN 275.4

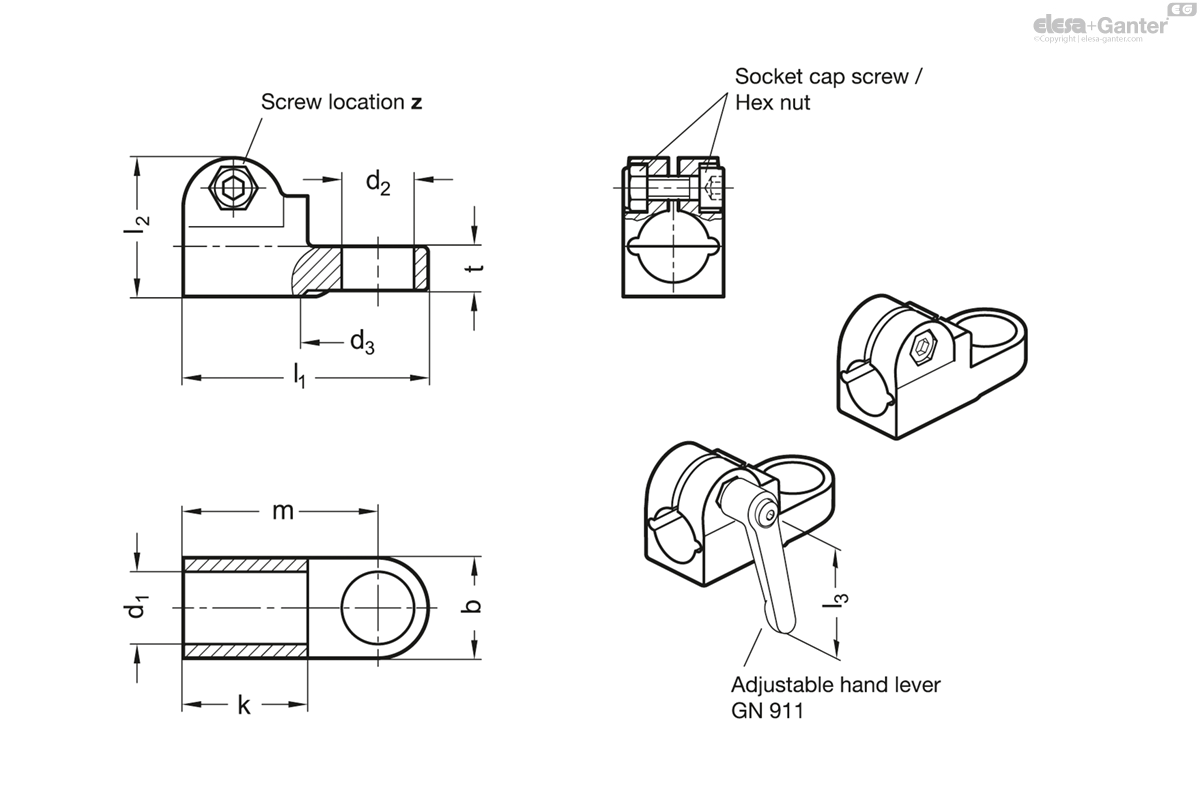

	d₁	d₂	b	d₃	k	l₁	l₂	m	t	z Screw location	Accessory Recom. hand lever GN 911 for z l₃
Code													Actions
GN 275.4-B12-B12-2-SW	B 12	B 12	25	27	31.5	64	34.5	29.5	11	M6-20	63	74
GN 275.4-B12-B18-2-SW	B 12	B 18	25	27	31.5	64	34.5	29.5	11	M6-20	63	72
GN 275.4-B14-B12-2-SW	B 14	B 12	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	70
GN 275.4-B14-B18-2-SW	B 14	B 18	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	68
GN 275.4-B15-B12-2-SW	B 15	B 12	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	69
GN 275.4-B15-B18-2-SW	B 15	B 18	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	67
GN 275.4-B16-B12-2-SW	B 16	B 12	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	68
GN 275.4-B16-B18-2-SW	B 16	B 18	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	66
GN 275.4-B18-B12-2-SW	B 18	B 12	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	64
GN 275.4-B18-B18-2-SW	B 18	B 18	25	27	31.5	64	34.5	29.5	11	M6-20	45 \| 63	62
