GN 274.1

Swivel Clamp Linear Actuator Connectors

Aluminum

Enquire Now

GN 274.1-OZ

Swivel Clamp Linear Actuator Connectors

Without centering step (smooth)

GN 274.1-MZ

Swivel Clamp Linear Actuator Connectors

With centering step

GN 274.1-AV

Swivel Clamp Linear Actuator Connectors

With external serration

GN 274.1-IV

Swivel Clamp Linear Actuator Connectors

With internal serration

Description

Specification

Types

Type OZ: Without centering step (smooth)

Type MZ: With centering step

Type AV: With external serration

Type IV: With internal serration

Identification no.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Sleeve bearing

Plastic (PTFE)

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

Swivel clamp linear actuator connectors GN 274.1 are based on swivel clamp connectors. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation „G“ are equipped with sleeve bearings.

With the screw location z, the play of the guide bore d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screw can be replaced by an adjustable hand levers GN 911 listed in the table as accessory.

Accessory

Adjustable Hand Levers GN 911

Technical information

Plastic Characteristics

Stainless Steel Characteristics

GN 274.1-IV

	Color	d₁ Bore without sleeve bearing	d₁ Bore with sleeve bearing	b	d₂	d₃ Mounting screws on the drive key	k Clamping length	l₁	m	s	t	z Screw location	Accessory Recom. hand lever GN 911 for z l₂
Code															Actions

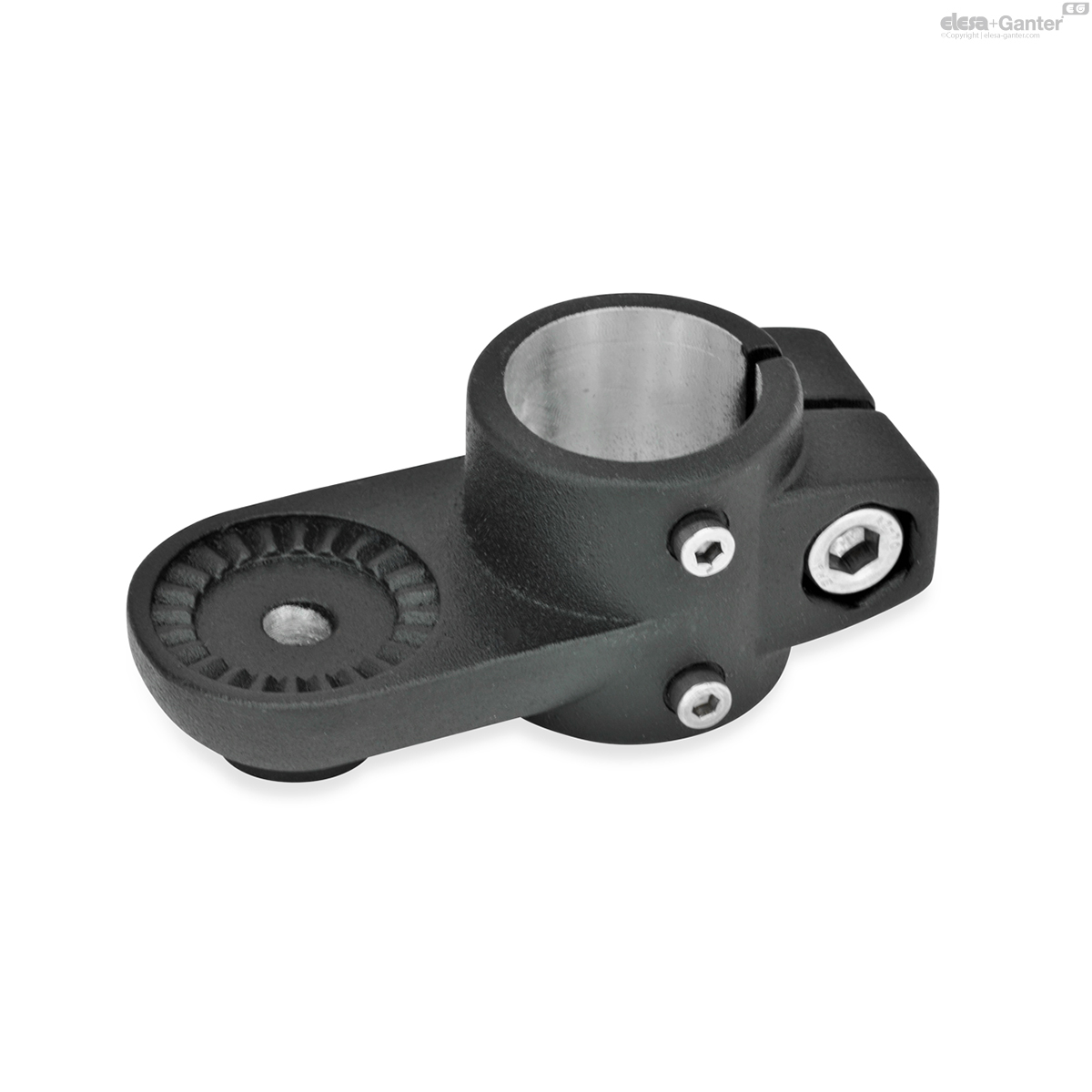

GN 274.1-B30-IV-2-SW	B	B 30	-	40	8.5	M 4	40	95	43	13	20	M8-25	63 \| 78	145
GN 274.1-B40-IV-2-SW	B	B 40	-	65	10.5	M 5	65	148	70	17	32.5	M10-50	-	700
GN 274.1-B50-IV-2-SW	B	B 50	-	65	10.5	M 6	65	148	70	17	32.5	M10-50	78 \| 92	630

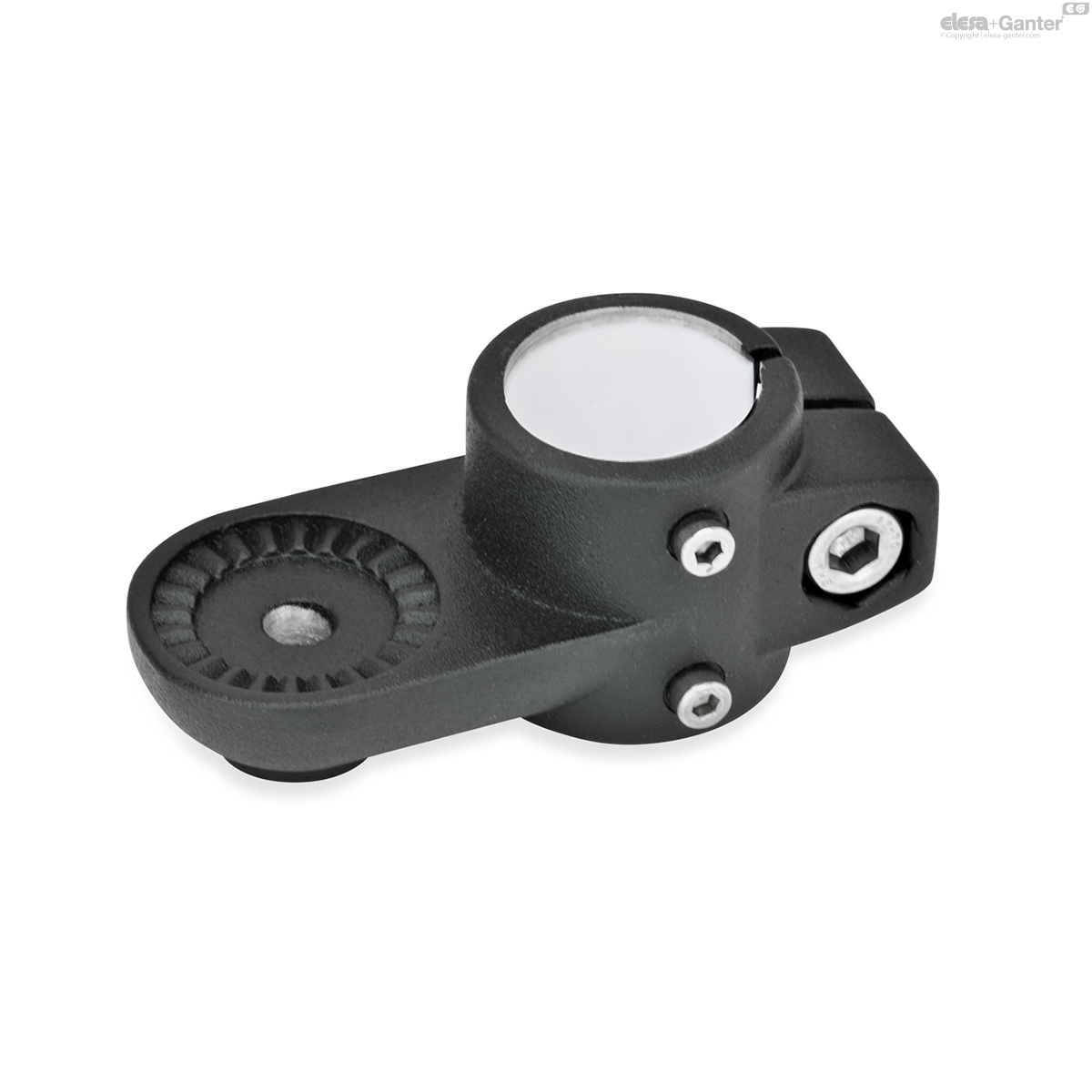

GN 274.1-G30-IV-2-SW	G	-	G 30	40	8.5	M 4	40	95	43	13	20	M8-25	63 \| 78	130
GN 274.1-G40-IV-2-SW	G	-	G 40	65	10.5	M 5	65	148	70	17	32.5	M10-50	-	670
GN 274.1-G50-IV-2-SW	G	-	G 50	65	10.5	M 6	65	148	70	17	32.5	M10-50	78 \| 92	580
