GN 272

Swivel Clamp Connector Bases

Aluminum

Enquire Now

Description

Specification

Aluminum

Black, RAL 9005, textured finish SW

Information

Swivel clamp connector bases GN 272 can be combined with swivel clamp connectors GN 274, GN 276 or GN 278 to swivel clamp connector joints.

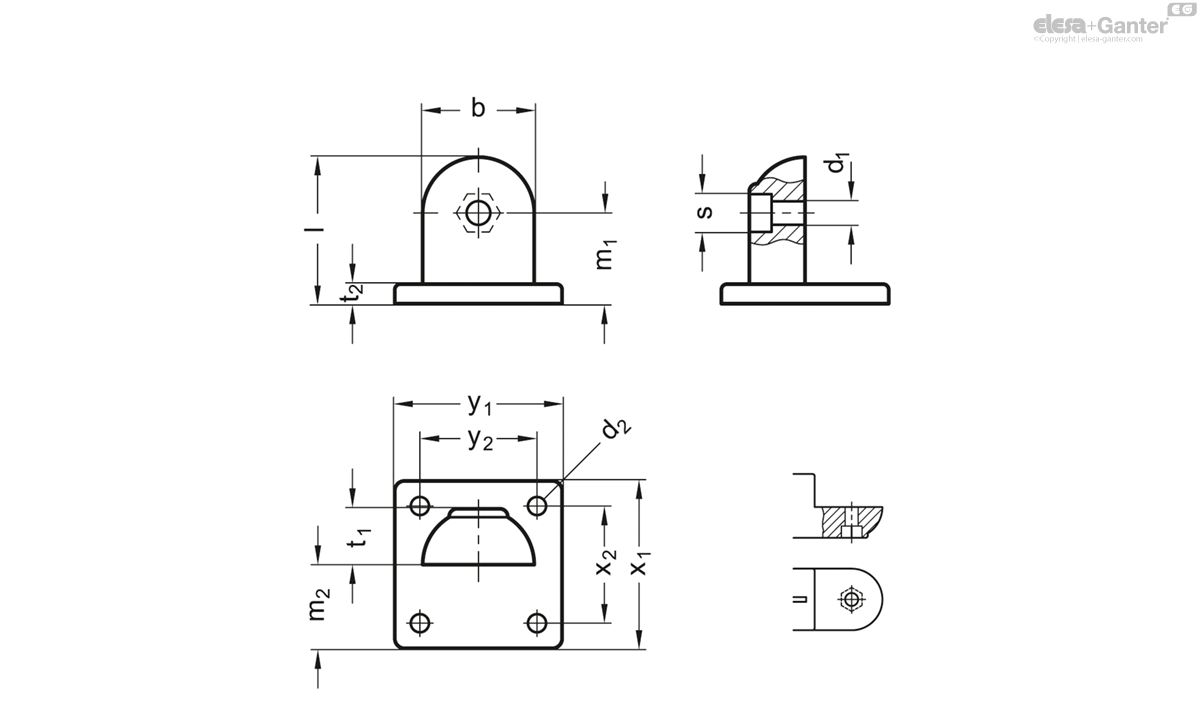

	Color	b	d₁	d₂	l	m₁	m₂	t₁	t₂	s	x₁	x₂	y₁	y₂
Code																Actions

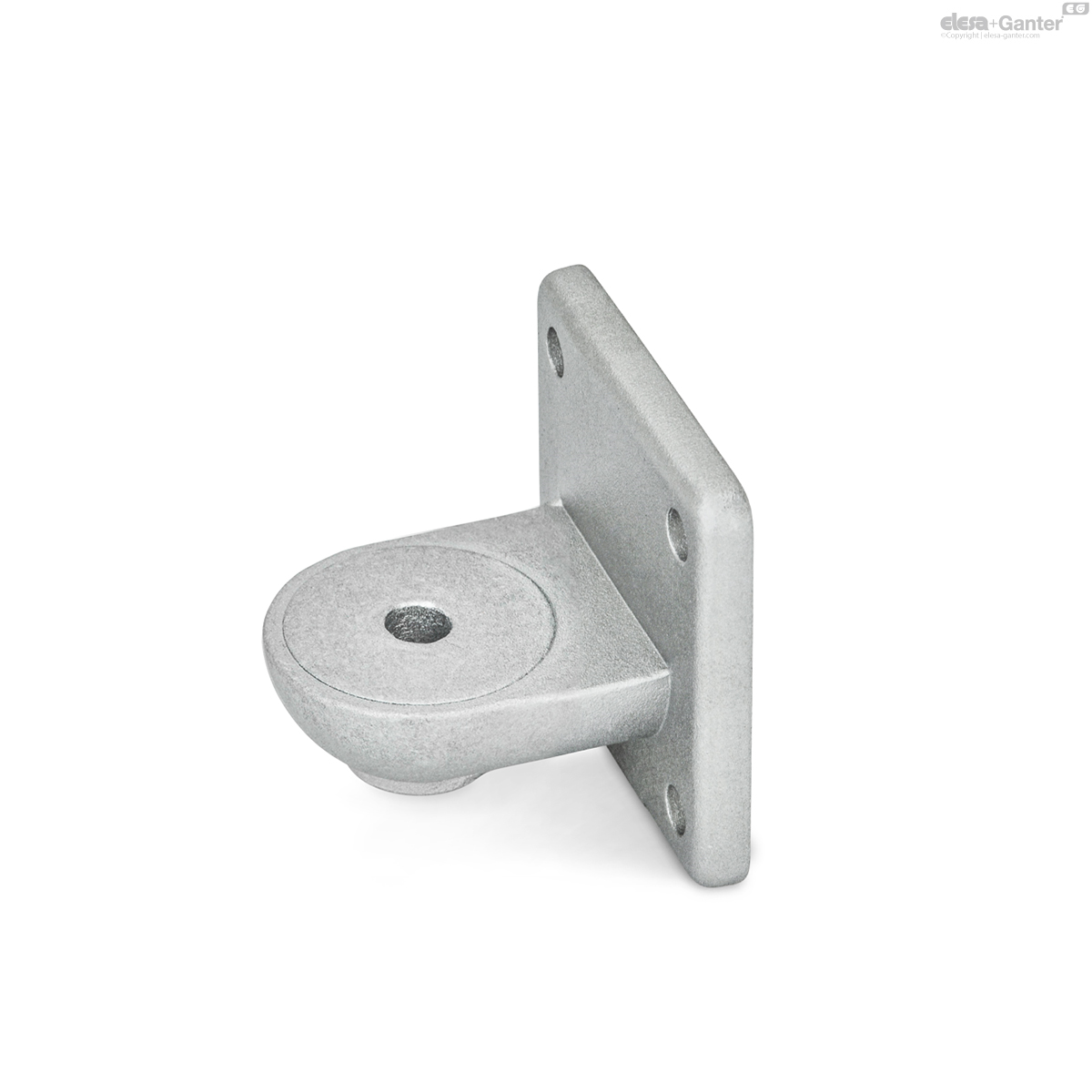

GN 272-40-OZ-BL	BL - Plain finish	40	8.5	6.5	52.5	32.5	30	20	7	13	60	42	60	42	105

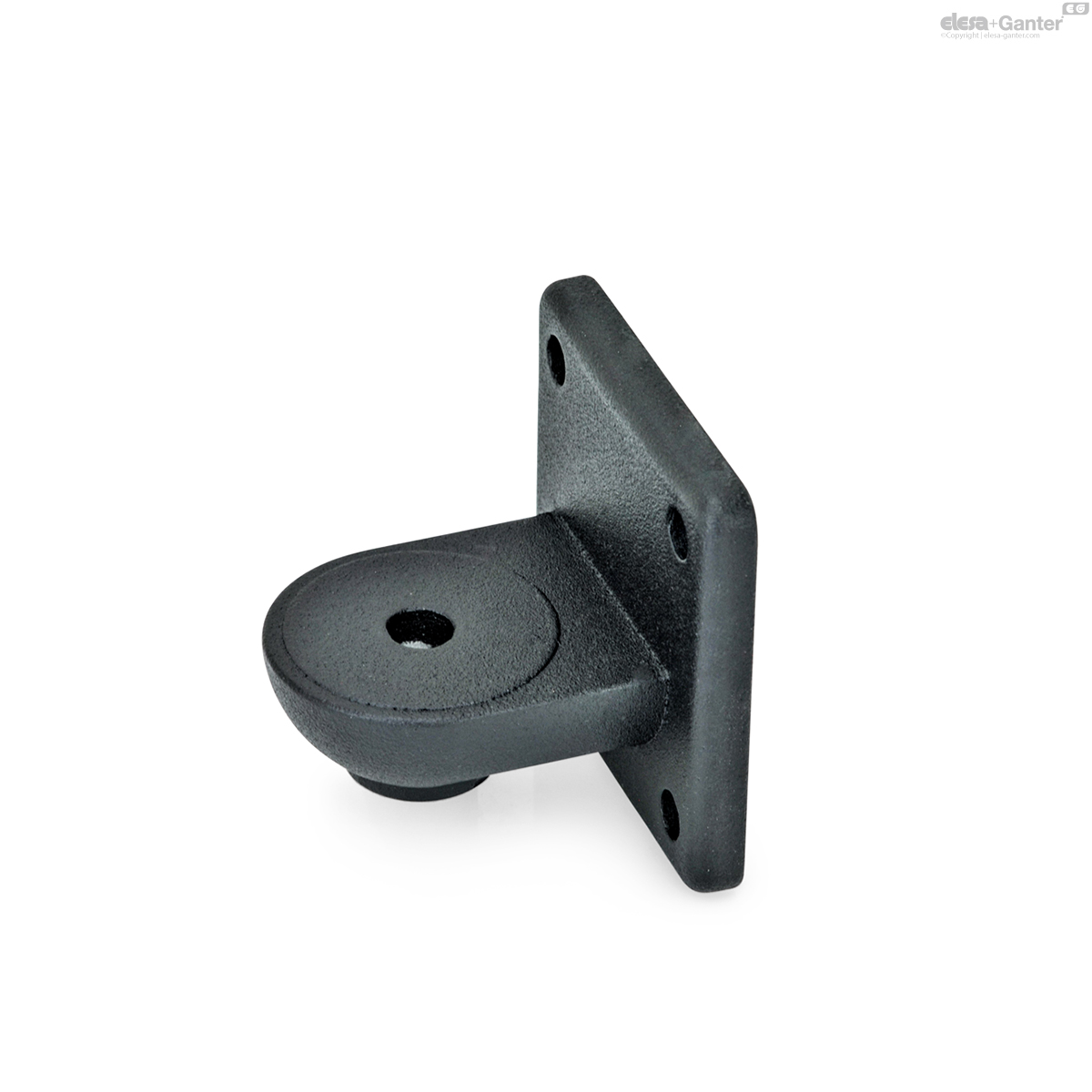

GN 272-40-OZ-SW	SW - RAL 9005	40	8.5	6.5	52.5	32.5	30	20	7	13	60	42	60	42	105
GN 272-65-OZ-BL	BL - Plain finish	65	10.2	11	84.5	52	52.5	32.5	14	17	105	74	105	74	524
GN 272-65-OZ-SW	SW - RAL 9005	65	10.2	11	84.5	52	52.5	32.5	14	17	105	74	105	74	524
