GN 272
Swivel Clamp Connector Bases
Aluminum
GN 272-OZ
Swivel Clamp Connector Bases
Without centering step (smooth)
GN 272-MZ
Swivel Clamp Connector Bases
With centering step
GN 272-AV
Swivel Clamp Connector Bases
With external serration
GN 272-IV
Swivel Clamp Connector Bases
With internal serration
Description
Specification
Types
- Type OZ: Without centering step (smooth)
- Type MZ: With centering step
- Type AV: With external serration
- Type IV: With internal serration
Aluminum
- Powder coated

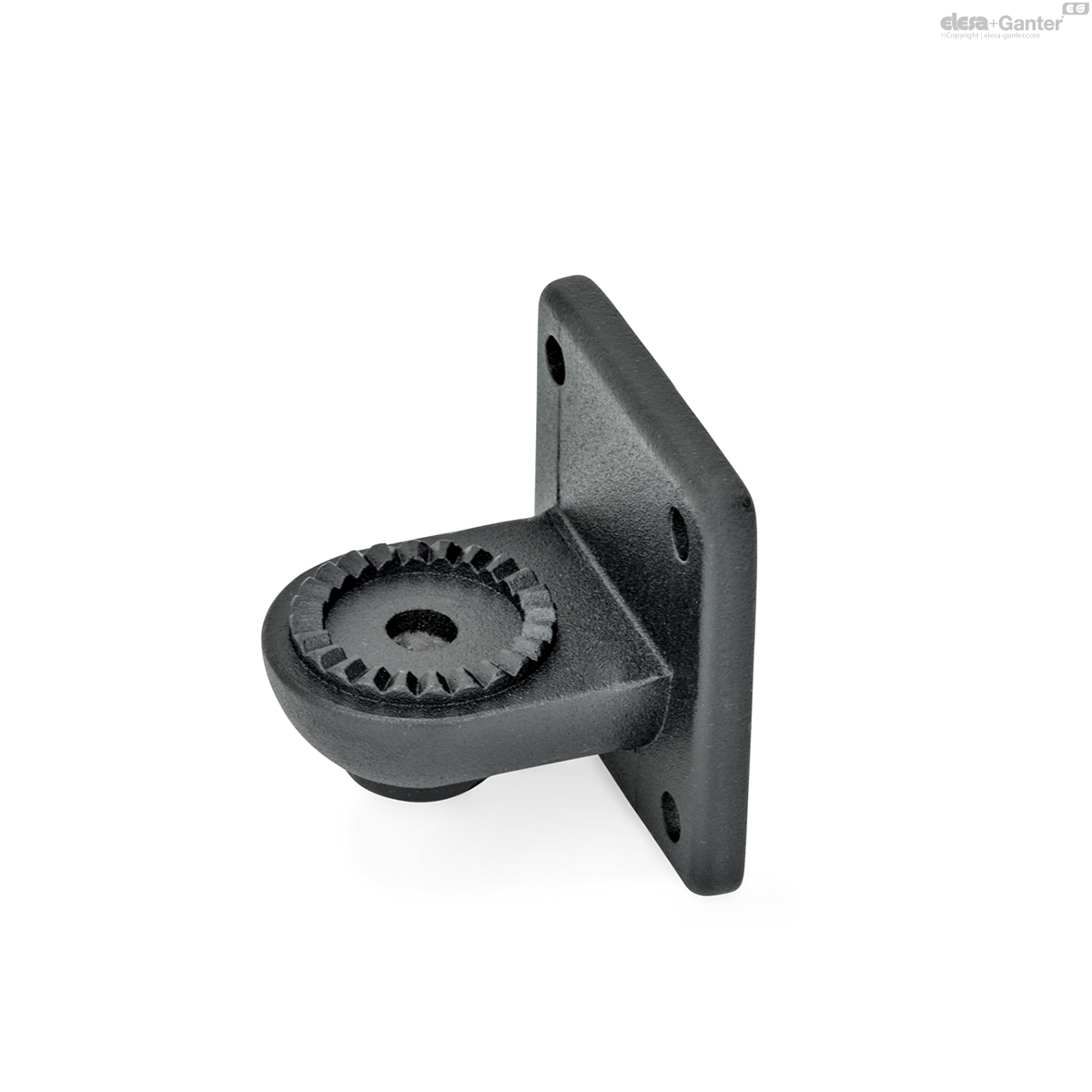

Black, RAL 9005, textured finish SW
- Plain, matte shot-blasted BL
Information
Swivel clamp connector bases GN 272 can be combined with swivel clamp connectors GN 274, GN 276 or GN 278 to swivel clamp connector joints.

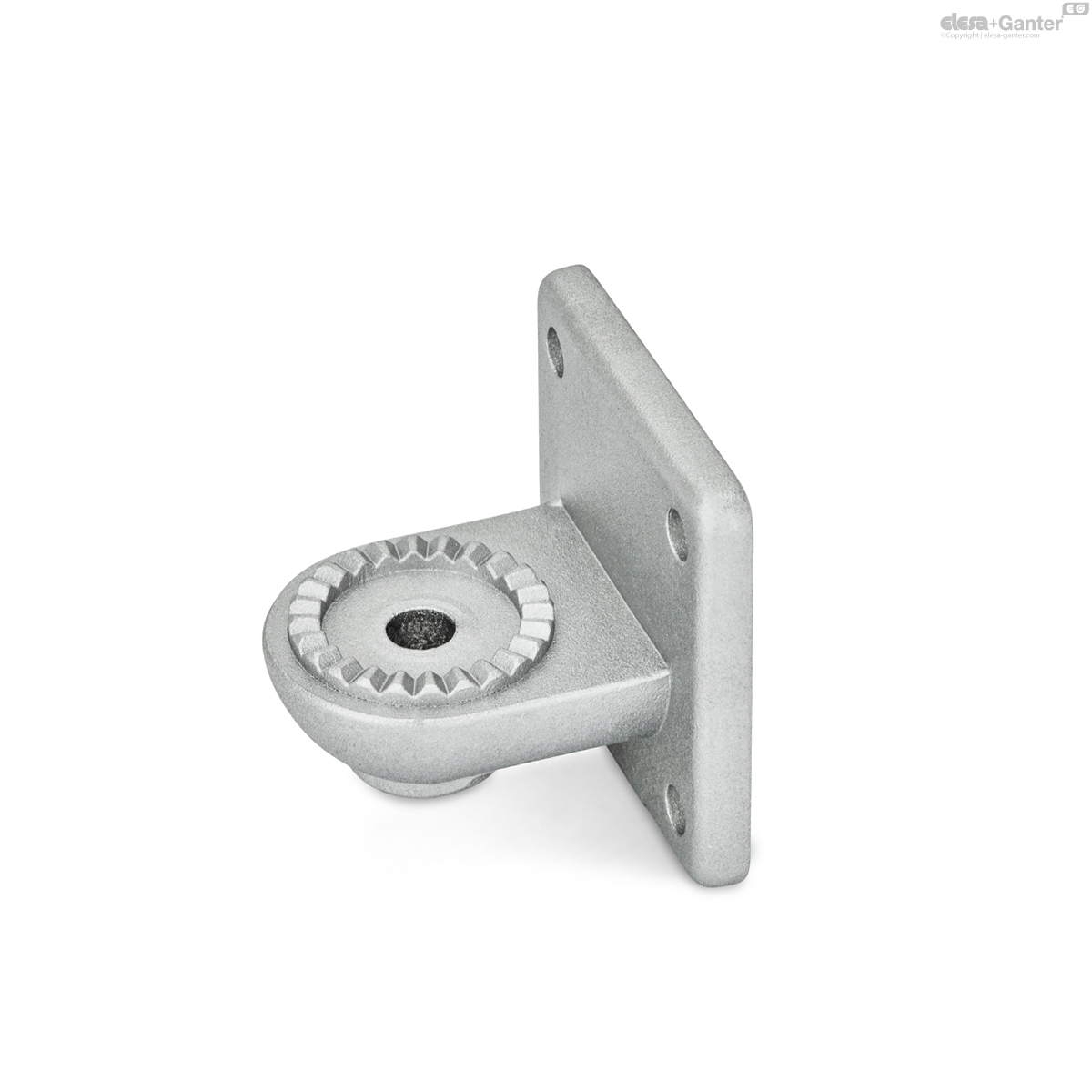

GN 272-AV

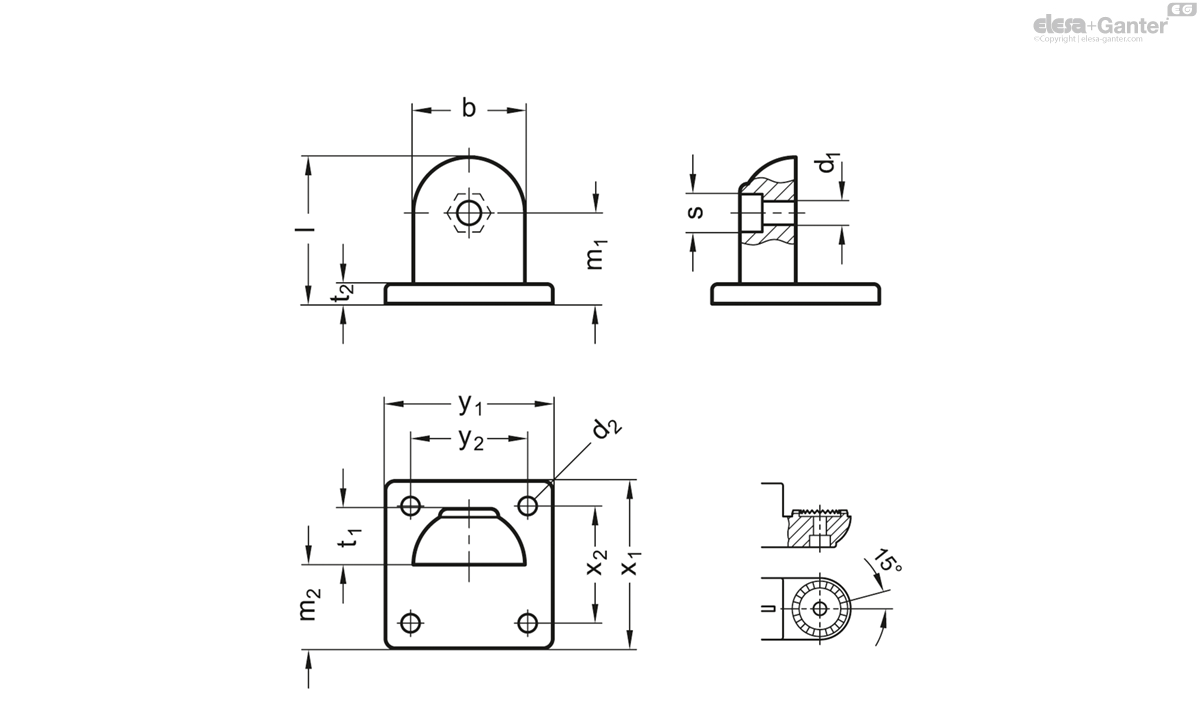

| Color | b | d1 | d2 | l | m1 | m2 | t1 | t2 | s | x1 | x2 | y1 | y2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||
| GN 272-40-AV-BL | BL - Plain finish | 40 | 8.5 | 6.5 | 52.5 | 32.5 | 30 | 20 | 7 | 13 | 60 | 42 | 60 | 42 | 104 |
|
| GN 272-40-AV-SW | SW - RAL 9005 | 40 | 8.5 | 6.5 | 52.5 | 32.5 | 30 | 20 | 7 | 13 | 60 | 42 | 60 | 42 | 104 |
|
| GN 272-65-AV-BL | BL - Plain finish | 65 | 10.2 | 11 | 84.5 | 52 | 52.5 | 32.5 | 14 | 17 | 105 | 74 | 105 | 74 | 516 |
|
| GN 272-65-AV-SW | SW - RAL 9005 | 65 | 10.2 | 11 | 84.5 | 52 | 52.5 | 32.5 | 14 | 17 | 105 | 74 | 105 | 74 | 516 |
|
