GN 271

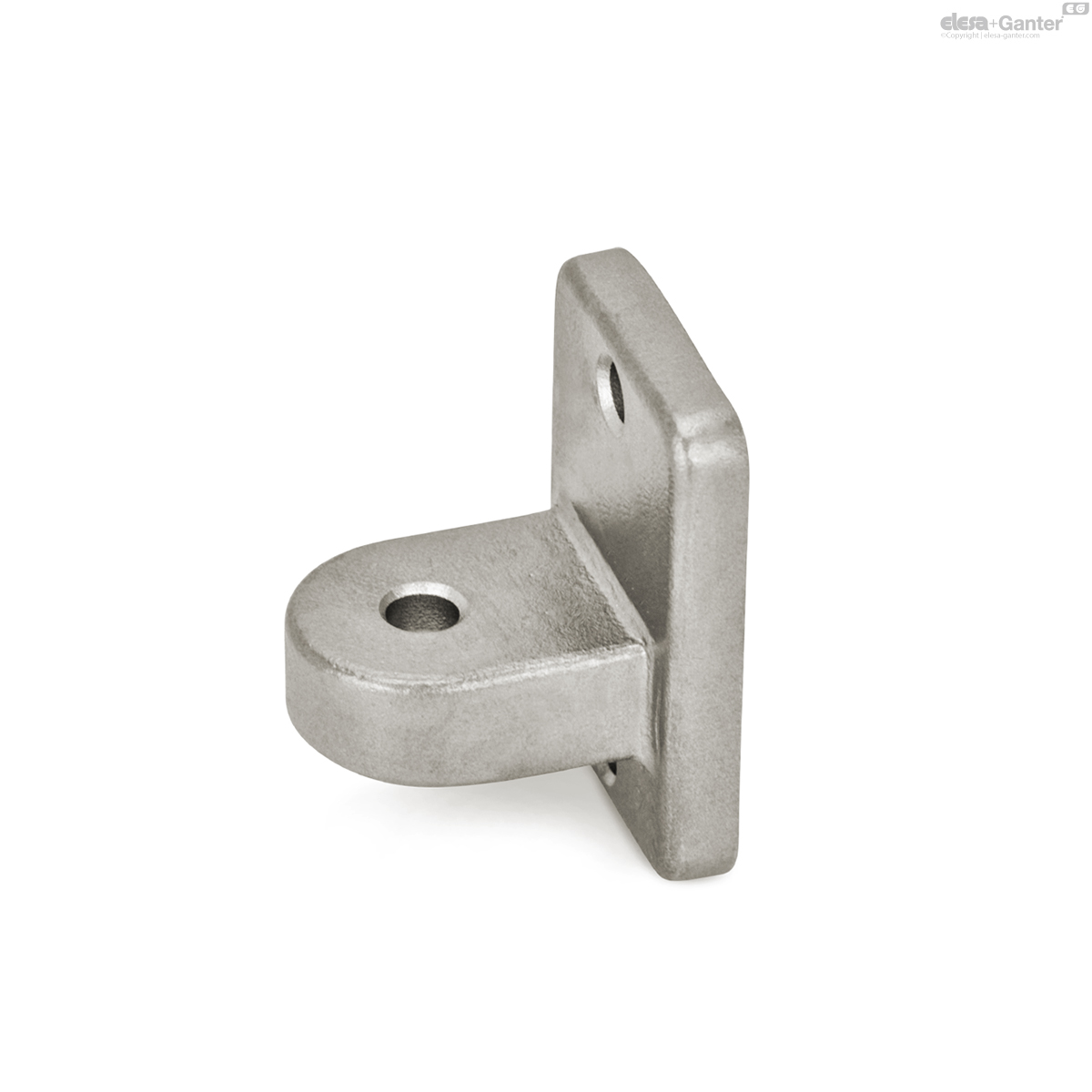

Swivel Clamp Connector Bases

Aluminum / Stainless Steel

Enquire Now

Description

Specification

Aluminum

Black, RAL 9005, textured finish SW

Stainless steel AISI CF-8 NI

Matte shot-blasted

Information

Swivel clamp connector bases GN 271 can be combined with swivel clamp connectors GN 273, GN 275 or GN 277 to swivel clamp connector joints.

Swivel clamp connector bases GN 271 can also be mounted to profile systems.

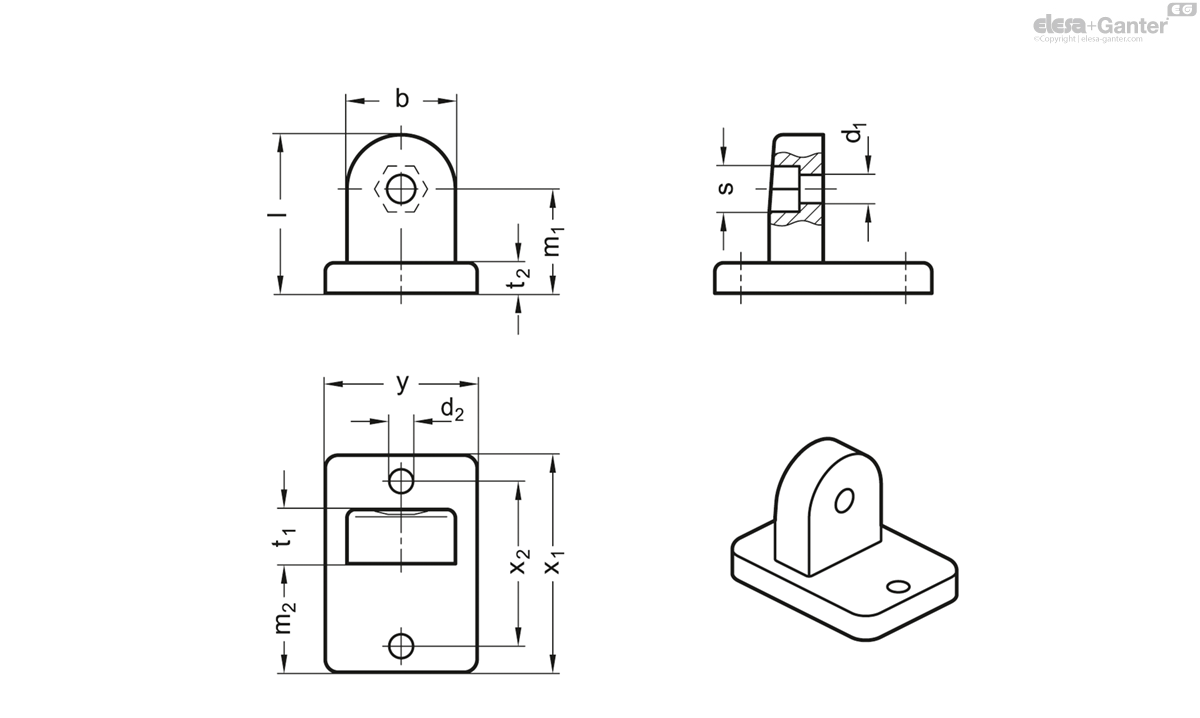

Technical information

	Color	b	d₁	d₂	l	m₁	m₂	t₁	t₂	s	x₁	x₂	y
Code															Actions
GN 271-25-BL	BL - Plain finish	25	6.5	5.5	36.5	24	25	12.5	7	10	50	38	35	44
GN 271-25-SW	SW - RAL 9005	25	6.5	5.5	36.5	24	25	12.5	7	10	50	38	35	44
