GN 26b

Bolt Connectors

Steel, for Aluminum Profiles (b-Modular System)

Enquire Now

Description

Specification

Connector, screws, T-slot nuts

Steel, zinc plated, blue passivated SZ

Cover cap

Plastic (Polyamid PA)

Black S

Guide pin

Plastic, black

Information

Bolt connectors GN 26b fasten aluminum profiles at right angles and secure them against twisting. Only one profile has to be machined.

The connection can be freely positioned and slid along the slot. It is suitable for absorbing high loads, including torsional loads in particular.

The cover caps ensure a visually appealing appearance. If panels are used, they must be suitably pocketed.

Technical information

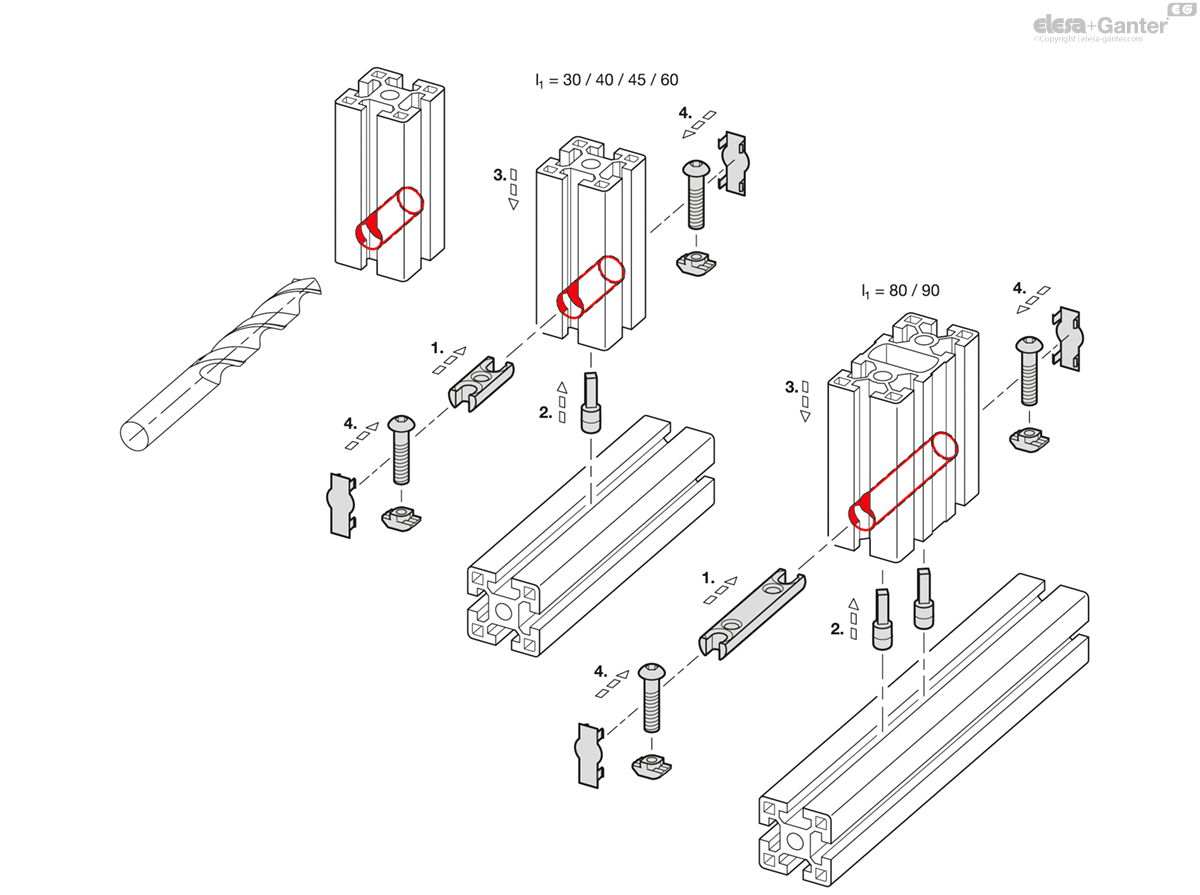

Assembly Instructions / Profile Machining

	Color	l₁ Nominal size	n	d₁	d₂	d₃	l₂ ≈	m₁	m₂	Tightening torque in Nm
Code												Actions

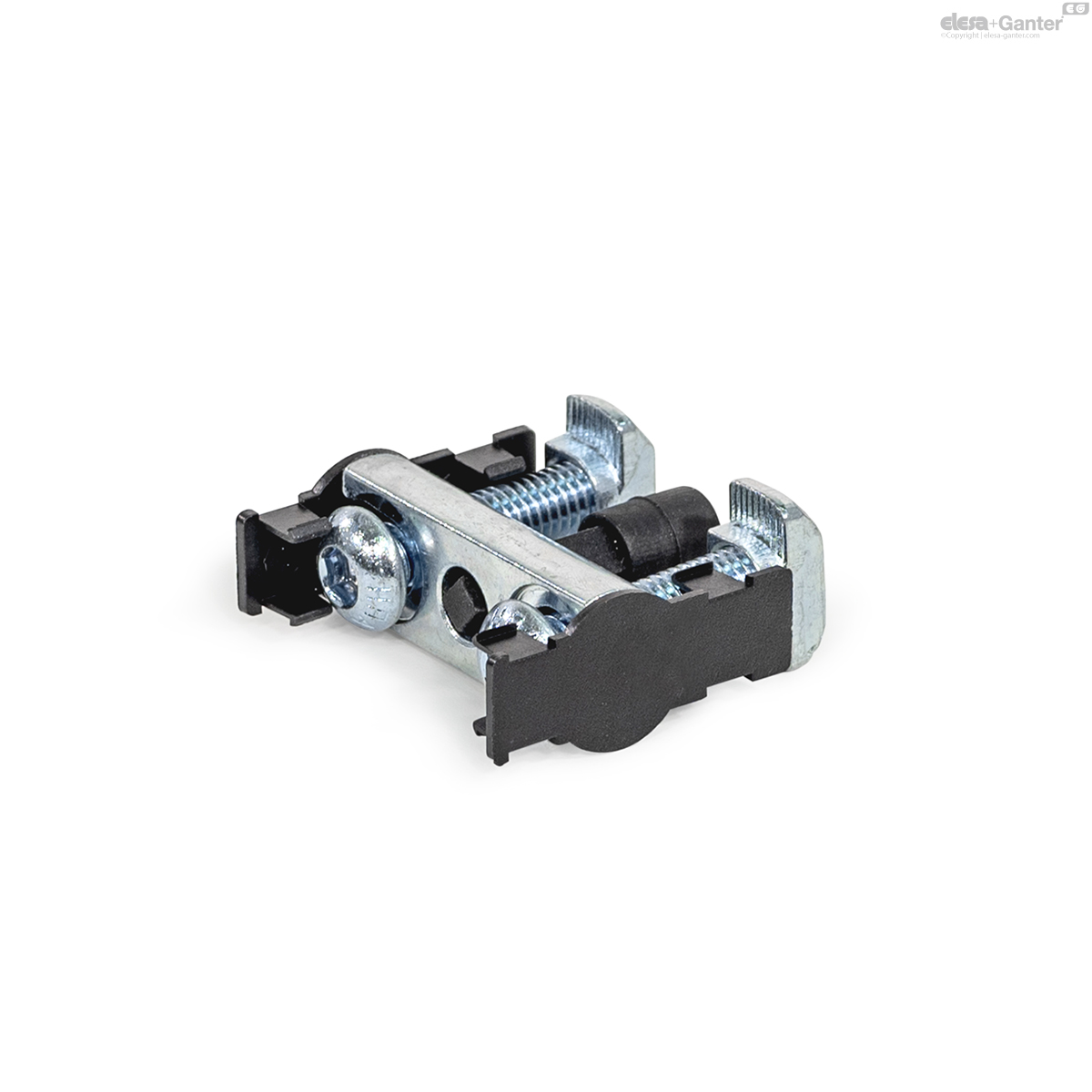

GN 26b-308-N-C-SZS	30/40/45/60	30	8	M 5	7.3	11	29	18	18	6	26
GN 26b-4010-N-C-SZS	30/40/45/60	40	10	M 8	10	17	37	23	22.5	25	74
GN 26b-4510-N-C-SZS	30/40/45/60	45	10	M 8	10	17	42	28	22.5	25	78
GN 26b-6010-N-C-SZS	30/40/45/60	60	10	M 8	10	17	57	43	22.5	25	83

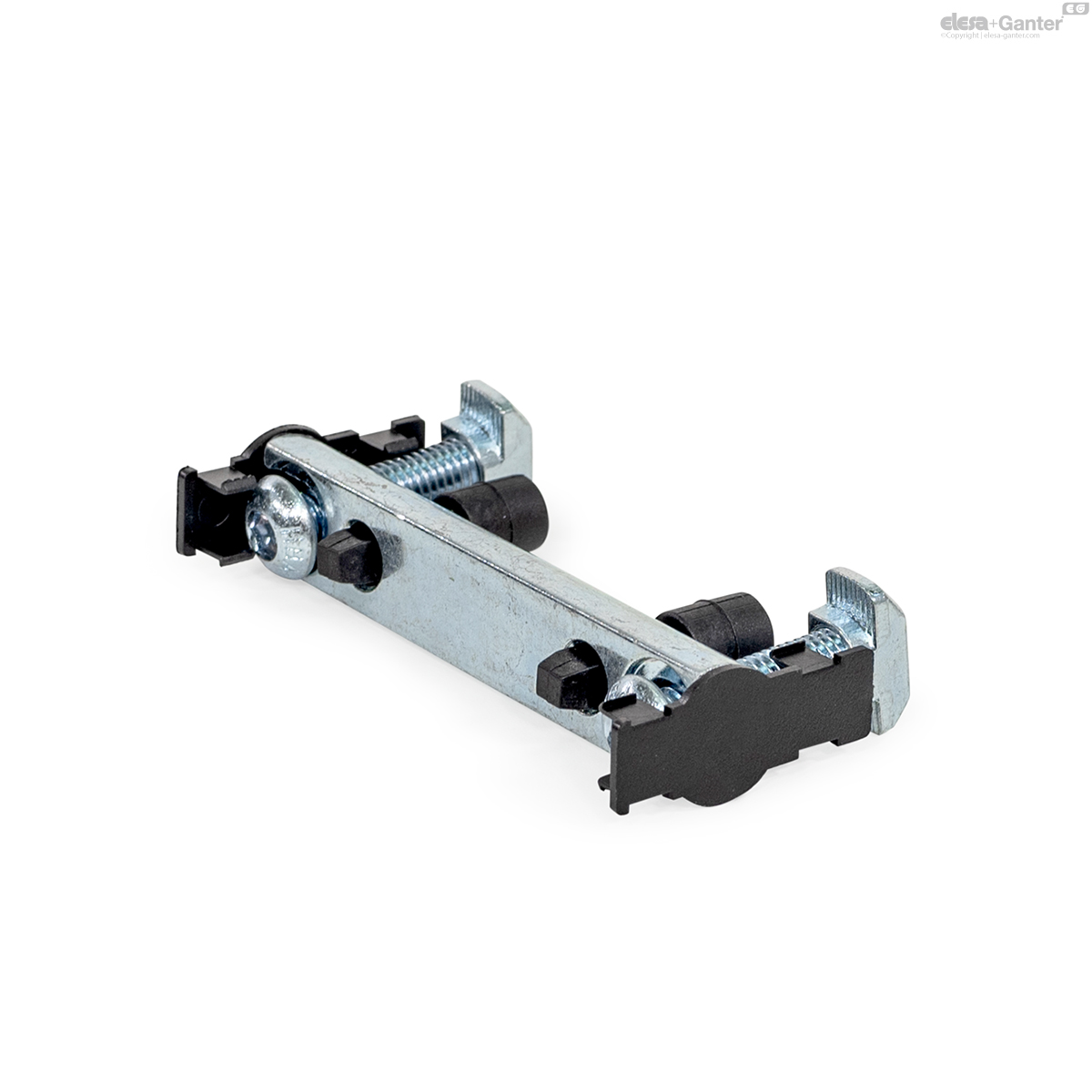

GN 26b-8010-N-C-SZS	80/90	80	10	M 8	10	17	77	63	22.5	25	121
GN 26b-9010-N-C-SZS	80/90	90	10	M 8	10	17	87	73	22.5	25	134
