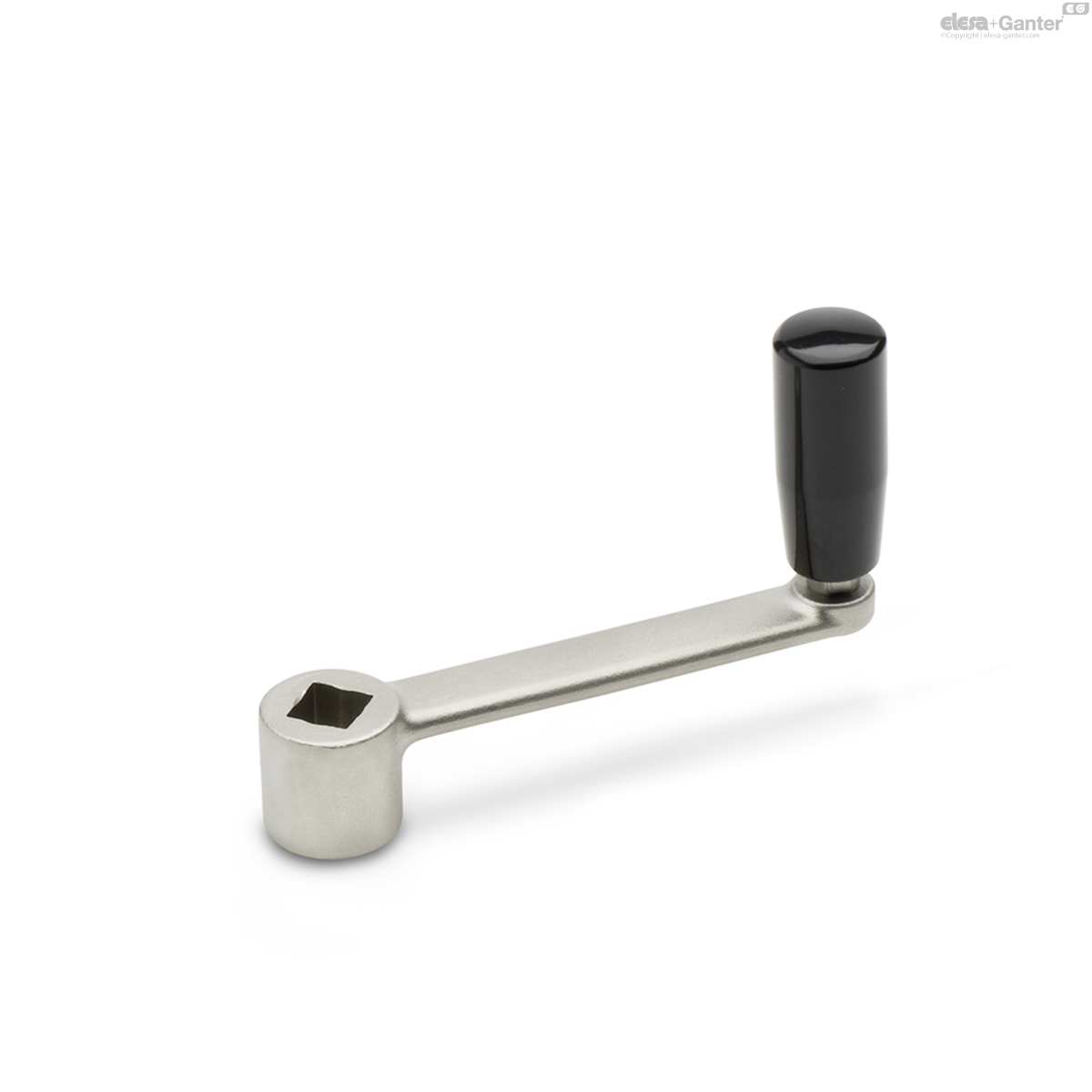

GN 269
Stainless Steel-Cranked handles
Description
Specification
Body
- Stainless Steel precision die casting
- AISI CF-8
- Face of the hub machined
Revolving handles
Plastic, Duroplast
black, shiny finish
Spindle
Stainless Steel AISI 304
Information
Stainless Steel-Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.
The cylindrical handles are made of thermoset material which in general provides good stability when exposed to chemicals.
On request
- Stainless Steel-Cranked handles with retractable handle GN 798.5
Technical information
- Square DIN 79
- Cross holes GN 110
- Stainless Steel characteristicsÂ
- Plastic characteristicsÂ

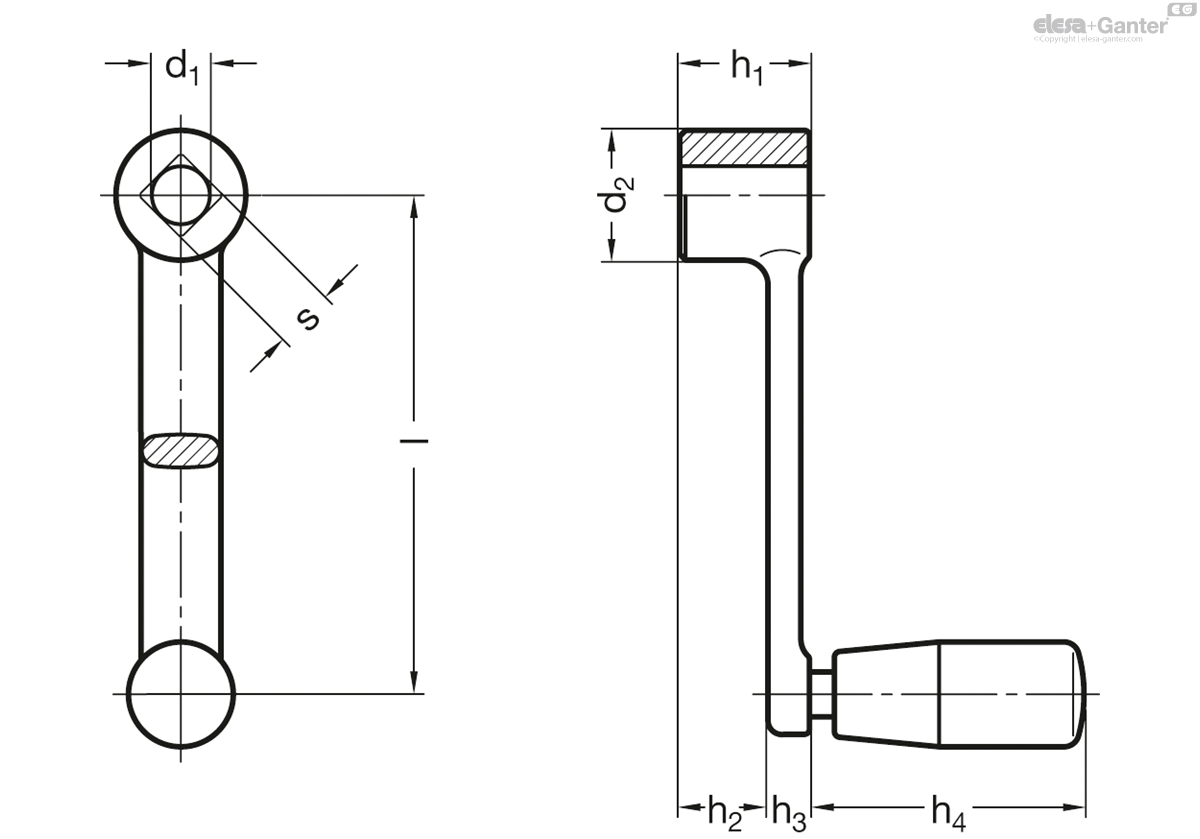

GN 269
| l | d1 H9 Bore |
s H11 Square | d2 | h1 | h2 ≈ | h3 | h4 ≈ | Ø Handle |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 269-80-B10 | 80 | B 10 | - | 22 | 22 | 15.4 | 6.6 | 45 | 18 | 130 |
|
| GN 269-80-V10 | 80 | - | V 10 | 22 | 22 | 15.4 | 6.6 | 45 | 18 | 124 |
|
| GN 269-100-B12 | 100 | B 12 | - | 26 | 26 | 17.7 | 8.3 | 55 | 21 | 200 |
|
| GN 269-100-V12 | 100 | - | V 12 | 26 | 26 | 17.7 | 8.3 | 55 | 21 | 187 |
|
| GN 269-125-B14 | 125 | B 14 | - | 28 | 28 | 18.8 | 9.2 | 71 | 23 | 300 |
|
| GN 269-125-V14 | 125 | - | V 14 | 28 | 28 | 18.8 | 9.2 | 71 | 23 | 300 |
|
| GN 269-160-B17 | 160 | B 17 | - | 32 | 32 | 22.6 | 9.4 | 71 | 23 | 396 |
|
| GN 269-160-V17 | 160 | - | V 17 | 32 | 32 | 22.6 | 9.4 | 71 | 23 | 373 |
|
| GN 269-200-B19 | 200 | B 19 | - | 38 | 38 | 28 | 9.4 | 71 | 23 | 546 |
|
| GN 269-200-V19 | 200 | - | V 19 | 38 | 38 | 28 | 9.4 | 71 | 23 | 540 |
|
