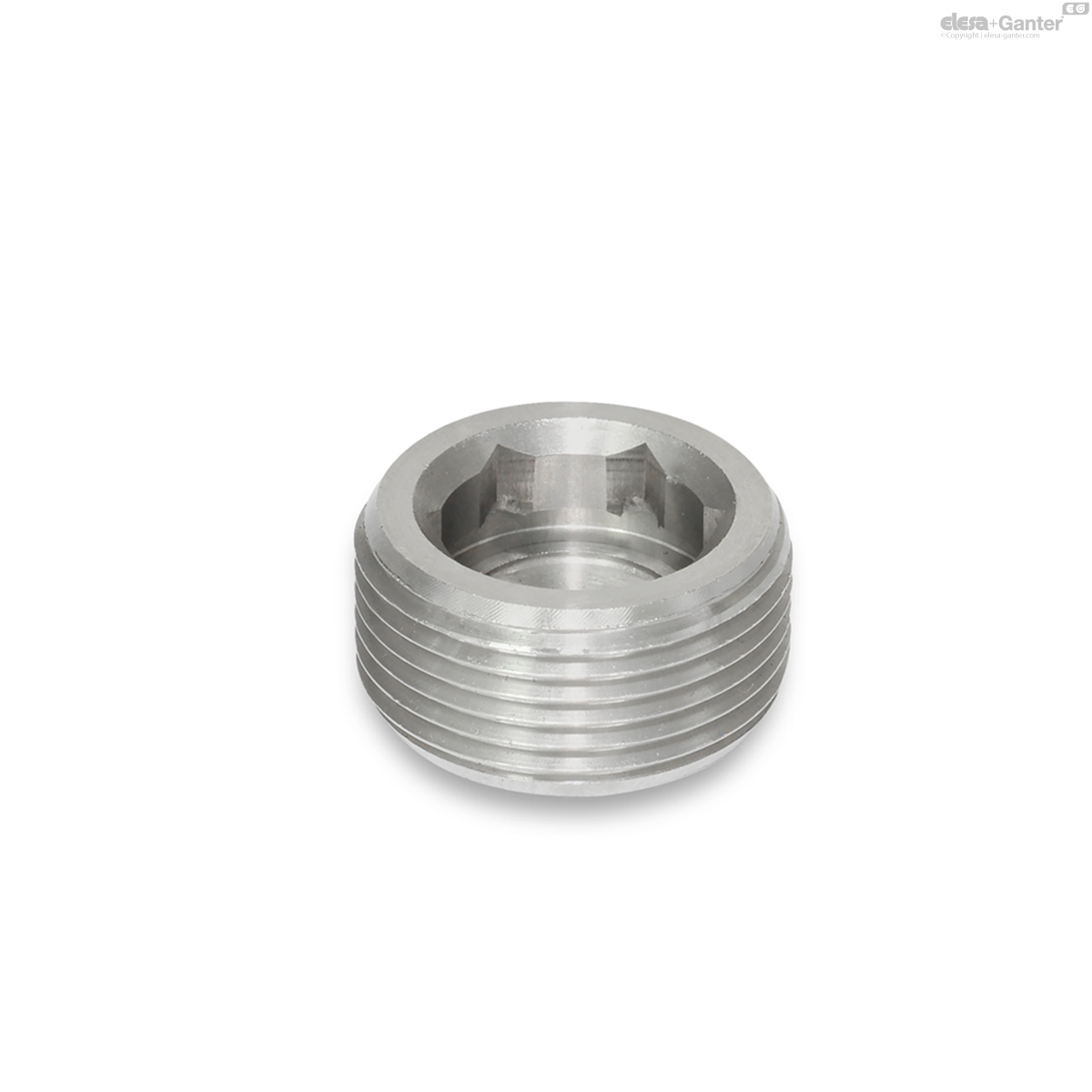

GN 252.5
Stainless Steel-Blanking plugs
Description
Specification
Types
- Type A: without thread coating
- Type PRB: with thread coating (polyamide allround coating)
Stainless Steel AISI 303
Information
The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
Technical information
- Stainless Steel characteristicsÂ
- Strength values of screwsÂ

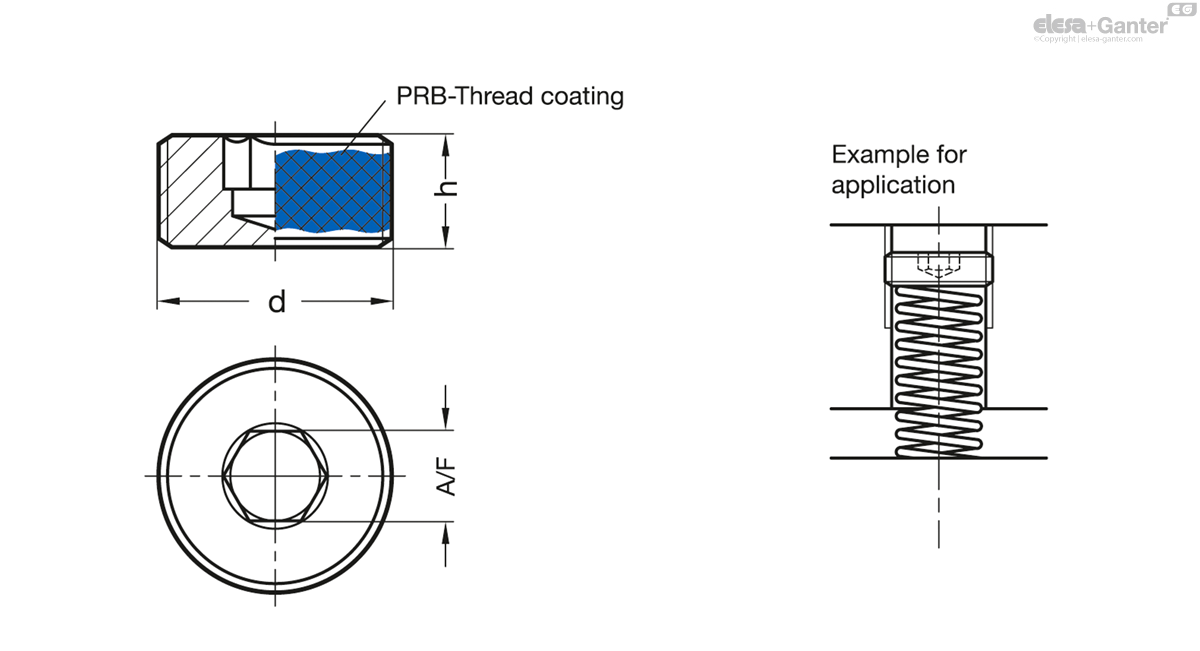

GN 252.5
| d | h | A/F |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 252.5-M12x1,5-A | M 12 x 1.5 | 10 | 6 | 5 |
|
| GN 252.5-M12x1,5-PRB | M 12 x 1.5 | 10 | 6 | 5 |
|
| GN 252.5-M16x1,5-A | M 16 x 1.5 | 10 | 8 | 10 |
|
| GN 252.5-M16x1,5-PRB | M 16 x 1.5 | 10 | 8 | 10 |
|
| GN 252.5-M20x1,5-A | M 20 x 1.5 | 12 | 10 | 20 |
|
| GN 252.5-M20x1,5-PRB | M 20 x 1.5 | 12 | 10 | 20 |
|
| GN 252.5-M24x1,5-A | M 24 x 1.5 | 12 | 14 | 26 |
|
| GN 252.5-M24x1,5-PRB | M 24 x 1.5 | 12 | 14 | 26 |
|
| GN 252.5-M27x1,5-A | M 27 x 1.5 | 12 | 14 | 36 |
|
| GN 252.5-M27x1,5-PRB | M 27 x 1.5 | 12 | 14 | 36 |
|
