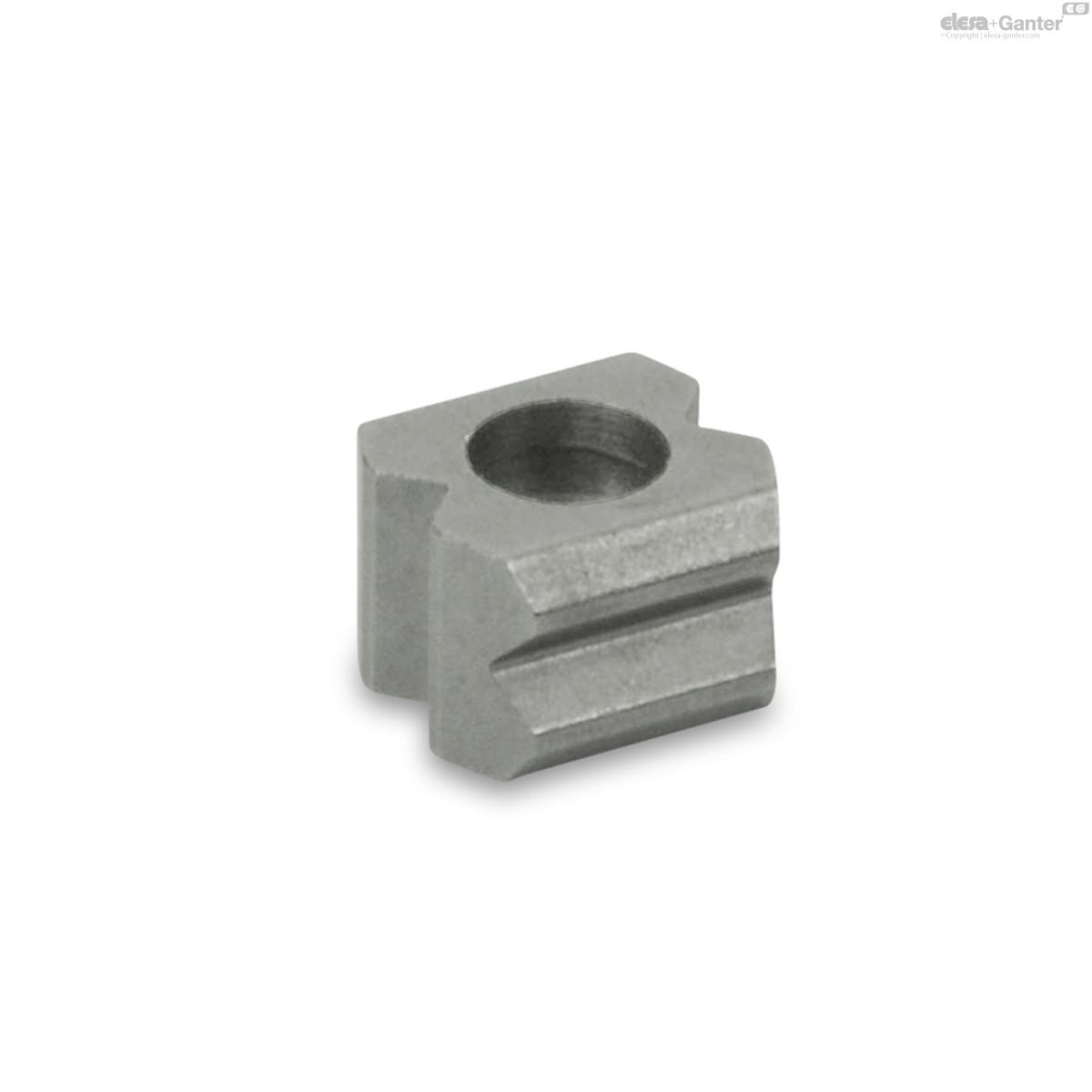

GN 250
Indent blocks
for spring plungers
Description
Specification
Sintered Steel
- case hardened
- blank
Information
Indent blocks GN 250 are used together with spring plungers for detent or positioning of sliders, flaps and similar applications.

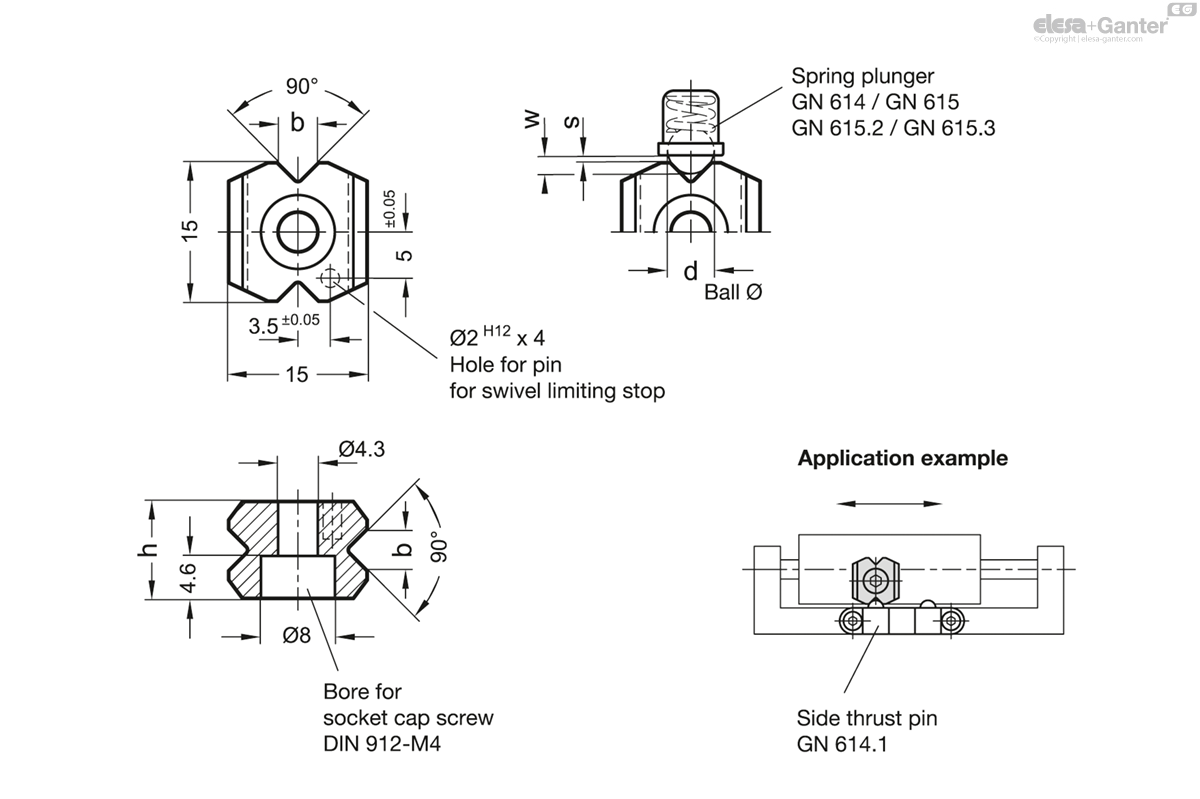

GN 250
| h | b ±0.1 | for GN 614 Size |
d* | w* | s min.* | for GN 615 / GN 615.2 / GN 615.3 Size |
d** | w** | s min.** |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 250-8,5 | 8.5 | 3.4 | 6 | 5 | 1.6 | 0.9 | M 8 | 4.5 | 1.5 | 0.8 | 10 |
|
| GN 250-10,5 | 10.5 | 4.5 | 8 | 6.5 | 1.9 | 1 | M 10 | 6 | 2 | 1 | 11 |
|
