GN 241
Tube Connectors
Aluminum, Split Assembly
Description
Specification
Identification no.
No. 2: With 2 stainless steel socket cap screws DIN 912
Aluminum
- Powder coated

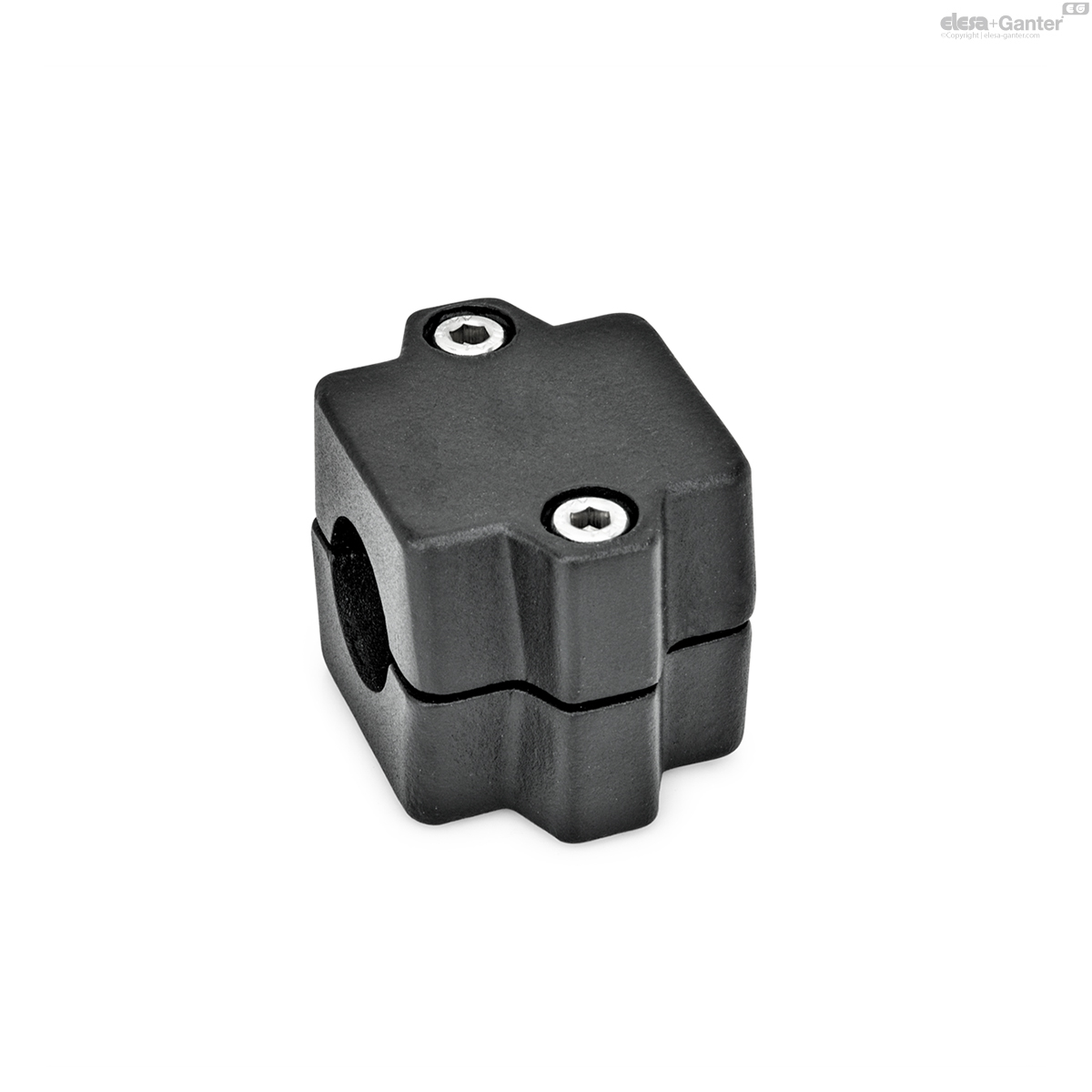

Black, RAL 9005, textured finish SW

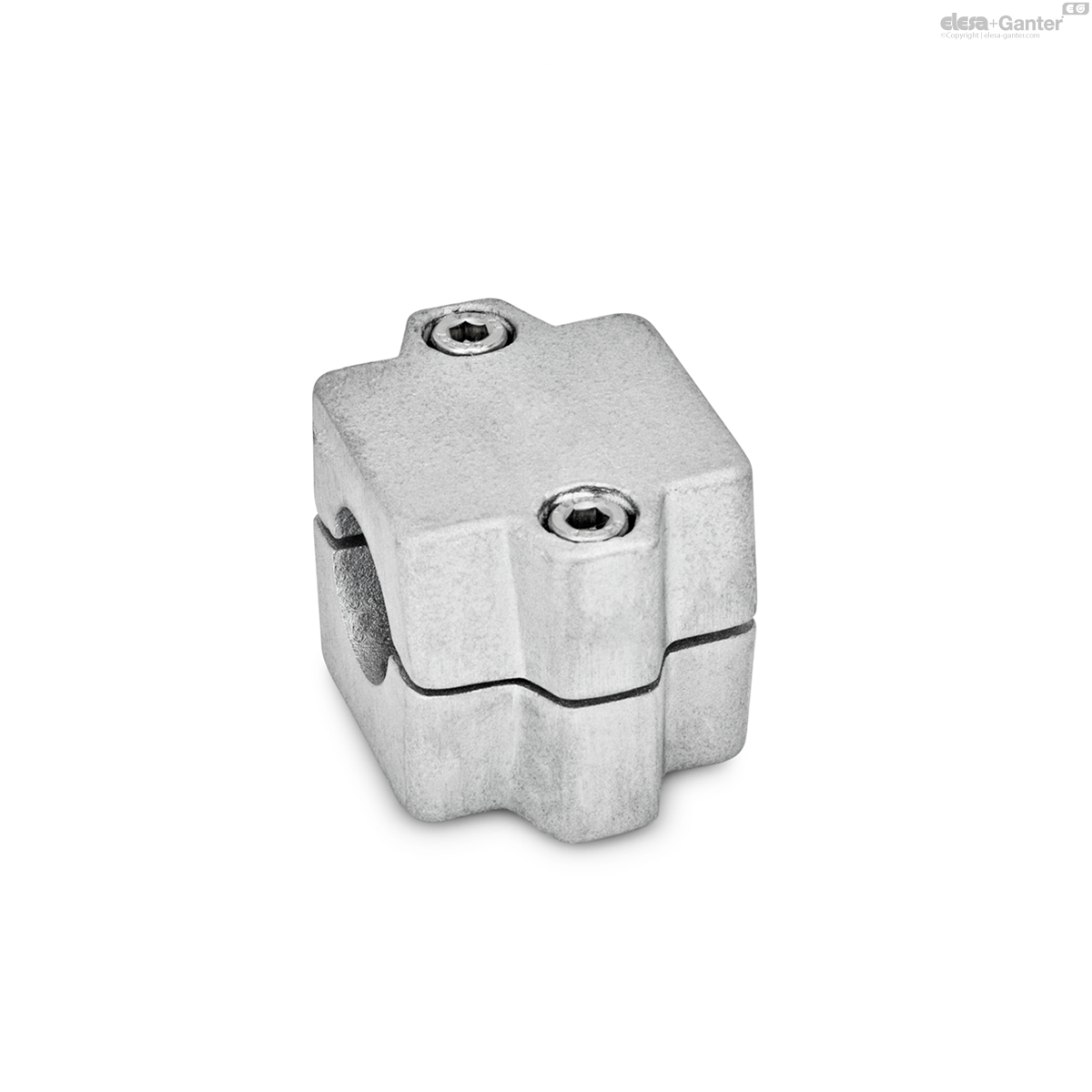

- Plain finish, matte shot-blasted BL
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information
The clamping bore of tube connectors GN 241 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
The versions with square bores are also suitable for use with profile systems.

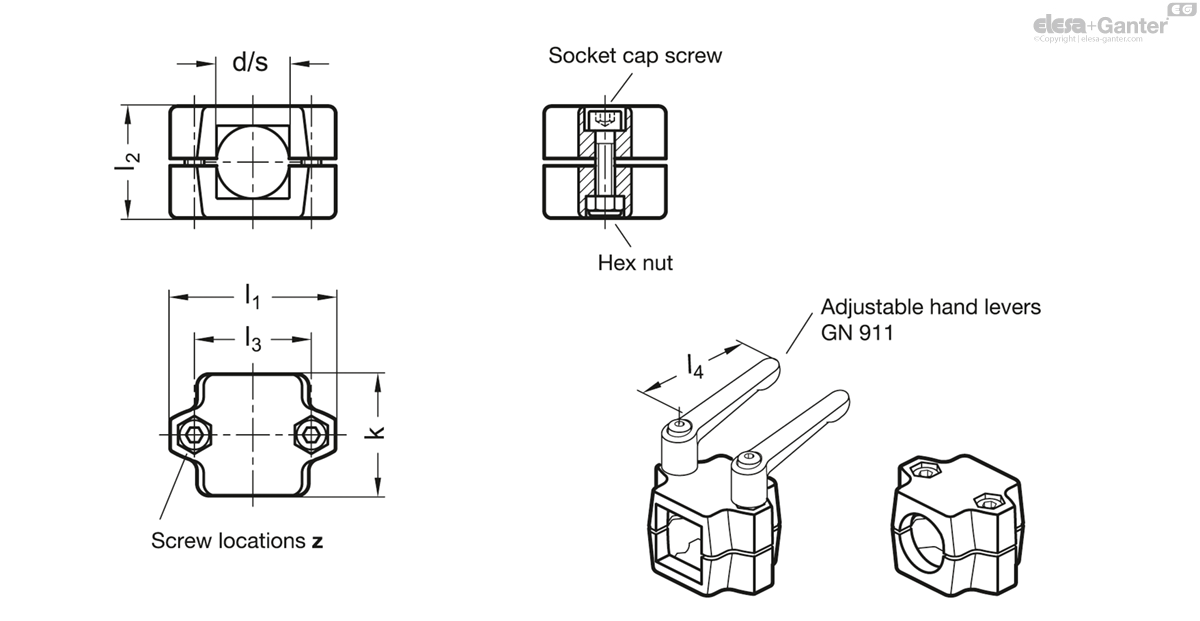

At the screw locations z the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  listed in the table as accessories.
Accessory
- Construction Tubes GN 990
- Adjustable Hand Levers GN 911
Technical information
- Stainless Steel CharacteristicsÂ
GN 241-B
| Color | d Bore |
k Clamping length | l1 | l2 | l3 | z Screw locations |
Accessory Recom. hand lever GN 911 for z l4 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 241-B20-50-2-BL | BL - Plain finish | B 20 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 190 |
|
| GN 241-B20-50-2-SW | SW - RAL 9005 | B 20 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 190 |
|
| GN 241-B25-50-2-BL | BL - Plain finish | B 25 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 195 |
|
| GN 241-B25-50-2-SW | SW - RAL 9005 | B 25 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 195 |
|
| GN 241-B30-50-2-BL | BL - Plain finish | B 30 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 190 |
|
| GN 241-B30-50-2-SW | SW - RAL 9005 | B 30 | 50 | 68 | 46 | 48 | M8-35 | 63 | 78 | 190 |
|
| GN 241-B30-60-2-BL | BL - Plain finish | B 30 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 390 |
|
| GN 241-B30-60-2-SW | SW - RAL 9005 | B 30 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 390 |
|
| GN 241-B32-60-2-BL | BL - Plain finish | B 32 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 380 |
|
| GN 241-B32-60-2-SW | SW - RAL 9005 | B 32 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 380 |
|
| GN 241-B35-60-2-BL | BL - Plain finish | B 35 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 360 |
|
| GN 241-B35-60-2-SW | SW - RAL 9005 | B 35 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 360 |
|
| GN 241-B40-60-2-BL | BL - Plain finish | B 40 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 354 |
|
| GN 241-B40-60-2-SW | SW - RAL 9005 | B 40 | 60 | 79 | 59 | 58 | M8-50 | 63 | 78 | 354 |
|
| GN 241-B40-76-2-BL | BL - Plain finish | B 40 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B40-76-2-SW | SW - RAL 9005 | B 40 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B42-76-2-BL | BL - Plain finish | B 42 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B42-76-2-SW | SW - RAL 9005 | B 42 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B45-76-2-BL | BL - Plain finish | B 45 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B45-76-2-SW | SW - RAL 9005 | B 45 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B48-76-2-BL | BL - Plain finish | B 48 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B48-76-2-SW | SW - RAL 9005 | B 48 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B50-76-2-BL | BL - Plain finish | B 50 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B50-76-2-SW | SW - RAL 9005 | B 50 | 76 | 98 | 70 | 73 | M10-60 | 78 | 92 | 505 |
|
| GN 241-B60-90-2-BL | BL - Plain finish | B 60 | 90 | 108.5 | 84 | 83 | M10-75 | - | 999 |
|
| GN 241-B60-90-2-SW | SW - RAL 9005 | B 60 | 90 | 108.5 | 84 | 83 | M10-75 | - | 999 |
|
