GN 240.2

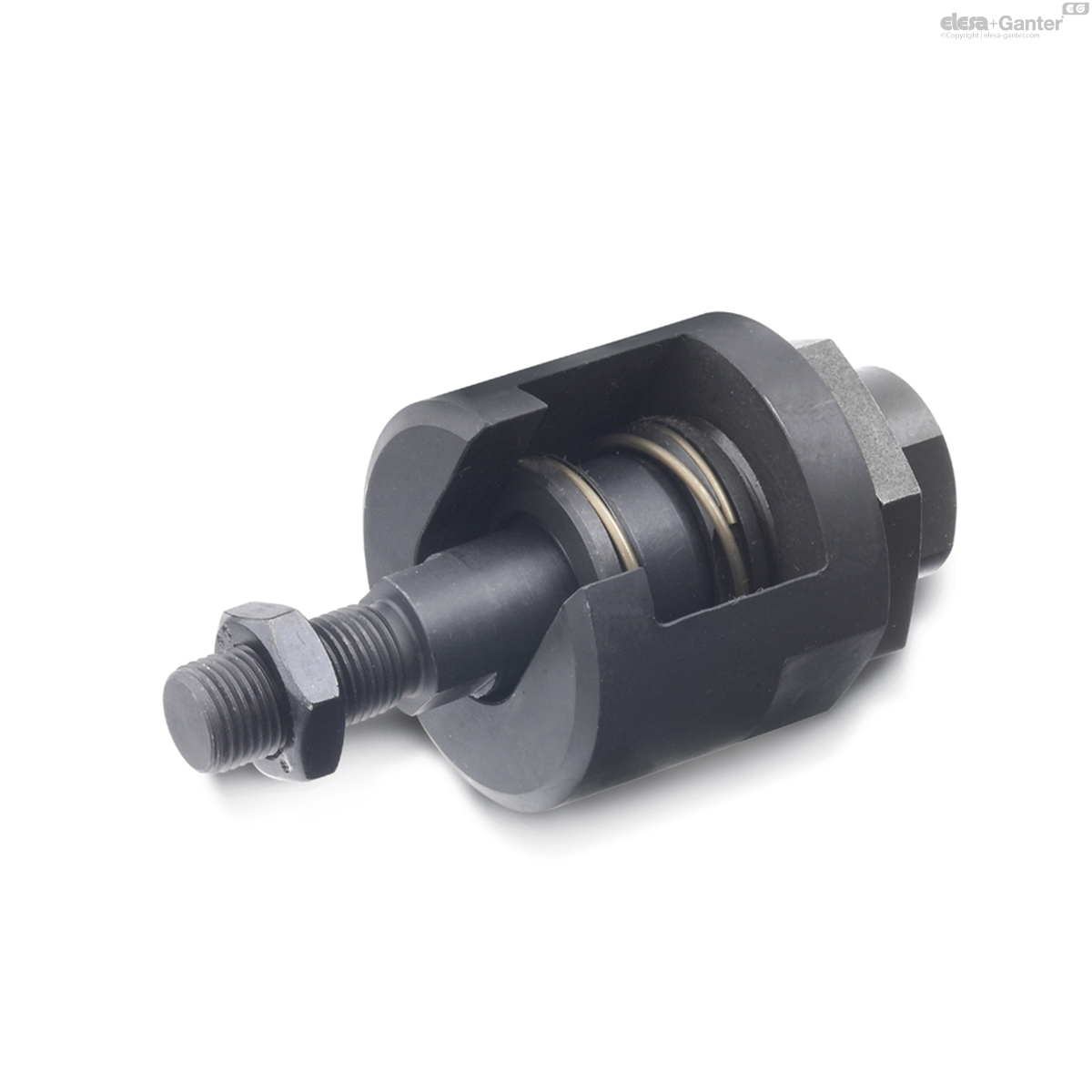

Quick-fit couplings

with Angle- and Radial Off-Set Compensation

Enquire Now

Description

Specification

Steel

tempered

phosphated

Retaining ring (spring)

Stainless Steel AISI 631

Information

Quick-fit couplings GN 240.2 have been designed to compensate a radial and angular off-set. Furthermore they are axially freely adjustable via the set screw.

A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is renowned by its very compact construction without any loose components.

It is not designed for the transfer of torque.

GN 240.2

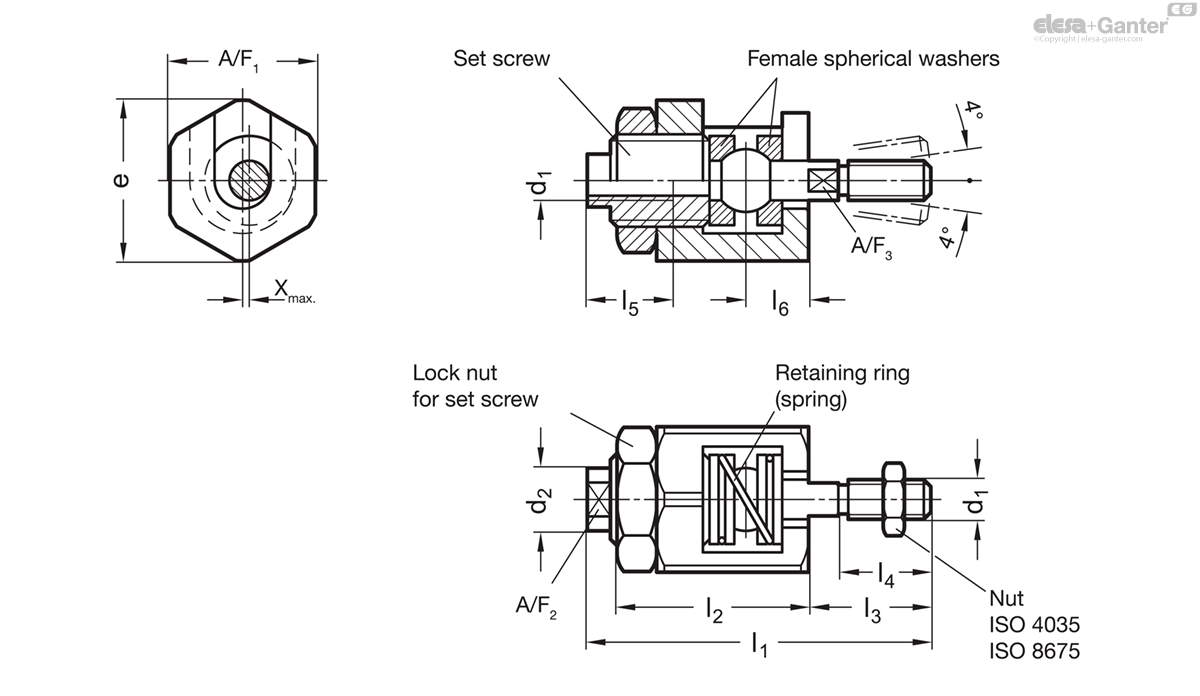

	d₁	d₂	x	e	l₁ ≈	l₂	l₃	l₄	l₅ min.	l₆	A/F ₁	A/F ₂	A/F ₃	x max radial off-set	Max. pull-/push load in kN
Code																	Actions
GN 240.2-M6	M6	9.5	0.6	24.5	52	29	18.5	14	13	9.5	22	8	5	0.6	2.5	75
GN 240.2-M8	M8	15	0.7	30	63	33	23.5	18	16	11.5	27	13	7	0.7	4.5	135
GN 240.2-M10	M10	21	0.7	44	81	43	30.5	22	24	16	41	18	12	0.7	6.5	403
GN 240.2-M10x1,25	M10x1.25	21	0.7	44	81	43	30.5	22	24	16	41	18	12	0.7	6.5	403
GN 240.2-M12	M12	21	0.8	44	85	43	34.5	26	24	16	41	18	12	0.8	10	405
GN 240.2-M12x1,25	M12x1.25	21	0.8	44	85	43	34.5	26	24	16	41	18	12	0.8	10	409
GN 240.2-M16	M16	32	1	60	121	62	45	34	34	26	55	27	18	1	18	1090
GN 240.2-M16x1,5	M16x1.5	32	1	60	121	62	45	34	34	26	55	27	18	1	18	1094
GN 240.2-M20	M20	32	1	60	129	62	53	42	34	26	55	27	18	1	30	1136
GN 240.2-M20x1,5	M20x1.5	32	1	60	129	62	53	42	34	26	55	27	18	1	30	1143
