GN 238
Hinges
adjustable / with cover / Zinc die casting
Description
Specification
Types
- Type BJ: adjustable on both sides
- Type EJ: one-sided adjustable
- Type NJ: not adjustable
Zinc die casting
plastic coated

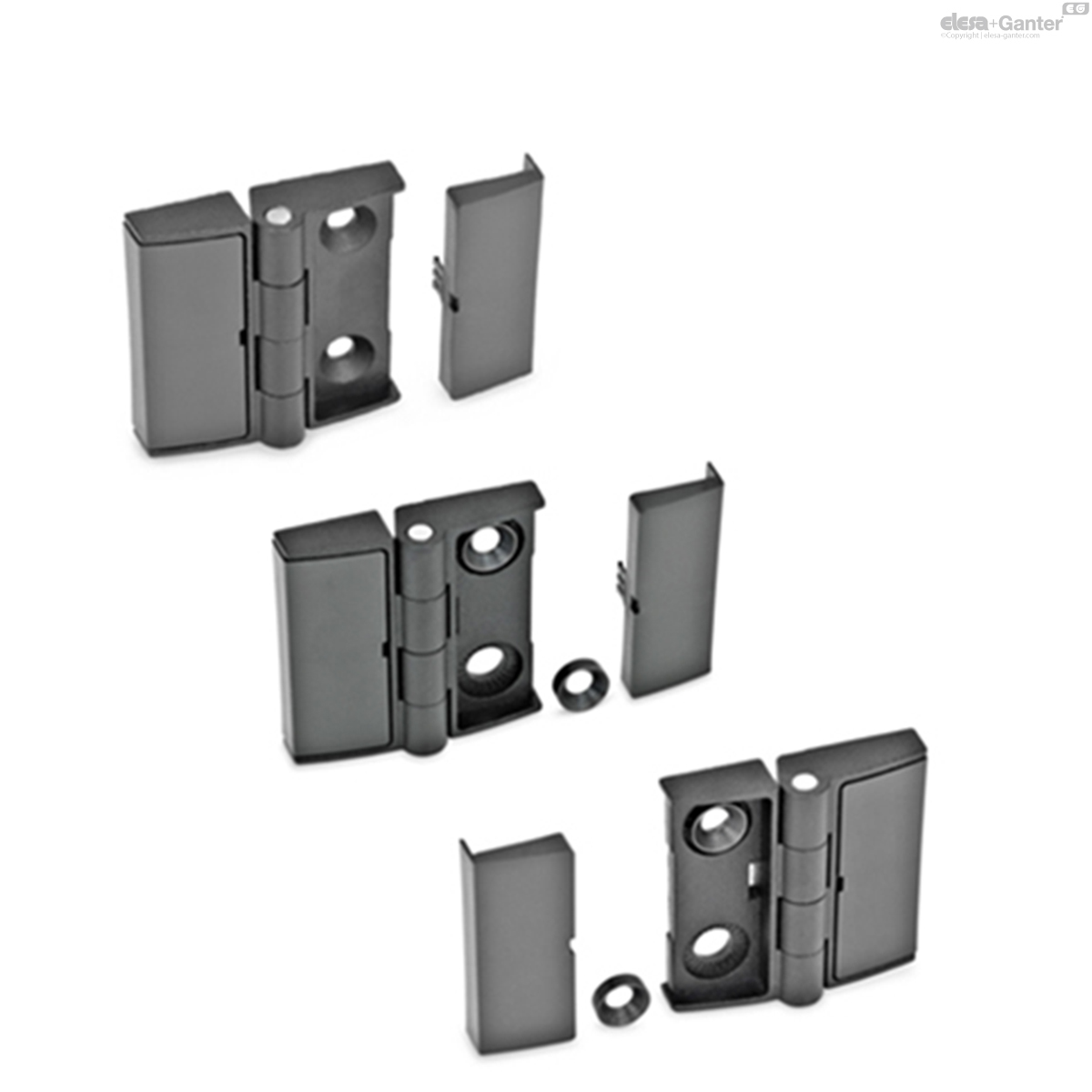

black, RAL 9005, textured finish SW

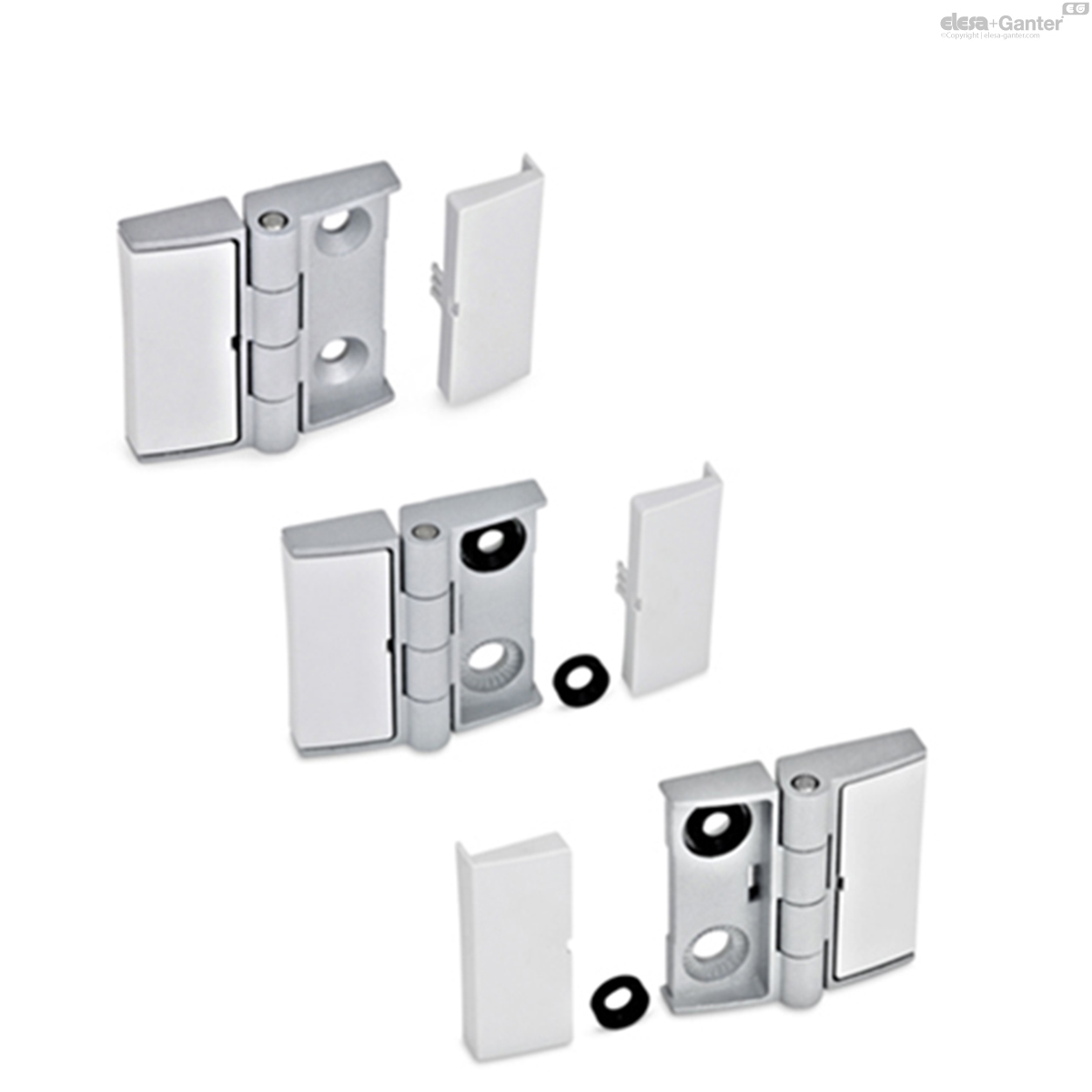

silver, RAL 9006, textured finish SR
Adjusting disc
Steel, hardened
Cover
Plastic
- black grey for type SW
- light grey for type SR
Pin
Stainless Steel AISI 303
Information
The adjustable hinges GN 238 allow the technically and visually perfect positioning and alignment of a door in its frame.
The steel adjusting disc has a cutting ring in its underside which cuts into the radial fins of the zinc die-cast wings when the countersunk screw is tightened, virtually creating a form-lock that prevents adjusting the hinge after mounting.
The covers conceal the fixing elements and lend the hinge an attractive optical appearance.
Technical information
- Stainless Steel characteristicsÂ
- Load rating information of hingesÂ
- List of hinges typesÂ
GN 238

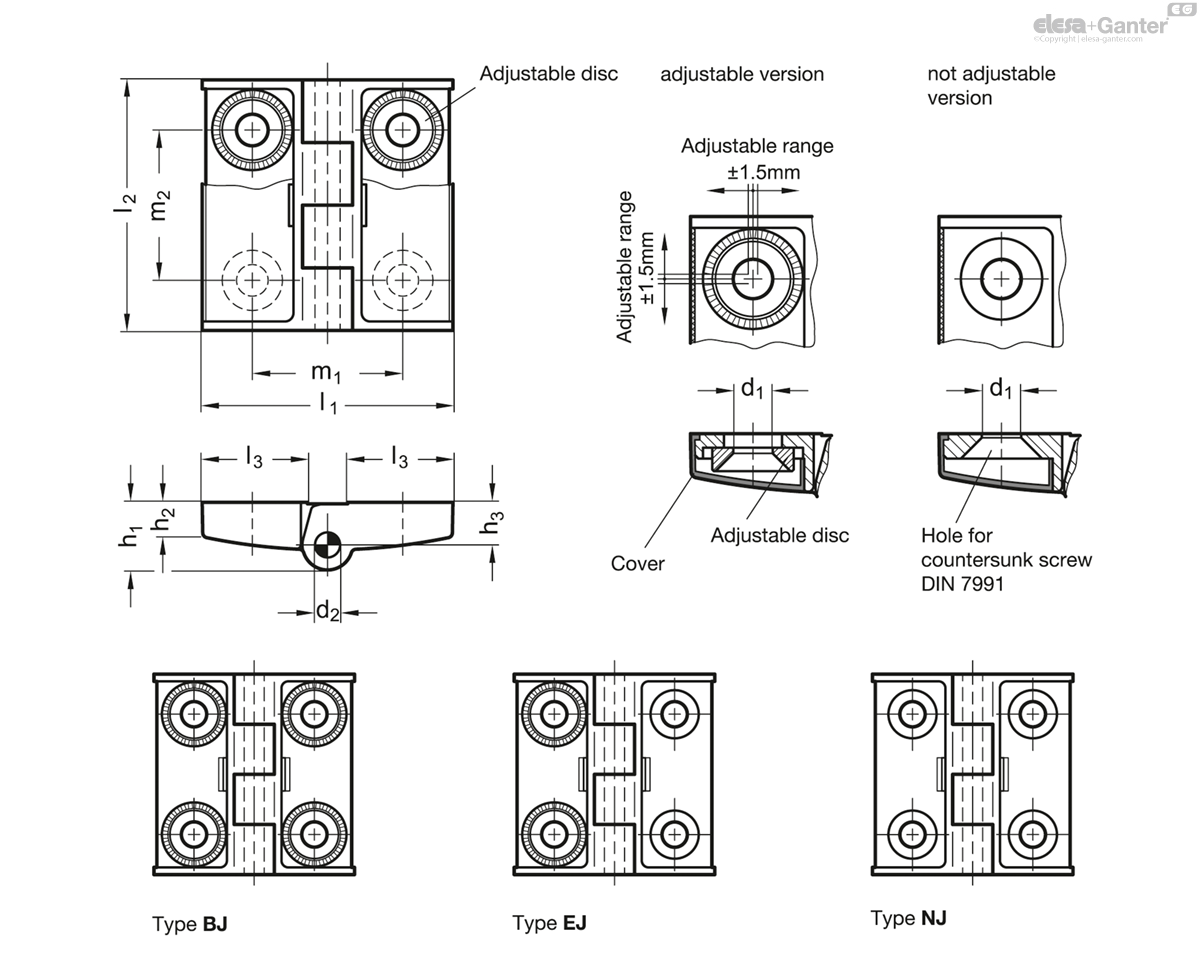

| Color | l1 | l2 | d1 | d2 | h1 ≈ | h2 ≈ | h3 | m1 | m2 | l3 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 238-42-42-BJ-SR | SR - RAL 9006 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 52 |
|
| GN 238-42-42-BJ-SW | SW - RAL 9004 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 52 |
|
| GN 238-42-42-EJ-SR | SR - RAL 9006 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 52 |
|
| GN 238-42-42-EJ-SW | SW - RAL 9004 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 52 |
|
| GN 238-42-42-NJ-SR | SR - RAL 9006 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 51 |
|
| GN 238-42-42-NJ-SW | SW - RAL 9004 | 42 | 42 | 5.3 | 4 | 11 | 6.5 | 7.5 | 25 | 25 | 17 | 51 |
|
| GN 238-50-50-BJ-SR | SR - RAL 9006 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 95 |
|
| GN 238-50-50-BJ-SW | SW - RAL 9004 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 95 |
|
| GN 238-50-50-EJ-SR | SR - RAL 9006 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 95 |
|
| GN 238-50-50-EJ-SW | SW - RAL 9004 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 95 |
|
| GN 238-50-50-NJ-SR | SR - RAL 9006 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 94 |
|
| GN 238-50-50-NJ-SW | SW - RAL 9004 | 50 | 50 | 6.3 | 5 | 13.5 | 7 | 8.5 | 30 | 30 | 21 | 94 |
|
| GN 238-60-60-BJ-SR | SR - RAL 9006 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 170 |
|
| GN 238-60-60-BJ-SW | SW - RAL 9004 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 170 |
|
| GN 238-60-60-EJ-SR | SR - RAL 9006 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 174 |
|
| GN 238-60-60-EJ-SW | SW - RAL 9004 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 174 |
|
| GN 238-60-60-NJ-SR | SR - RAL 9006 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 173 |
|
| GN 238-60-60-NJ-SW | SW - RAL 9004 | 60 | 60 | 6.3 | 6 | 16.5 | 8.5 | 11 | 36 | 36 | 26 | 173 |
|
