GN 2372

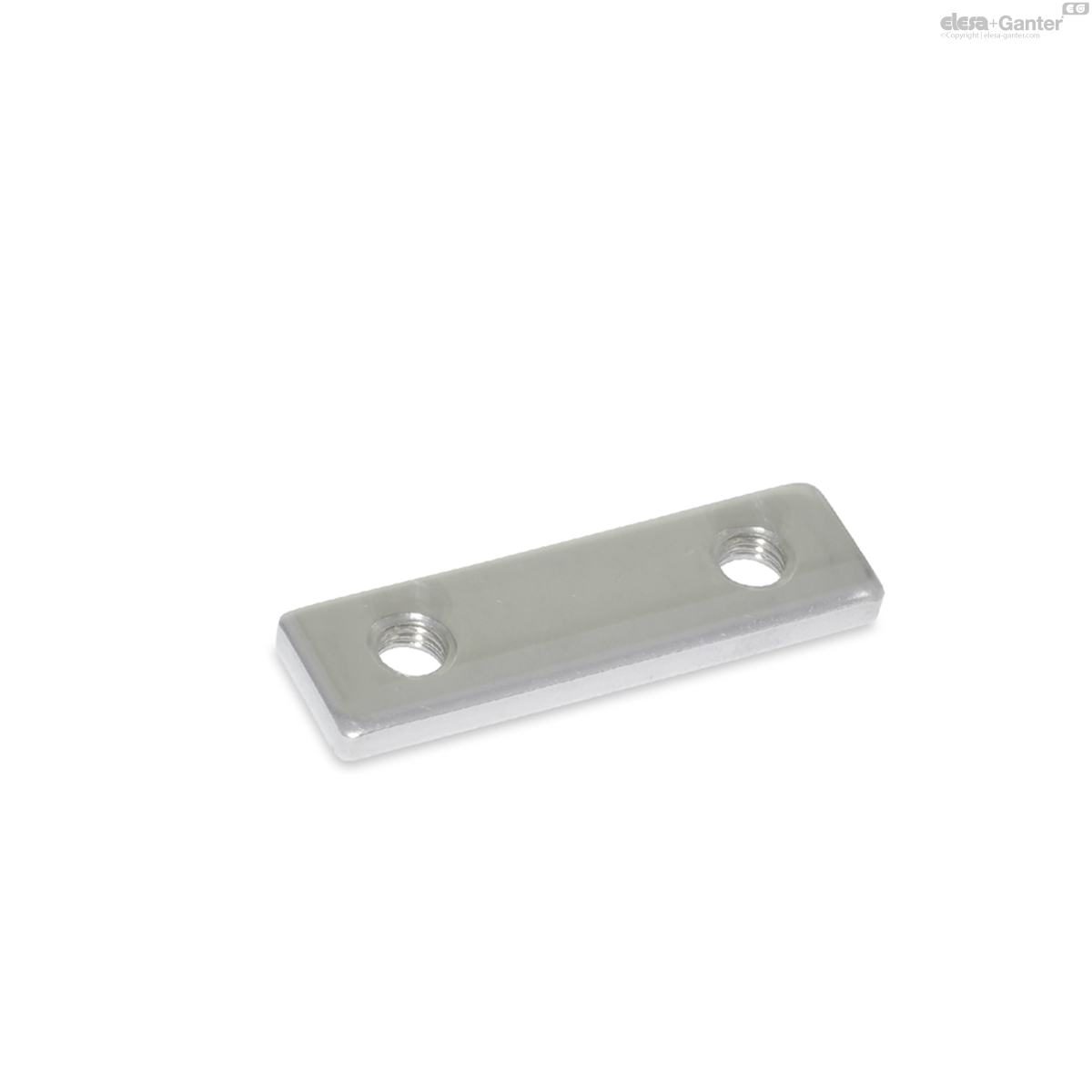

Stainless Steel-Plates

with tapped holes, for hinges

Enquire Now

Description

Specification

Stainless Steel NI

matte, ground MT

Information

Stainless Steel-Plates GN 2372 are designed as accessories for multiple families of hinges with dimensions that make additional threaded holes, nuts and washers unnecessary for mounting.

This eliminates the labor-intensive pre-installation of such parts as well as the need to hold them in place during tightening or loosening. Mounted to the top side of the hinge, the plate offers entirely new assembly options.

Technical information

Stainless Steel characteristics

GN 2372

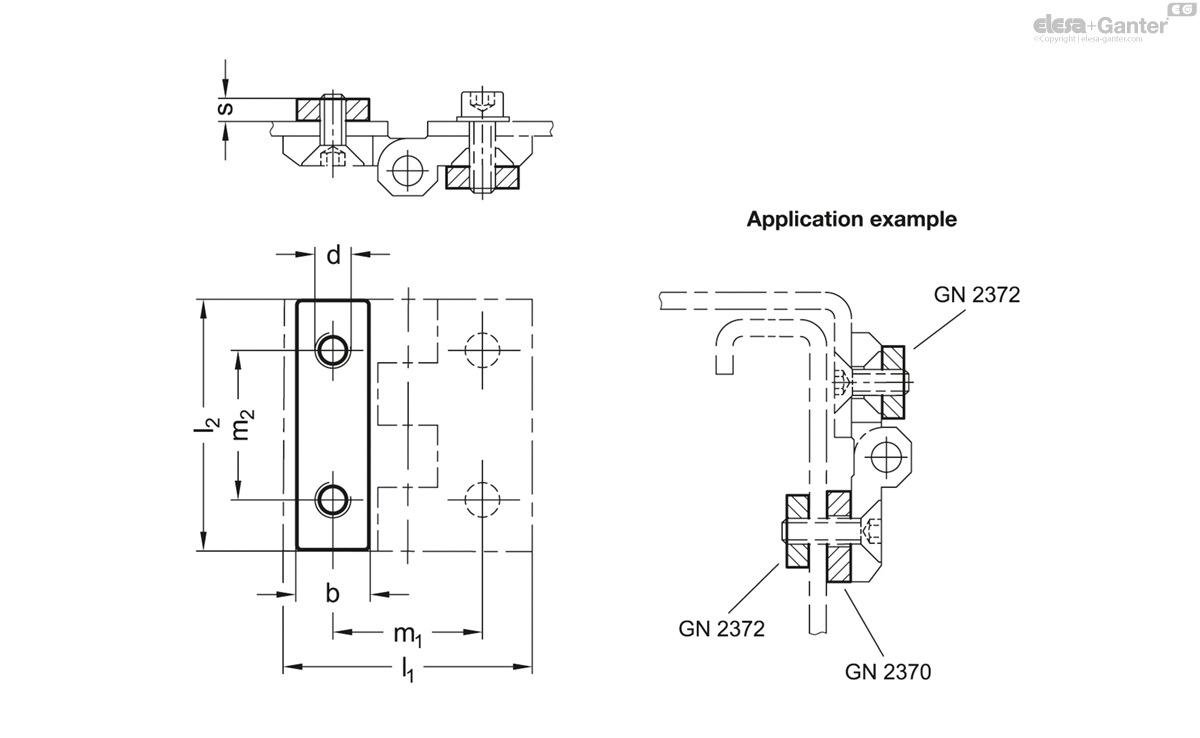

	l₂	b	d	l₁	m₁	m₂	s	Suitable for hinges with hole spacing m2
Code										Actions
GN 2372-NI-30-MT	30	9	M 4	30	18	18	3	GN 237 \| GN 237.1	5
GN 2372-NI-40-MT	40	12	M 5	40	25	25	3	GN 235 \| GN 337 \| CFMY. \| GN 437 \| GN 7231 \| GN 7233 \| GN 7237 \| GN 237 \| GN 237.1	10
GN 2372-NI-50-MT	50	15	M 6	50	30	30	4	GN 235 \| GN 337 \| CFMY. \| GN 437 \| GN 7231 \| GN 7233 \| GN 7237 \| GN 237 \| GN 237.1 \| GN 237.3	21
GN 2372-NI-60-MT	60	18	M 8	60	36	36	4	GN 235 \| GN 337 \| CFMY. \| GN 437 \| GN 7231 \| GN 7233 \| GN 7237 \| GN 237 \| GN 237.1 \| GN 237.3 \| GN 437.1 \| GN 437.2 \| GN 437.3 \| GN 437.4	30
