GN 237.3-elongated

Heavy Duty Hinges

Stainless Steel, with Enhanced Strength, Horizontally Elongated / for Particularly Aggressive Environments (A4)

Enquire Now

GN 237.3-NI-A

Heavy Duty Hinges

With enhanced strength, with bores for countersunk screws

GN 237.3-NI-B

Heavy Duty Hinges

With enhanced strength, with bores for countersunk screws and centering attachments

GN 237.3-A4-A

Heavy Duty Hinges

For particularly aggressive environments, with bores for countersunk screws

GN 237.3-A4-B

Heavy Duty Hinges

For particularly aggressive environments, with bores for countersunk screws and centering attachments

Description

Specification

Types

Type A: With bores for countersunk screws
Type B: With bores for countersunk screws and centering attachments

Version NI

Hinge leafs

Stainless steel, German Material No. 1.4405 NI

Martensite (C1)

Matte shot-blasted finish GS

Powder coated

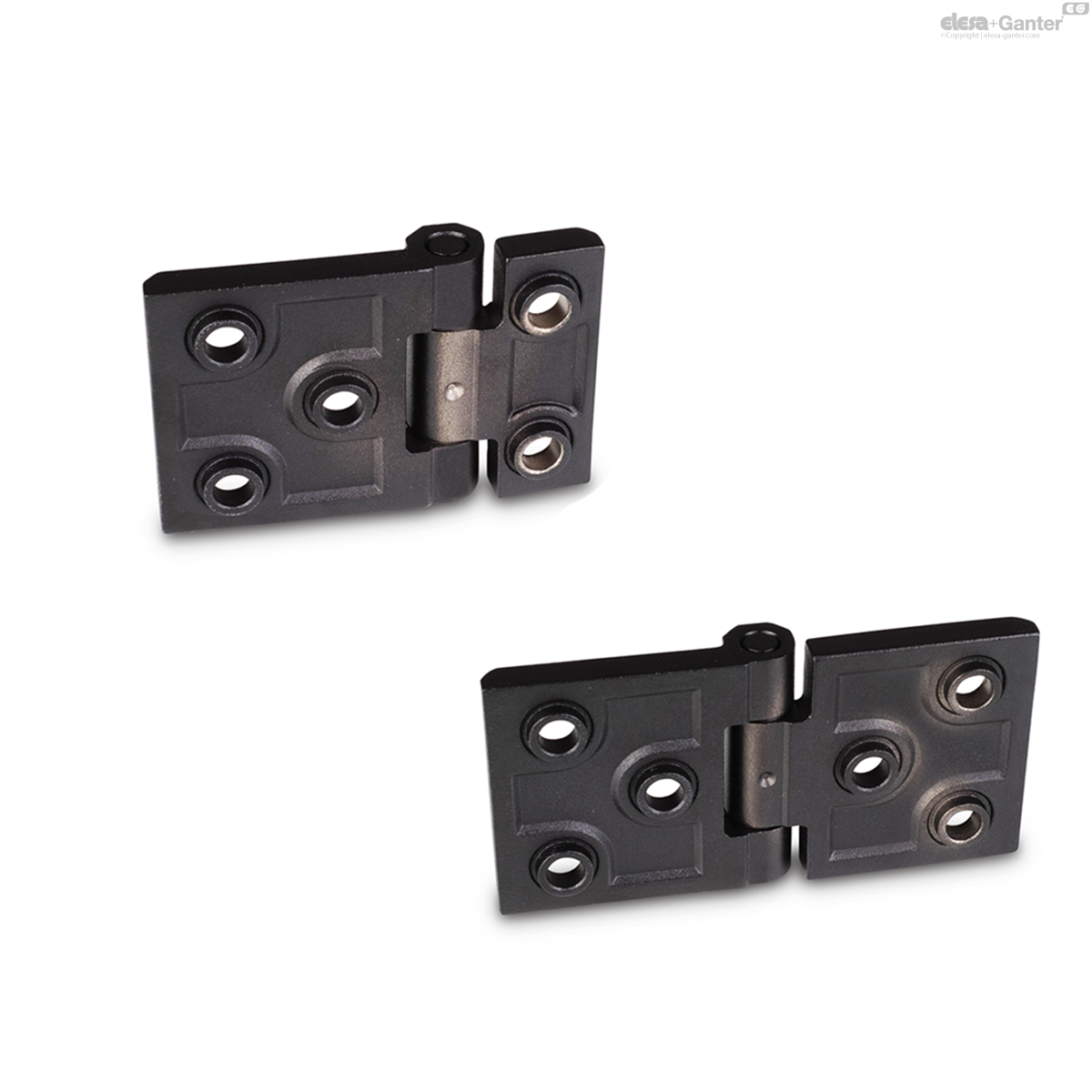

Black, RAL 9005, textured ﬁnish SW

Hinge pin

Stainless steel AISI 440B

Tempered

With special grease lubricated

Shim washers

Stainless steel AISI 301

With special grease lubricated

Version A4

Hinge leafs

Stainless steel AISI 316 A4

Matte shot-blasted finish GS

Hinge pin

Stainless steel AISI 318LN

Nickel plated

With special grease lubricated, FDA compliant, class H1

Shim washers

Stainless steel AISI 316Ti

With special grease lubricated, FDA compliant, class H1

Information

Horizontally elongated heavy duty hinges GN 237.3 are designed for use under tough conditions. Attachment points with a wider spacing and more installation holes allow a more effective introduction of force into the mounting surface. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks.

The material of the hinge leaves (Version NI) is very robust and, thanks to the martensite structure, is suitable for use in aggressive environments, albeit subject to some restrictions. The heavy-duty hinges (Version A4) can also be used in particularly aggressive environments thanks to the materials used. Wear is minimized by the effective friction pairing of the hinge components and lubrication.

The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.

Accessory

GN 2370 Spacer Plates
GN 2372 Plates
GN 2374 Rubber Bumber Stops

Technical information

List of Hinges Types

Stainless Steel Characteristics

Load Rating Information of Hinges

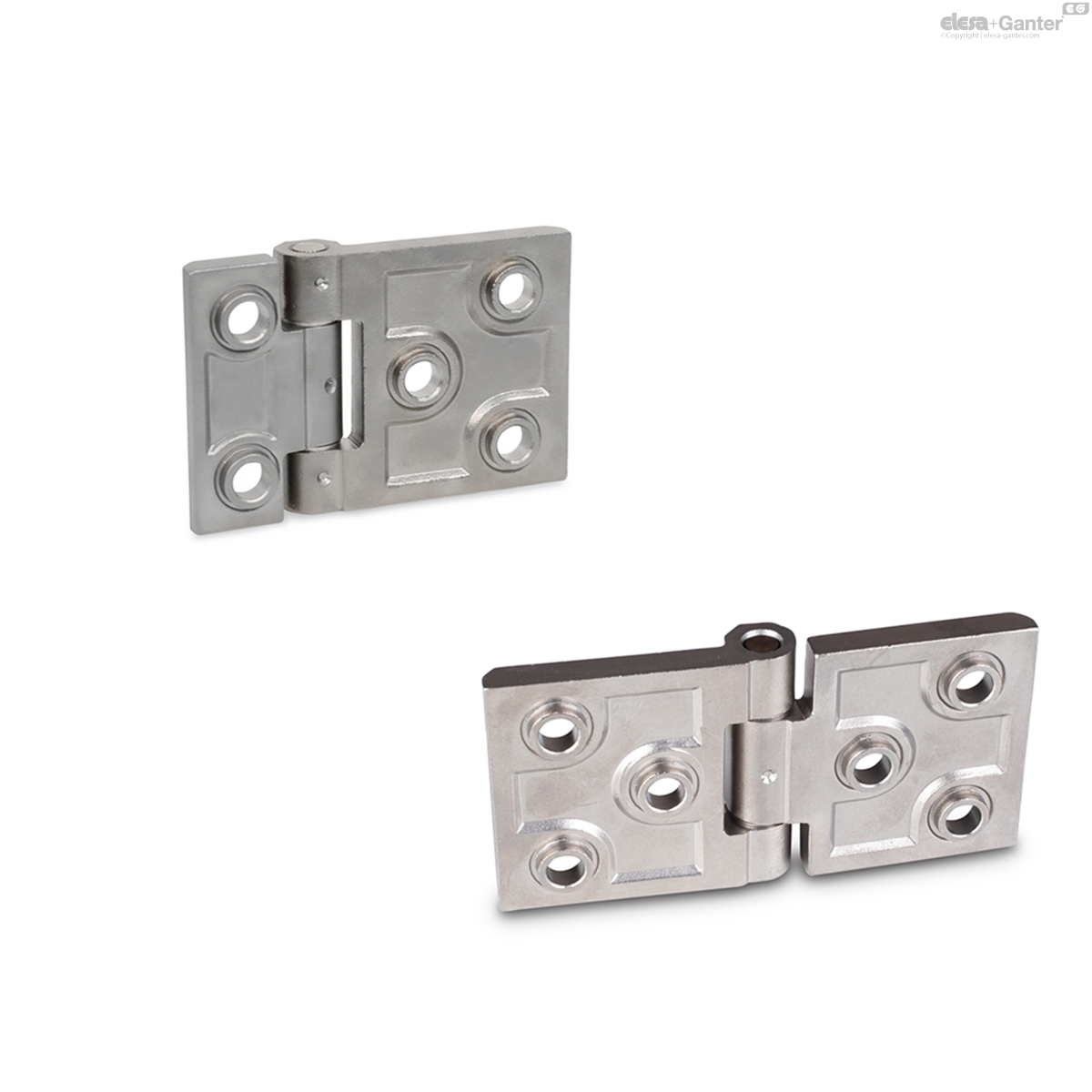

GN 237.3-NI-B

	Color	l₁ elongated on one side	l₁ elongated on both sides	l₂	d₁	d₂	d₃	d₄ +0.5	h₁	h₂	h₃	h₄	h₅	l₃	l₄	m₁	m₂	m₃	m₄	m₅
Code																						Actions
GN 237.3-NI-63-50-B-GS	GS - Matte shot-blasted	63	-	50	6.3	6	9.5	10	12.5	6	6.5	2	13	21	34	-	30	13	15	15	143
GN 237.3-NI-63-50-B-SW	SW - RAL 9005	63	-	50	6.3	6	9.5	10	12.5	6	6.5	2	13	21	34	-	30	13	15	15	143
GN 237.3-NI-76-50-B-GS	GS - Matte shot-blasted	-	76	50	6.3	6	9.5	10	12.5	6	6.5	2	13	34	34	30	30	13	-	-	169
GN 237.3-NI-76-50-B-SW	SW - RAL 9005	-	76	50	6.3	6	9.5	10	12.5	6	6.5	2	13	34	34	30	30	13	-	-	169
GN 237.3-NI-90-60-B-GS	GS - Matte shot-blasted	90	-	60	8.3	8	12.5	13	16	8	8.5	3	17	25.5	56	-	36	22.5	18	22.5	320
GN 237.3-NI-90-60-B-SW	SW - RAL 9005	90	-	60	8.3	8	12.5	13	16	8	8.5	3	17	25.5	56	-	36	22.5	18	22.5	320
GN 237.3-NI-120-60-B-GS	GS - Matte shot-blasted	-	120	60	8.3	8	12.5	13	16	8	8.5	3	17	56	56	45	36	22.5	-	-	423
GN 237.3-NI-120-60-B-SW	SW - RAL 9005	-	120	60	8.3	8	12.5	13	16	8	8.5	3	17	56	56	45	36	22.5	-	-	423
GN 237.3-NI-120-80-B-GS	GS - Matte shot-blasted	120	-	80	10.3	10	14.5	15	20	10	10.5	4	21	36	75	-	50	30	25	30	712
GN 237.3-NI-120-80-B-SW	SW - RAL 9005	120	-	80	10.3	10	14.5	15	20	10	10.5	4	21	36	75	-	50	30	25	30	712
GN 237.3-NI-160-80-B-GS	GS - Matte shot-blasted	-	160	80	10.3	10	14.5	15	20	10	10.5	4	21	75	75	60	50	30	-	-	910
GN 237.3-NI-160-80-B-SW	SW - RAL 9005	-	160	80	10.3	10	14.5	15	20	10	10.5	4	21	75	75	60	50	30	-	-	910
