Home Tube Clamp Connectors Tube clamp connectors GN 231

GN 231

Tube supports

Aluminium / split assembly

Enquire Now

Description

Specification

Identification No.

No. 2: with 2 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

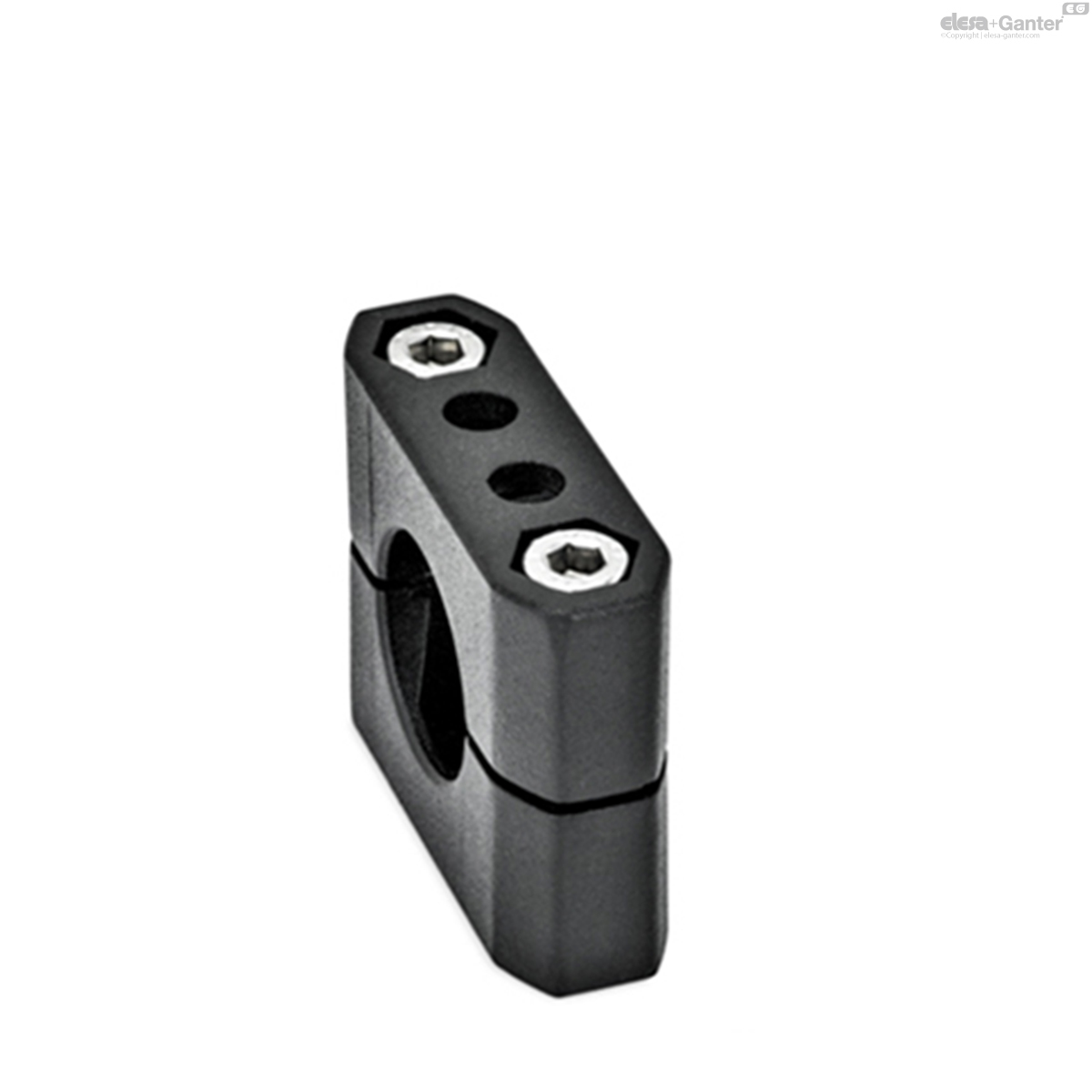

black, RAL 9005, textured finish SW

blank

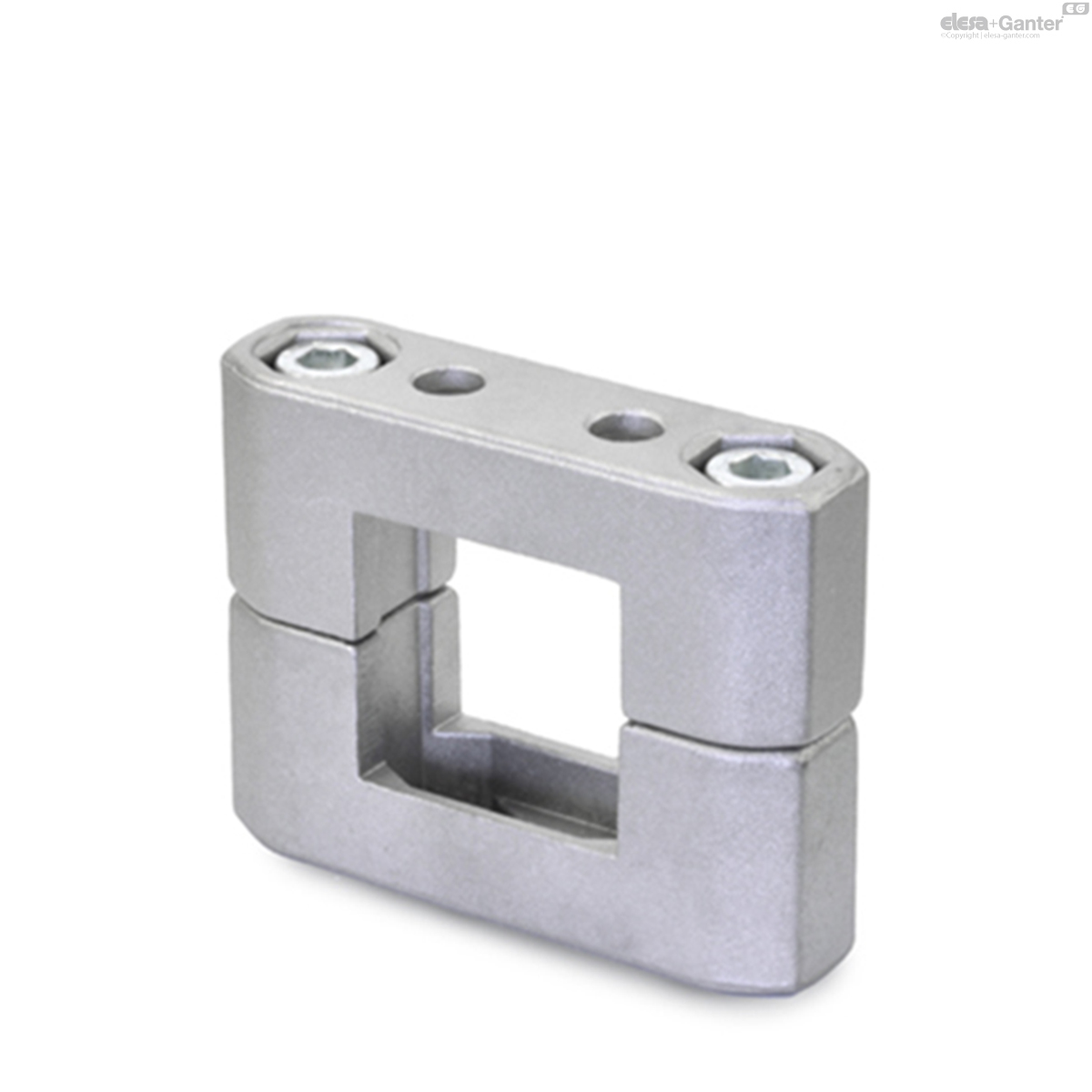

matt shot-blasted BL

Clamping bores not machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

Information

The clamping bores of GN 231 tube supports are not machined and specially designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

GN 231 tube supports are also suitable for mounting on profile systems.

The standard clamping screws are socket cap screws DIN 912. They can be replaced by adjustable clamping kits GN 911 (article code see table of dimensions).

Accessory

Clamping kits GN 911

Technical information

Stainless Steel characteristics

GN 231

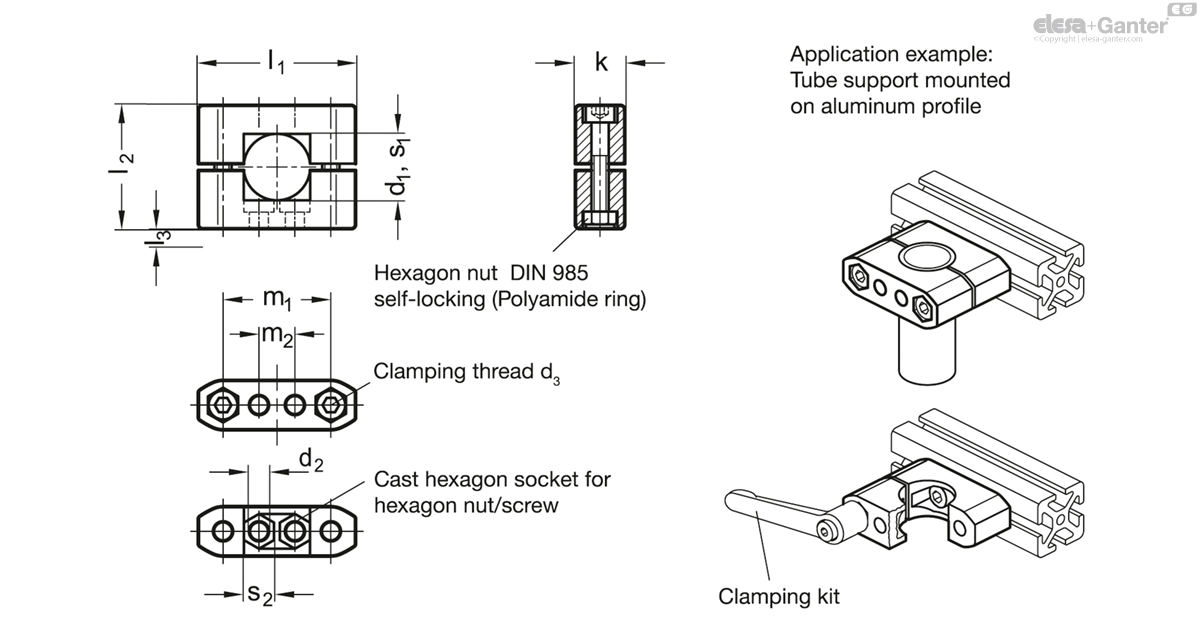

	Color	d₁	s₁	d₂	d₃	k	l₁	l₂	l₃	m₁	m₂	s₂	Clamping kit for d₃
Code															Actions
GN 231-B8-2-BL	BL - Blank	B 8	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	50
GN 231-B8-2-SW	SW - RAL 9004	B 8	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	50
GN 231-B10-2-BL	BL - Blank	B 10	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	65
GN 231-B10-2-SW	SW - RAL 9004	B 10	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	65
GN 231-B12-2-BL	BL - Blank	B 12	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	62
GN 231-B12-2-SW	SW - RAL 9004	B 12	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	62
GN 231-B14-2-BL	BL - Blank	B 14	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-B14-2-SW	SW - RAL 9004	B 14	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-B15-2-BL	BL - Blank	B 15	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-B15-2-SW	SW - RAL 9004	B 15	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-B16-2-BL	BL - Blank	B 16	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-B16-2-SW	SW - RAL 9004	B 16	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-B18-2-BL	BL - Blank	B 18	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	59
GN 231-B18-2-SW	SW - RAL 9004	B 18	-	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	59
GN 231-B20-2-BL	BL - Blank	B 20	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	170
GN 231-B20-2-SW	SW - RAL 9004	B 20	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	170
GN 231-B25-2-BL	BL - Blank	B 25	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	163
GN 231-B25-2-SW	SW - RAL 9004	B 25	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	163
GN 231-B30-2-BL	BL - Blank	B 30	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	158
GN 231-B30-2-SW	SW - RAL 9004	B 30	-	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	158
GN 231-B40-2-BL	BL - Blank	B 40	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	360
GN 231-B40-2-SW	SW - RAL 9004	B 40	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	360
GN 231-B42-2-BL	BL - Blank	B 42	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	375
GN 231-B42-2-SW	SW - RAL 9004	B 42	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	375
GN 231-B45-2-BL	BL - Blank	B 45	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	375
GN 231-B45-2-SW	SW - RAL 9004	B 45	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	375
GN 231-B48-2-BL	BL - Blank	B 48	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	350
GN 231-B48-2-SW	SW - RAL 9004	B 48	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	350
GN 231-B50-2-BL	BL - Blank	B 50	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-80	340
GN 231-B50-2-SW	SW - RAL 9004	B 50	-	11	M 10	27	100	80	5	73	30	17	GN 911-M10-80	340
GN 231-B60-2-BL	BL - Blank	B 60	-	11	M 10	27	100	90	5	78	30	17	GN 911-M10-80	385
GN 231-B60-2-SW	SW - RAL 9004	B 60	-	11	M 10	27	100	90	5	78	30	17	GN 911-M10-80	385
GN 231-V8-2-BL	BL - Blank	-	V 8	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	65
GN 231-V8-2-SW	SW - RAL 9004	-	V 8	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	65
GN 231-V10-2-BL	BL - Blank	-	V 10	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-V10-2-SW	SW - RAL 9004	-	V 10	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	64
GN 231-V12-2-BL	BL - Blank	-	V 12	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	63
GN 231-V12-2-SW	SW - RAL 9004	-	V 12	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	63
GN 231-V14-2-BL	BL - Blank	-	V 14	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	62
GN 231-V14-2-SW	SW - RAL 9004	-	V 14	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	62
GN 231-V15-2-BL	BL - Blank	-	V 15	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V15-2-SW	SW - RAL 9004	-	V 15	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V16-2-BL	BL - Blank	-	V 16	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V16-2-SW	SW - RAL 9004	-	V 16	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V18-2-BL	BL - Blank	-	V 18	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V18-2-SW	SW - RAL 9004	-	V 18	6.2	M 6	17	52	38	3.5	36	10.5	10	GN 911-M6-32	61
GN 231-V20-2-BL	BL - Blank	-	V 20	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	162
GN 231-V20-2-SW	SW - RAL 9004	-	V 20	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	162
GN 231-V25-2-BL	BL - Blank	-	V 25	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	157
GN 231-V25-2-SW	SW - RAL 9004	-	V 25	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	157
GN 231-V30-2-BL	BL - Blank	-	V 30	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	155
GN 231-V30-2-SW	SW - RAL 9004	-	V 30	8.5	M 8	22	70	55	4	48	16	13	GN 911-M8-50	155
GN 231-V40-2-BL	BL - Blank	-	V 40	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	340
GN 231-V40-2-SW	SW - RAL 9004	-	V 40	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	340
GN 231-V45-2-BL	BL - Blank	-	V 45	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	380
GN 231-V45-2-SW	SW - RAL 9004	-	V 45	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	380
GN 231-V50-2-BL	BL - Blank	-	V 50	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	331
GN 231-V50-2-SW	SW - RAL 9004	-	V 50	11	M 10	27	100	80	5	73	30	17	GN 911-M10-70	331
GN 231-V60-2-BL	BL - Blank	-	V 60	11	M 10	27	100	90	5	78	30	17	GN 911-M10-80	369
GN 231-V60-2-SW	SW - RAL 9004	-	V 60	11	M 10	27	100	90	5	78	30	17	GN 911-M10-80	369
