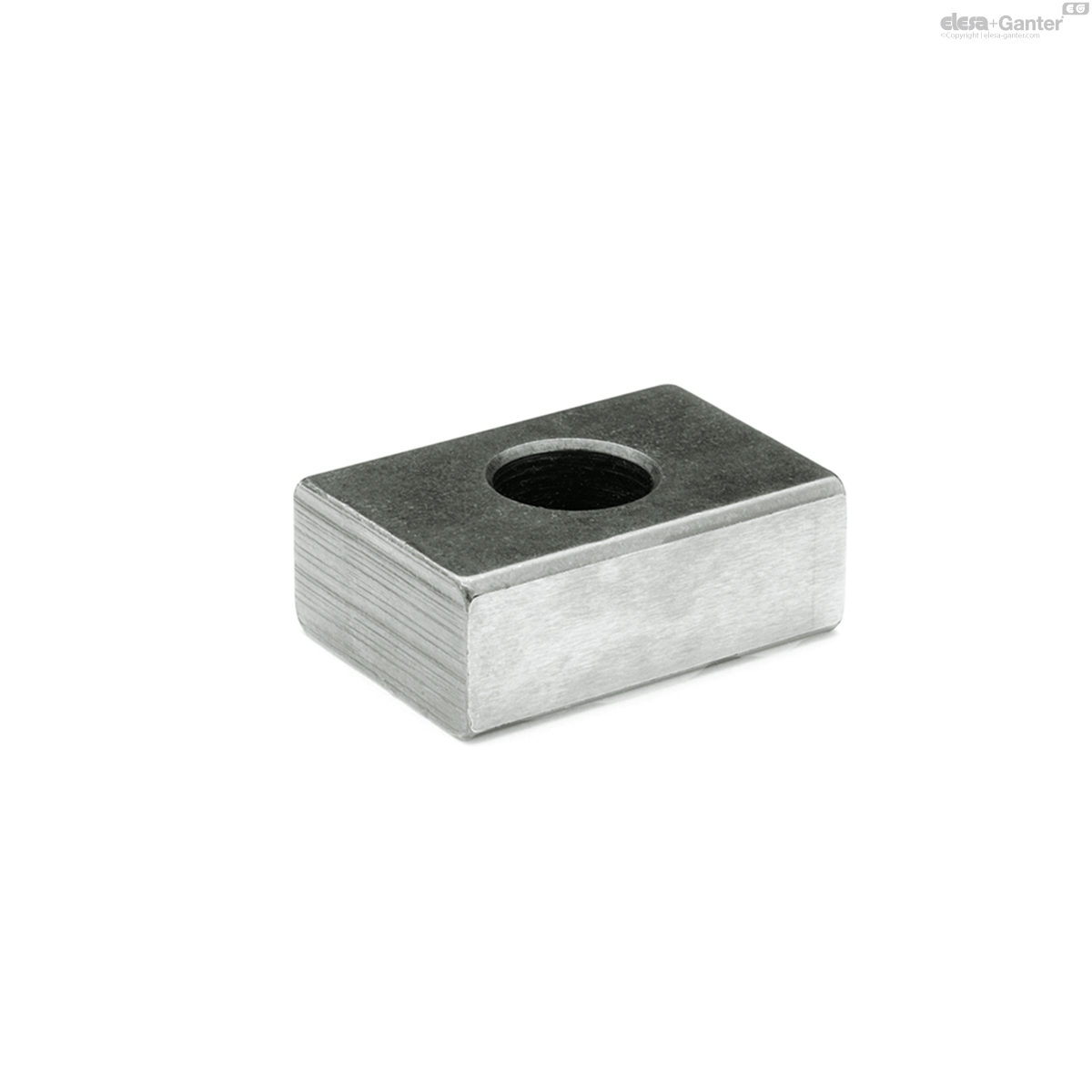

GN 230
Shallow T-Nuts
Description
Specification
Steel
- case hardened
- blackened
Information
Shallow T-nuts GN 230 are used for aligning and positioning of jigs and fixtures on machining tables with T-slots DIN 650.
For this purpose they are inserted into the aligning slots of the jig or fixture.
Technical information
- ISO-Fundamental TolerancesÂ
GN 230

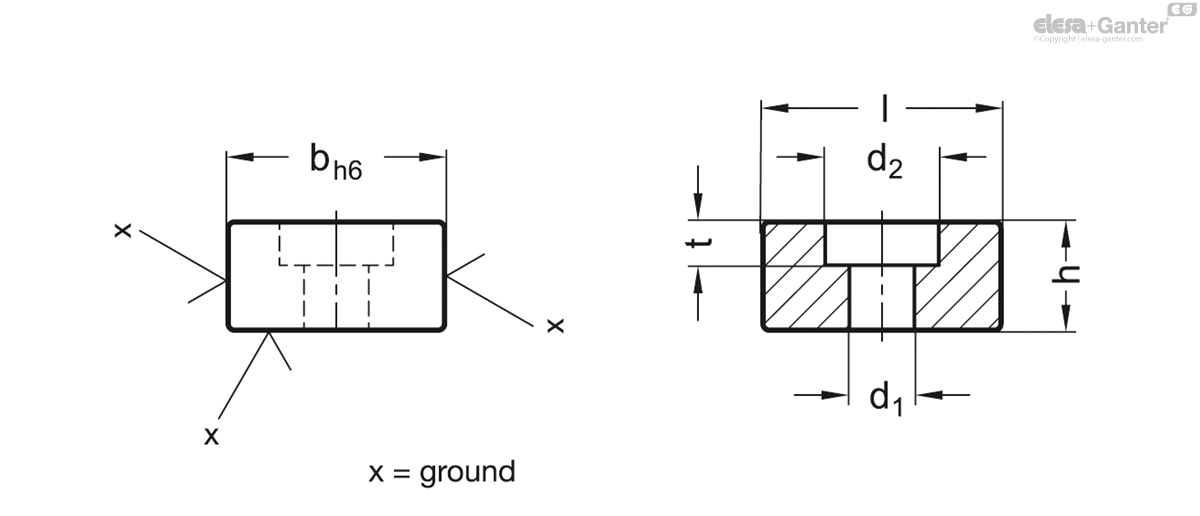

| b h6 | d1 | d2 | h | l | t | For screws DIN 84 DIN 912 |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 230-10 | 10 | 4.5 | 8 | 8 | 20 | 4.3 | M4 x 10 | 10 |
|
| GN 230-12 | 12 | 5.5 | 10 | 8 | 20 | 5.3 | M5x12 | 9 |
|
| GN 230-14 | 14 | 6.6 | 11 | 10 | 22 | 6.3 | M6x16 | 19 |
|
| GN 230-16 | 16 | 6.6 | 11 | 10 | 22 | 6.3 | M6x16 | 20 |
|
| GN 230-18 | 18 | 6.6 | 11 | 10 | 22 | 6.3 | M6x16 | 25 |
|
| GN 230-20 | 20 | 6.6 | 11 | 10 | 22 | 6.3 | M6x16 | 28 |
|
| GN 230-22 | 22 | 6.6 | 11 | 12 | 32 | 6.3 | M6x16 | 59 |
|
