GN 23

Leveling Feet
Stainless Steel, with Turned Base Plate, with Mounting Holes
__logo__INOX__ __logo__RoHS__
Enquire Now
product image

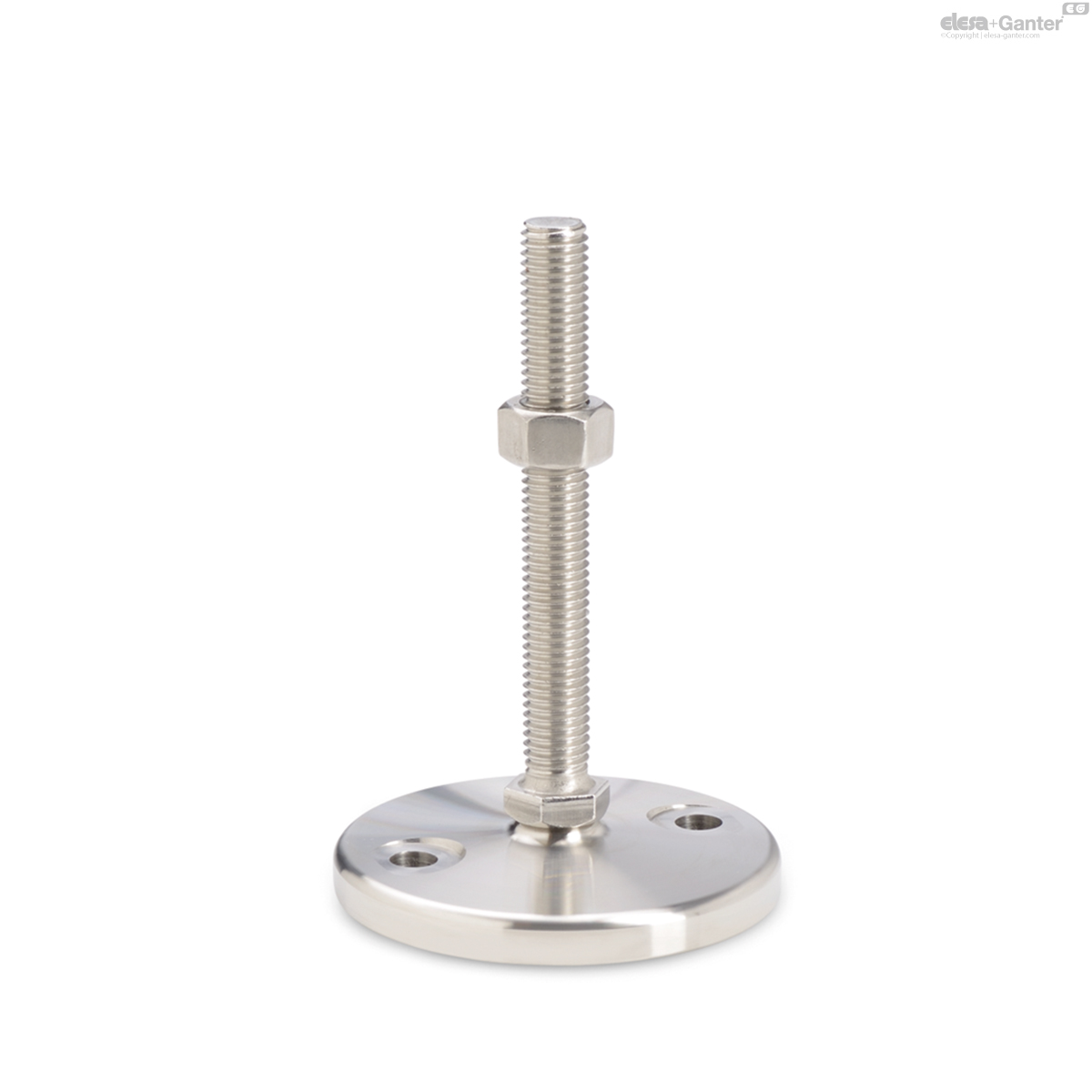

GN 23-S/SK
Leveling Feet

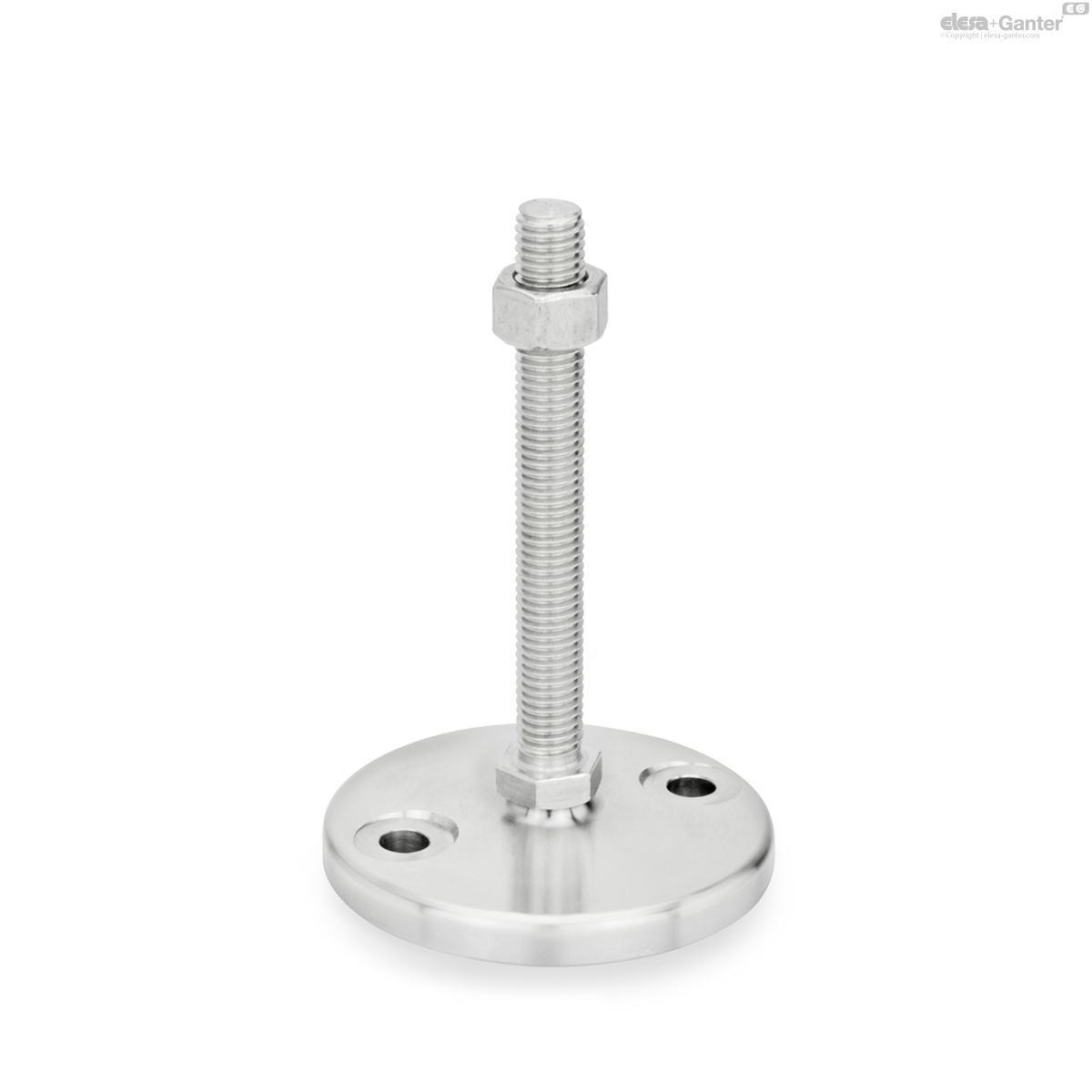

With / without nut, external hex at the bottom
product image
GN 23-T/TK
Leveling Feet

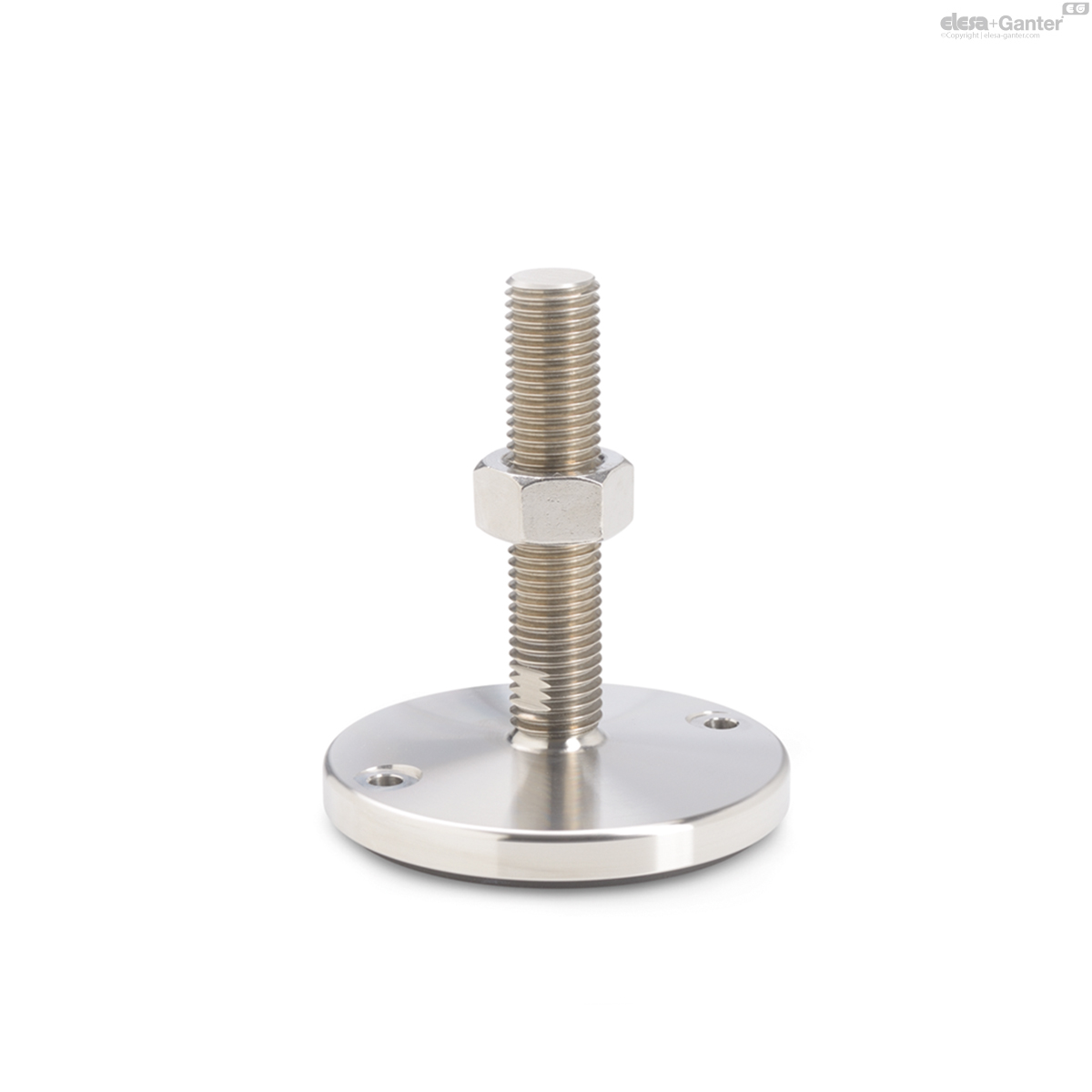

With / without nut, wrench flat at the bottom
product image
GN 23-U/UK
Leveling Feet

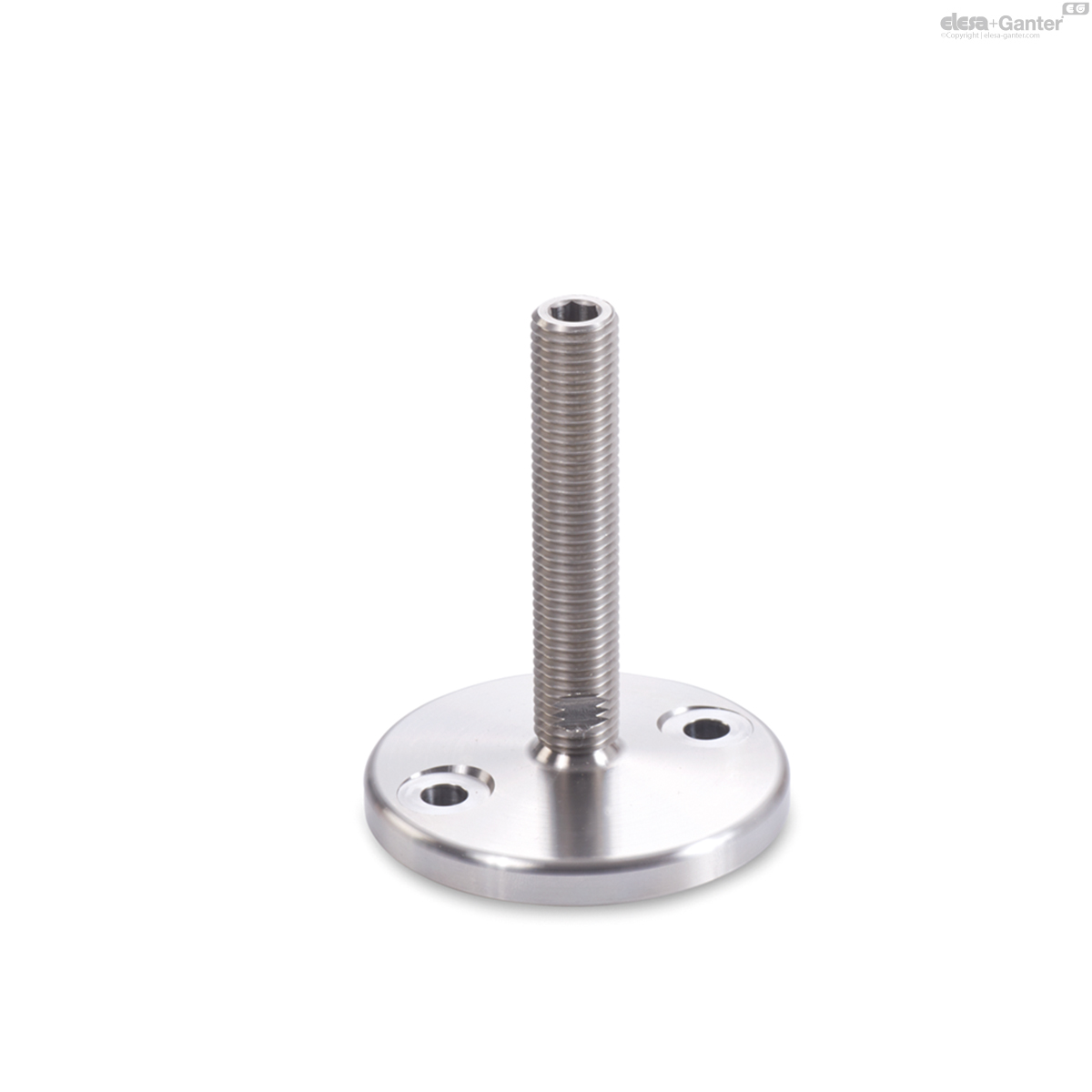

With / without nut, hex socket at the top and wrench flat at the bottom
product image
GN 23-V/VK
Leveling Feet

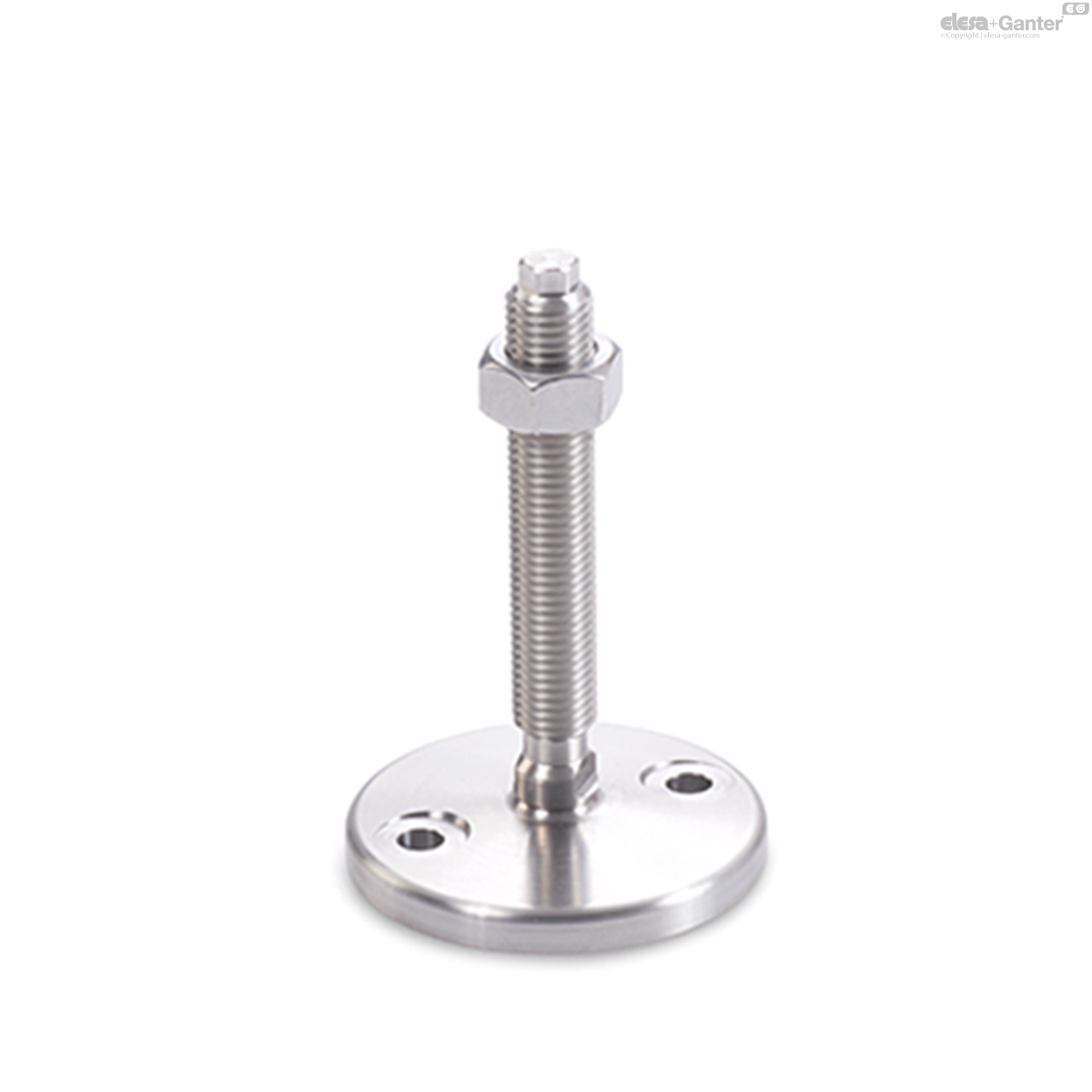

With / without nut, external hex at the top and wrench flat at the bottom
product image
GN 23-W
Leveling Feet

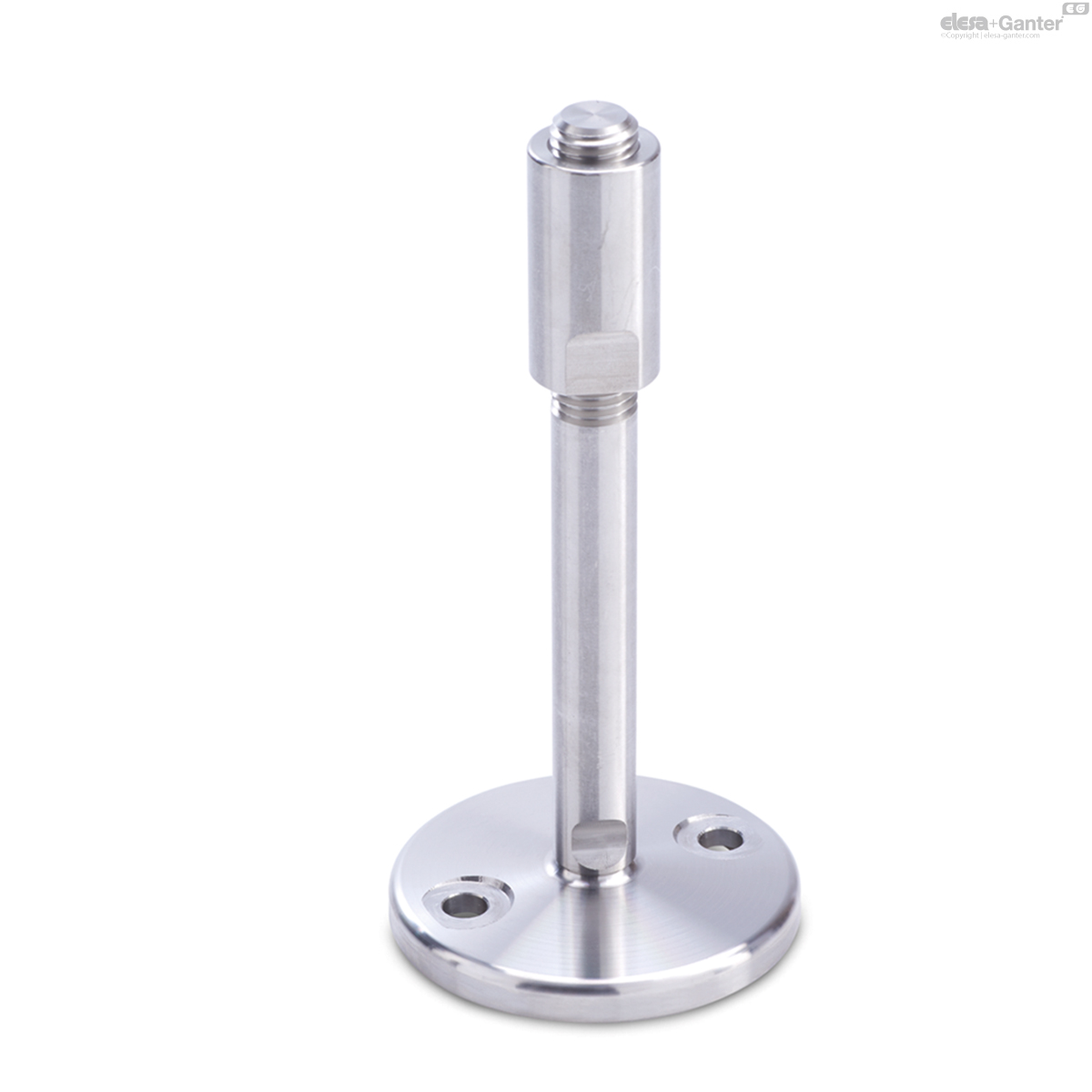

With adjustable sleeve, covered thread and wrench flat at the bottom
product image
GN 23-X
Leveling Feet

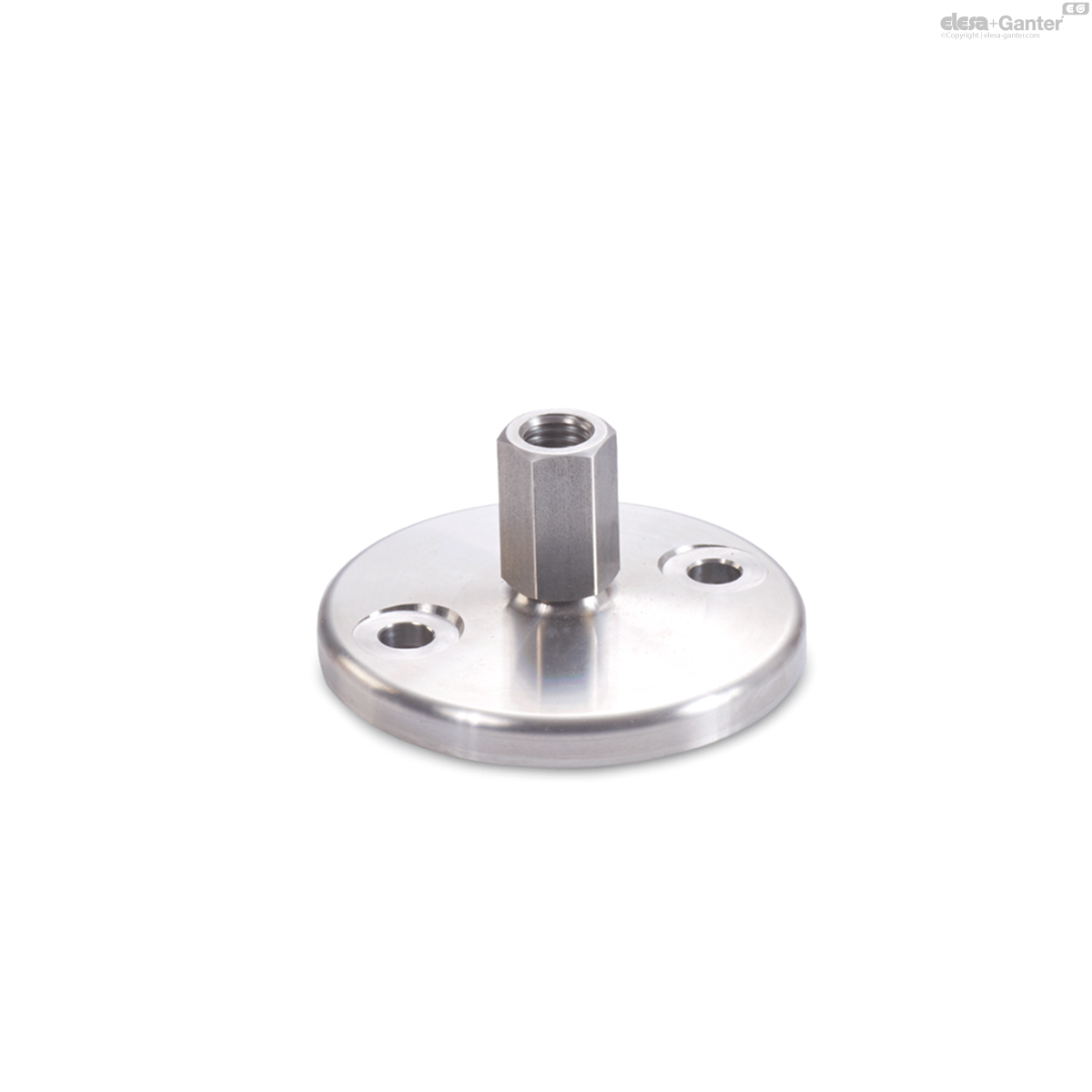

External hex with internal thread
  • product-image
  • product-image
  • product-image

Description

Specification

Type (Foot plate)

  • Type D0: Fine turned, without rubber underlay
  • Type D1: Fine turned, with rubber underlay, inlaid, black

Version of the screw

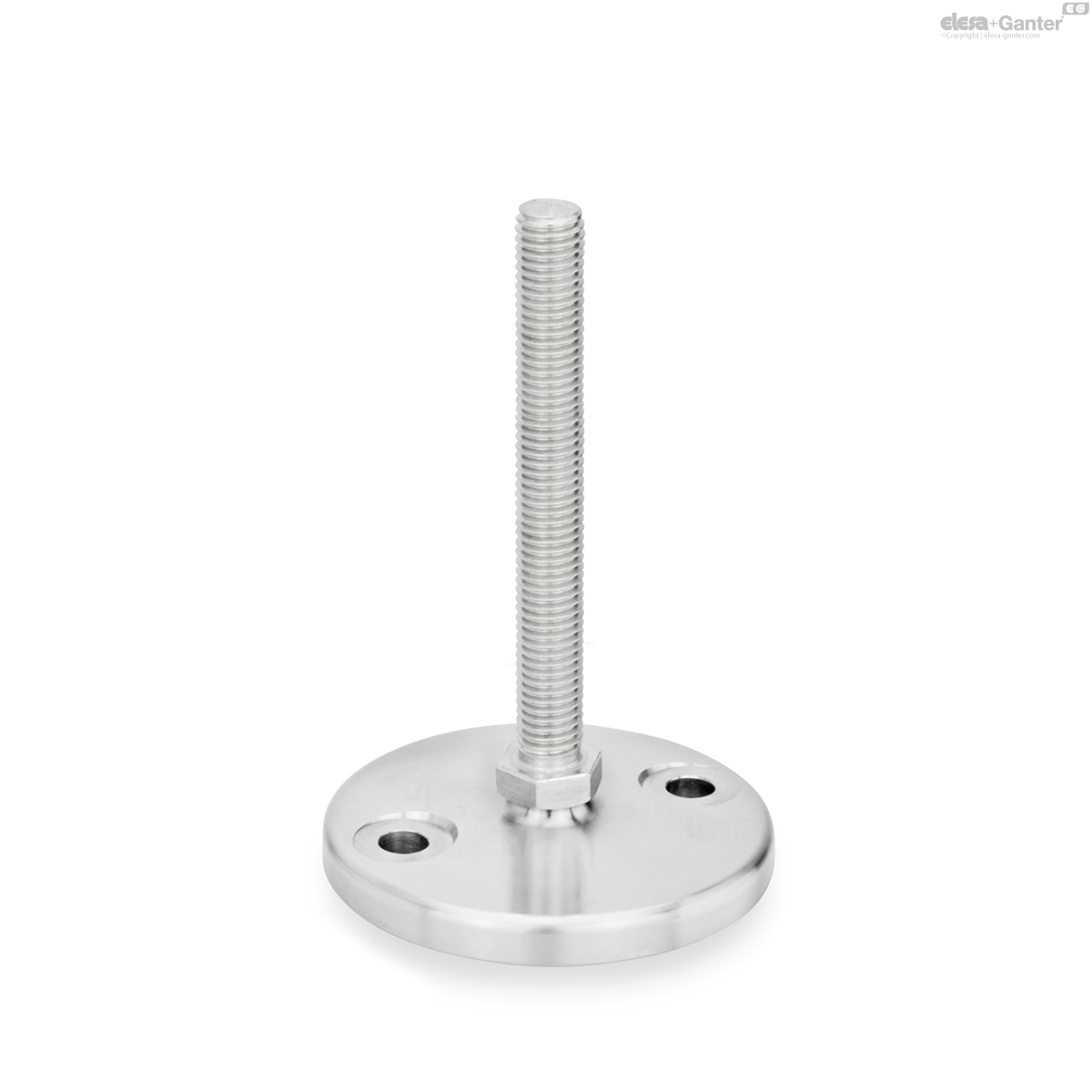

  • Version S: Without nut, external hex at the bottom
  • Version SK: With nut, external hex at the bottom
  • Version T: Without nut, wrench flat at the bottom
  • Version TK: With nut, wrench flat at the bottom
  • Version U: Without nut, hex socket at the top and wrench flat at the bottom
  • Version UK: With nut, hex socket at the top and wrench flat at the bottom
  • Version V : Without nut, external hex at the top and wrench flat at the bottom
  • Version VK: With nut, external hex at the top and wrench flat at the bottom
  • Version W: With adjustable sleeve, covered thread and wrench flat at the bottom
  • Version X: External hex with internal thread

Base plate

Stainless Steel AISI 304

Threaded stem

Stainless Steel AISI 303

Hexagon nut ISO 4032

Stainless Steel AISI 304

Rubber underlay, inlaid

NBR (Perbunan®), 70 Shore A

Information

Leveling feet GN 23 will be delivered mounted and are not removable.

Technical information
  • Plastic Characteristics
  • Stainless Steel Characteristics
Load Rating of Leveling Feet
d1d2Static load in kN----
--Versions of threaded stem----
--S / SKT / TK and U / UKV / VKWX
80M 86---17
80M 1011---17
80M 1216---17
80M 16-17212517
80M 20-28353528
80M 24-465252-
100M 86---17
100M 1011---17
100M 1216---17
100M 16-17212517
100M 20-28353528
100M 24-465252-
120M 20-28--28
120M 24-46---
120M 30-43---

At a spindle thread size M 10 and higher, the static load of the leveling feet GN 23 is limited owing to the permissible contact pressure of the adjustment spindle acting on the base plate (at a spindle strength ≥ 500 N/mm2). The values given in the table (valid for type D0 without rubber underlay) assume a clean pressure load perpendicular to the base plate. Bending and buckling stress which often occurs in practice results in a lower load-bearing capacity of the adjustment spindle and may have to be taken into account.

The details given on strength are non-binding guide values without any liability. In general, they do not constitute a warranty or quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem
Versions of threaded stem
____logo__21_NA-33635-0______logo__21_NA-33639-0______logo__21_NA-33641-0__
S / SK: External hex at the bottom at d2 M 8, M 10, M 12T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24, M 30U / UK: Hex socket at the top and wrench flat at the bottom at d2 M 16, M 20, M 24, M 30
____logo__21_NF-33643-0______logo__21_NA-33645-0______logo__21_NA-33637-0__
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24W: Covered thread and wrench flat at the bottom at d2 M 16, M 20, M 24X: External hex with internal thread at d2 M 8, M 10, M 12, M 16, M 20

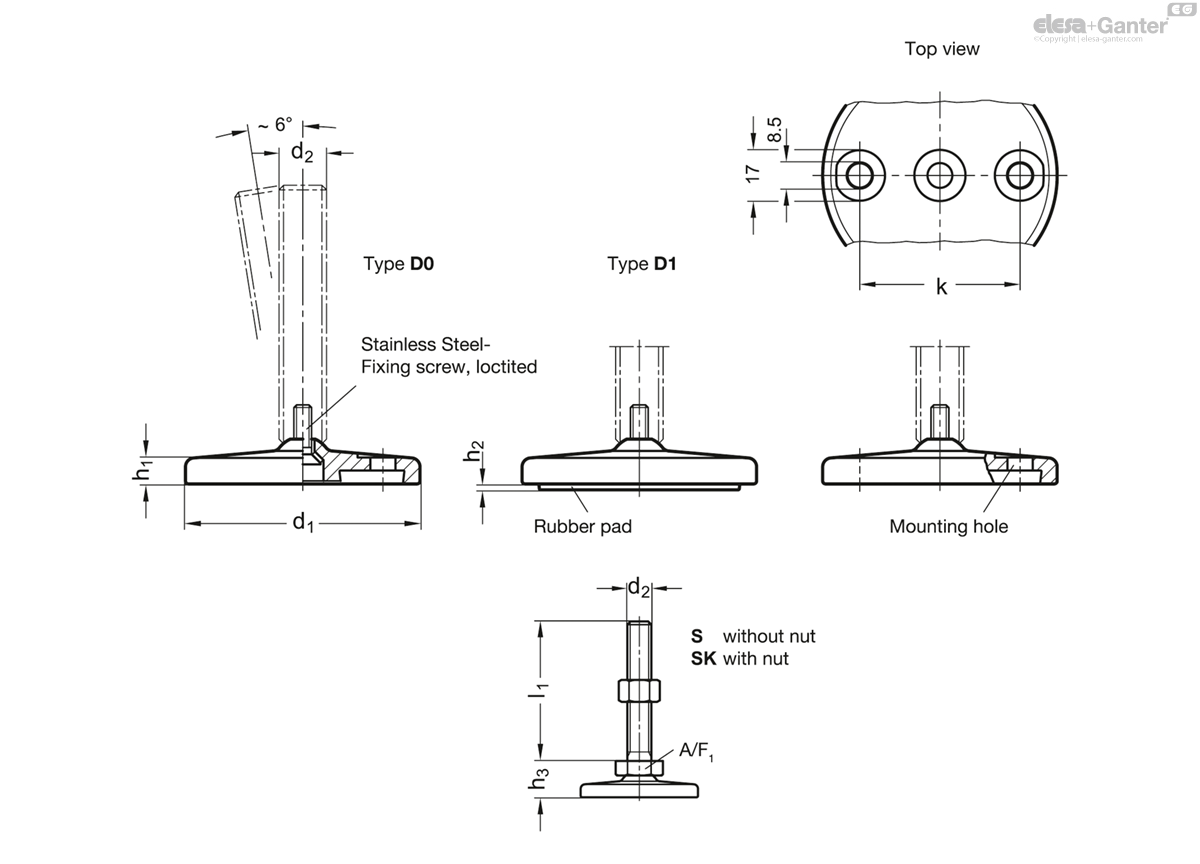

GN 23-S/SK

Color d1 d2 l1 k h1 h2 h3 A/F 1 Static load
in kN		 __logo__weight__
Code Actions
GN 23-80-M8-40-D0-S Type S 80 M 8 40 54.5 8.5 - 19.5 17 6 303 cart-icon
GN 23-80-M8-40-D0-SK SK 80 M 8 40 54.5 8.5 - 19.5 17 6 307 cart-icon
GN 23-80-M8-40-D1-S Type S 80 M 8 40 54.5 - 2 19.5 17 6 325 cart-icon
GN 23-80-M8-40-D1-SK SK 80 M 8 40 54.5 - 2 19.5 17 6 329 cart-icon
GN 23-80-M8-50-D0-S Type S 80 M 8 50 54.5 8.5 - 19.5 17 6 307 cart-icon
GN 23-80-M8-50-D0-SK SK 80 M 8 50 54.5 8.5 - 19.5 17 6 311 cart-icon
GN 23-80-M8-50-D1-S Type S 80 M 8 50 54.5 - 2 19.5 17 6 329 cart-icon
GN 23-80-M8-50-D1-SK SK 80 M 8 50 54.5 - 2 19.5 17 6 333 cart-icon
GN 23-80-M8-63-D0-S Type S 80 M 8 63 54.5 8.5 - 19.5 17 6 311 cart-icon
GN 23-80-M8-63-D0-SK SK 80 M 8 63 54.5 8.5 - 19.5 17 6 315 cart-icon
GN 23-80-M8-63-D1-S Type S 80 M 8 63 54.5 - 2 19.5 17 6 333 cart-icon
GN 23-80-M8-63-D1-SK SK 80 M 8 63 54.5 - 2 19.5 17 6 337 cart-icon
GN 23-80-M10-50-D0-S Type S 80 M 10 50 54.5 8.5 - 19.5 17 11 316 cart-icon
GN 23-80-M10-50-D0-SK SK 80 M 10 50 54.5 8.5 - 19.5 17 11 325 cart-icon
GN 23-80-M10-50-D1-S Type S 80 M 10 50 54.5 - 2 19.5 17 11 338 cart-icon
GN 23-80-M10-50-D1-SK SK 80 M 10 50 54.5 - 2 19.5 17 11 347 cart-icon
GN 23-80-M10-60-D0-S Type S 80 M 10 60 54.5 8.5 - 19.5 17 11 320 cart-icon
GN 23-80-M10-60-D0-SK SK 80 M 10 60 54.5 8.5 - 19.5 17 11 329 cart-icon
GN 23-80-M10-60-D1-S Type S 80 M 10 60 54.5 - 2 19.5 17 11 342 cart-icon
GN 23-80-M10-60-D1-SK SK 80 M 10 60 54.5 - 2 19.5 17 11 351 cart-icon
GN 23-80-M10-80-D0-S Type S 80 M 10 80 54.5 8.5 - 19.5 17 11 330 cart-icon
GN 23-80-M10-80-D0-SK SK 80 M 10 80 54.5 8.5 - 19.5 17 11 339 cart-icon
GN 23-80-M10-80-D1-S Type S 80 M 10 80 54.5 - 2 19.5 17 11 352 cart-icon
GN 23-80-M10-80-D1-SK SK 80 M 10 80 54.5 - 2 19.5 17 11 361 cart-icon
GN 23-80-M10-100-D0-S Type S 80 M 10 100 54.5 8.5 - 19.5 17 11 341 cart-icon
GN 23-80-M10-100-D0-SK SK 80 M 10 100 54.5 8.5 - 19.5 17 11 350 cart-icon
GN 23-80-M10-100-D1-S Type S 80 M 10 100 54.5 - 2 19.5 17 11 363 cart-icon
GN 23-80-M10-100-D1-SK SK 80 M 10 100 54.5 - 2 19.5 17 11 372 cart-icon
GN 23-80-M12-60-D0-S Type S 80 M 12 60 54.5 8.5 - 19.5 17 16 334 cart-icon
GN 23-80-M12-60-D0-SK SK 80 M 12 60 54.5 8.5 - 19.5 17 16 346 cart-icon
GN 23-80-M12-60-D1-S Type S 80 M 12 60 54.5 - 2 19.5 17 16 356 cart-icon
GN 23-80-M12-60-D1-SK SK 80 M 12 60 54.5 - 2 19.5 17 16 368 cart-icon
GN 23-80-M12-80-D0-S Type S 80 M 12 80 54.5 8.5 - 19.5 17 16 348 cart-icon
GN 23-80-M12-80-D0-SK SK 80 M 12 80 54.5 8.5 - 19.5 17 16 360 cart-icon
GN 23-80-M12-80-D1-S Type S 80 M 12 80 54.5 - 2 19.5 17 16 370 cart-icon
GN 23-80-M12-80-D1-SK SK 80 M 12 80 54.5 - 2 19.5 17 16 382 cart-icon
GN 23-80-M12-100-D0-S Type S 80 M 12 100 54.5 8.5 - 19.5 17 16 363 cart-icon
GN 23-80-M12-100-D0-SK SK 80 M 12 100 54.5 8.5 - 19.5 17 16 375 cart-icon
GN 23-80-M12-100-D1-S Type S 80 M 12 100 54.5 - 2 19.5 17 16 385 cart-icon
GN 23-80-M12-100-D1-SK SK 80 M 12 100 54.5 - 2 19.5 17 16 397 cart-icon
GN 23-80-M12-125-D0-S Type S 80 M 12 125 54.5 8.5 - 19.5 17 16 380 cart-icon
GN 23-80-M12-125-D0-SK SK 80 M 12 125 54.5 8.5 - 19.5 17 16 375 cart-icon
GN 23-80-M12-125-D1-S Type S 80 M 12 125 54.5 - 2 19.5 17 16 402 cart-icon
GN 23-80-M12-125-D1-SK SK 80 M 12 125 54.5 - 2 19.5 17 16 397 cart-icon
GN 23-100-M8-40-D0-S Type S 100 M 8 40 70.5 9 - 20.5 17 6 483 cart-icon
GN 23-100-M8-40-D0-SK SK 100 M 8 40 70.5 9 - 20.5 17 6 487 cart-icon
GN 23-100-M8-40-D1-S Type S 100 M 8 40 70.5 - 3 20.5 17 6 525 cart-icon
GN 23-100-M8-40-D1-SK SK 100 M 8 40 70.5 - 3 20.5 17 6 529 cart-icon
GN 23-100-M8-50-D0-S Type S 100 M 8 50 70.5 9 - 20.5 17 6 487 cart-icon
GN 23-100-M8-50-D0-SK SK 100 M 8 50 70.5 9 - 20.5 17 6 491 cart-icon
GN 23-100-M8-50-D1-S Type S 100 M 8 50 70.5 - 3 20.5 17 6 529 cart-icon
GN 23-100-M8-50-D1-SK SK 100 M 8 50 70.5 - 3 20.5 17 6 533 cart-icon
GN 23-100-M8-63-D0-S Type S 100 M 8 63 70.5 9 - 20.5 17 6 491 cart-icon
GN 23-100-M8-63-D0-SK SK 100 M 8 63 70.5 9 - 20.5 17 6 495 cart-icon
GN 23-100-M8-63-D1-S Type S 100 M 8 63 70.5 - 3 20.5 17 6 533 cart-icon
GN 23-100-M8-63-D1-SK SK 100 M 8 63 70.5 - 3 20.5 17 6 537 cart-icon
GN 23-100-M10-50-D0-S Type S 100 M 10 50 70.5 9 - 20.5 17 11 496 cart-icon
GN 23-100-M10-50-D0-SK SK 100 M 10 50 70.5 9 - 20.5 17 11 505 cart-icon
GN 23-100-M10-50-D1-S Type S 100 M 10 50 70.5 - 3 20.5 17 11 538 cart-icon
GN 23-100-M10-50-D1-SK SK 100 M 10 50 70.5 - 3 20.5 17 11 547 cart-icon
GN 23-100-M10-60-D0-S Type S 100 M 10 60 70.5 9 - 20.5 17 11 500 cart-icon
GN 23-100-M10-60-D0-SK SK 100 M 10 60 70.5 9 - 20.5 17 11 509 cart-icon
GN 23-100-M10-60-D1-S Type S 100 M 10 60 70.5 - 3 20.5 17 11 542 cart-icon
GN 23-100-M10-60-D1-SK SK 100 M 10 60 70.5 - 3 20.5 17 11 551 cart-icon
GN 23-100-M10-80-D0-S Type S 100 M 10 80 70.5 9 - 20.5 17 11 510 cart-icon
GN 23-100-M10-80-D0-SK SK 100 M 10 80 70.5 9 - 20.5 17 11 519 cart-icon
GN 23-100-M10-80-D1-S Type S 100 M 10 80 70.5 - 3 20.5 17 11 552 cart-icon
GN 23-100-M10-80-D1-SK SK 100 M 10 80 70.5 - 3 20.5 17 11 561 cart-icon
GN 23-100-M10-100-D0-S Type S 100 M 10 100 70.5 9 - 20.5 17 11 521 cart-icon
GN 23-100-M10-100-D0-SK SK 100 M 10 100 70.5 9 - 20.5 17 11 530 cart-icon
GN 23-100-M10-100-D1-S Type S 100 M 10 100 70.5 - 3 20.5 17 11 563 cart-icon
GN 23-100-M10-100-D1-SK SK 100 M 10 100 70.5 - 3 20.5 17 11 572 cart-icon
GN 23-100-M12-60-D0-S Type S 100 M 12 60 70.5 9 - 20.5 17 16 514 cart-icon
GN 23-100-M12-60-D0-SK SK 100 M 12 60 70.5 9 - 20.5 17 16 526 cart-icon
GN 23-100-M12-60-D1-S Type S 100 M 12 60 70.5 - 3 20.5 17 16 556 cart-icon
GN 23-100-M12-60-D1-SK SK 100 M 12 60 70.5 - 3 20.5 17 16 568 cart-icon
GN 23-100-M12-80-D0-S Type S 100 M 12 80 70.5 9 - 20.5 17 16 528 cart-icon
GN 23-100-M12-80-D0-SK SK 100 M 12 80 70.5 9 - 20.5 17 16 540 cart-icon
GN 23-100-M12-80-D1-S Type S 100 M 12 80 70.5 - 3 20.5 17 16 570 cart-icon
GN 23-100-M12-80-D1-SK SK 100 M 12 80 70.5 - 3 20.5 17 16 582 cart-icon
GN 23-100-M12-100-D0-S Type S 100 M 12 100 70.5 9 - 20.5 17 16 543 cart-icon
GN 23-100-M12-100-D0-SK SK 100 M 12 100 70.5 9 - 20.5 17 16 555 cart-icon
GN 23-100-M12-100-D1-S Type S 100 M 12 100 70.5 - 3 20.5 17 16 585 cart-icon
GN 23-100-M12-100-D1-SK SK 100 M 12 100 70.5 - 3 20.5 17 16 597 cart-icon
GN 23-100-M12-125-D0-S Type S 100 M 12 125 70.5 9 - 20.5 17 16 560 cart-icon
GN 23-100-M12-125-D0-SK SK 100 M 12 125 70.5 9 - 20.5 17 16 572 cart-icon
GN 23-100-M12-125-D1-S Type S 100 M 12 125 70.5 - 3 20.5 17 16 602 cart-icon
GN 23-100-M12-125-D1-SK SK 100 M 12 125 70.5 - 3 20.5 17 16 614 cart-icon
