Home Hinges Hinges GN 2295-elongated

GN 2295-elongated

Hinges

for Aluminum Profiles / Panel Elements, Three-Part, Vertically Elongated Outer Wings

Enquire Now

Description

Specification

Types

Type A: Exterior hinge leaf
Type I: Interior hinge leaf

Coding

Coding C: With countersunk holes

Hinge leaf

Aluminum

Anodized, natural color EL

Bearing bushing / Cover cap

Plastic, Polyamide (PA)

Graphite gray, RAL 7024

Tapered dowel pin ISO 8741

Steel

Zinc plated, blue passivated

Information

Hinges GN 2295 are made of drawn profiled aluminum and are used on doors and covers, for example.

Given the external hinge wing, type A hinges allow mounting with a very small door gap. The type I is fastened in the door gap. The mounting screws are therefore inaccessible and hence protected from vandalism when the door is closed.

The hinges are delivered loose and must be mounted according to the accompanying instructions. Any hinge combination may be realized (if needed, also by shortening the middle wing) thanks to the modular design and available accessories.

On request

Other lengths and hole spacings
Other finishes

Technical information

Mounting information
List of hinges types
Plastic characteristics

Mounting information

Left / right hinges

Right or left hinges can be created by the direction in which the bearing bushings are inserted into the hinge leaf.

Mounting on door frames

For mounting a door that should be removable, two hinges of the same type must be attached to the door frame.

If the door is not supposed to be removable, the door must be mounted with at least one right hinge and at least one left hinge.

Mounting

1. Position the bearing bushing with the desired installation direction on the hinge leaf. Then insert a screw with a collar such as socket button head screws ISO 7380 into the bearing bushing to protect the bearing bushing collar from damage while pounding in.

2. Pound in the bearing bushing until about 1 mm remains between the bearing bushing collar and the hinge leaf.

3. Remove the burr on the bearing bushing using a knife.

4. Pound in the bearing bushing all the way.

5. Remove the screw.

6. Pound a tapered dowel pin into the bearing bushing.

7. Place the cover cap on the opposite side of the hinge leaf.

Insert the other bearing bushings according to points 1 to 5.

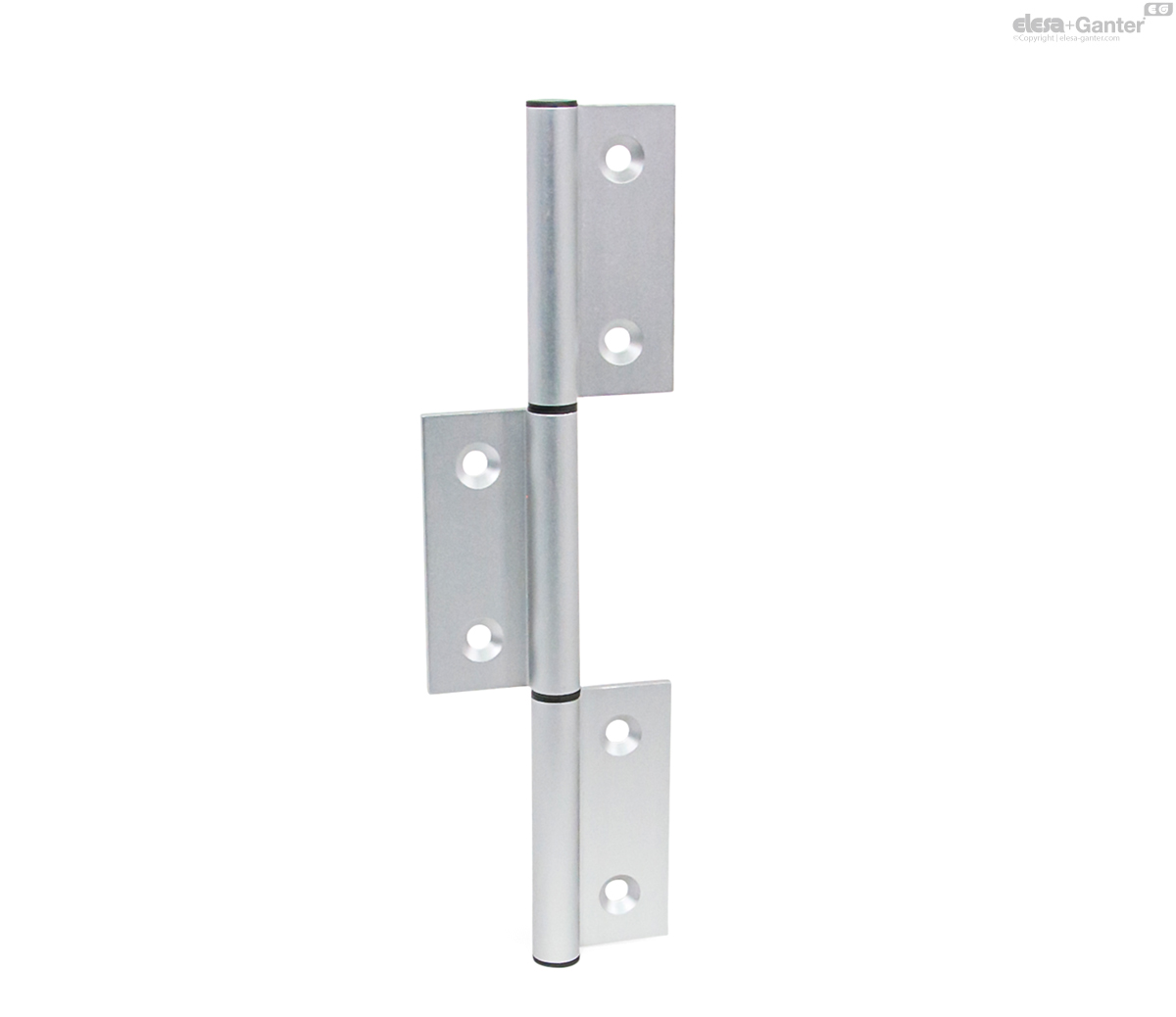

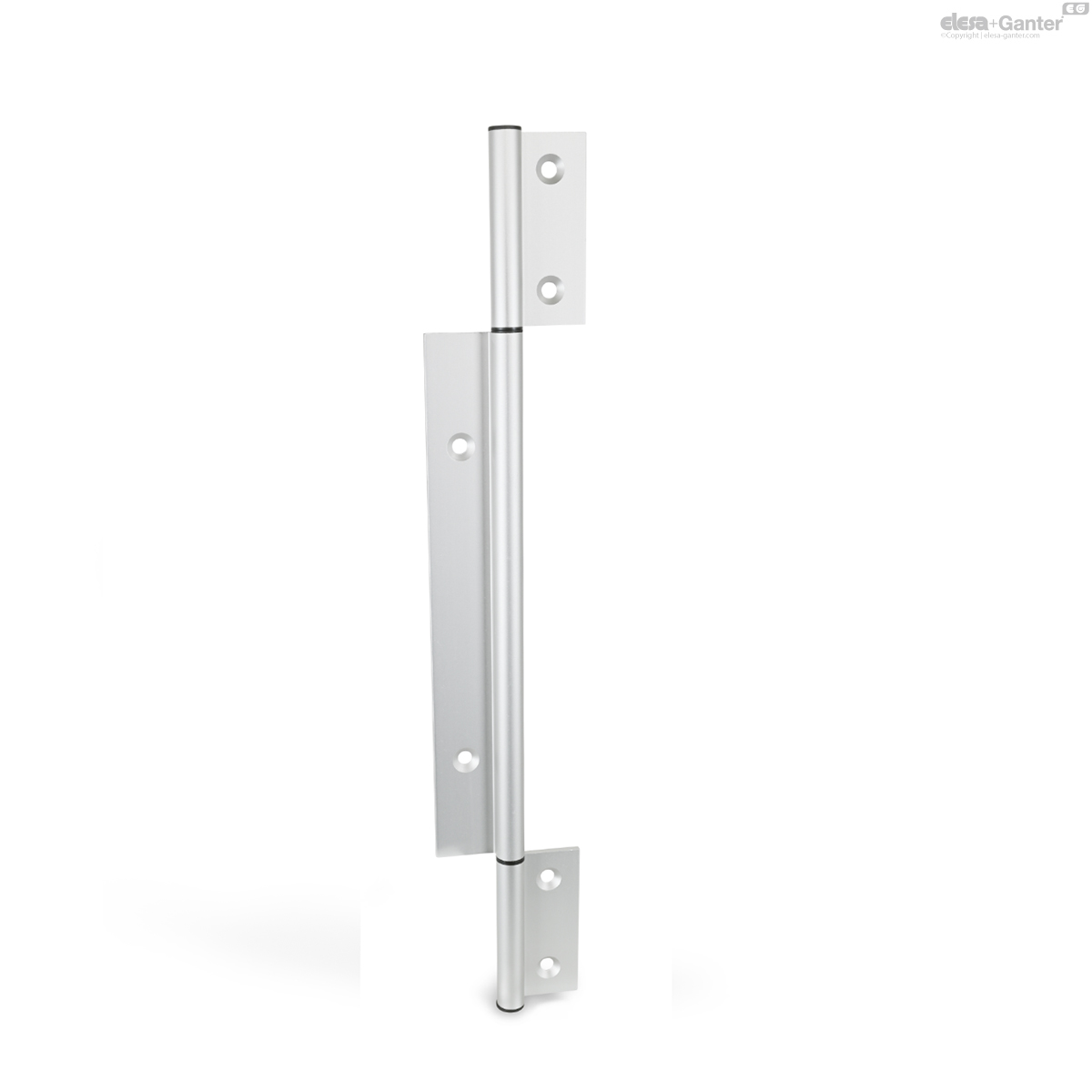

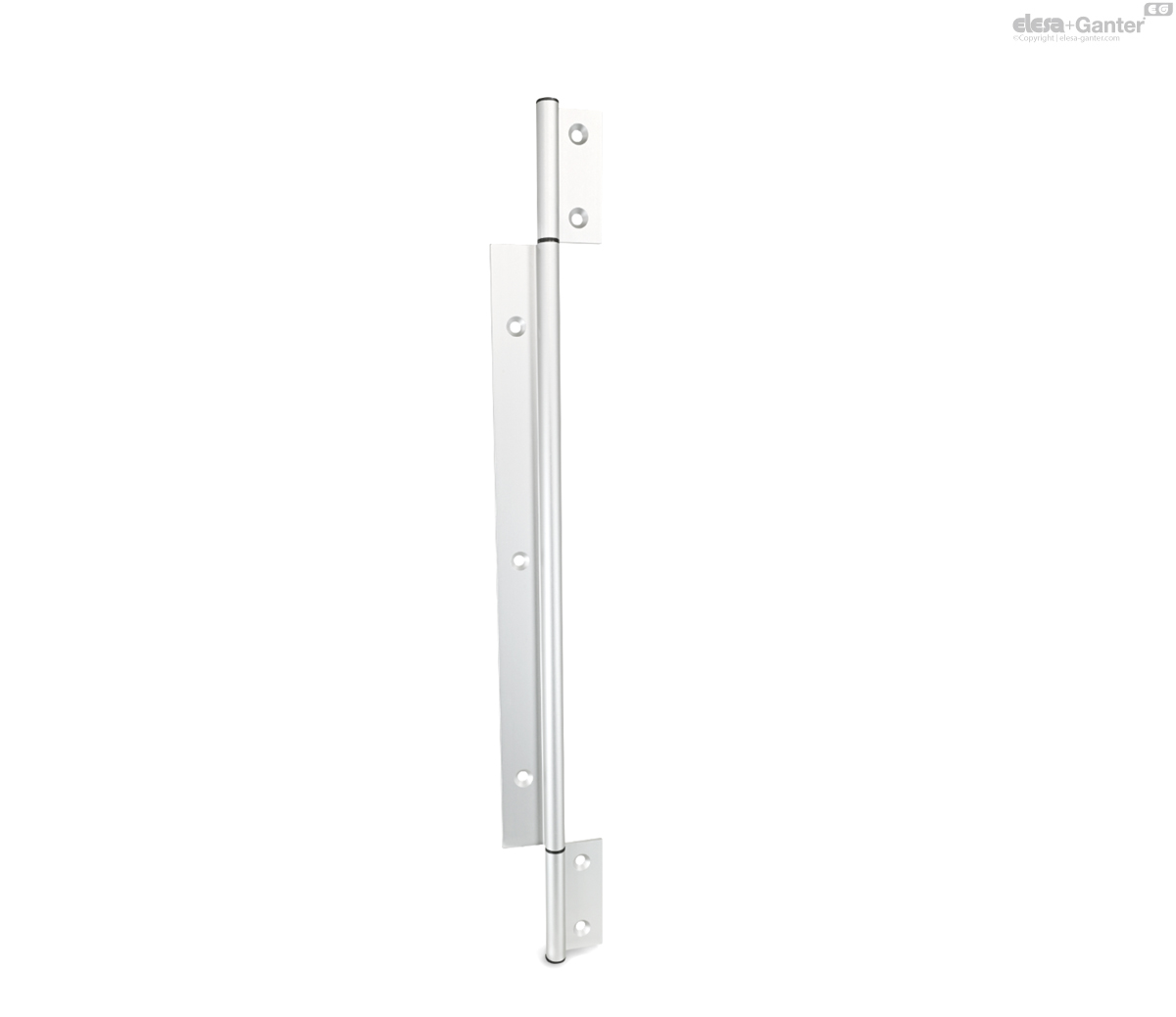

GN-2295-A

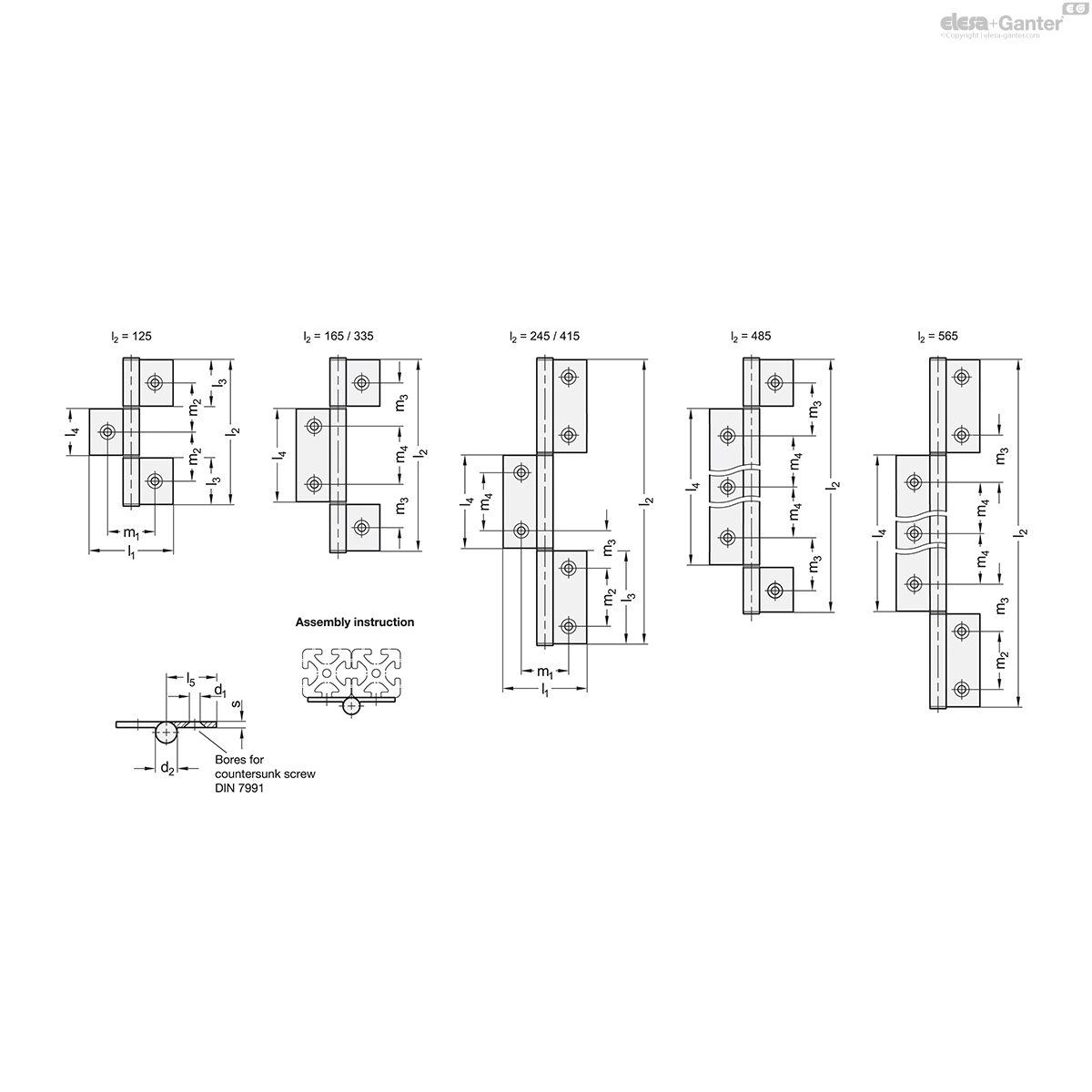

	Color	l₁	l₂	d₁	d₂	l₃	l₄	l₅	m₁	m₂	m₃	m₄	s
Code															Actions
GN 2295-72-245-A-C-EL	l2=245	72	245	6.6	14	80	80	36	40.8	50	32.5	50	3.5	167
GN 2295-72-415-A-C-EL	l2=415	72	415	6.6	14	80	250	36	40.8	50	67.5	150	3.5	266
GN 2295-72-565-A-C-EL	l2=565	72	565	6.6	14	80	400	36	40.8	50	67.5	150	3.5	353
